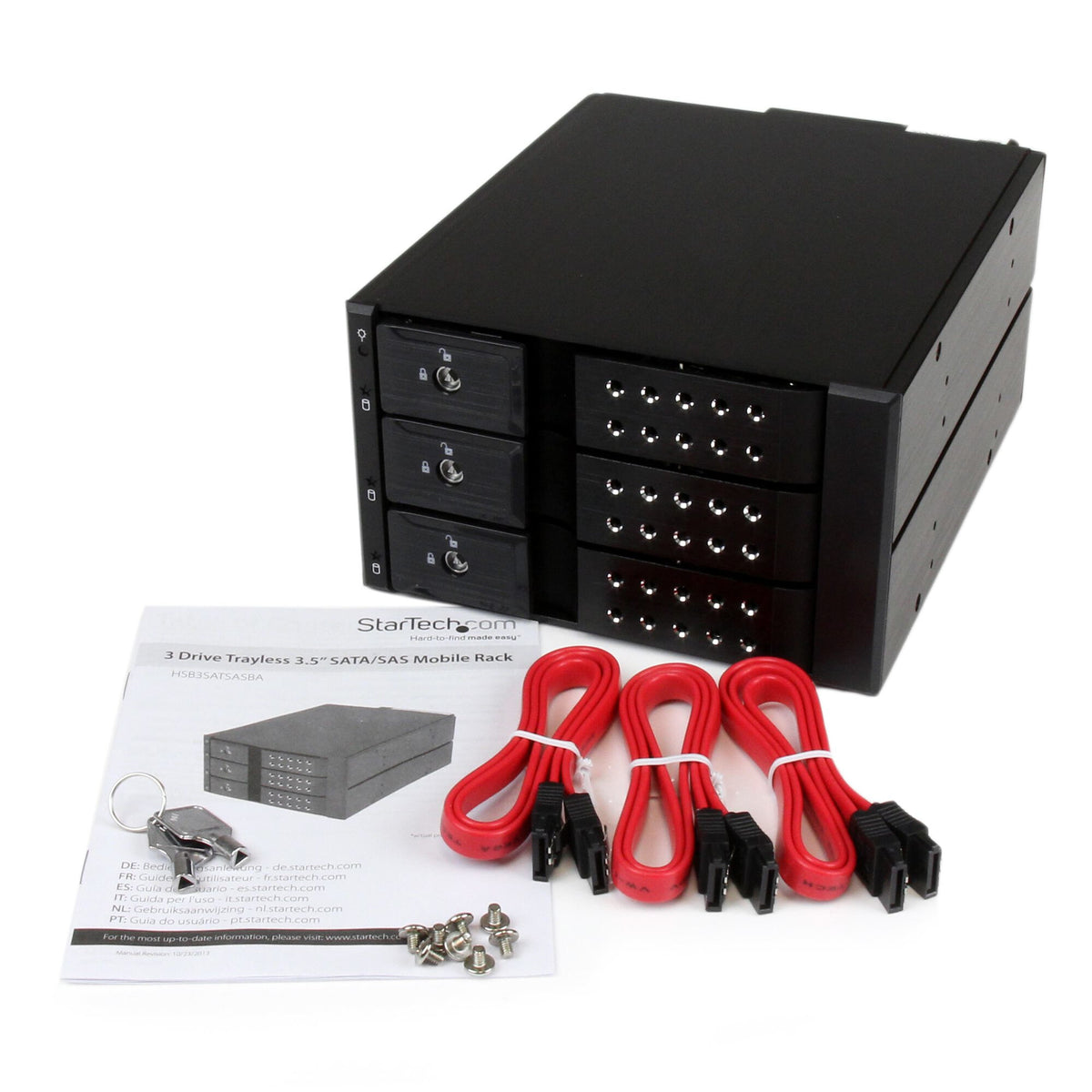

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

Regular price £115.56 GBP
Regular price Sale price £115.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:HSB3SATSASBA

Low stock: 3 left

StarTech.com 3 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III - 6 Gbps Hard Drive

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Storage
Hot-swap drive bays Yes
Data transfer rate 6 Gbit/s
Storage drive size 3.5"
Storage drive interface Serial ATA, Serial ATA II, Serial ATA III
Maximum supported storage capacity 12 TB
Number of storage drives supported 3
Supported storage drive types HDD
Installed storage drive type No
Storage drives installed No
Ports & interfaces
SATA power connector type SATA 15-pin
Number of SATA power connectors 2
SATA host port Yes
Host ports 3
Design
Number of fans 1 fan(s)
LED indicators Activity, Power
Product colour Black
Internal No
Performance
Backplanes support Yes
Weight & dimensions
Package weight 1.2 kg
Package height 123 mm
Package depth 253 mm
Package width 179 mm
Weight 1.2 kg
Height 110 mm
Depth 194.1 mm
Width 145 mm
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 8 pc(s)
Master (outer) case length 523 mm
Master (outer) case width 386 mm
Master (outer) case height 290 mm
Harmonized System (HS) code 84717020
Packaging content
Cables included SATA
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 85%
Operating temperature (T-T) 0 - 55 °C
