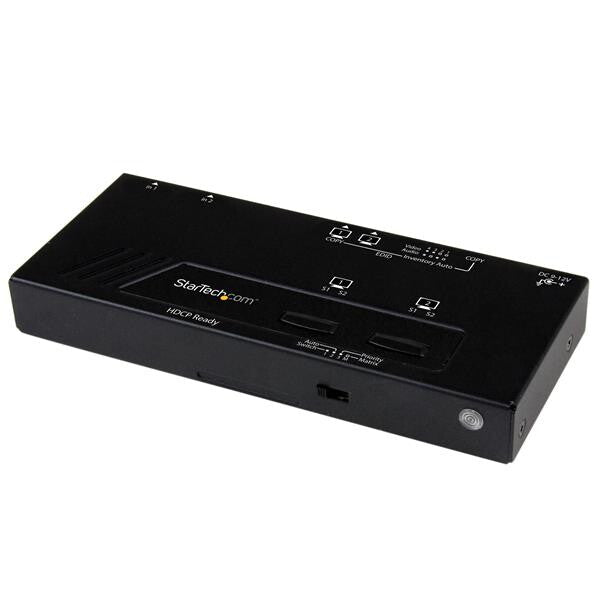

StarTech.com 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p - TAA
StarTech.com 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p - TAA
SKU:VS222HDQ
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Auto switching
- Priority switching
- Built-in manual control console
- 2x2 Matrix switching
- EDID emulation
- Video connection emulation
- Support for video resolution up to 1080p
- Mounting hardware included
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality
Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with four different switching modes:
Automatic port selection : Enables your most recently activated video source to be displayed automatically.
Priority port selection : Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Matrix port selection : Independently switch two displays between two video sources.

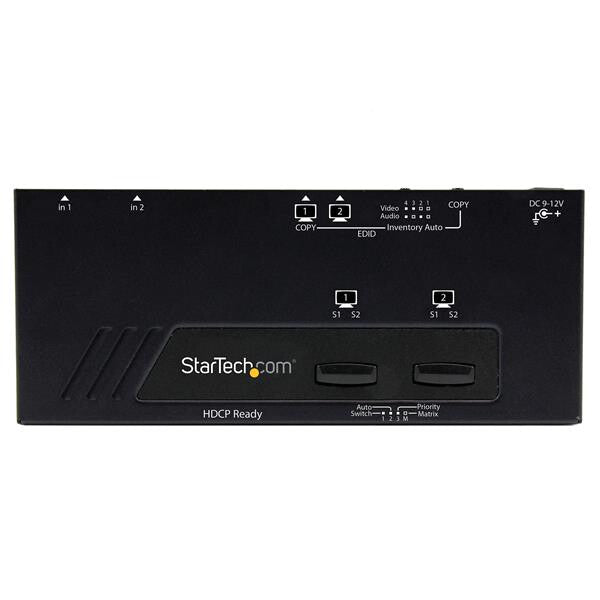

Manual port selection : Enables you to manually select your HDMI source with easy-to-use front panel buttons.
This product is TAA compliant and backed by a Startech.com 2 warranty with lifetime technical support
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| Features | |
|---|---|
| Material | Aluminium, Plastic |
| Product colour | Black |
| Maximum operating distance | 10 m |
| Supported video modes | 1080p, 720p |
| Rack mounting | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Audio output channels | 7.1 channels |
| LED indicators | Activity |
| HDCP | Yes |
| Plug and Play | Yes |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power consumption (max) | 18 W |
| Power plug type | Type M |
| Certificates | |
|---|---|
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
|---|---|
| Width | 65 mm |
| Depth | 157 mm |
| Height | 20 mm |
| Weight | 290 g |
| Packaging data | |
|---|---|
| Package width | 196 mm |
| Package depth | 294 mm |
| Package height | 76 mm |
| Package weight | 545 g |

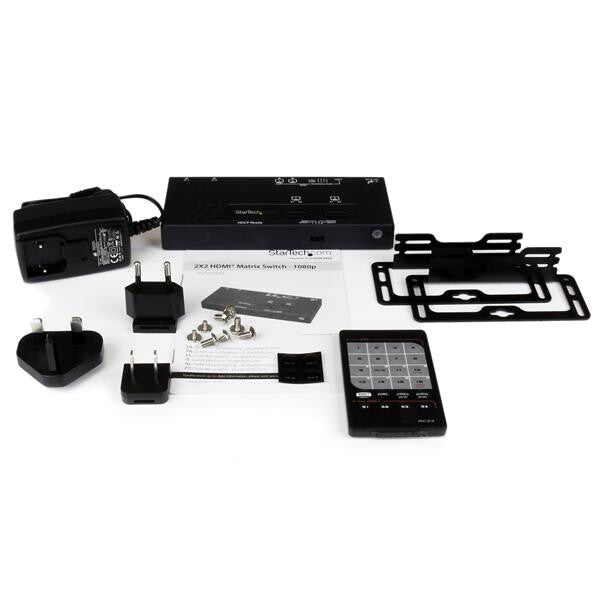

| Packaging content | |
|---|---|
| Plug adapter type | NA, EU, UK, AU |
| Manual | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 412 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 334 mm |
| Products per master (outer) case | 12 pc(s) |
