StarTech.com 24in Internal 5 pin USB IDC Motherboard Header Cable F/F
StarTech.com 24in Internal 5 pin USB IDC Motherboard Header Cable F/F
SKU:USBINT5PIN24
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2x 5pin USB header connectors
- Uses standard USB 2.0 pin out and colors assignments
- Offers 24” in cable length
Connect a front panel USB hub or card reader directly to a motherboard header connector

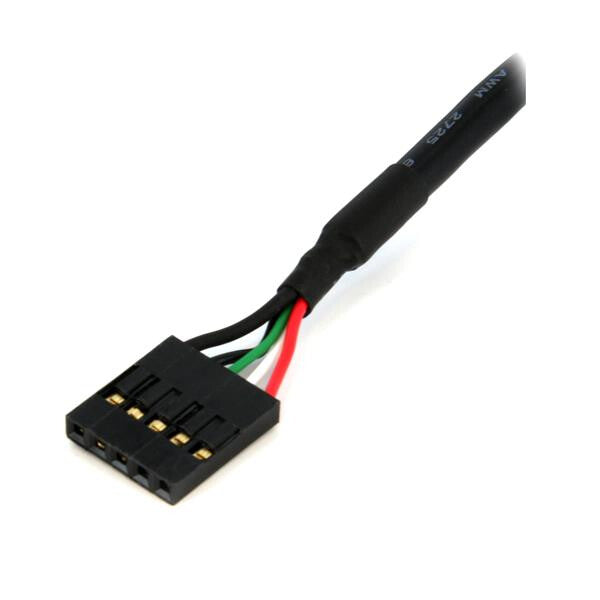

The USBINT5PIN24 Internal USB Cable features two 5-pin USB motherboard header connectors, enabling you to connect a front panel USB hub or card reader directly to the motherboard header ports.
This 24in/2ft cable provides a convenient solution for connecting multi-function front panels, or any device that relies on internal USB ports, directly to a motherboard or expansion card USB IDC (Header) connection, without having to install additional cards or run cables externally to the rear ports.
Constructed of high quality materials and expertly constructed for durable performance, the 5-pin USB Header Cable is backed by StarTech.com's Lifetime Warranty.
| Features | |
|---|---|
| Cable length | 0.609 m |
| Connector 1 | IDC |
| Connector 2 | IDC |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Certification | CE, REACH |
| Weight & dimensions | |
|---|---|
| Width | 130 mm |
| Depth | 609.6 mm |
| Height | 50 mm |
| Weight | 23 g |
| Packaging data | |
|---|---|
| Package width | 128 mm |
| Package depth | 169 mm |
| Package height | 13 mm |
| Package weight | 23 g |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 276 mm |
| Products per master (outer) case | 600 pc(s) |
