StarTech.com

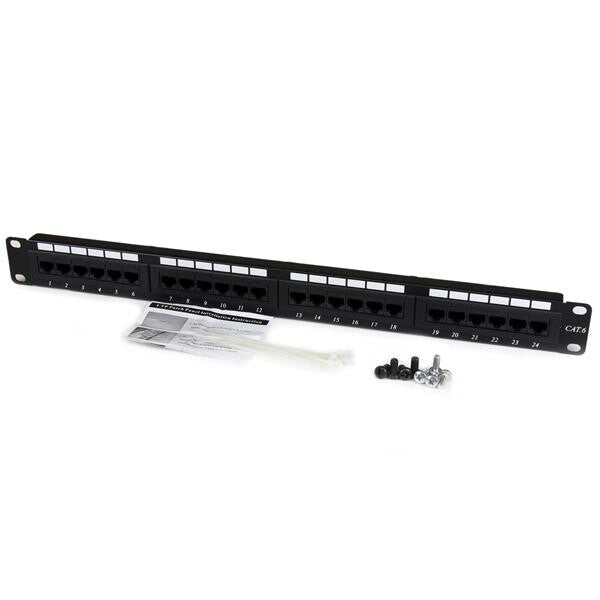

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel

C6PANEL24

£67.32 GBP£56.10 GBP
£0.00 GBP £67.32 GBP£56.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

38 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Color coded for both T568A and T568B installations
  • Terminated using 110-type punch tool
  • Supports both Cat5e and Cat6 cables
  • Writable and erasable marking surfaces for each port
  • Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
StarTech 24 Port 1U Rackmount Cat 6 110 Patch Panel - 24 port Network Patch Panel - RJ45 Ethernet 110 type Rack Mount Patch Panel 1U (C6PANEL24)

Organize up to 24 Cat6 patch cables

The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.

Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.

Network
Ports quantity 24
Connector(s) RJ-45
Design
Product colour Black
Mounting Rack mounting
Rack capacity 1U
Certification CE, ETl, UL
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 10 - 65%
Technical details
Compliance certificates RoHS
Weight & dimensions
Width 483 mm
Height 34 mm
Depth 44 mm
Weight 581 g
Packaging data
Package width 491 mm
Package depth 59 mm
Package height 47 mm
Package weight 678 g
Logistics data
Harmonized System (HS) code 85371098
Master (outer) case width 516 mm
Master (outer) case length 255 mm
Master (outer) case height 268 mm
Products per master (outer) case 20 pc(s)
