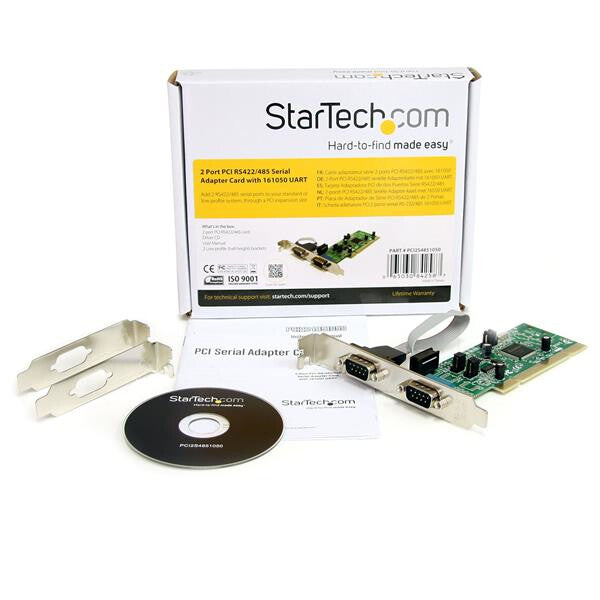

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

Regular price £119.87 GBP
Regular price Sale price £119.87 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PCI2S4851050

Low stock: 7 left

  • Internal
  • Host interface: PCI/PCI-X
  • Output interface: Serial
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
- Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
- A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
- Standard and low profile/half-height bracket included, ensuring easy installation into almost any system

Ports & interfaces
Serial interface type RS-422, RS-485
Serial ports quantity 2
Output interface Serial
Host interface PCI/PCI-X
Design
Certification CE, FCC
Internal Yes
Features
Flow control support Yes
Stop bits 1, 1.5, 2
Data bits 5, 6, 7, 8
FIFO (First In, First Out) 256 B
Baud rate 128 Kbit/s
Chipset SystemBase -SB16C1052PCI
Operational conditions
Operating relative humidity (H-H) 5 - 85%
Storage temperature (T-T) -20 - 100 °C
Operating temperature (T-T) -10 - 80 °C
Technical details
Compliance certificates RoHS
System requirements
Server operating systems supported Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Weight & dimensions
Weight 58 g
Height 45 mm
Depth 120 mm
Width 15 mm
Packaging data
Package weight 152 g
Package height 32 mm
Package depth 175 mm
Package width 145 mm
Manual Yes
Drivers included Yes
Logistics data
Harmonized System (HS) code 84733020
Other features
Compatible operating systems Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x
Data transfer rate 0.128 Mbit/s
