StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support

StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support

ECUSB3S22

£37.02 GBP£30.85 GBP
£0.00 GBP £37.02 GBP£30.85 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Internal
  • Host interface: ExpressCard
  • Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • Black

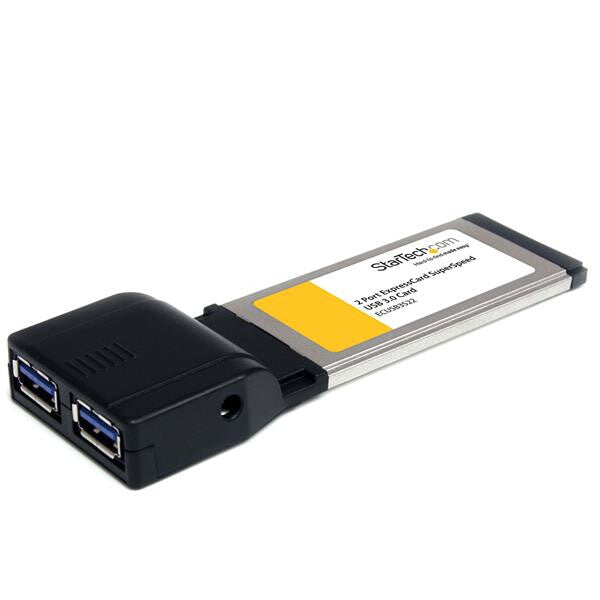

StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP - USB 3.0 Controller - USB 3.0 ExpressCard - USB 3.0 Adapter

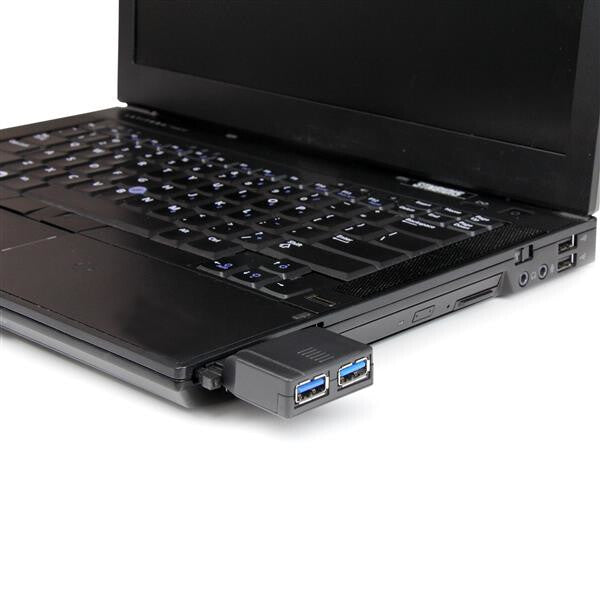

Add 2 USB 3.0 (USB 3.2 Gen 1) Ports to a Laptop through an ExpressCard Slot

The ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access.

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Output interface USB 3.2 Gen 1 (3.1 Gen 1)
Host interface ExpressCard
Design
Product colour Black
Internal Yes
Features
Chipset NEC uPD720200
Operational conditions
Operating relative humidity (H-H) 0 - 60%
Storage temperature (T-T) -20 - 150 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 33 g
Height 12 mm
Depth 115 mm
Width 40 mm
Packaging data
Package weight 119 g
Package height 32 mm
Package depth 144 mm
Package width 173 mm
Logistics data
Harmonized System (HS) code 84733020
Other features
Compatible operating systems Windows XP(32/64-bit) / Server 2003(32/64-bit) / Vista(32/64-bit) / Server 2008 R2 / 7(32/64-bit)
Data transfer rate 5 Gbit/s
