StarTech.com USB-C/USB-A to M.2 NVMe Dock Adapter, 10Gbps, Tool-Free External M.2 NVMe SSD Reader, B+M/M-Key
StarTech.com USB-C/USB-A to M.2 NVMe Dock Adapter, 10Gbps, Tool-Free External M.2 NVMe SSD Reader, B+M/M-Key
SKU:1USB3-NVME-DOCK
12 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Versatile M.2 NVMe Drive Access: Enable fast, tool-free access to an M.2 NVMe drive through a USB-C or USB-A 10Gbps host; Toaster-style M.2 slot optimizes airflow and is ideal for standard and high-performance M.2 NVMe drives with attached heat sinks

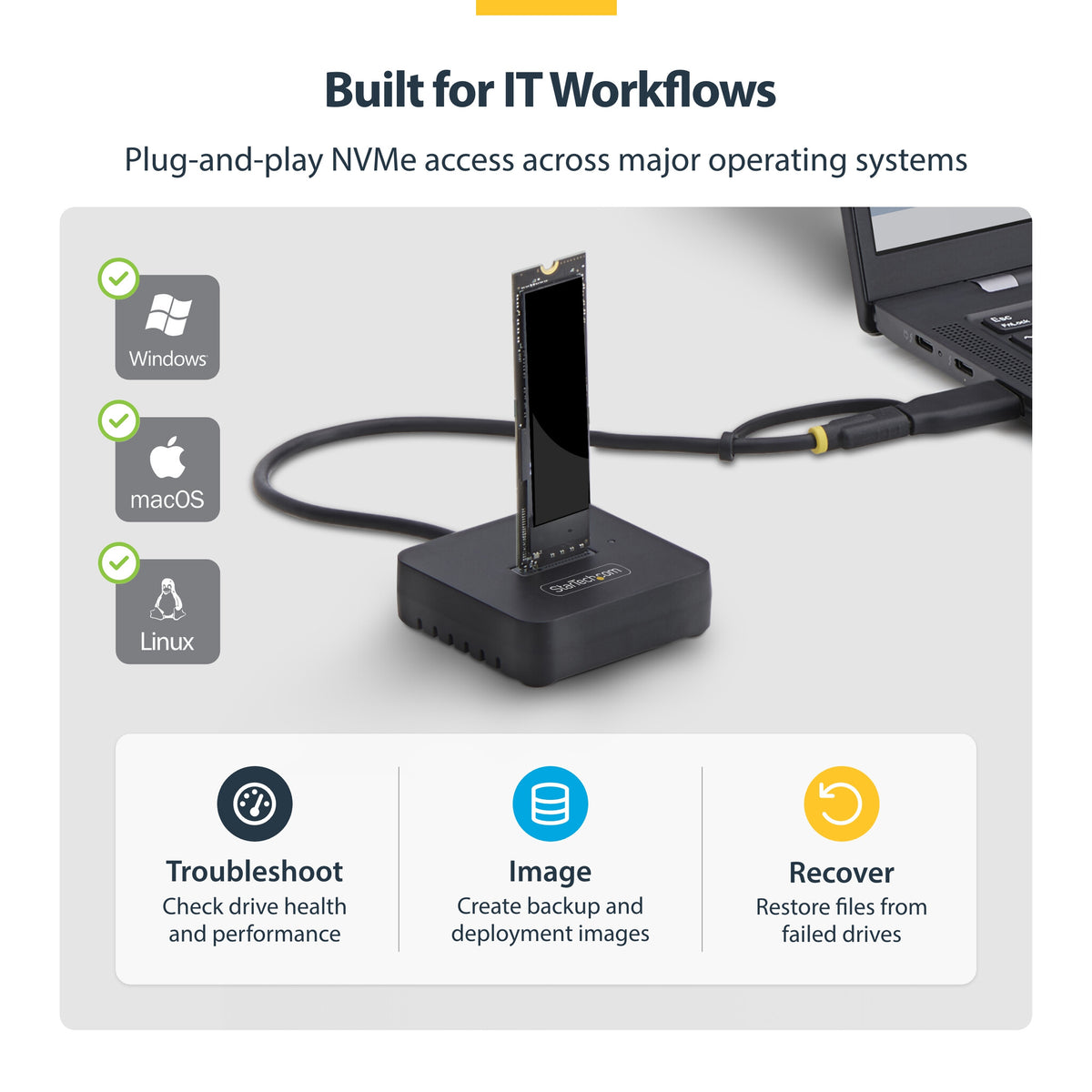

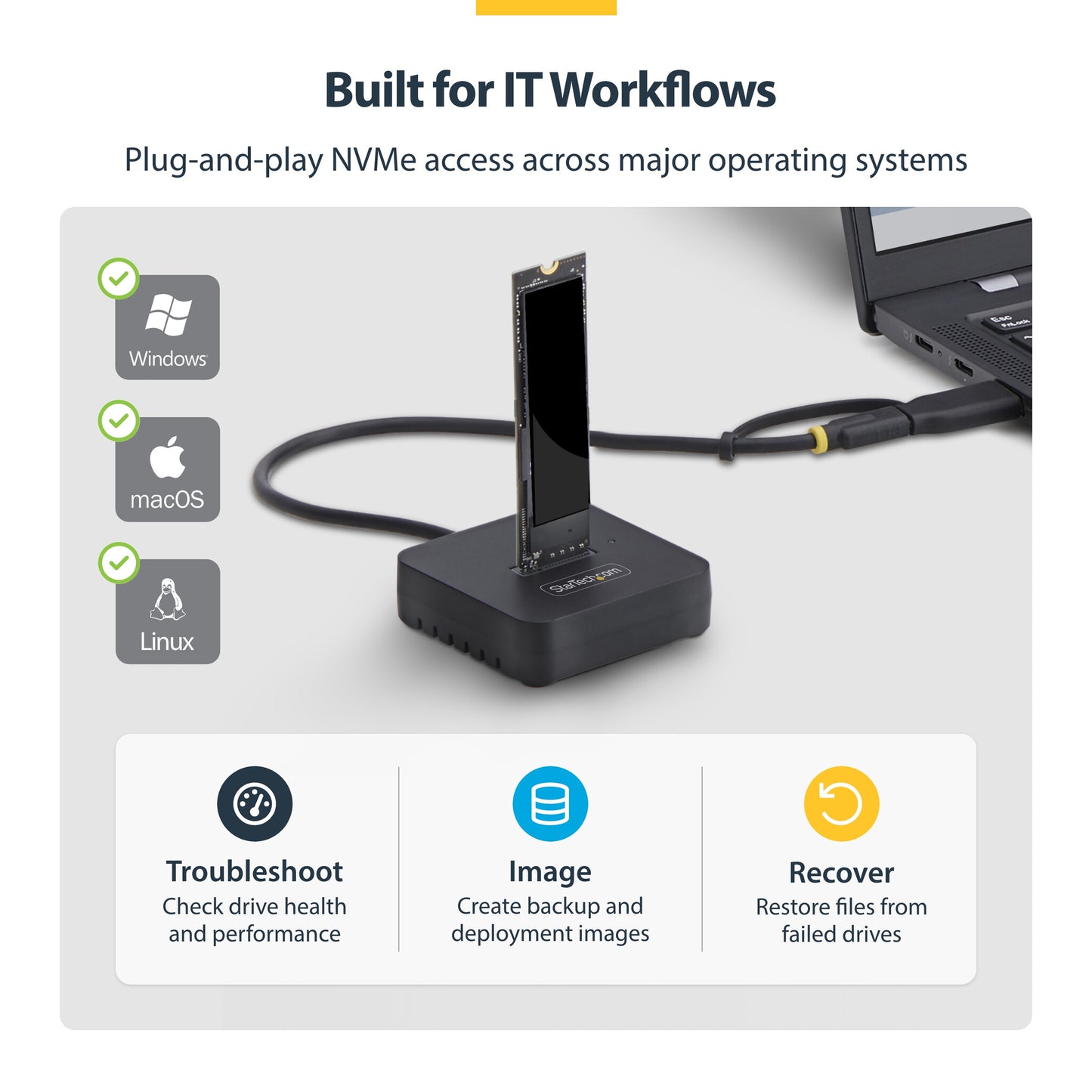

- Ideal for Diagnostics and Troubleshooting: Quickly troubleshoot M.2 NVMe drives to monitor drive health, test performance, or recover data; Use as a portable M.2 NVMe drive dock for compatibility testing, disk imaging, or storage expansion
- Portable and Bus-Powered: Compact, lightweight design that fits into any IT toolkit; Runs entirely on USB bus power when connected to an M.2 NVMe drive, with no external power adapter required

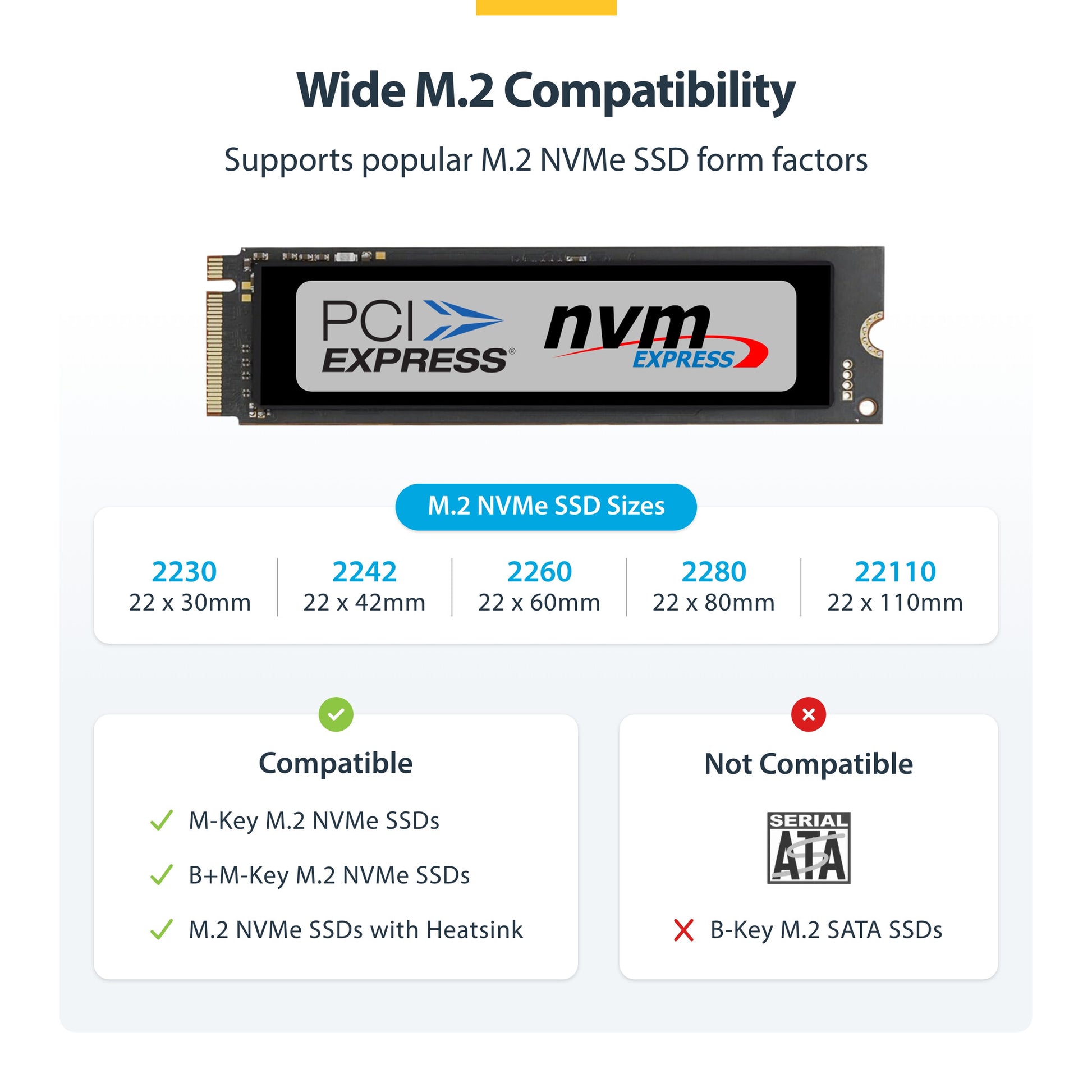

- Driverless Setup and Broad Compatibility: Integrated USB-C cable with USB-A adapter for quick and universal host access on Windows/macOS/Linux; Supports 2230/2242/2260/2280 M.2 NVMe PCIe Gen5 SSDs, up to 10Gbps; Note: M.2 SATA drives are not supported
- The IT Pro's Choice: Our external drive adapters are lab-tested for enterprise-grade performance, and constructed from 70% post-consumer recycled (PCR) plastic to help reduce material waste; Backed by free lifetime 24/5 multi-lingual technical assistance

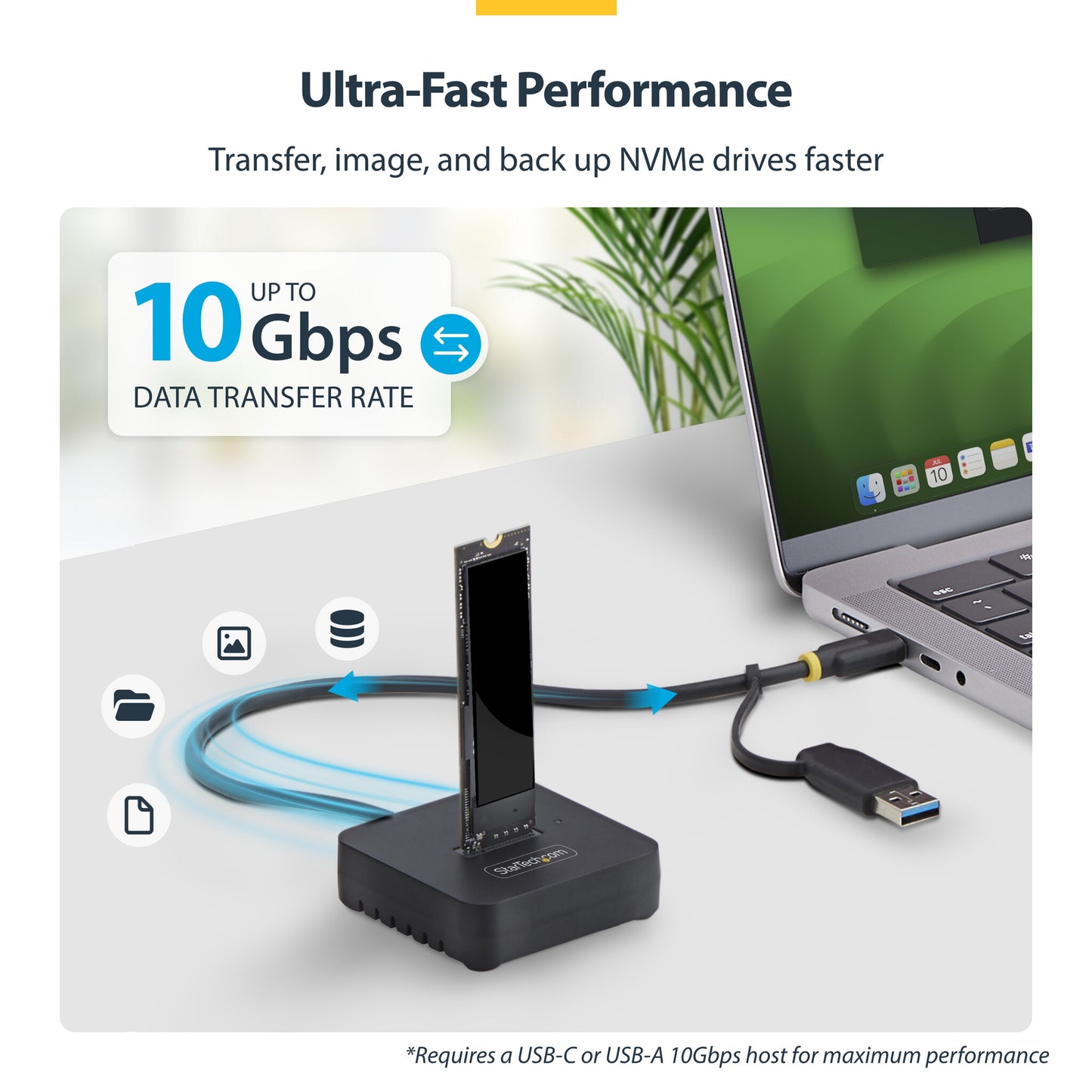

Access Ultra-Fast M.2 NVMe drive storage via USB 10Gbps
Access and manage M.2 NVMe SSDs through a single USB-C or USB-A 10Gbps connection. The M.2 NVMe SSD Dock enables fast read and write access for data transfer, recovery, and upgrades. This drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe drives.
External Drive Access over USB-C and USB-A

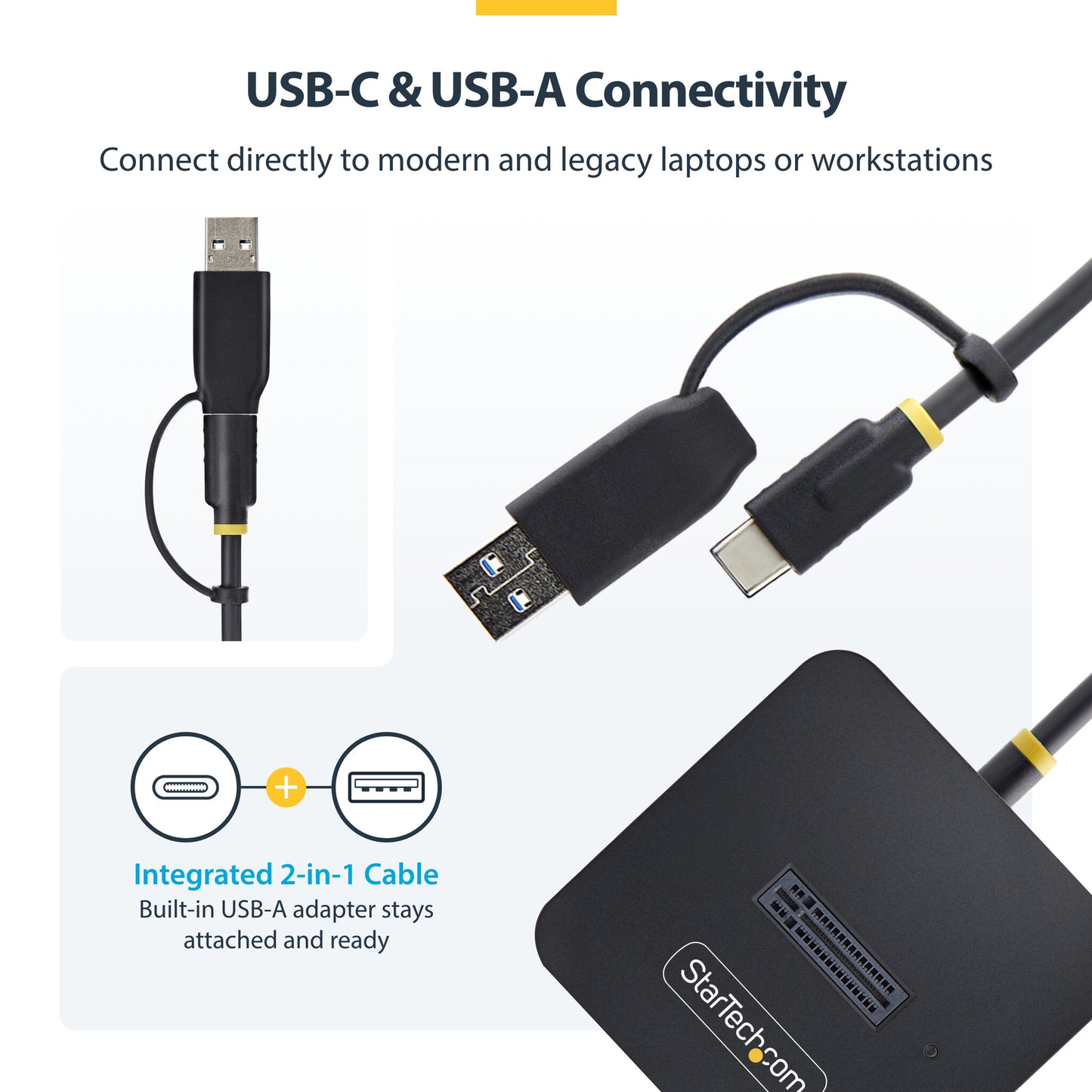

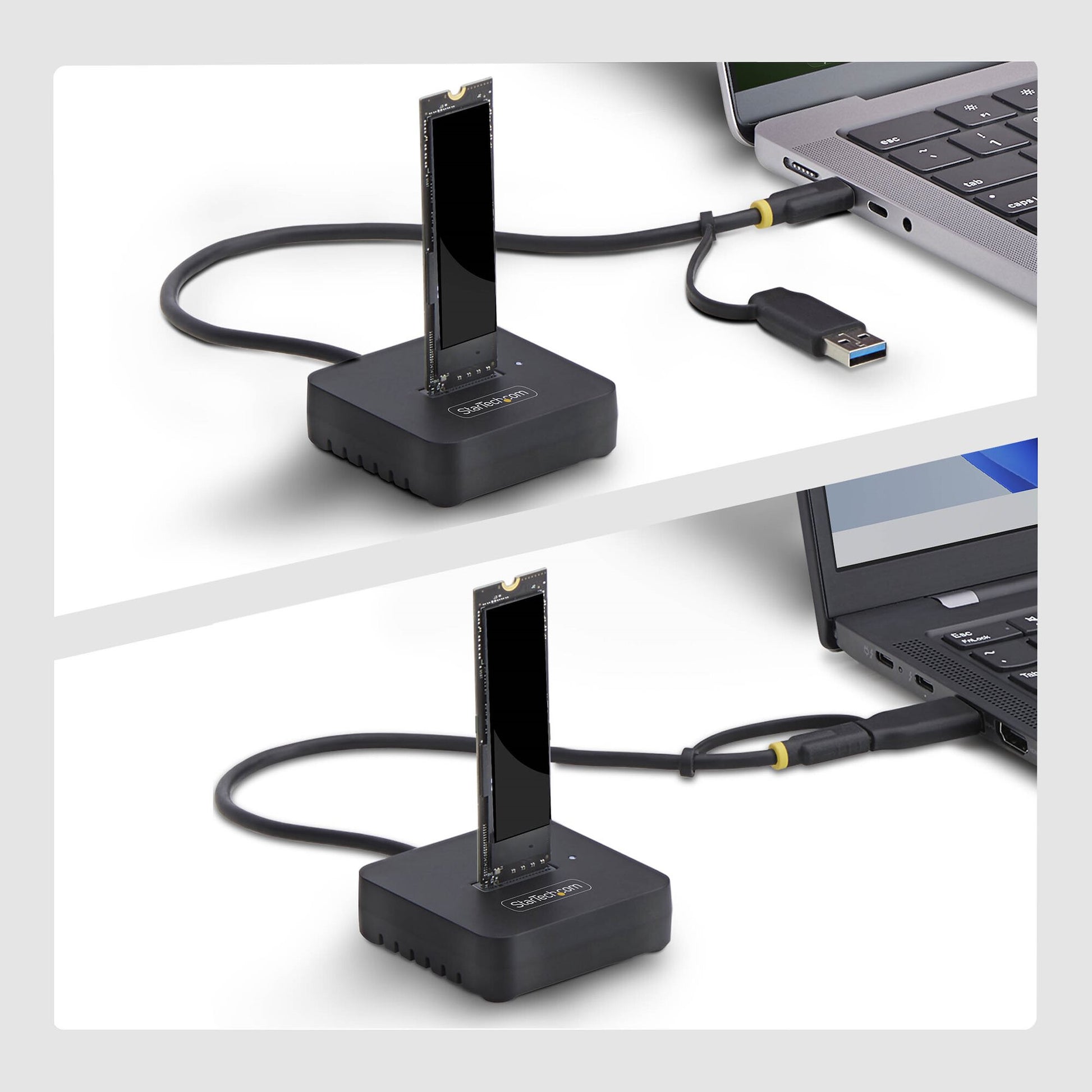

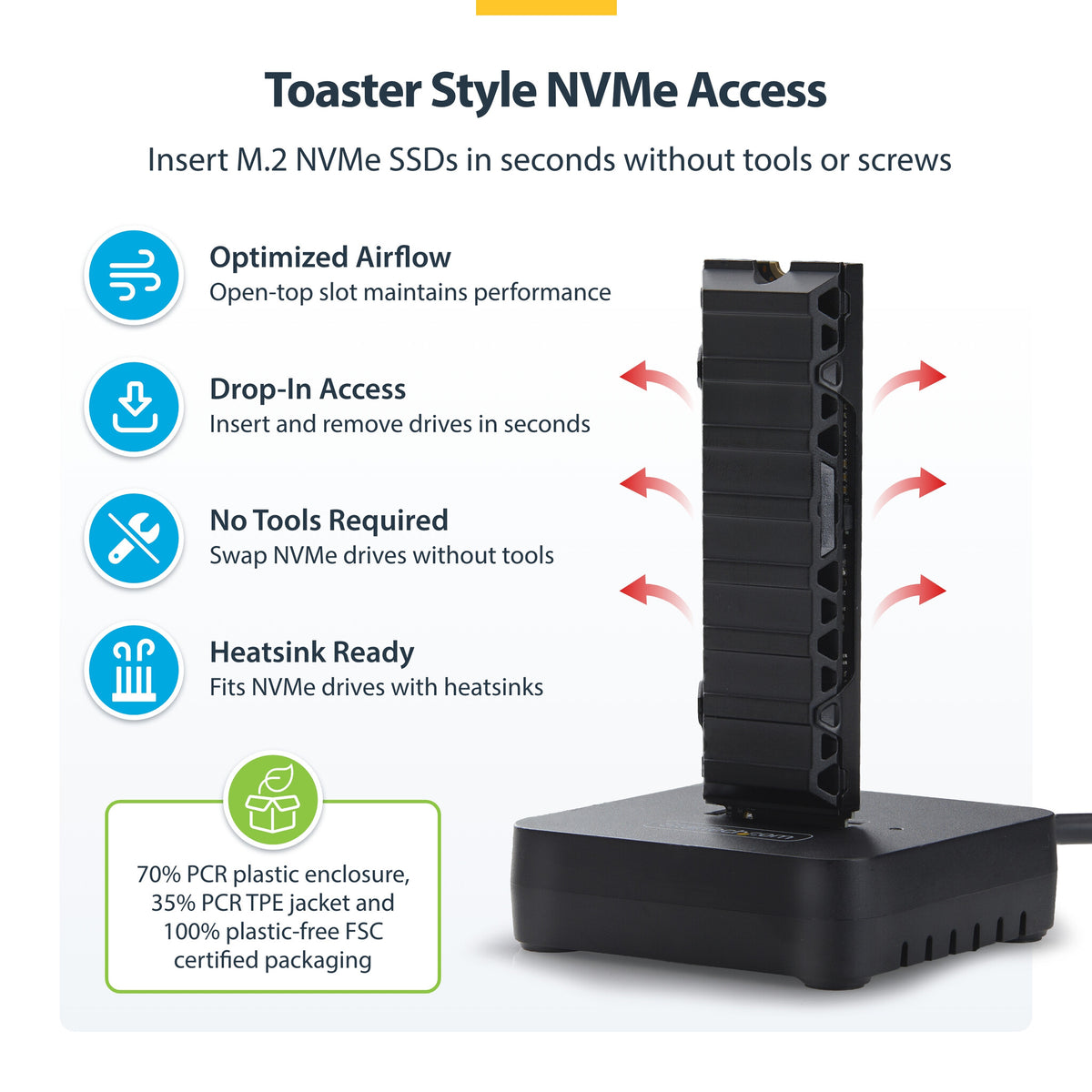

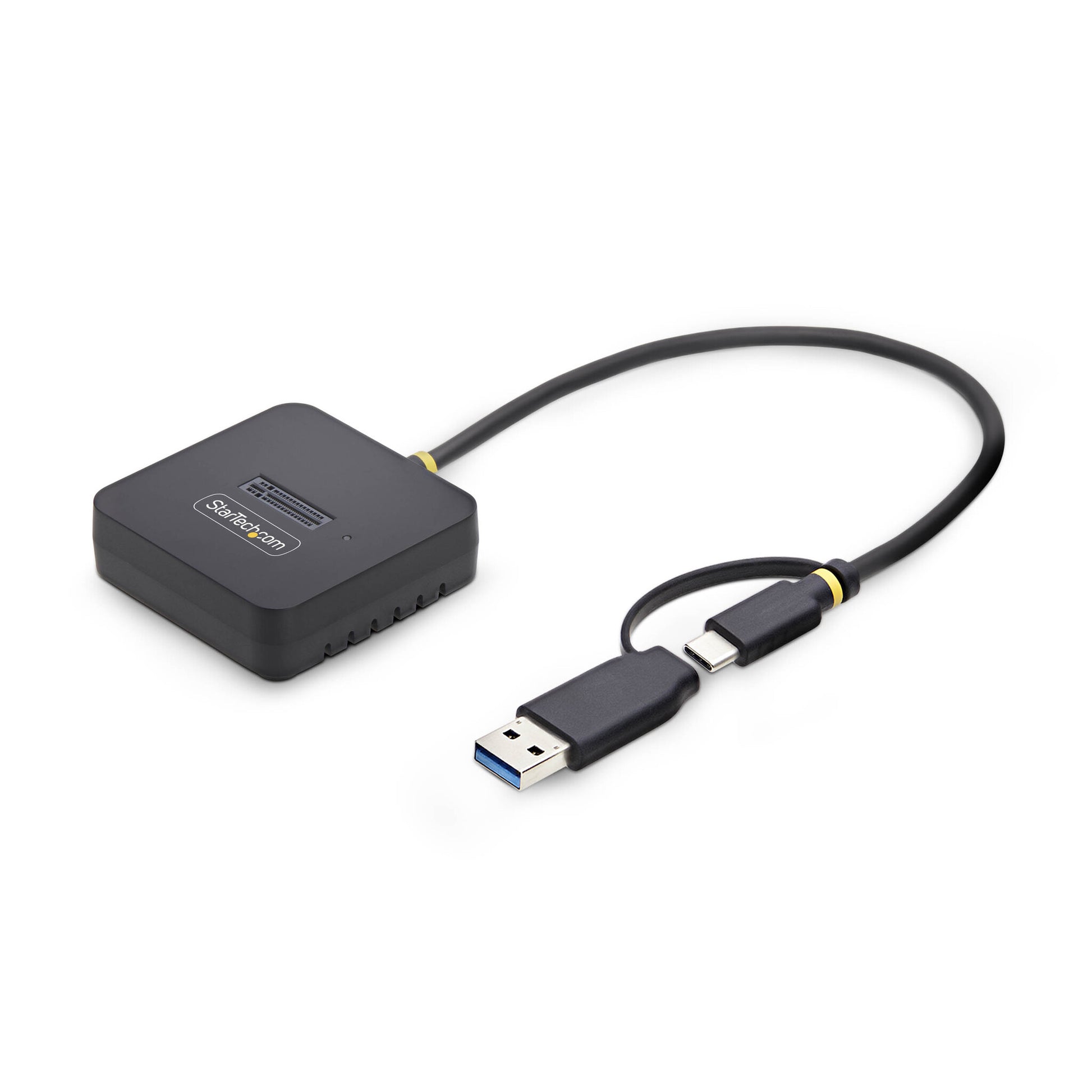

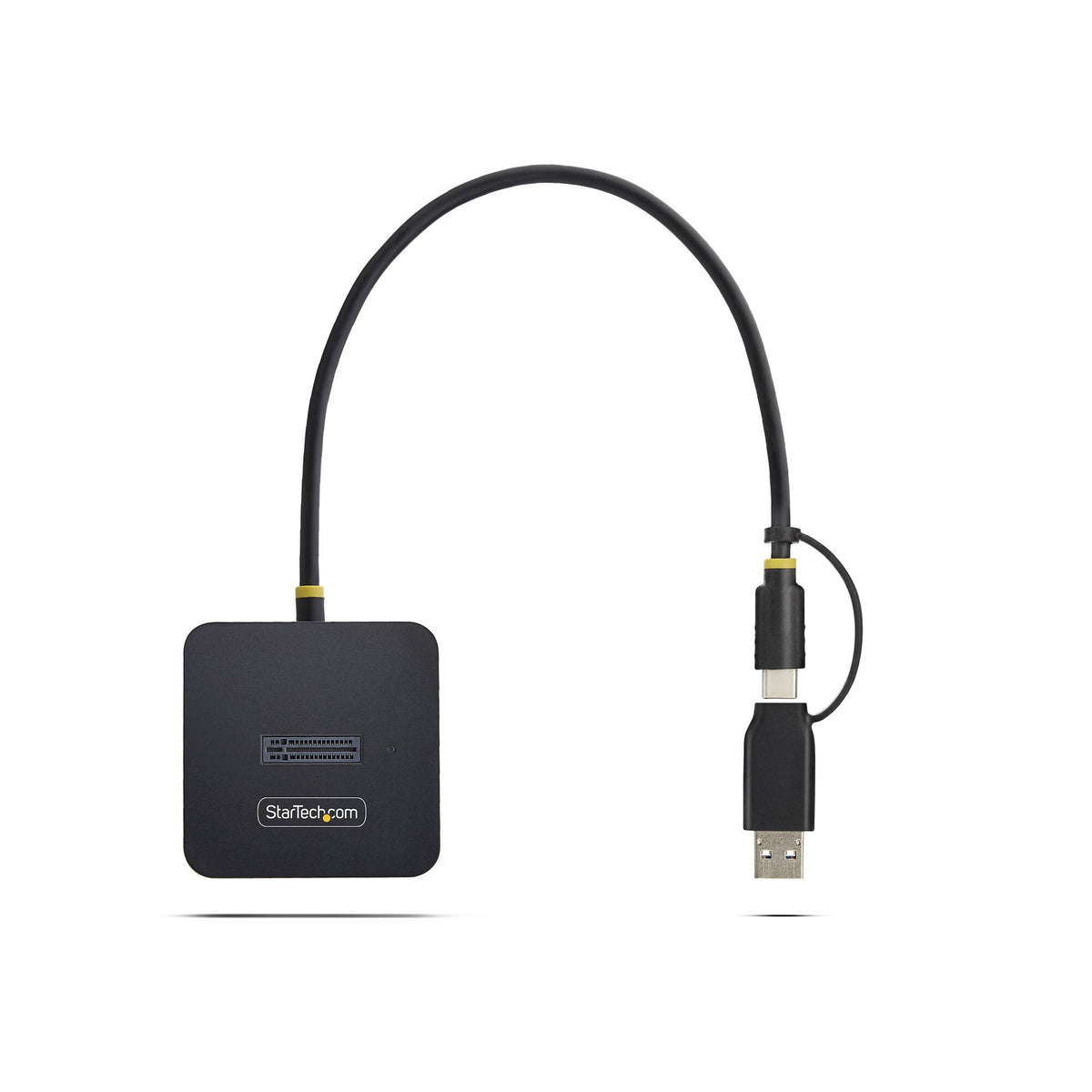

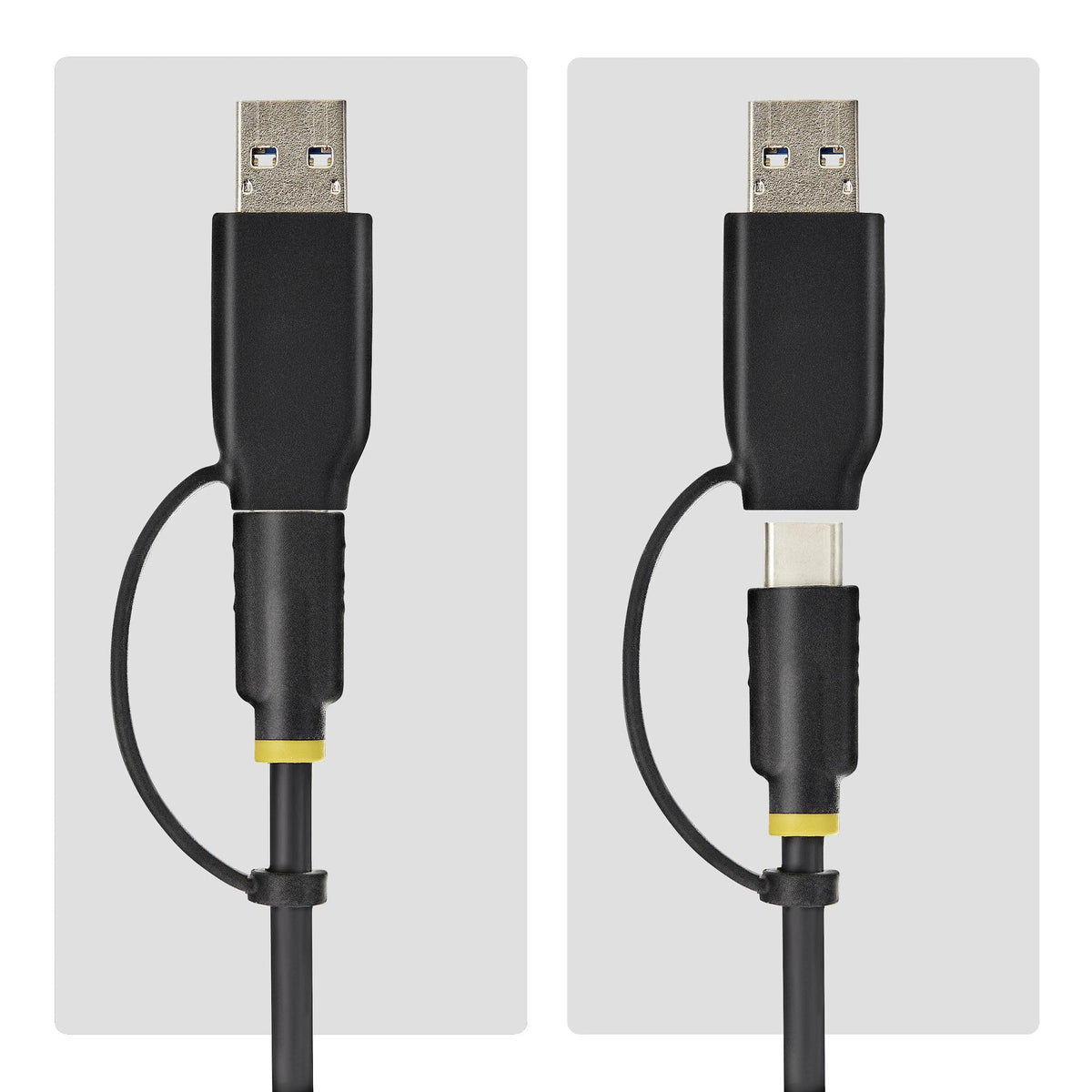

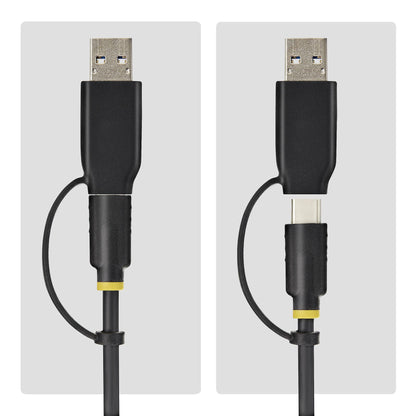

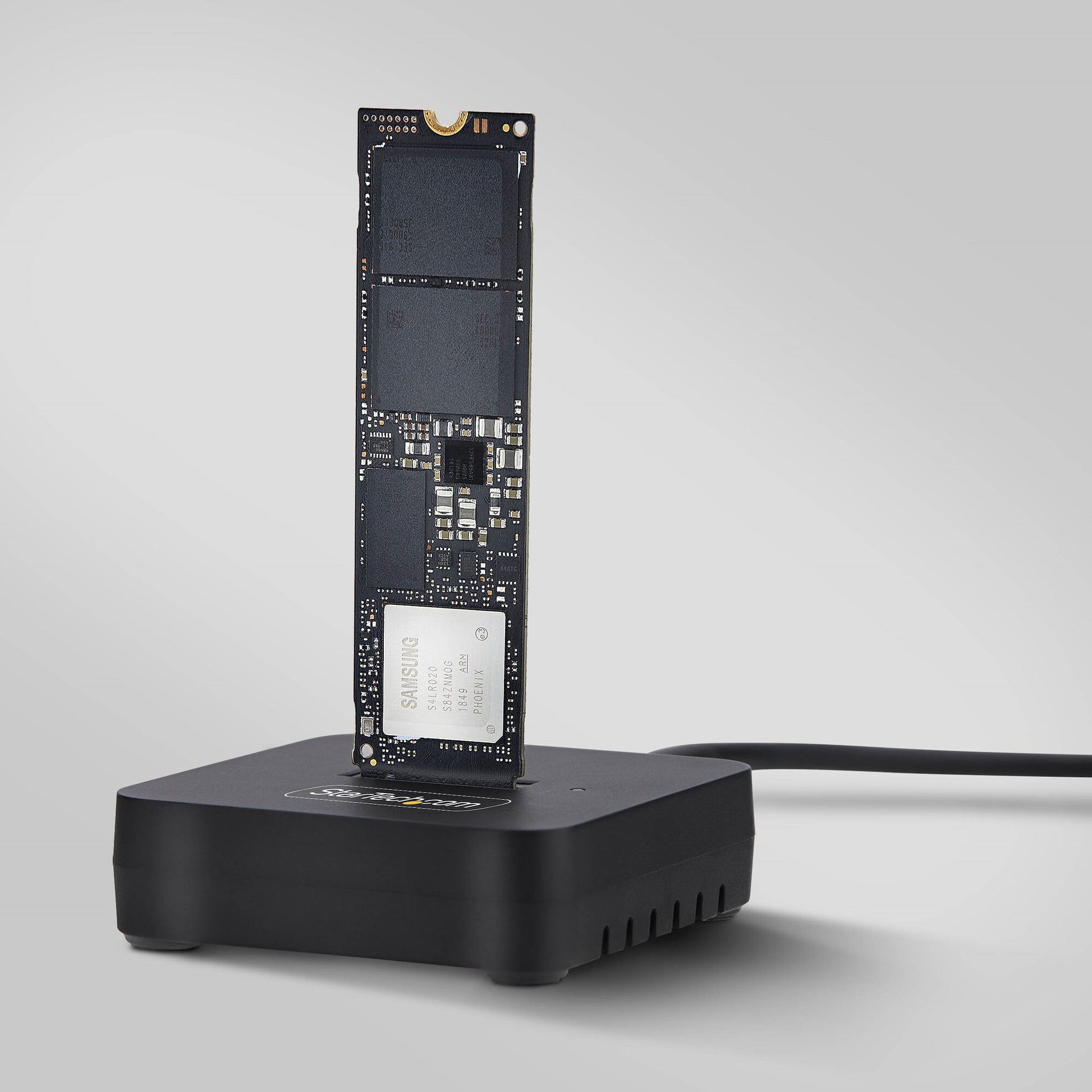

Connect the M.2 NVMe Dock directly to a laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top, toaster-style M.2 slot maintains airflow for consistent performance during sustained workloads and provides ample clearance to support NVMe drives with attached heatsinks. The NVMe adapter supports read/write speeds of up to 10Gbps. Please note that M.2 SATA drives are not supported.

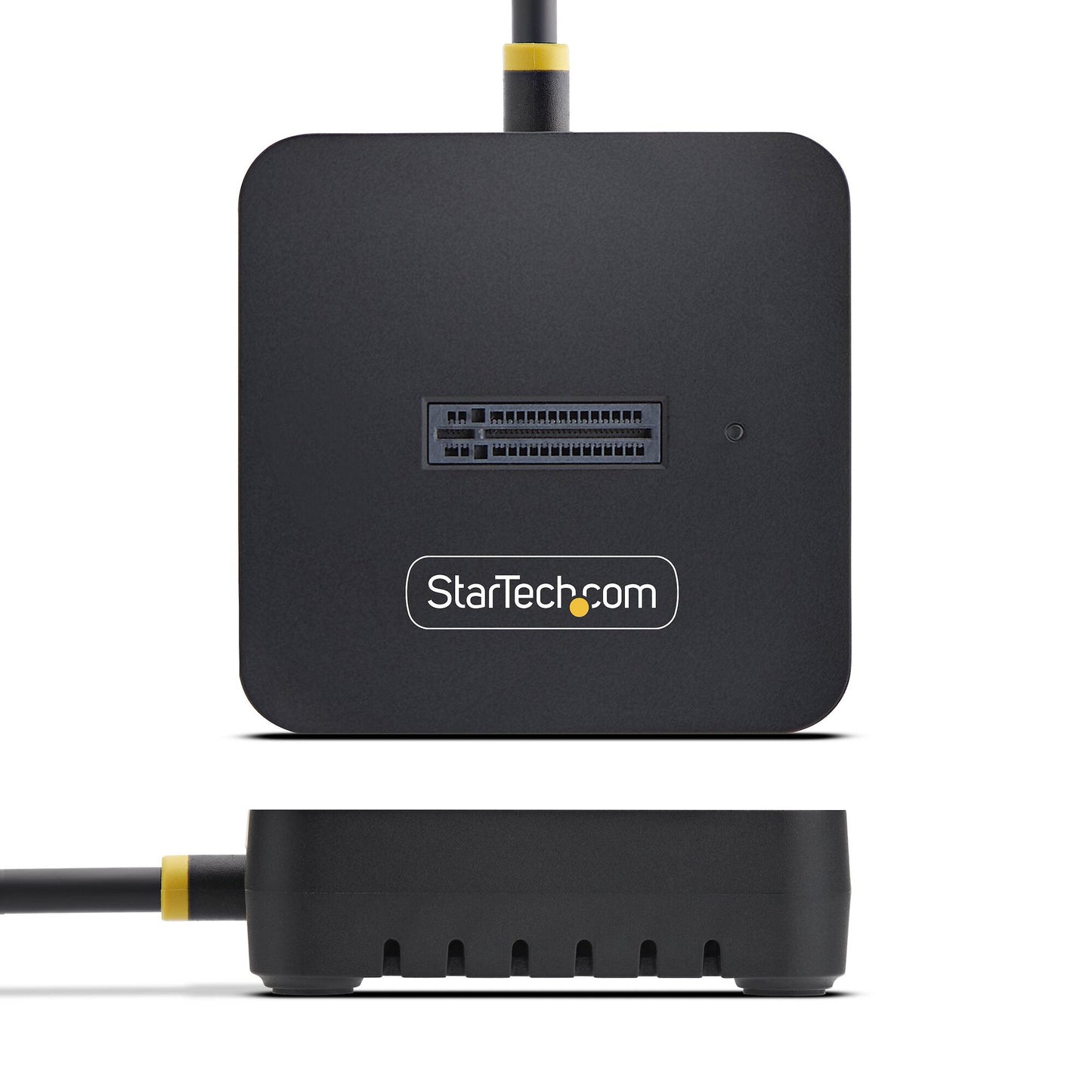

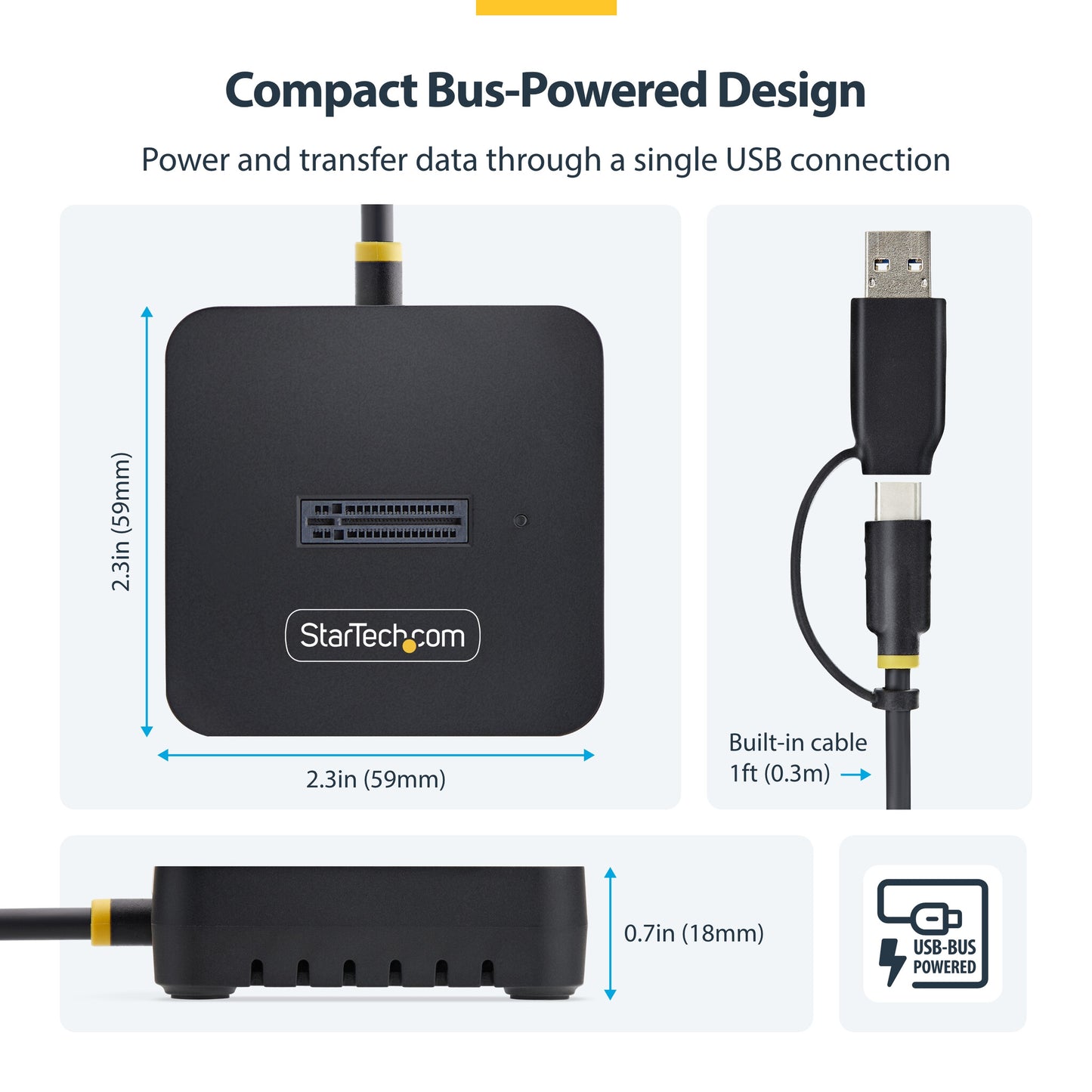

Compact Form Factor
Lightweight and portable, the USB-C/USB-A to M.2 NVMe Dock Adapter fits easily into any IT toolkit or workspace. The enclosure is constructed from 70% post-consumer recycled (PCR) plastic with a 35% PCR TPE jacket, and is packaged in 100% plastic-free FSC certified packaging to help reduce material waste. It runs entirely on USB bus power, requiring no external power adapter. Ideal for IT technicians and end users needing portable, fast M.2 NVMe drive access.
| Hard drive | |
|---|---|
| Storage media type | SSD |
| Storage drive interface | M.2 |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 1 |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Features | |
|---|---|
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Hot-swap | Yes |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Mean time between failures (MTBF) | 129956 h |
| UASP support | Yes |
| LED indicators | Yes |
| Chipset | ASMedia - ASM2362 |
| Cooling | |
|---|---|
| Built-in fan | No |
| Weight & dimensions | |
|---|---|
| Width | 59 mm |
| Depth | 403.7 mm |
| Height | 18 mm |
| Weight | 62 g |
| Packaging content | |
|---|---|
| User guide | Yes |
| Interface adapters included | USB Type-A male - USB Type-C female |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Packaging data | |
|---|---|
| Package width | 152 mm |
| Package depth | 100 mm |
| Package height | 30 mm |
| Package weight | 109 g |
| Logistics data | |
|---|---|
| Master (outer) case width | 485 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 60 pc(s) |
