StarTech.com 18in Latching SATA to Right Angle SATA Serial ATA Cable
StarTech.com 18in Latching SATA to Right Angle SATA Serial ATA Cable
SKU:LSATA18RA1
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 1x Straight SATA connector and 1x Right-angled SATA connector
- Compliant with Serial ATA III Specifications
- Fast data transfer rate of up to 6 Gbps
- Compatible with both 3.5" and 2.5" SATA HDD/SSD
- Provides 18" (45cm) in cable length
A space-saving, latching right angle SATA hard drive cable, for installations in tight spaces.

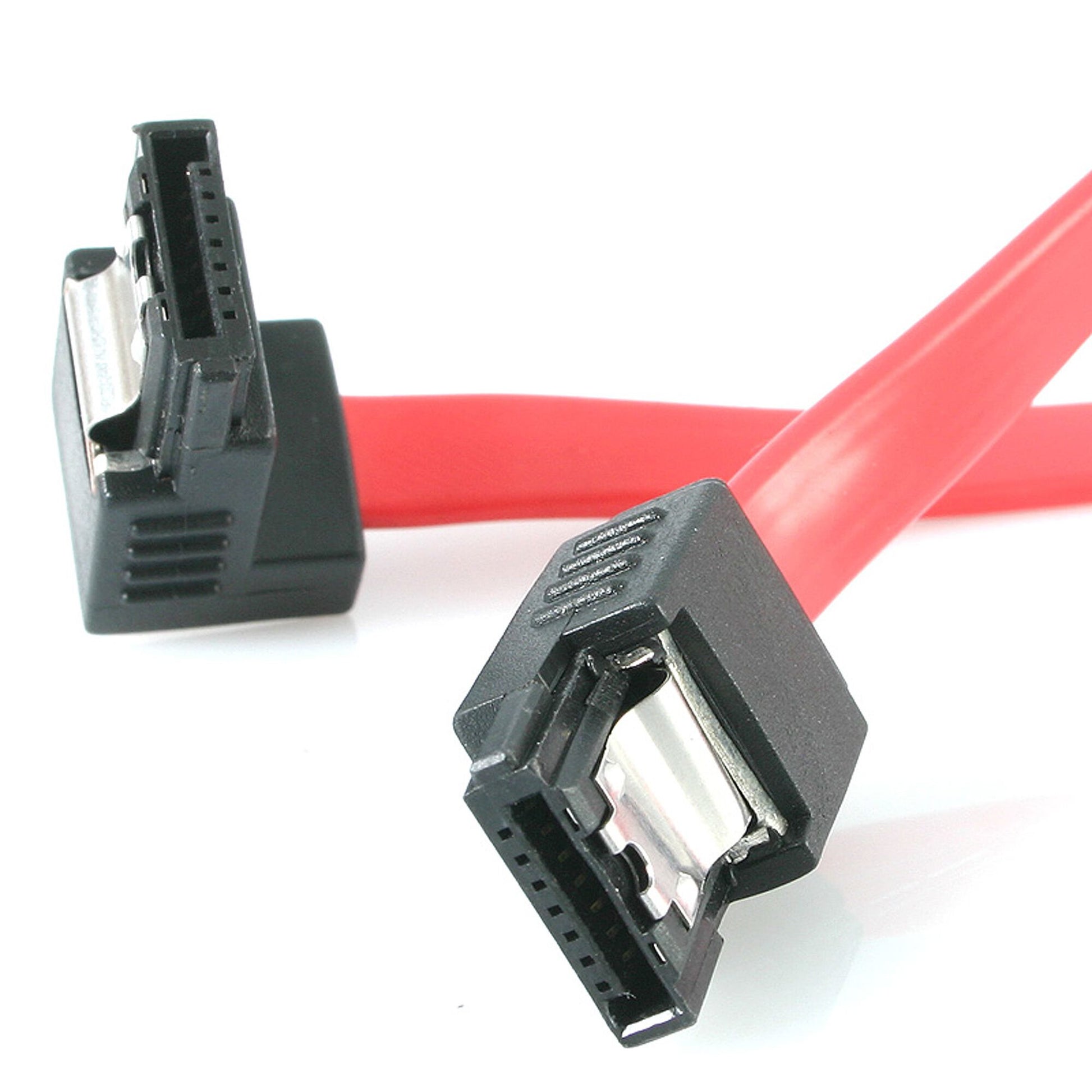

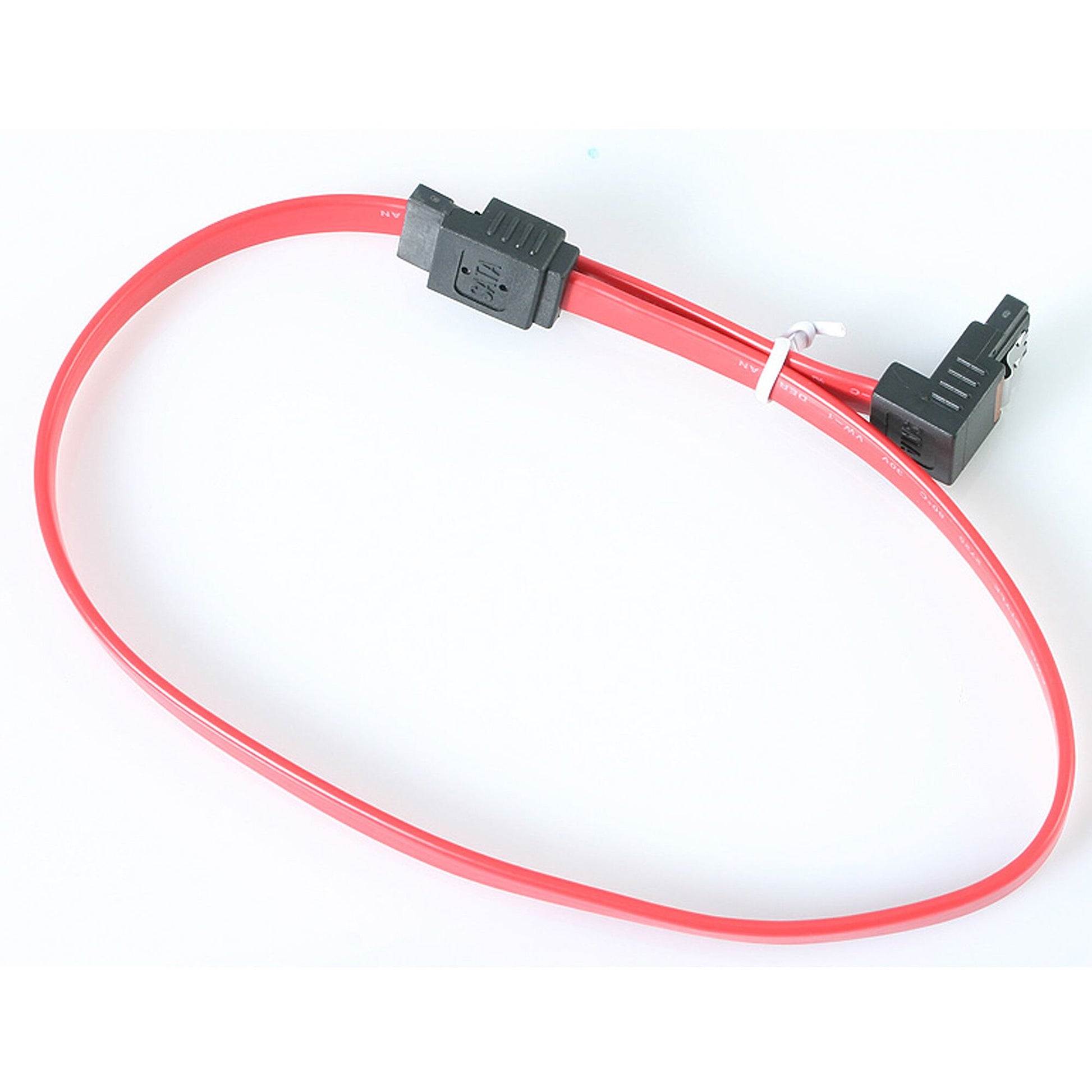

This right angled latching SATA cable features a (straight) female Serial ATA connector as well as a right-angled (female) SATA connector, providing a simple connection to a Serial ATA drive even if space near the drive's SATA port is limited. The cable offers latching connectors, which ensure secure connections for SATA hard drives and motherboards that support this feature.
Once the right-angled SATA connector has been inserted into the drive's SATA data port, the shaft of the cable is seated flush with the rear panel of the drive, eliminating the clutter of excess cable at the connection point - an ideal solution for small or micro form factor computer cases.
The right angled SATA cable features a thin, narrow construction that helps to improve airflow within the computer case; the cable features a rugged, yet flexible design that makes it easy to make the SATA connection as needed.
| Features | |
|---|---|
| Cable length | 0.457 m |
| Cable type | SATA III |
| Connector 1 | SATA 7-pin |
| Connector 2 | SATA 7-pin |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Right |
| Connector gender | Male/Male |
| Product colour | Red |
| Maximum data transfer rate | 6 Gbit/s |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 128 mm |
| Package depth | 125 mm |
| Package height | 17 mm |
| Package weight | 84 g |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Master (outer) case width | 334 mm |
| Master (outer) case length | 486 mm |
| Master (outer) case height | 216 mm |
| Products per master (outer) case | 200 pc(s) |
