StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch Panel / Computer Equipment
StarTech.com 4-Post 12U Hinged Wall-Mount Network Rack, 19" Open Frame Server Rack with 19.8in Mounting Depth, Wall Mount Swing Out Data Rack for IT / AV / Patch Panel / Computer Equipment
Couldn't load pickup availability
SKU:RK1219WALLOH
Low stock: 5 left
- 4-POST 12U HINGED WALL-MOUNT RACK: IT Server Rack with 19.8in (50.2cm) maximum mounting depth is perfect for installing network switches out of the way (for example high up on a wall) in your warehouse, office, server room or store location

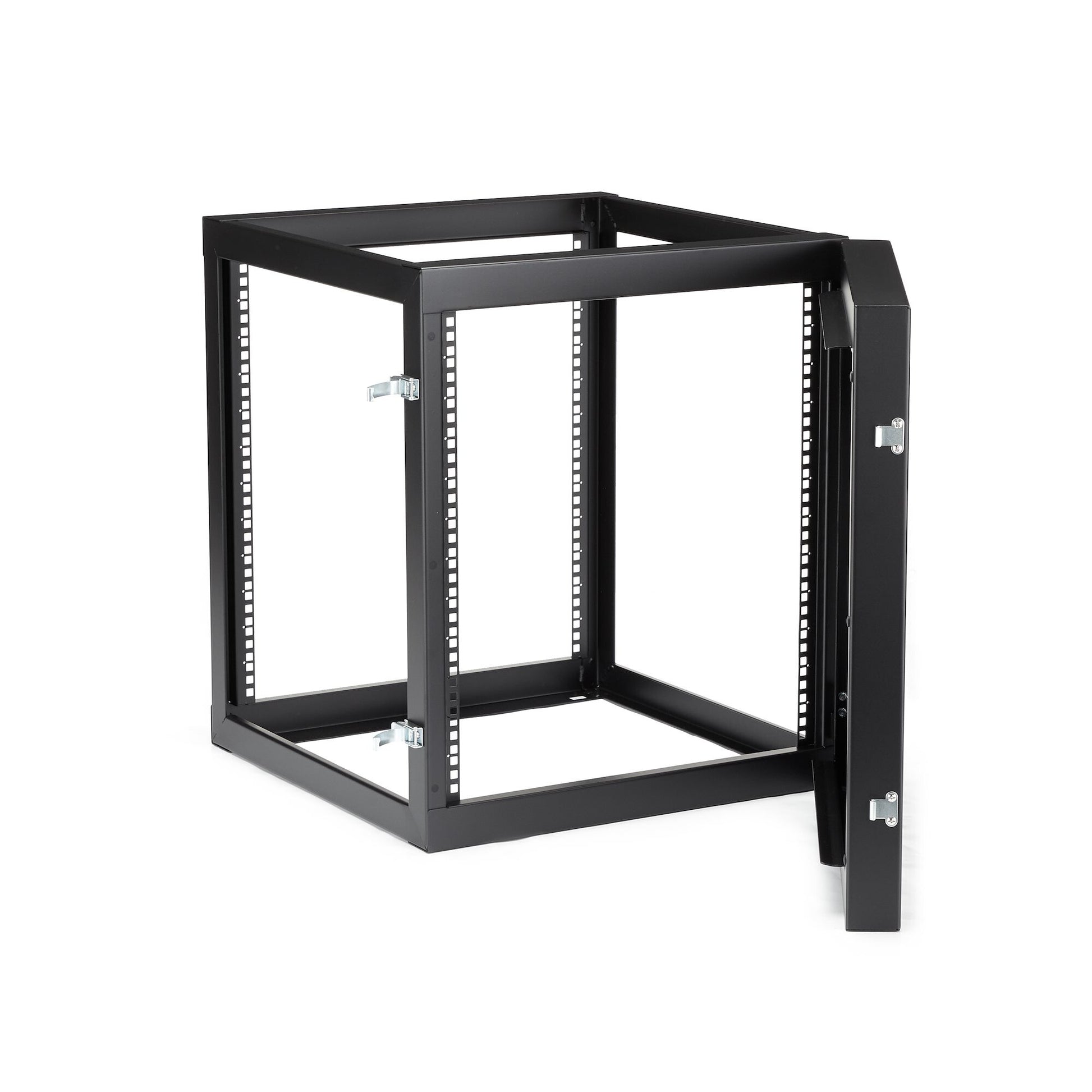

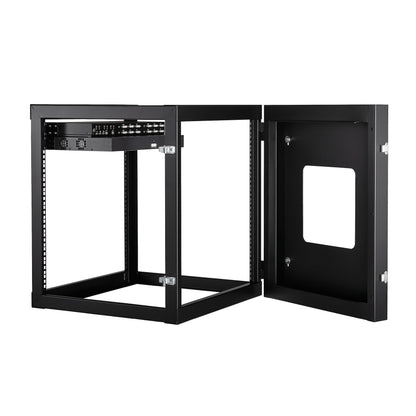

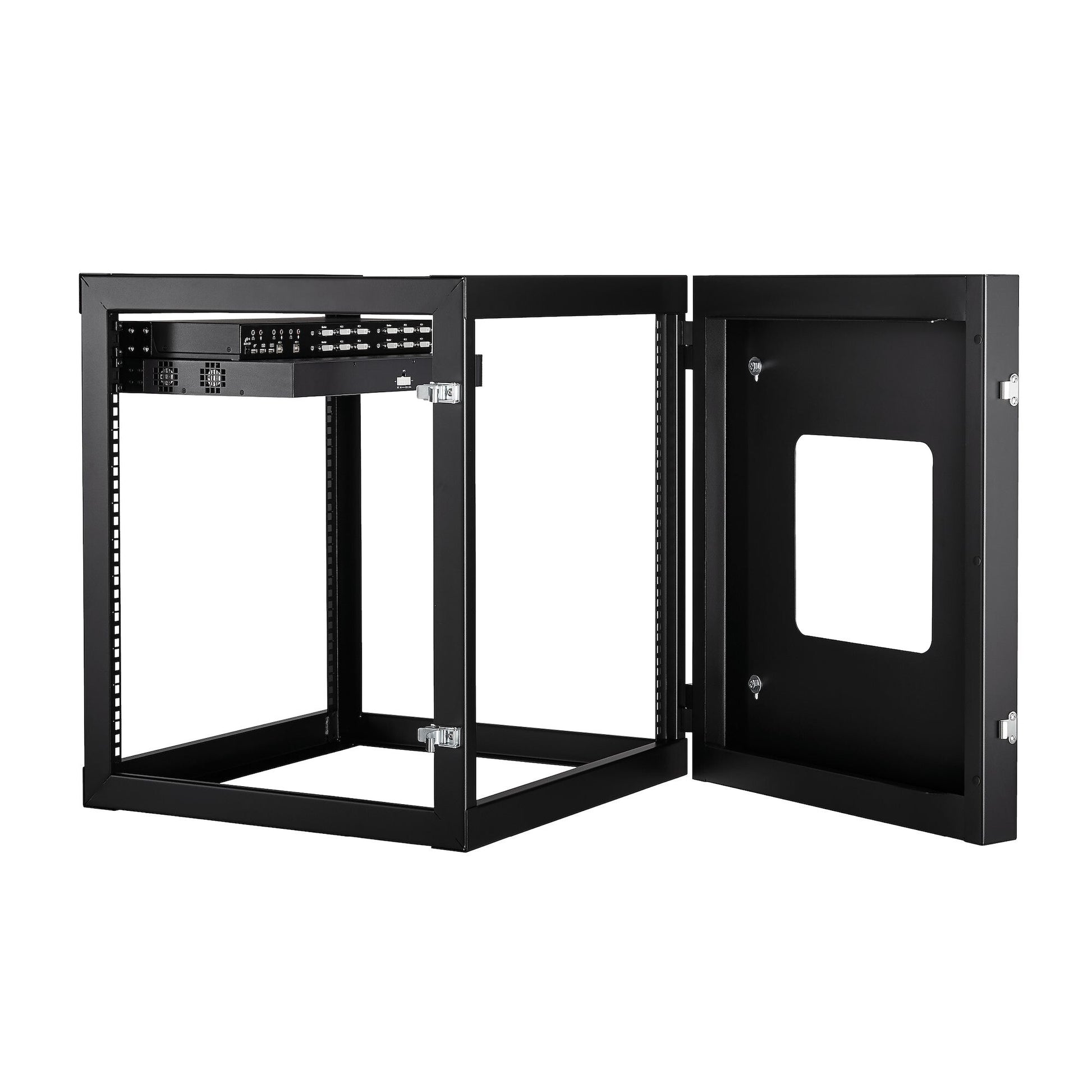

- OPTIMIZED DESIGN: The Wall Mount Data Rack features a hinged open frame rack design that allows the entire frame to swing open for easy installation and maintenance; Unobstructed airflow helps to keep your Data / AV / IT equipment cool
- BUILT TO LAST: The 12U wall mount computer equipment rack offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 139lbs (63kg)

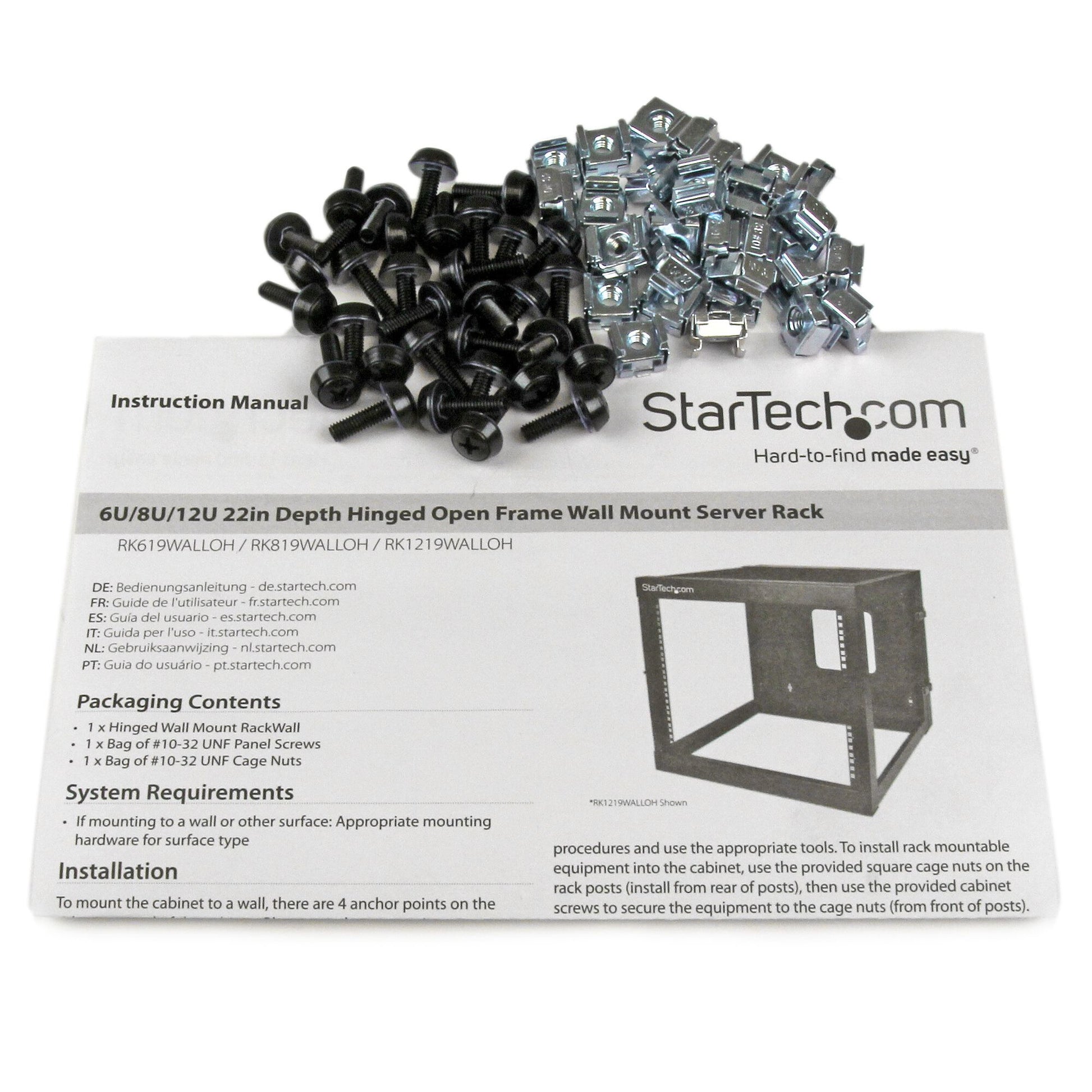

- FULLY ASSEMBLED: The hinged server rack ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Hinged Data Rack is EIA/ECA-310-E Compliant
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 12U wall mounted network rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance

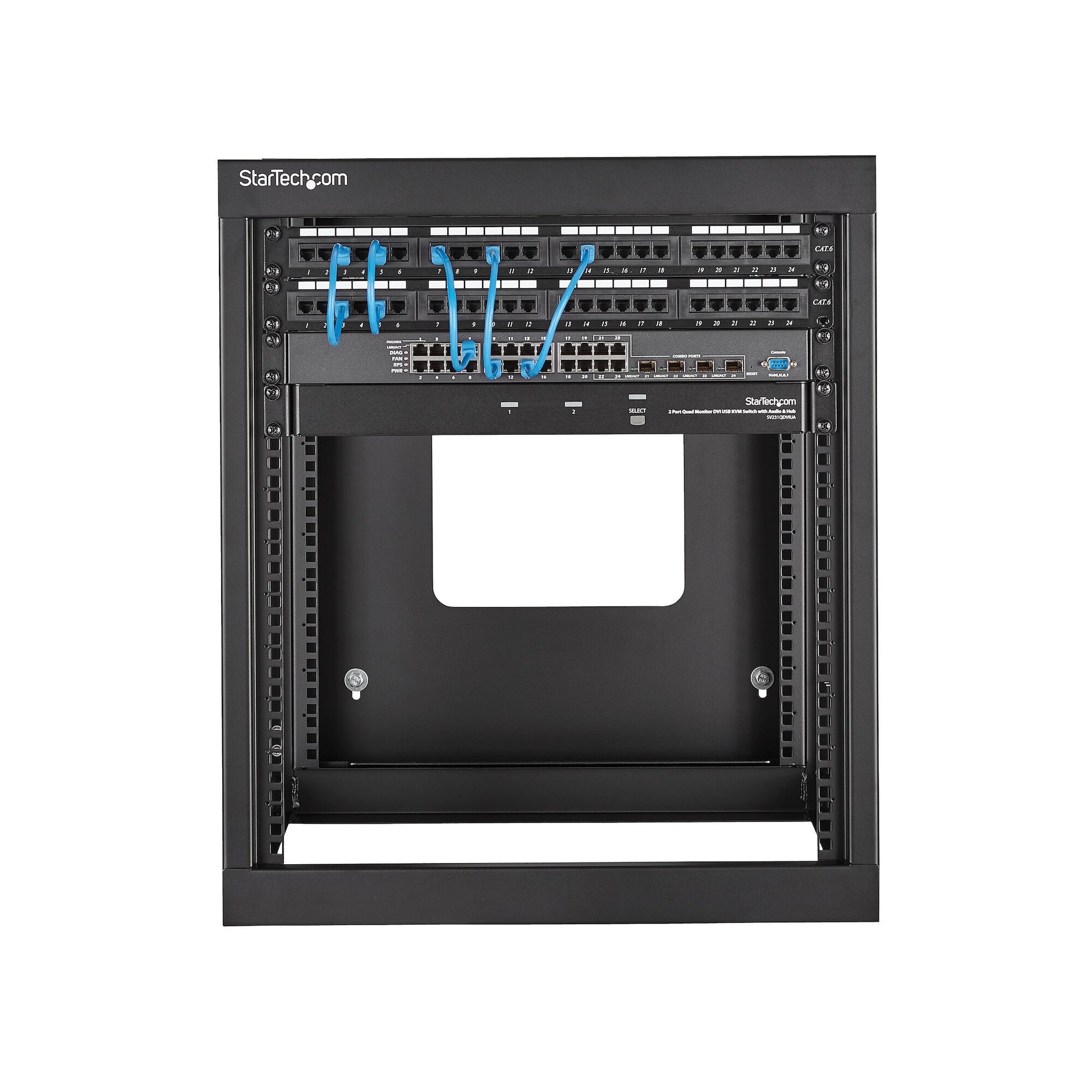

Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

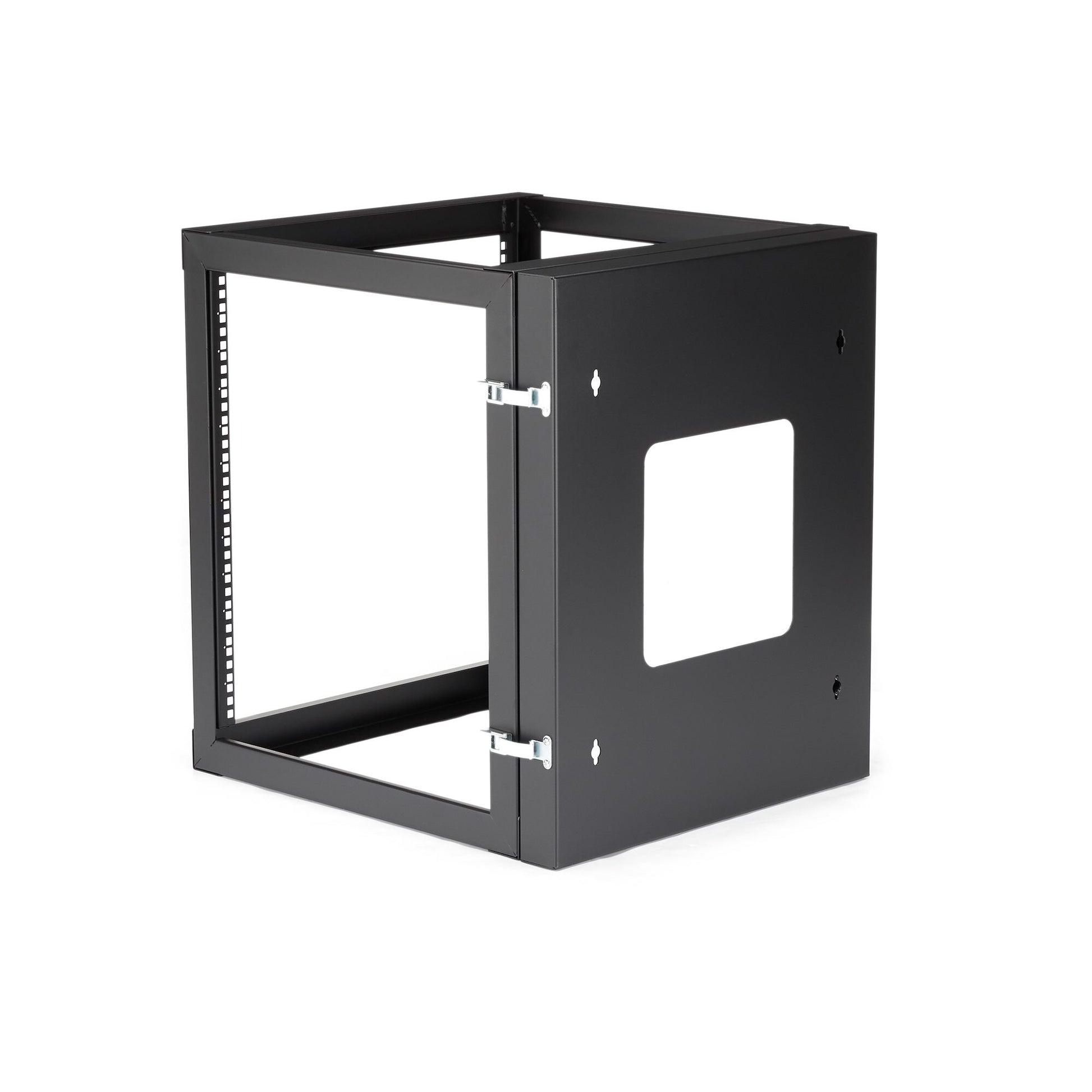

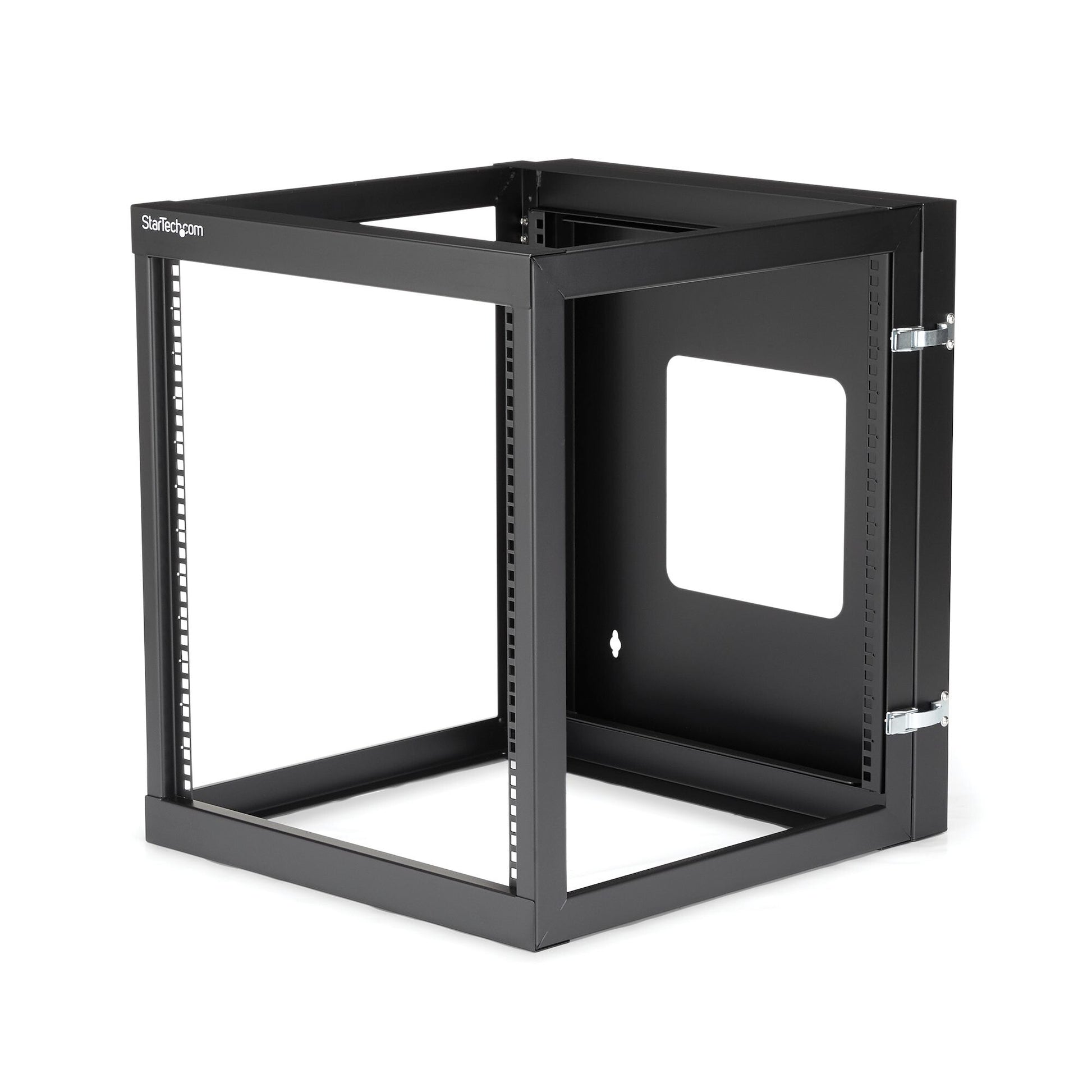

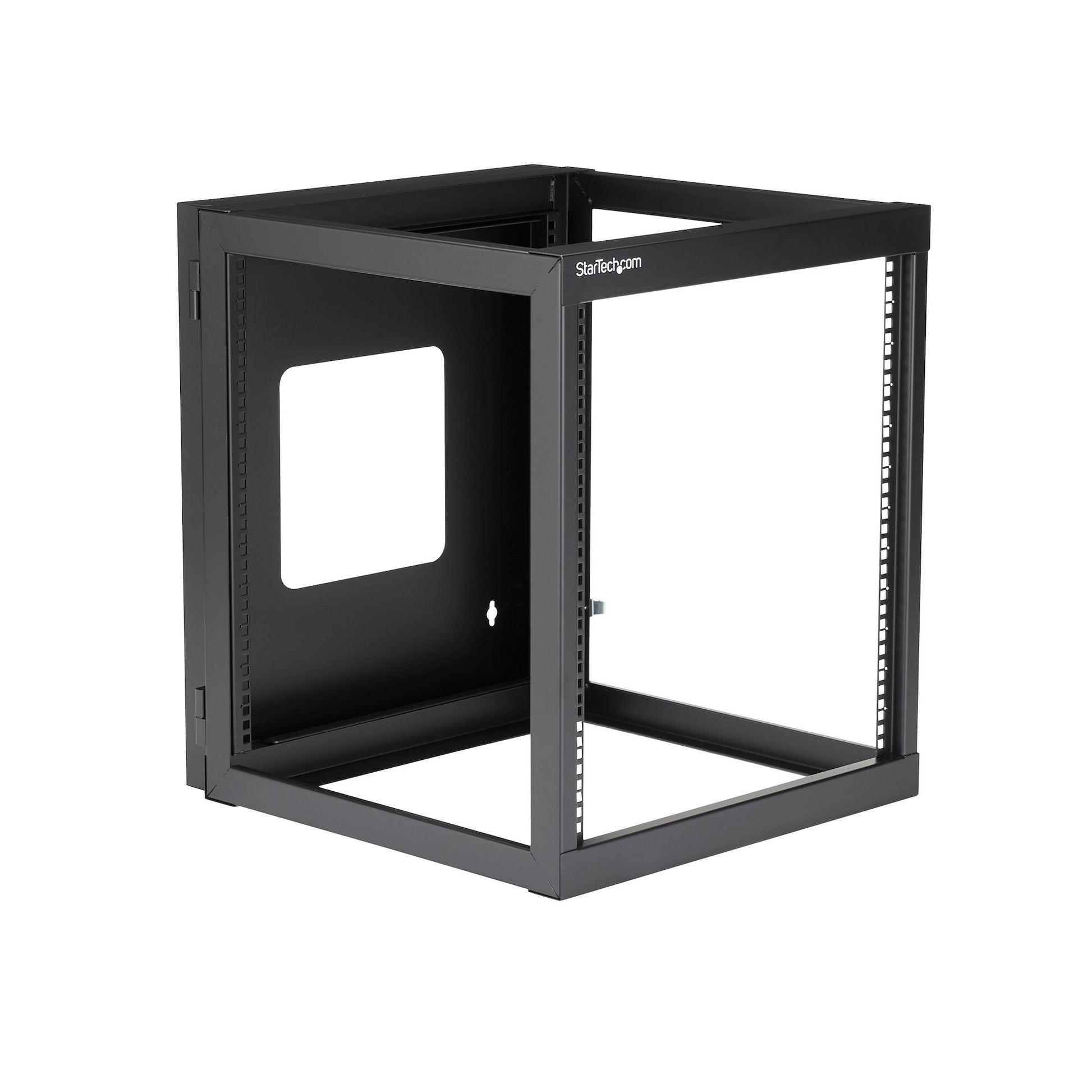

The RK1219WALLOH 12U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch (50.2cm) . Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
| Features | |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 63.4 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Key lock | No |
| Front door key lock | No |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | RoHS, CE, UL, TAA |
| Weight & dimensions | |
|---|---|
| Width | 556 mm |
| Depth | 600 mm |
| Height | 647 mm |
| Inner depth | 50.5 cm |
| Weight | 18 kg |
| Mounting depth (max) | 50.7 cm |
| Packaging data | |
|---|---|
| Nuts included | Yes |
| Number of nuts | 48 |
| Number of screws | 48 |
| Screws included | Yes |
| Manual | Yes |
| Package width | 739 mm |
| Package depth | 682 mm |
| Package height | 768 mm |
| Package weight | 20.7 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 670 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 760 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
|---|---|
| Compliance industry standards | EIA-310-D, EIA RS310-D |
