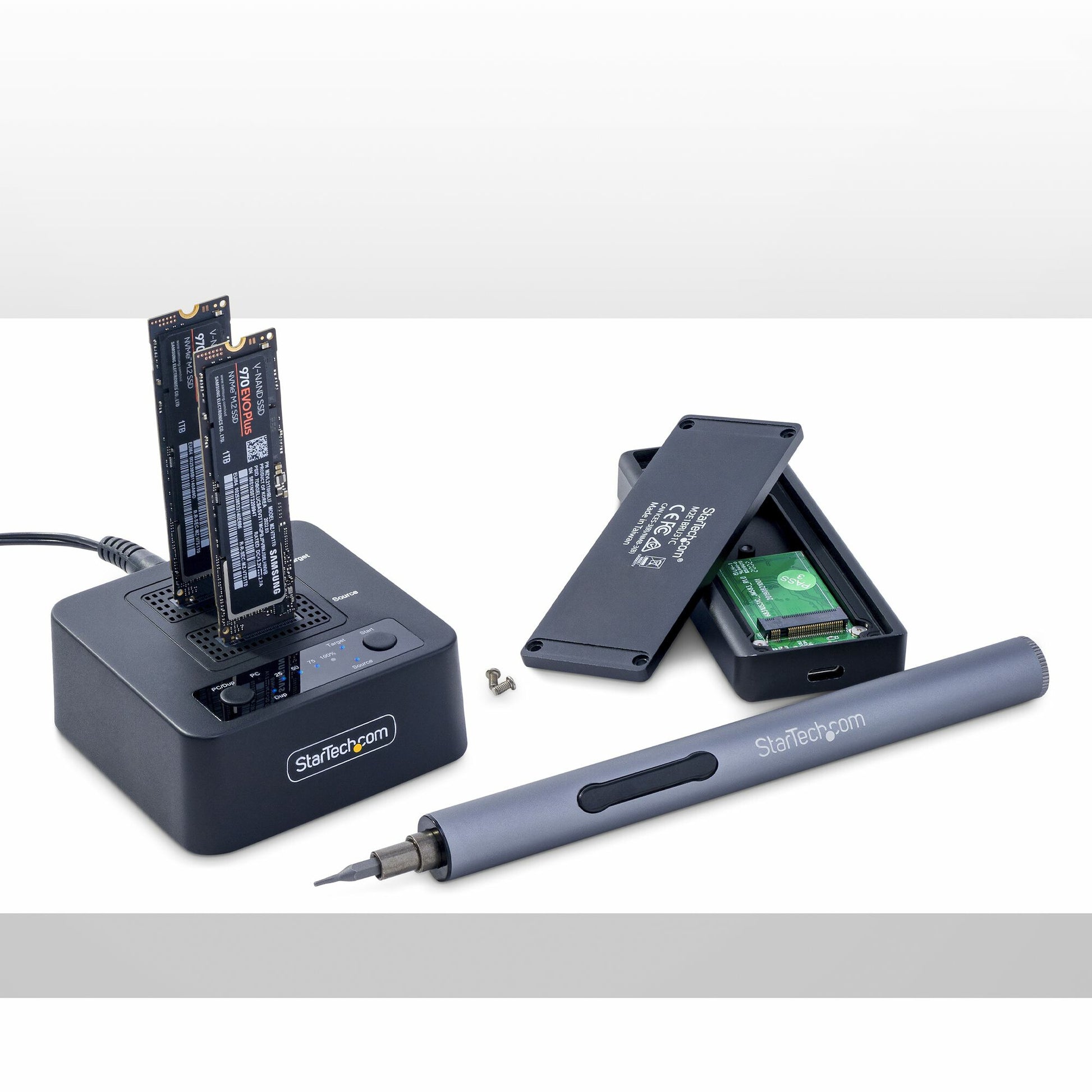

STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive
M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally
COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance
COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk
APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments

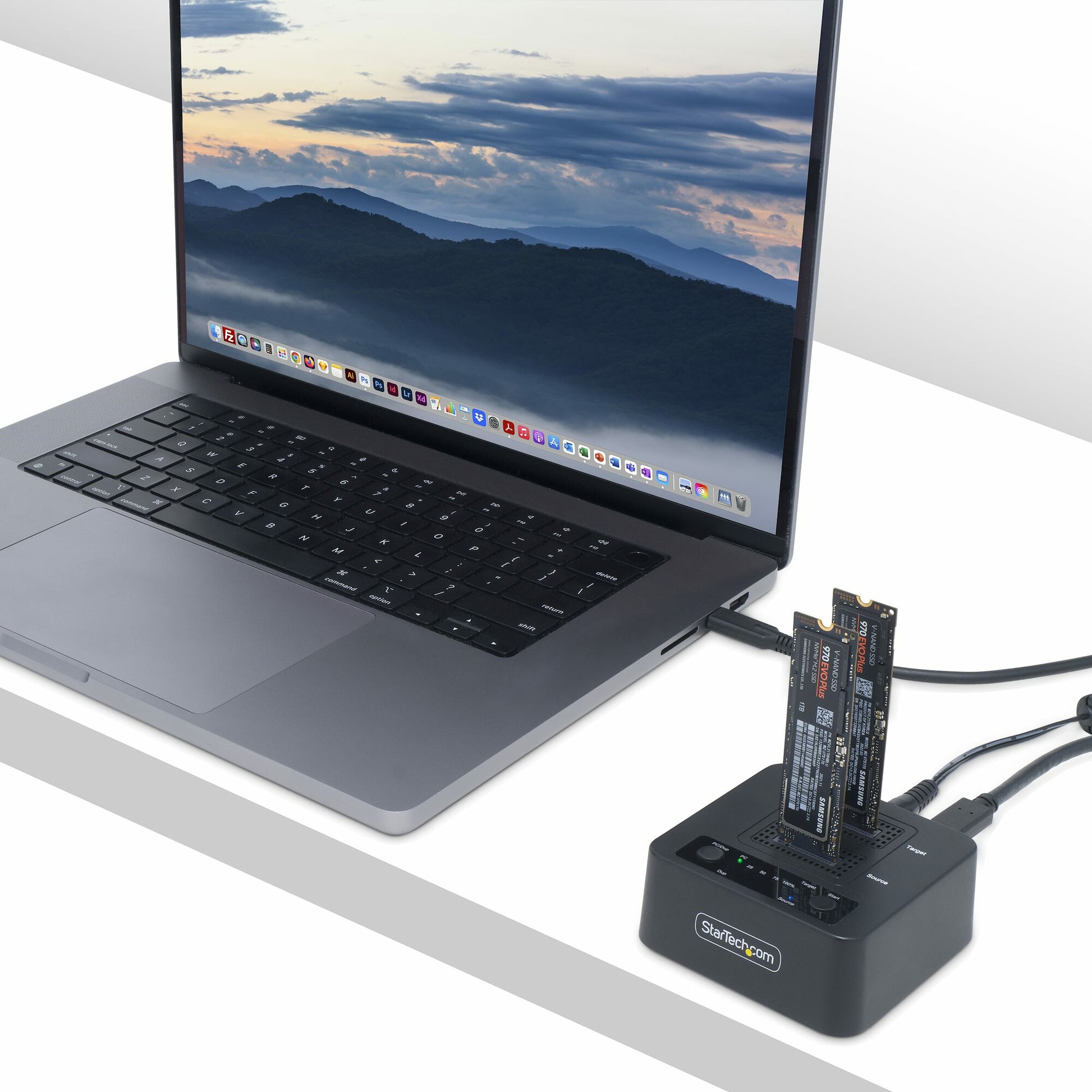

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.

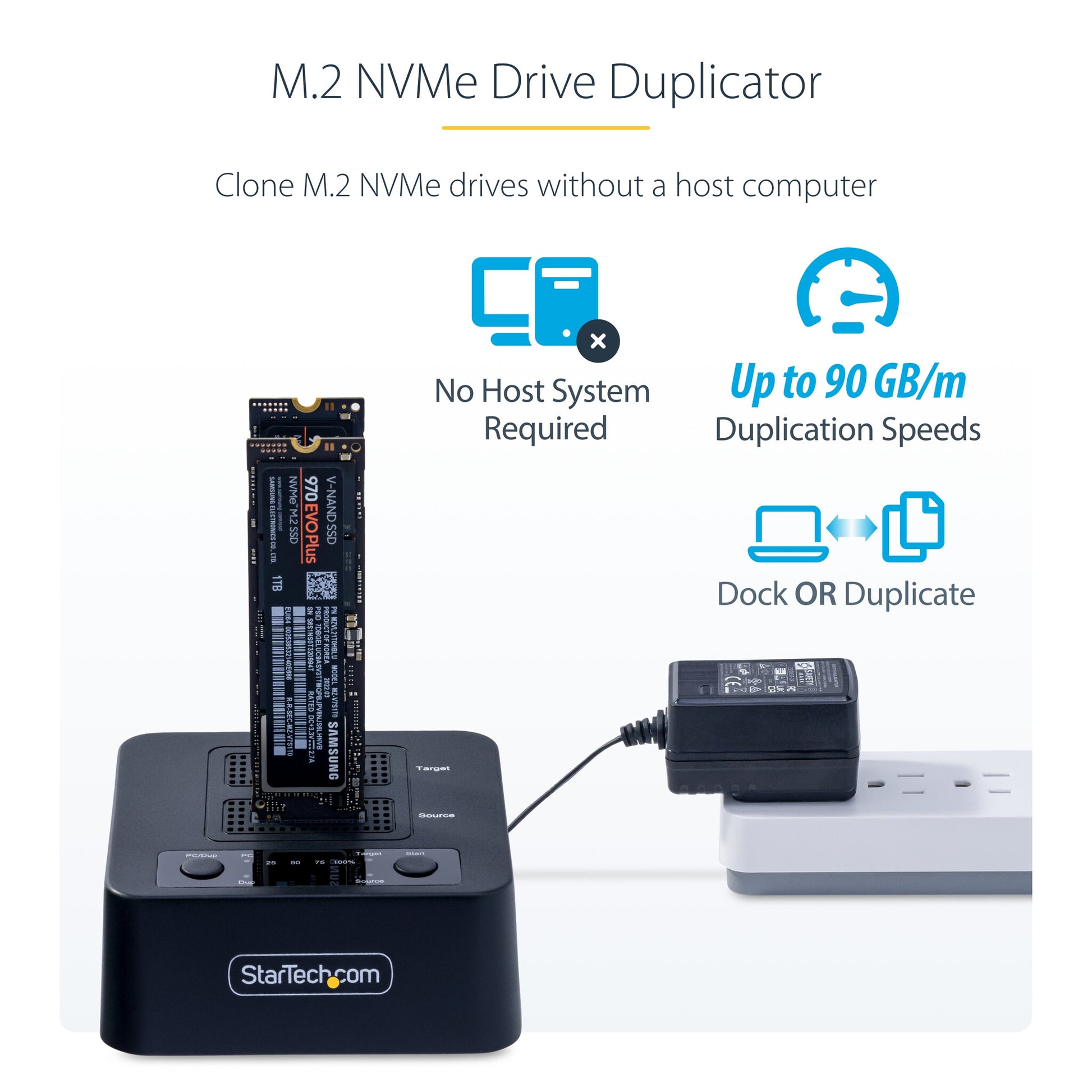

High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

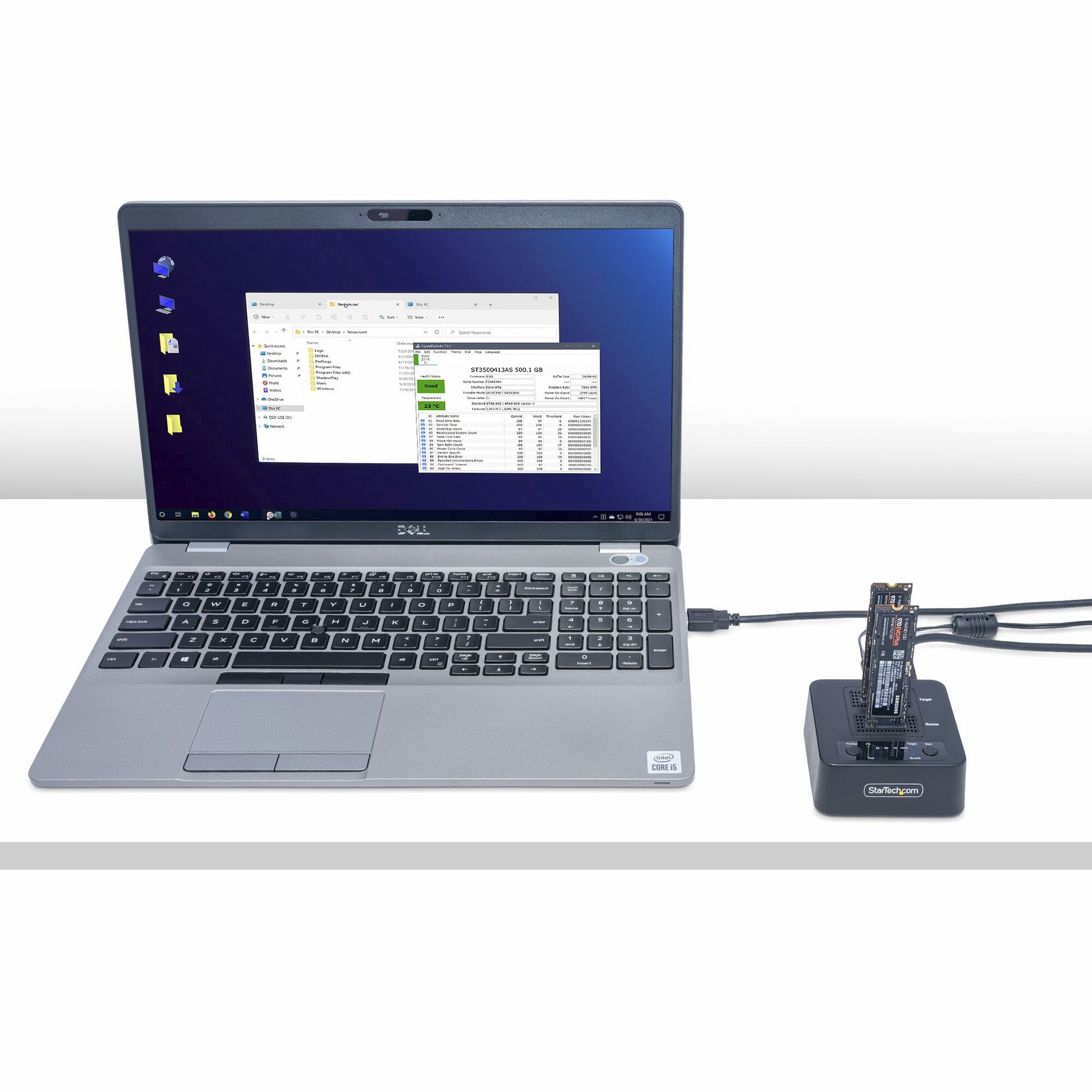

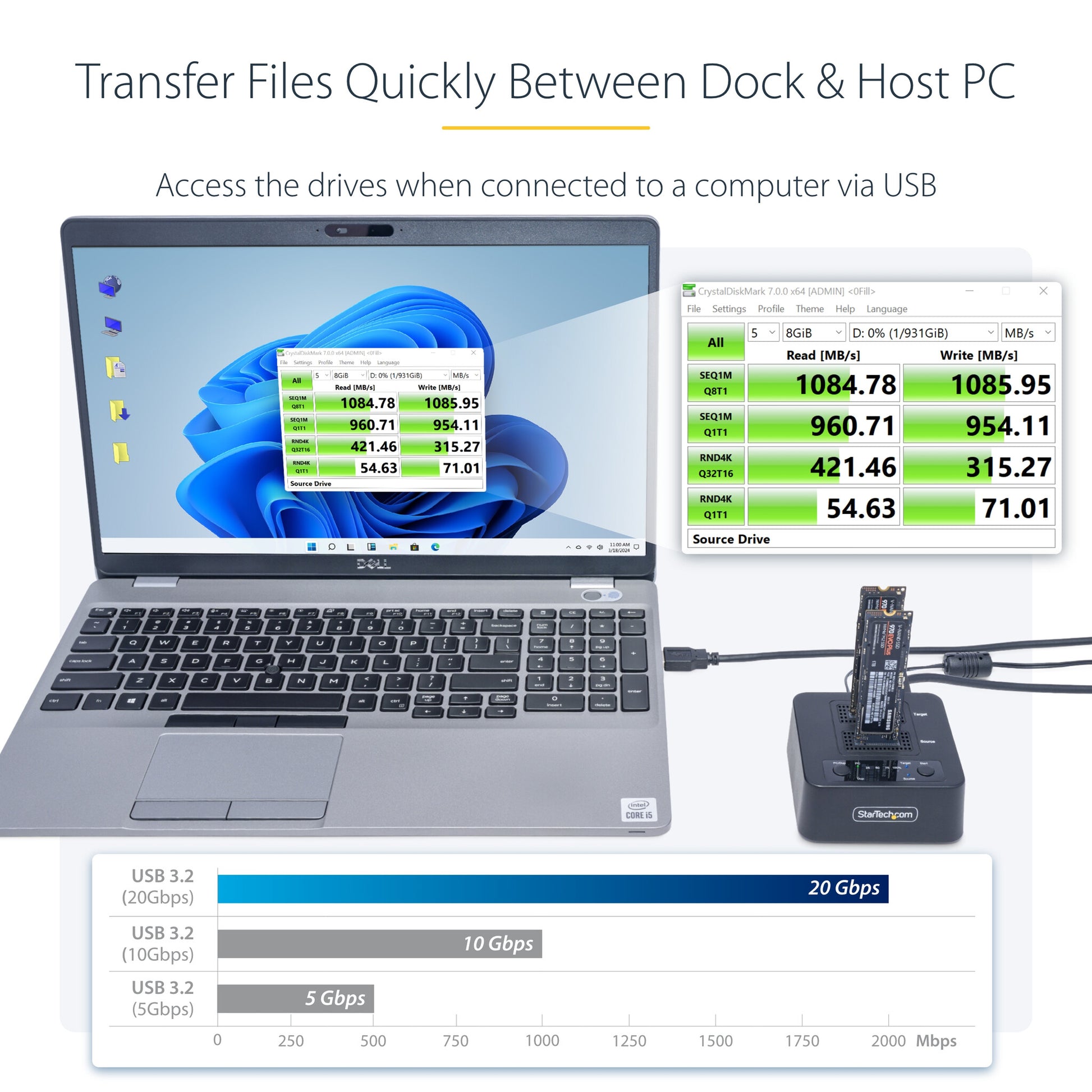

NVMe Drive Access over USB 3.2 Gen2x2

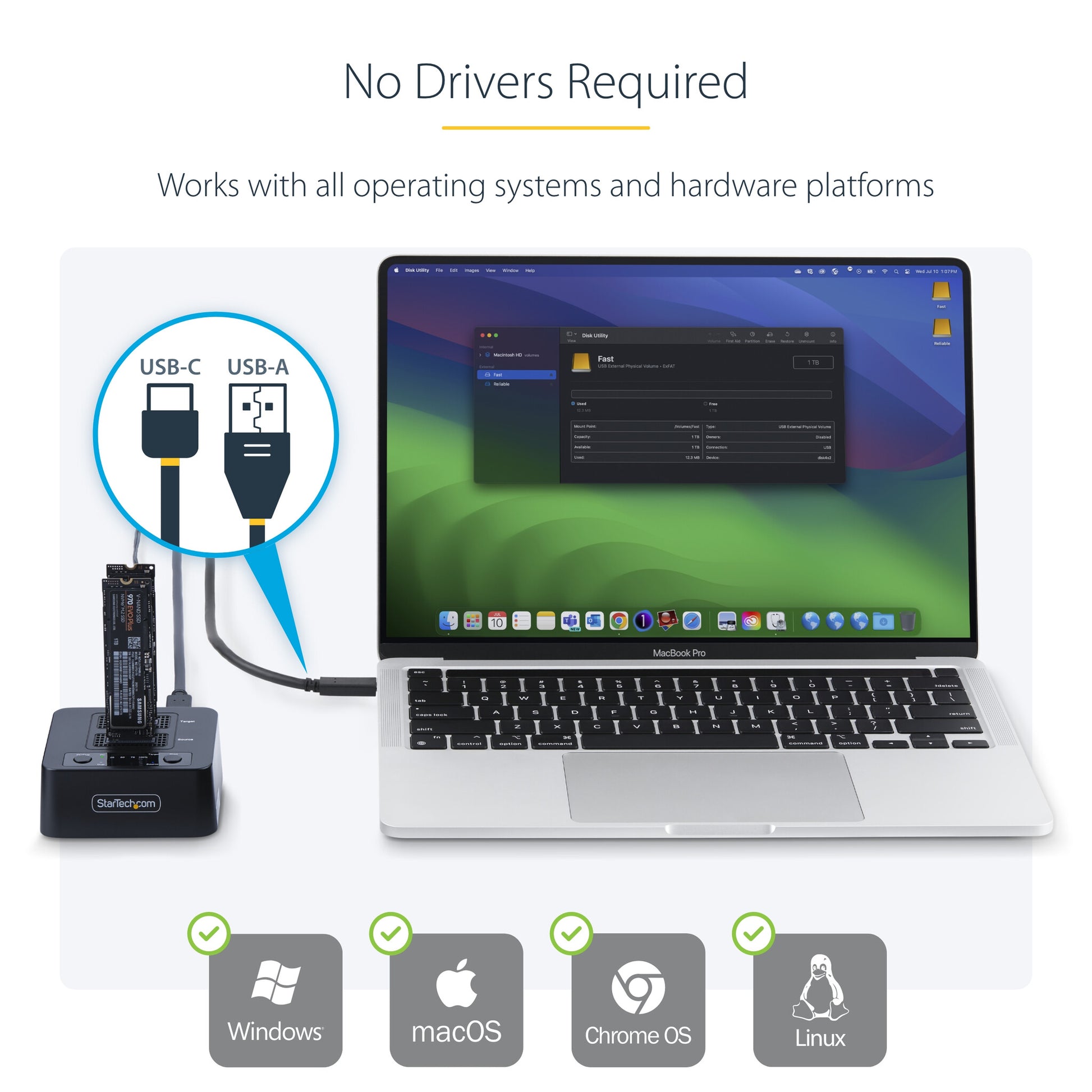

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly

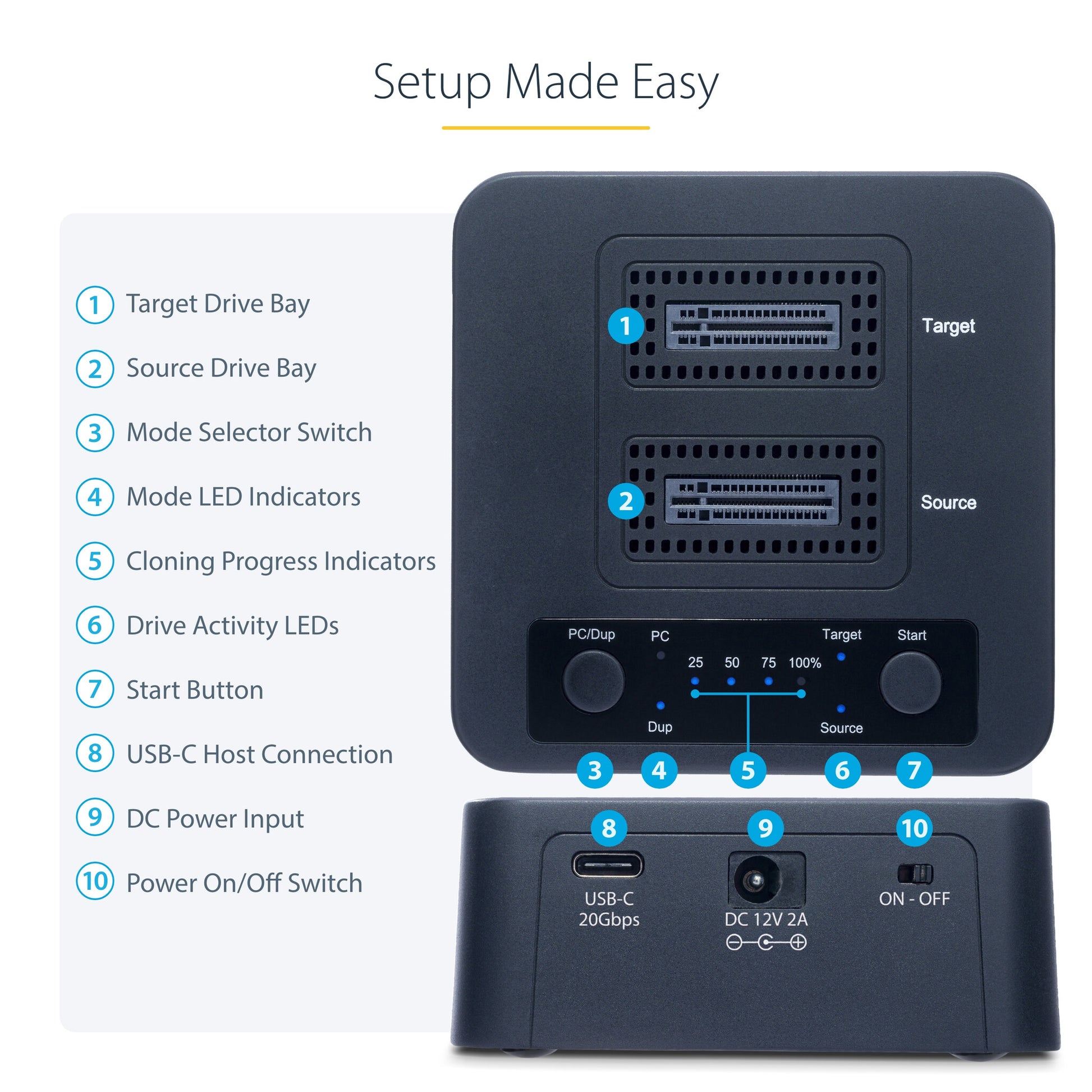

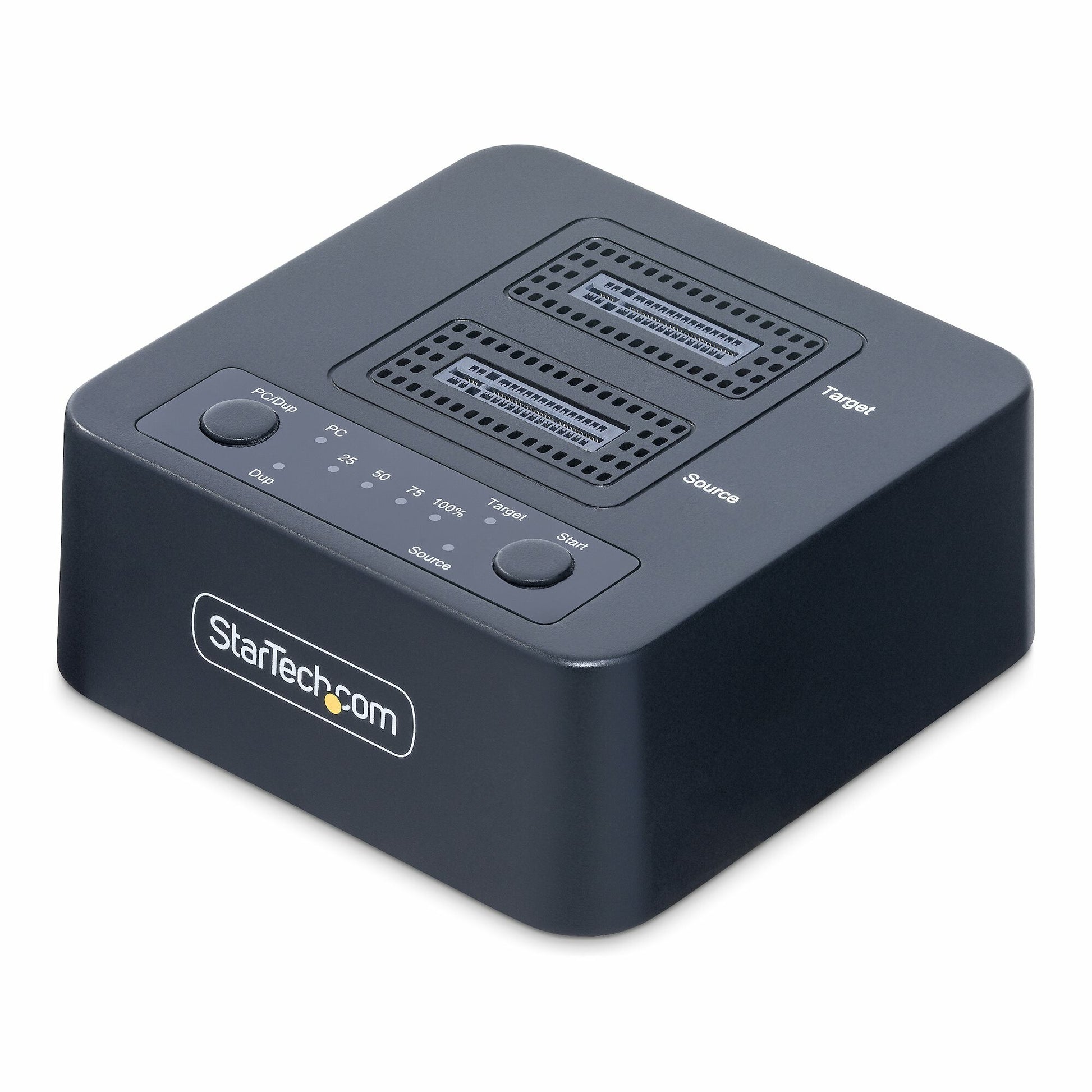

The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

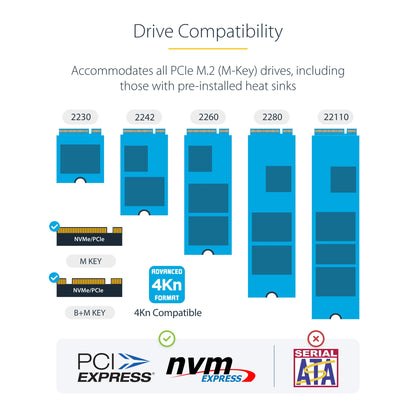

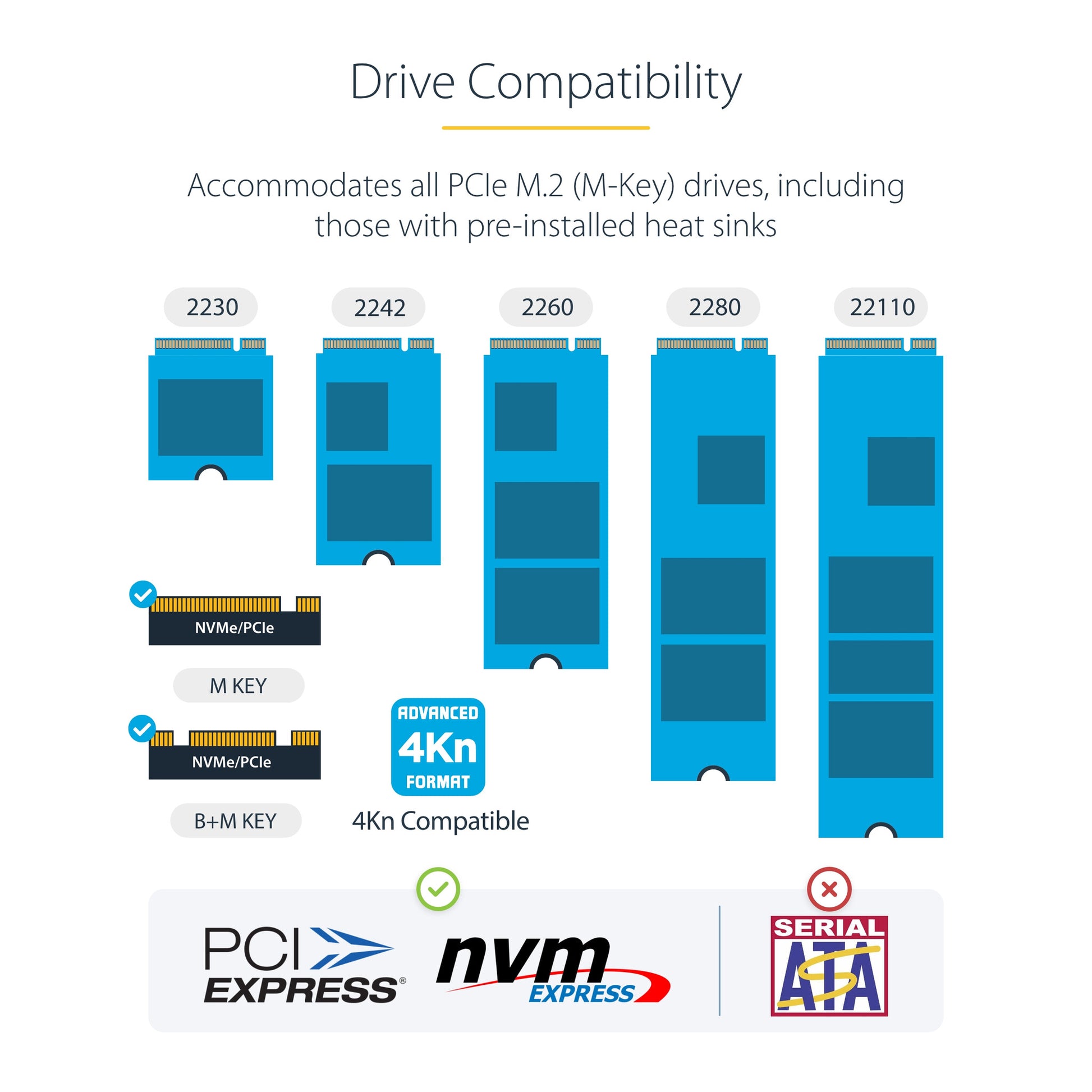

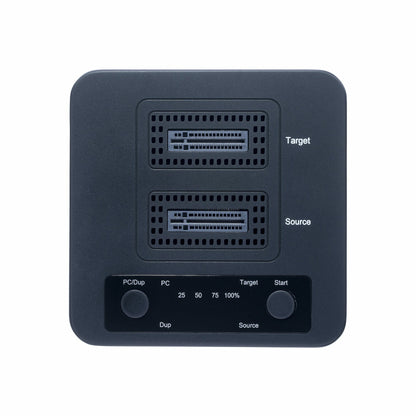

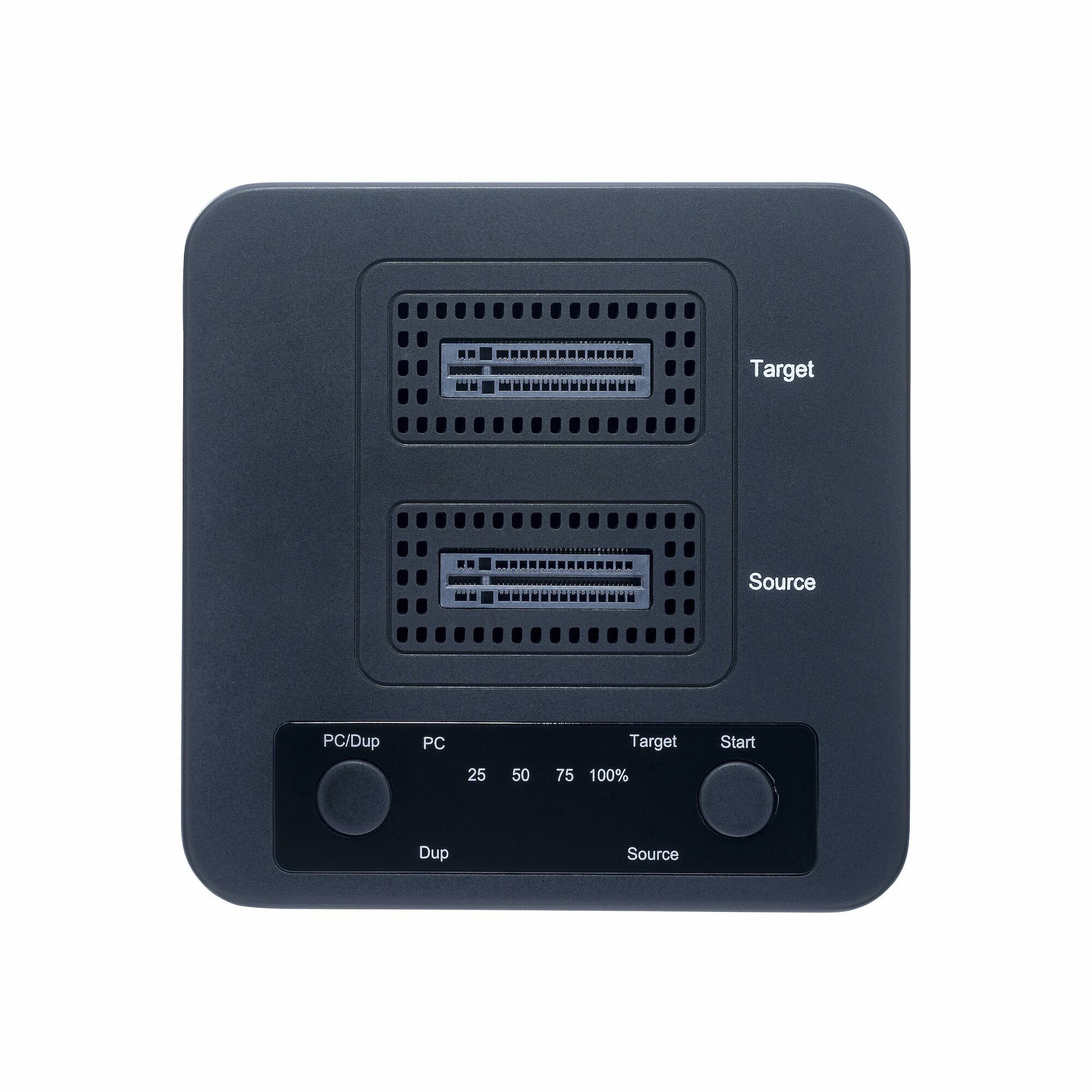

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Features
Hot-swap drive bays
No
Transfer rate
90 GB/min
Technical details
Number of fans
1 fan(s)
Fan diameter
6 cm
LED indicators
Yes
Compliance certificates
RoHS
Chipset
JMS586U
Plug and Play
Yes
Transfer rate
20000 MB/s
Housing material
Plastic
Product colour
Black
Duplicator operating modes
Copy

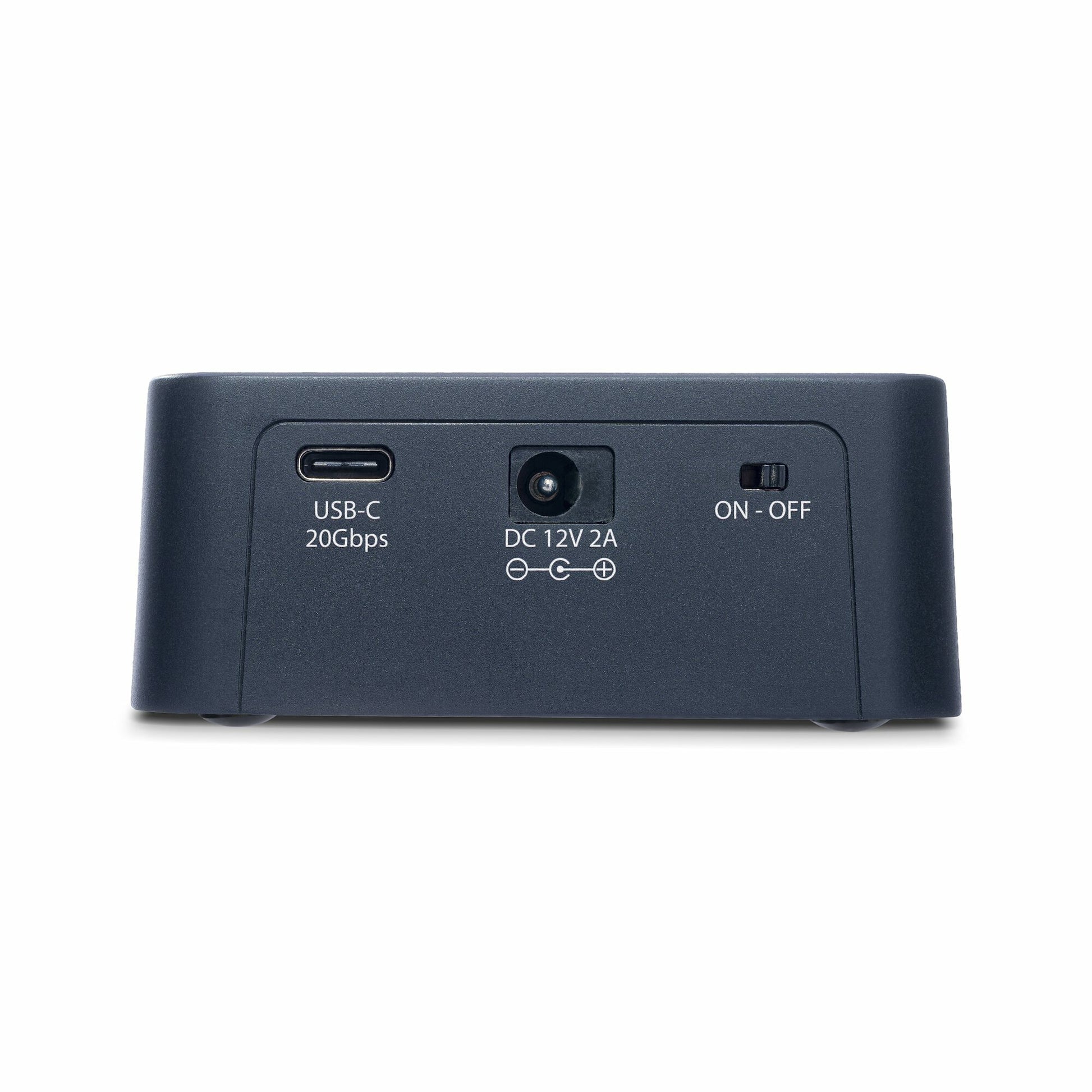

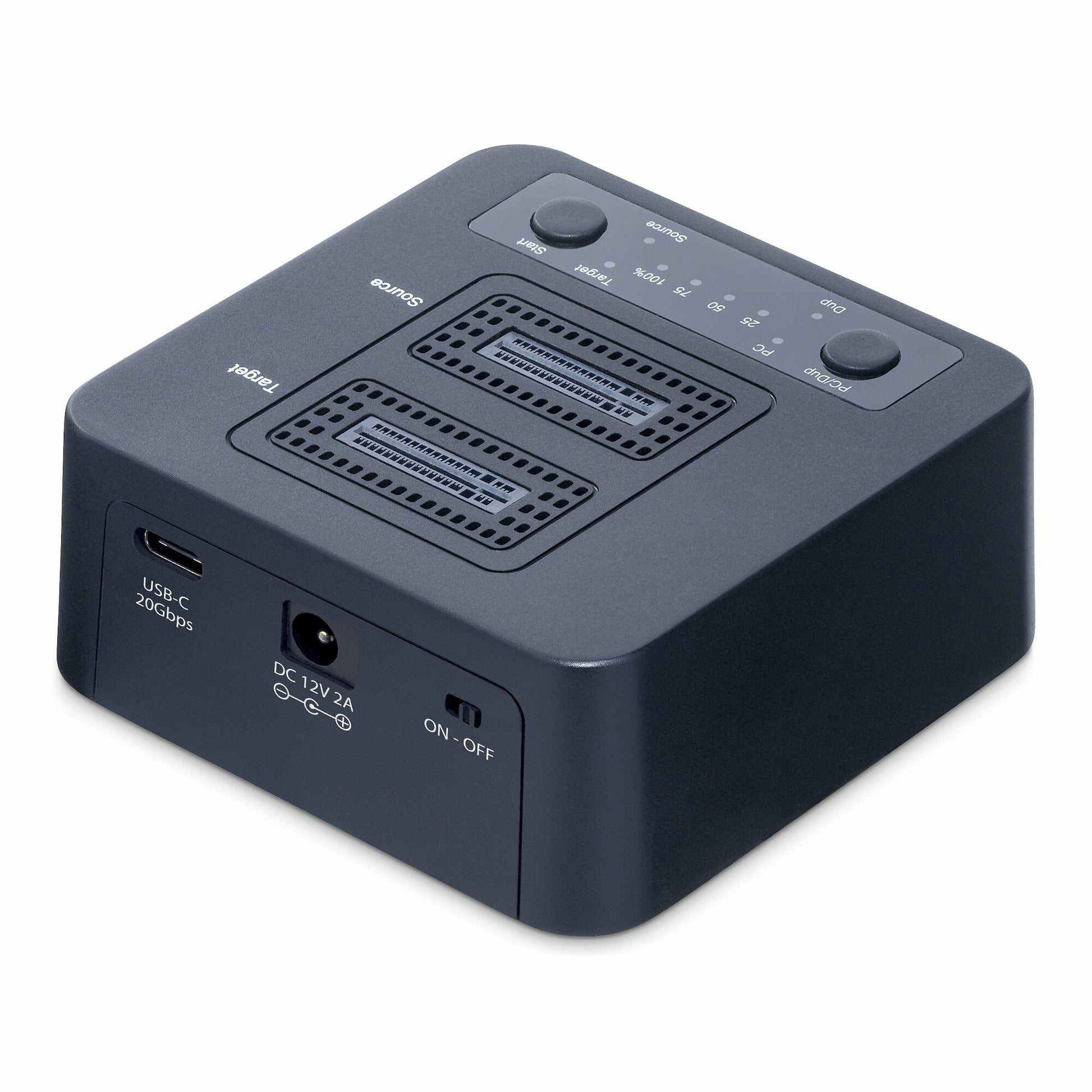

USB connector type
USB Type-C
Interface
USB 3.2 Gen 2 (3.1 Gen 2)
Number of simultaneous copies
1 copies
Product type
HDD/SSD duplicator
Hard drive
SSD support
Yes
SSD interface
M.2
Power
Included power plug types
ANZ, EU, NA, UK
Power plug type
Type M
Input current
0.6 A
Output voltage
12 V
Output current
2 A
AC input voltage
100 - 240 V
Power consumption (typical)
0.1 W
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 55 °C
Storage temperature (T-T)
-20 - 55 °C
Weight & dimensions
Dimensions (WxDxH)
77 x 77 x 44 mm
Weight
129 g
Packaging data
AC adapter included
Yes
Package weight
140 g
Package height
95 mm
Package width
160 mm

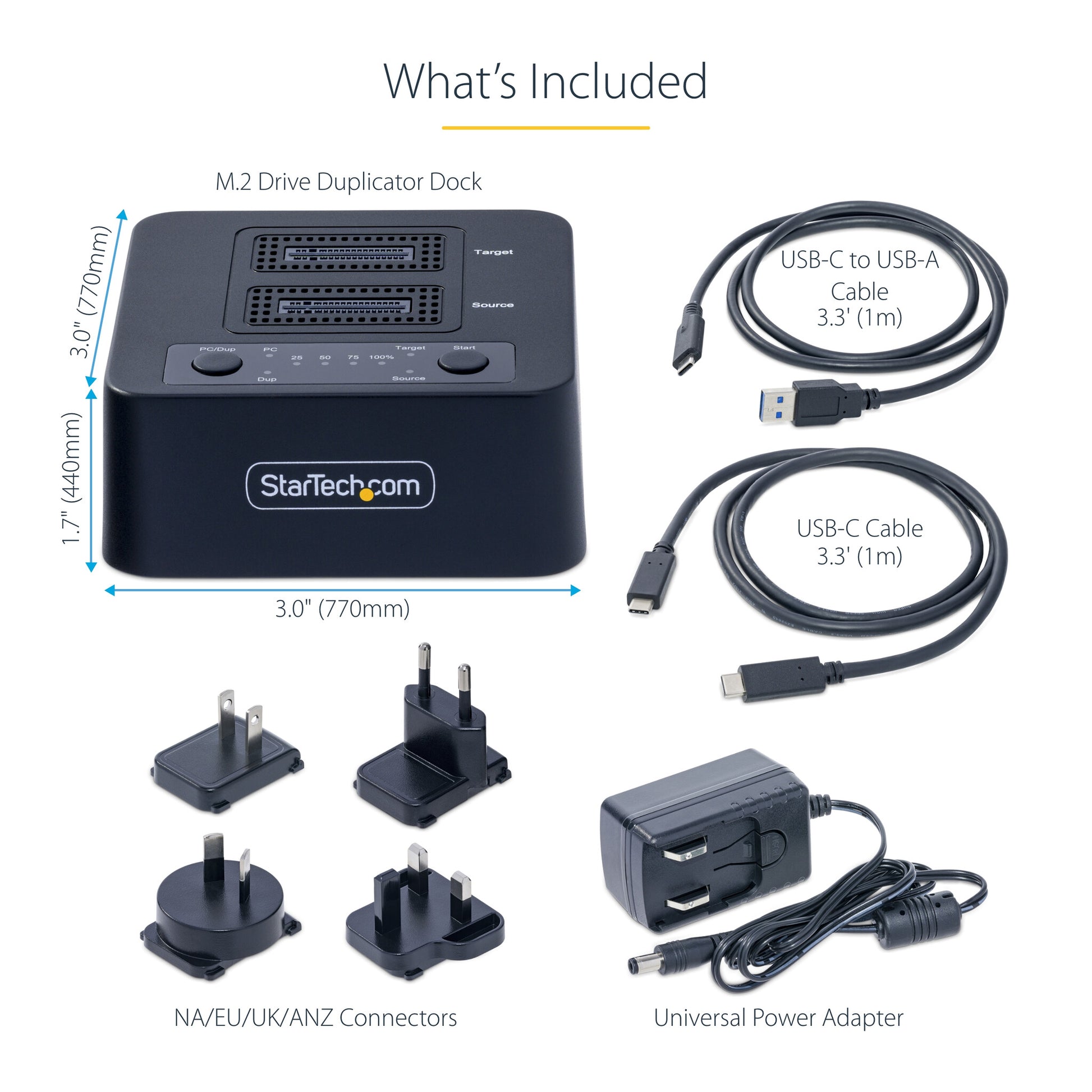

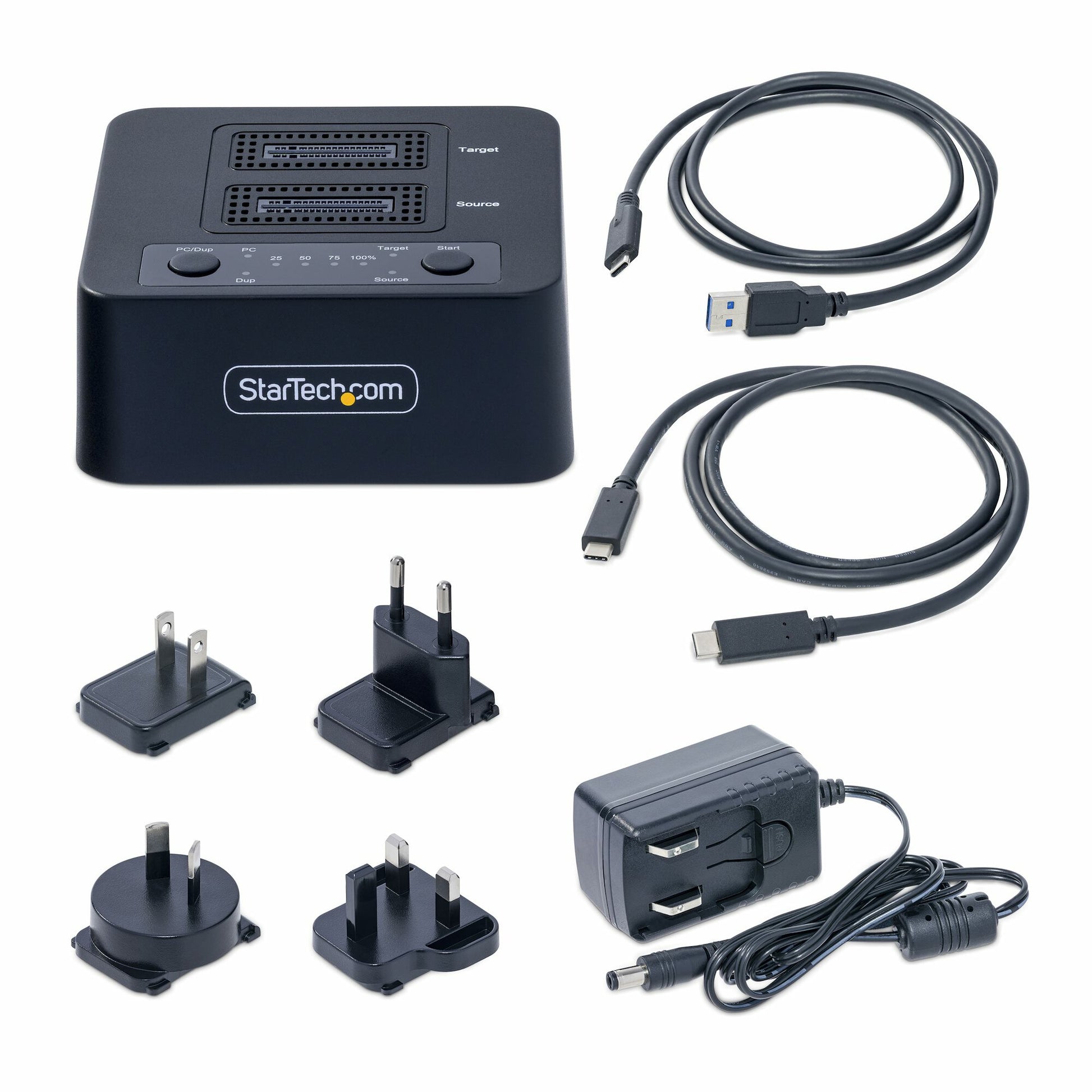

Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C
