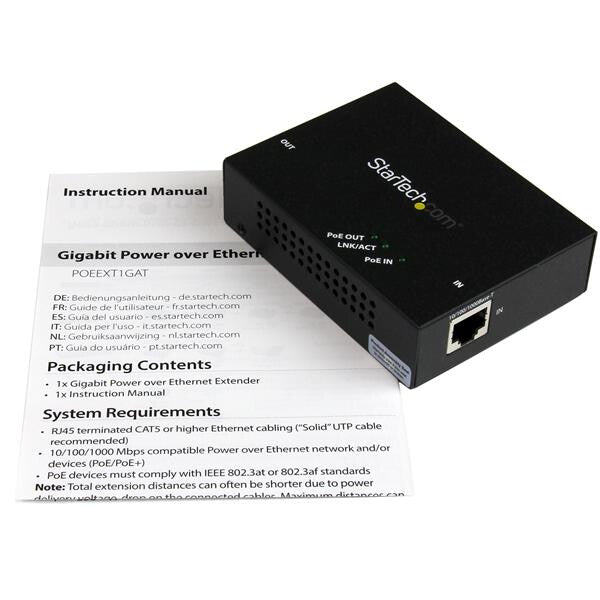

StarTech.com 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)

StarTech.com 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)

Regular price £112.87 GBP
Regular price Sale price £112.87 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:POEEXT1GAT

13 in stock

  • Network repeater 100 m 2000 Mbit/s
  • 10/100/1000Base-T(X)
  • Power over Ethernet (PoE)
  • Black
StarTech.com 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.

Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).

Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Mean time between failures (MTBF) 50000 h
Plug and Play Yes
Auto MDIX IEEE Yes
Auto-negotiation Yes
Duplex system Full, Half
Jumbo frames support No
Data transfer rate 2000 Mbit/s
Maximum transfer distance 100 m
Type Network repeater
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cabling technology 10/100/1000Base-T(X)
Ports & interfaces
Power over Ethernet (PoE) ports quantity 2
Design
Certification CE, FCC, TAA, REACH
LED indicators Activity, Link, PoE
Housing material Steel
Product colour Black
Power
Power over Ethernet (PoE) Yes
Power consumption (max) 3.2 W
AC input voltage 52 - 56 V
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -10 - 85 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 193 g
Height 25 mm
Depth 94 mm
Width 69 mm
Technical details
Compliance certificates RoHS
Packaging content
Manual Yes
Packaging data
Package weight 343 g
Package height 70 mm
Package depth 205 mm
Package width 135 mm
Logistics data
Harmonized System (HS) code 85176990
