SonicWall

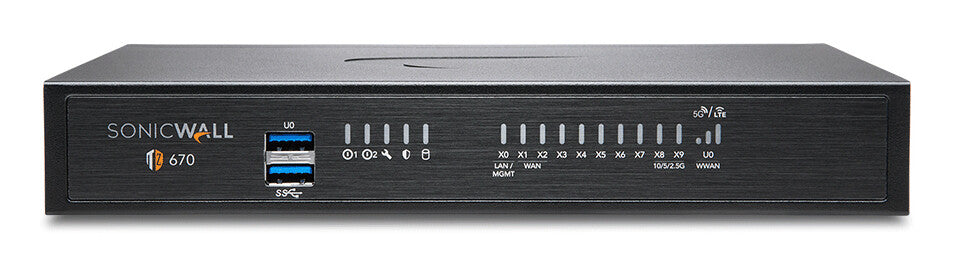

SonicWall TZ670 hardware firewall Desktop 5 Gbit/s
SonicWall TZ670 hardware firewall Desktop 5 Gbit/s
SKU:03-SSC-3028
Out of stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Desktop Firewall throughput: 5000 Mbit/s
- 55.1 BTU/h
- Wired Ethernet LAN data rates: 1000,10000,2500,5000 Mbit/s Console port: USB
- Total storage capacity: 32 GB
- 13.1 W
TZ SERIES NEXT-GENERATION FIREWALL (NGFW)
Protect your small business or branch location from intrusion, malware and ransomware with an easy-to-use, integrated security solution designed specifically for your needs. SonicWall TZ firewalls deliver enterprise-grade protection without the cost or complexity.
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.
The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.
With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.
Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.
| Data transmission | |
|---|---|
| Firewall throughput | 5 Gbit/s |
| VPN throughput | 2.1 Gbit/s |
| IPSec VPN throughput | 2.1 Gbit/s |
| IPS/IDS throughput | 3000 Mbit/s |
| Threat protection throughput | 2500 Mbit/s |
| SSL inspection throughput | 800 Mbit/s |
| Maximum connections (DPI) | 500000 |
| Maximum connections (SPI) | 1500000 |
| Maximum firewall connections per second | 25000 |
| Maximum firewall connections | 1500000 |
| Performance | |
|---|---|
| Heat dissipation | 55.1 BTU/h |
| Certification | FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV/GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
| Network | |
|---|---|
| Wi-Fi | No |
| VPN tunnels quantity | 250 |
| Local user database | 250 |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Quality of Service (QoS) support | Yes |
| DHCP server | Yes |
| Number of VLANs | 256 |
| Number of LAN Access Points (max) | 32 |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF, RIP-1, RIP-2 |
| Management features | |
|---|---|
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Gigabit Ethernet (copper) ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Console port | USB |
| Ethernet LAN data rates | 1000,10000,2500,5000 Mbit/s |
| Number of console ports | 1 |
| SFP+ module slots quantity | 2 |
| WAN connection | Mobile network (USB), Ethernet (RJ-45), SFP+ |
| Storage | |
|---|---|
| Total storage capacity | 32 GB |
| Design | |
|---|---|
| Form factor | Desktop |
| Built-in display | No |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| Power consumption (max) | 13.1 W |
| Redundant power supply (RPS) support | Yes |
| Power supply | 60 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 225 mm |
| Depth | 150 mm |
| Height | 35 mm |
| Weight | 970 g |
| Other features | |
|---|---|
| Firewall throughput | 5000 Mbit/s |
