SonicWall

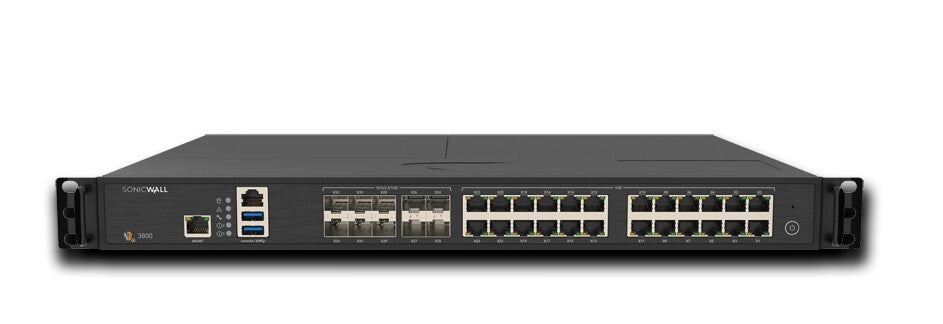

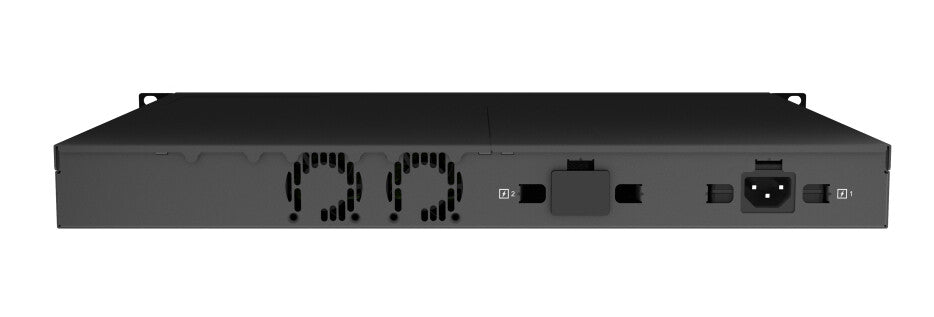

SonicWall NSa 3800 High Availability hardware firewall 1U 12 Gbit/s

SonicWall NSa 3800 High Availability hardware firewall 1U 12 Gbit/s

£3,426.35 GBP
£3,426.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

03-SSC-4663

Low stock: 2 left

  • 1 RU – form factor
  • 24 x 1 GbE interfaces
  • 10 x 10 GbE interfaces
  • Redundant power supply
  • Multi-gigabit threat and malware analysis throughput
  • Superior TLS performance (sessions and throughput)
  • Latest generation 8 SonicOS support
  • Secure SD-WAN capability
SonicWall NSa 3800 High Availability

The SonicWall Network Security Appliance (NSa) 3800 next-generation firewall (NGFW) offers medium to large sized enterprises industry-leading performance at the lowest total cost of ownership in its class.
The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Gen 8 NSa Series, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy.

Data transmission
Firewall throughput 12 Gbit/s
IPSec VPN throughput 8 Gbit/s
IPS/IDS throughput 8 Mbit/s
Threat protection throughput 8 Mbit/s
SSL inspection throughput 3000 Mbit/s
Maximum connections (DPI) 1200000
Maximum connections (SPI) 3000000
Maximum firewall connections per second 90000
VoIP Yes
Performance
Heat dissipation 341 BTU/h
Certification FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH,SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB
Network
Number of users 40000 user(s)
Local user database 1000
Static route Yes
Quality of Service (QoS) support Yes
Number of VLANs 256
Number of LAN Access Points (max) 512
Security
Security algorithms 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, TLS
Content filtering Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX,Java, Cookies for privacy, allow/forbid
VPN support Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Protocols
Routing protocols BGP, OSPF, RIP, RIP-1, RIP-2
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Ports & interfaces
Connectivity technology Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Ethernet LAN (RJ-45) ports 24
Ethernet LAN data rates 1000 Mbit/s
Number of console ports 1
SFP+ module slots quantity 10
Storage
Flash memory 512 MB
Total storage capacity 128 GB
Design
Rack mounting Yes
Form factor 1U
Power
AC input voltage 100-240 V
AC input frequency 50/60 Hz
Power consumption (max) 102.3 W
Redundant power supply (RPS) support Yes
Power supply 150 W
Technical details
Compliance certificates Federal Communications Commission (FCC), ICES, CE, UL, cUL, REACH, RCM, MIC, VCCI, KCC, BSMI, CB
System requirements
Compatible operating systems Microsoft Windows 10 and Windows 11, Linux, Apple iOS, Mac OS X, Google Android™
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 430 mm
Depth 325 mm
Height 45 mm
Weight 4.6 kg
Packaging data
Package width 575 mm
Package height 475 mm
Package depth 185 mm
Package weight 7.2 kg
Other features
Authentication method LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
