SonicWall

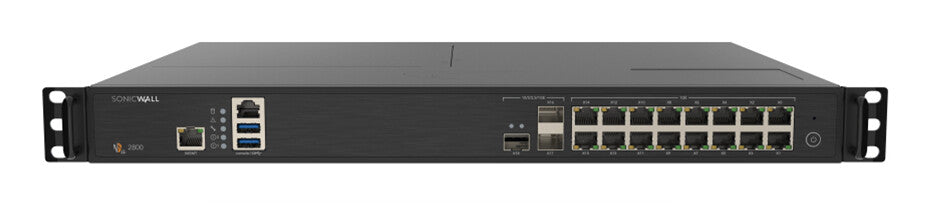

SonicWall NSa 2800 hardware firewall 1U 8 Gbit/s
SonicWall NSa 2800 hardware firewall 1U 8 Gbit/s
Couldn't load pickup availability
SKU:03-SSC-1841
Low stock: 1 left
- 1U rack mounted
- Multi-gigabit threat and malware analysis throughput
- 16 x 1 GbE interfaces
- 3 x 10 GbE interfaces
- Superior TLS performance (sessions and throughput)
- Best-in-class price-performance
- Expandable storage
- Wi-Fi 6 firewall management
- Secure SD-WAN capability
- Enterprise internet edge ready
- TLS 1.3 support
- Cloud Secure Edge connector support
- Powered by SonicWall Capture Labs threat research team
- SonicWall switch, SonicWave access point and Capture Client integration
SonicWall NSa 2800 Appliance. No licenses or security services are included.
SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 2800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class.
The 2800 is the cornerstone of the threat protection solution that includes simplified centralised firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation. The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.
The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterpriselevel workflows. It offers easy policy configuration, zero-touch deployment and flexible management — all of which allow enterprises to improve both their security and operational efficiency. NSa 2800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.
| Data transmission | |
|---|---|
| Firewall throughput | 8 Gbit/s |
| IPSec VPN throughput | 5.5 Gbit/s |
| IPS/IDS throughput | 7 Mbit/s |
| Threat protection throughput | 6 Mbit/s |
| SSL inspection throughput | 1800 Mbit/s |
| Maximum connections (DPI) | 1000000 |
| Maximum connections (SPI) | 1500000 |
| Maximum firewall connections per second | 50000 |
| VoIP | Yes |
| Performance | |
|---|---|
| Heat dissipation | 180.01 BTU/h |
| Certification | FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH,SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB |
| Network | |
|---|---|
| Number of users | 40000 user(s) |
| Local user database | 1000 |
| Static route | Yes |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 128 |
| Number of LAN Access Points (max) | 512 |
| Security | |
|---|---|
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, MD5, SHA-1, TLS |
| Content filtering | Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX,Java, Cookies for privacy, allow/forbid |
| VPN support | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF, RIP, RIP-1, RIP-2 |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo SFP ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 16 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Number of console ports | 1 |
| SFP+ module slots quantity | 3 |
| Storage | |
|---|---|
| Flash memory | 512 MB |
| Total storage capacity | 128 GB |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 52.8 W |
| Redundant power supply (RPS) support | Yes |
| Power supply | 90 W |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ICES, CE, UL, cUL, REACH, RCM, MIC, VCCI, KCC, BSMI, CB |
| System requirements | |
|---|---|
| Compatible operating systems | Microsoft Windows 10 and Windows 11, Linux, Apple iOS, Mac OS X, Google Android™ |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 430 mm |
| Depth | 325 mm |
| Height | 45 mm |
| Weight | 4.6 kg |
| Packaging data | |
|---|---|
| Package width | 575 mm |
| Package height | 475 mm |
| Package depth | 185 mm |
| Package weight | 7.2 kg |
| Packaging content | |
|---|---|
| Bundled software | No licenses or security services are included. |
| Other features | |
|---|---|
| Authentication method | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
