sonero 8K Displayport Kabel 1.4v 1.5 m Black

sonero 8K Displayport Kabel 1.4v 1.5 m Black

Regular price £179.92 GBP
Regular price Sale price £179.92 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:X-PDC020-015

12 in stock

  • 1.5 m
  • DisplayPort Straight Male
  • DisplayPort Straight Male
  • DisplayPort version: 1.4
  • 7680 x 4320 pixels 60 Hz 32.4 Gbit/s
  • HDCP Display Stream Compression (DSC) Plug and Play
  • Black
8K High Speed DisplayPort Cable - 1.50m

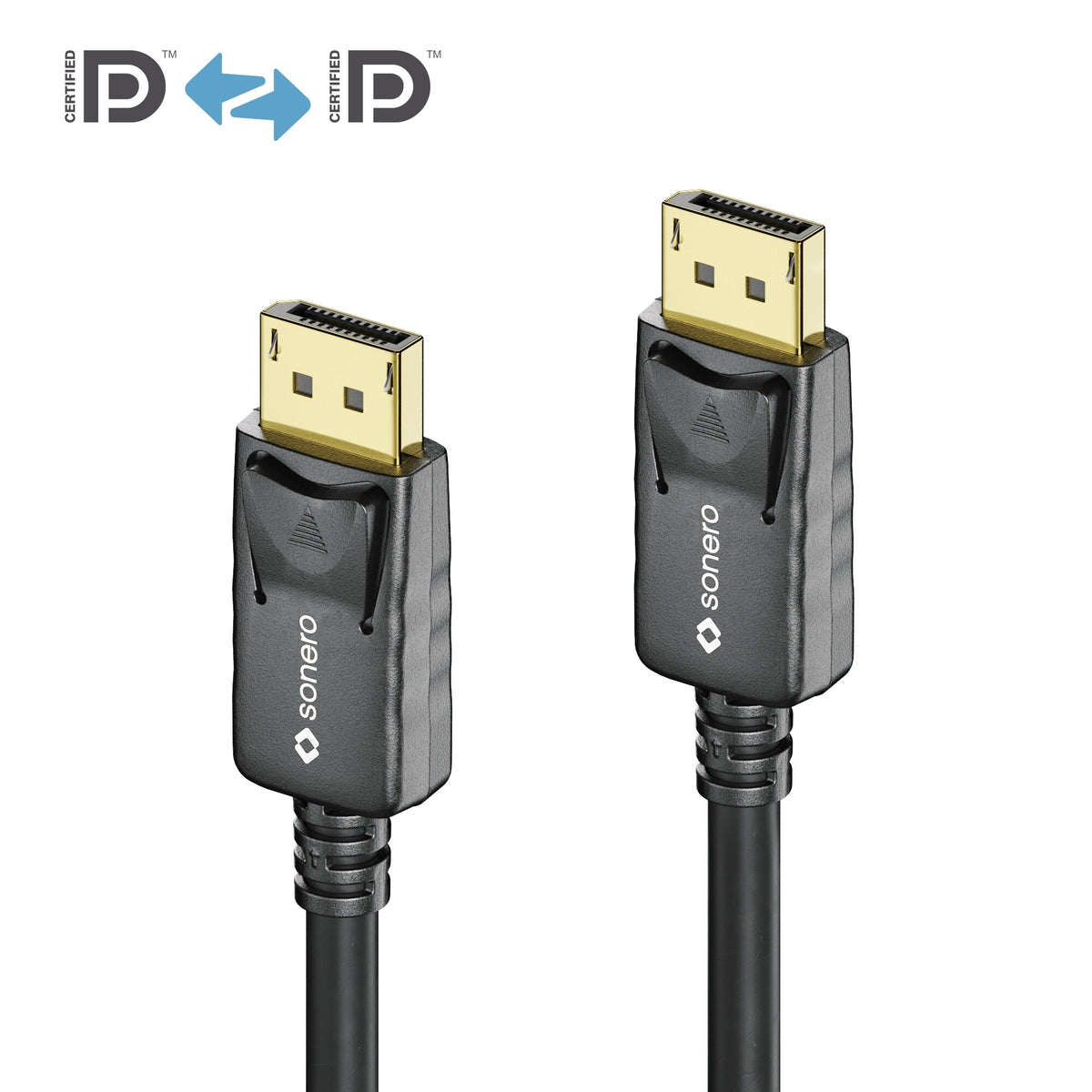

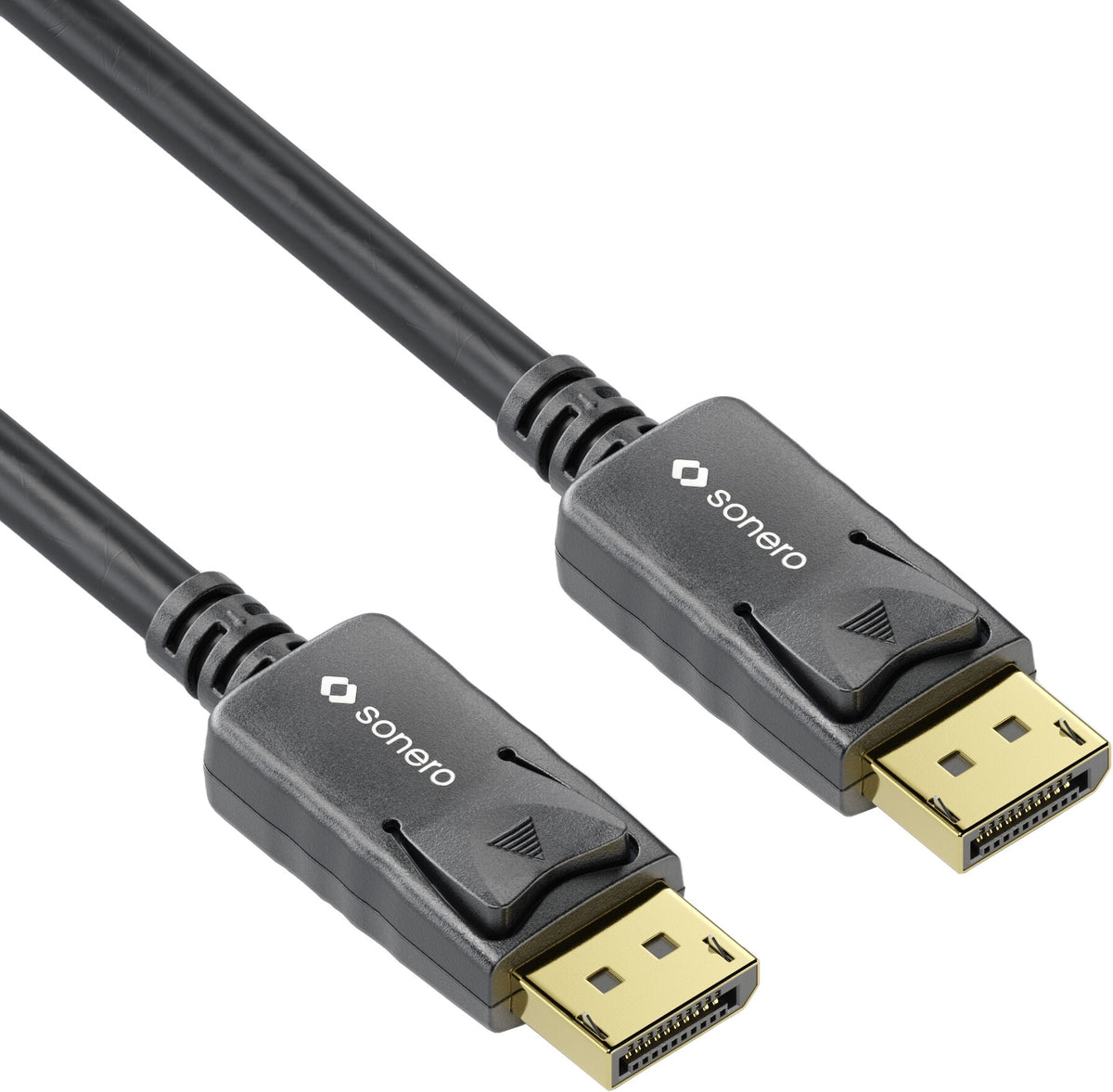

Sonero X-PDC020 8K DisplayPort Cable
The X-PDC020-015 from Sonero is a 1.50 meter long DisplayPort cable, compatible with DisplayPort 1.4 specifications that can be used for resolutions up to 8K / UltraHD-2 / 4320p at 60Hz. The cable with an outer diameter of 6.3mm (AWG30) features a DisplayPort connector in an ABS housing on both ends, as well as the typical DisplayPort locking mechanism. It is also equipped with gold-plated precision contacts, high-purity, solid-core copper inner conductors and triple shielding for perfect transmission quality.

Sonero - High-grade Products for the Consumer Market
The 8K DisplayPort 1.4 cables from Sonero are designed for lossless AV transmission with perfect picture and sound quality. The cable connects source and display devices with DisplayPort connectors and is suitable for resolutions up to 8K / UltraHD-2 / 4320p with 60Hz with a bandwidth of 32.4 Gbps. It supports HDCP up to version 2.2 and also comes with the usual DisplayPort locking system as well as support for the MST (Multi Stream Transport) feature, which allows multiple monitors to operate simultaneously, using just one DisplayPort connection. The cable also supports the so called Display-Stream-Compression (DSC 1.2), which automatically compresses signals that use too much bandwidth so that they can still be transmitted. Forward error correction, full HDR and Rec.2020 color space support as well as up to 32 audio channels are also supported with DisplayPort version 1.4.
With triple shielding and the use of high-purity, solid-core inner conductors made of copper, the Sonero DisplayPort cables are well protected against EMI, including interference from cell phones and radio sources. The precision connectors with ABS plastic housing and gold-plated contacts guarantee a perfect connection with maximum transmission quality as well as durable protection from corrosion. With an outer diameter of only 6.3 or 7.3mm and an outer jacket made of flexible PVC, it can also be used in confined environments. The cable is also fire-retardant according to VW-1 specification and therefore suitable for critical areas.

The black X-PDC020 DisplayPort cables are available in lengths between 1.00 and 5.00 meters. Up to a cable length of 2.00 meters the outer diameter is 6.3mm with AWG30, from 3.00 meters it is 7.3mm with AWG28.

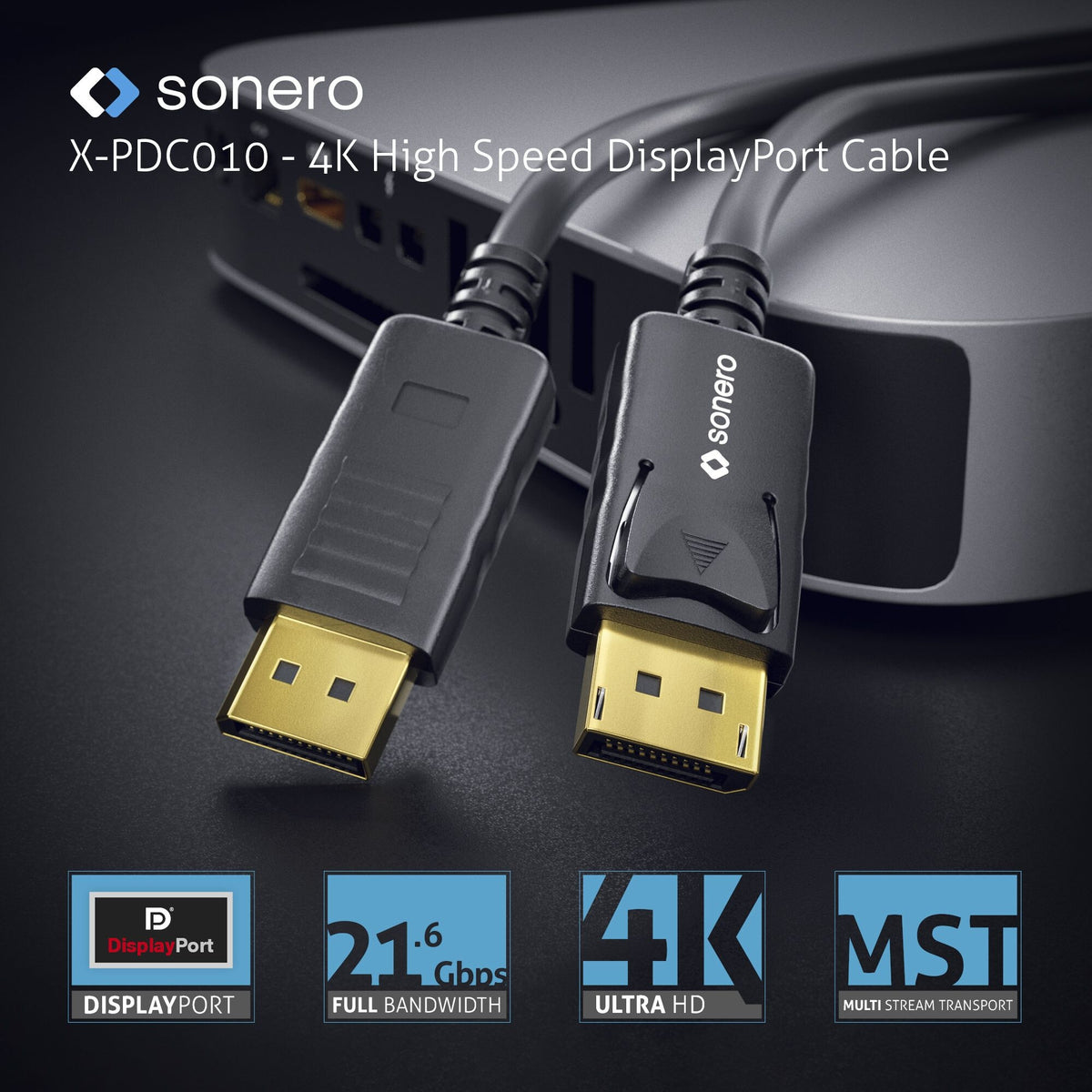

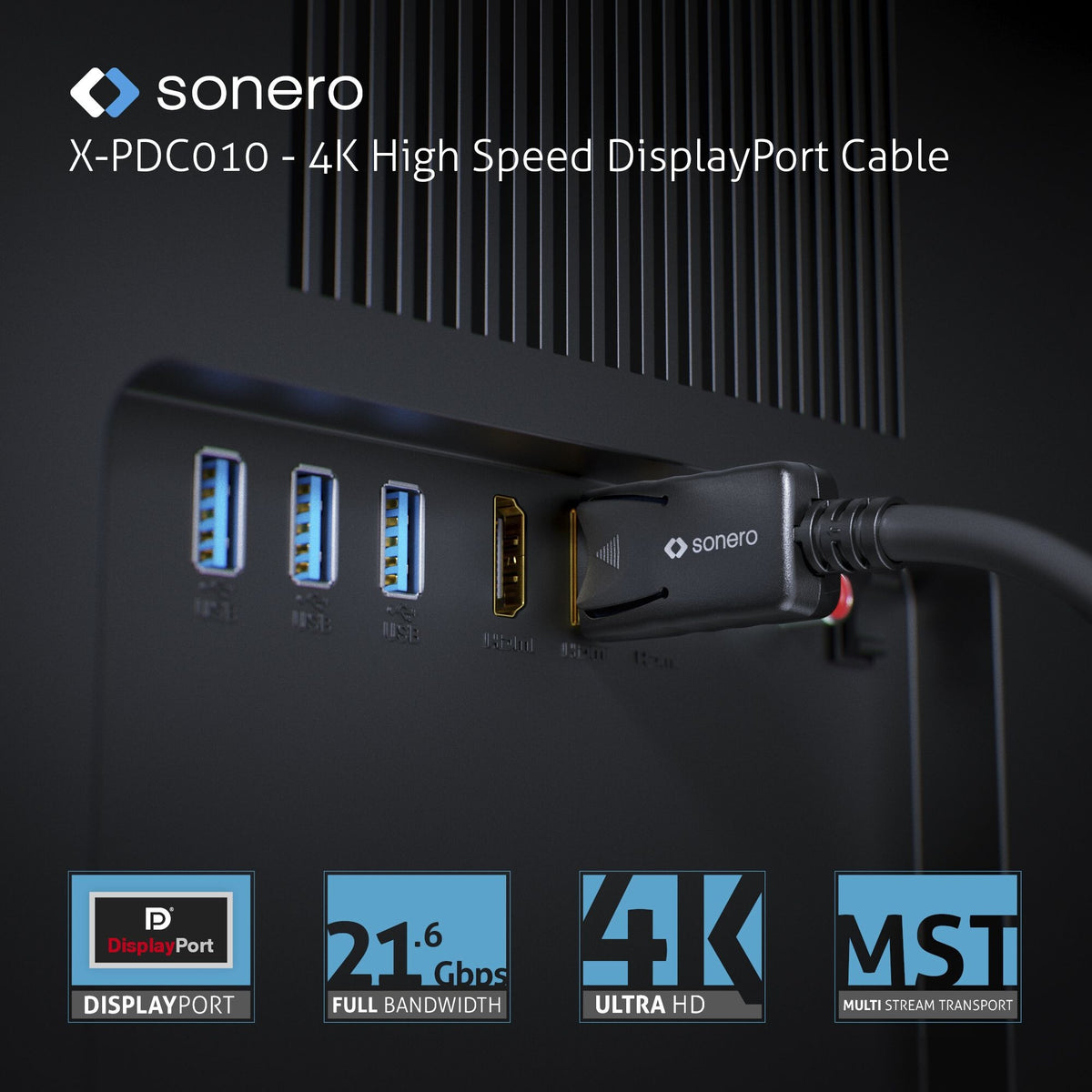

The 4K version of this cable, with DisplayPort 1.2 support for up to 17.28Gbps can be found under the part number X-PDC010.

Sonero - Connected with Quality
The wide Sonero range represents reliable premium consumer electronics and accessories at the cutting edge of technology. The exceptional price and performance ratio is only excelled by the Sonero product quality itself. Unaltered signal processing and transmission is a requirement for Sonero products, not a nice-to-have.

Features
Cable length 1.5 m
Connector 1 DisplayPort
Connector 2 DisplayPort
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Gold
DisplayPort version 1.4
Maximum resolution 7680 x 4320 pixels
Supported video modes 4320p
Maximum refresh rate 60 Hz
HDCP Yes
HDCP version 2.2
Display Stream Compression (DSC) Yes
Display Stream Compression (DSC) version 1.2
Connector 1 lockable Yes
Connector 2 lockable Yes
Product colour Black
Cable material Copper
Magnetically shielded Yes
Number of shielding layers 3
Jacket material Polyvinyl chloride (PVC)
Connector housing material Acrylonitrile butadiene styrene (ABS)
AWG wire size 30
Data transfer rate 32.4 Gbit/s
Channels quantity 32 channels
Plug and Play Yes
Multi-Stream Transport (MST) Yes
Cable type Round cable
Certification CE, FCC
Packaging data
Cable diameter 6.3 mm
Connector 1 dimensions (WxDxH) 47.4 x 20 x 12 mm
Weight 100 g
Connector 2 dimensions (WxDxH) 47.4 x 20 x 12 mm
Quantity per pack 1 pc(s)
Package width 180 mm
Package depth 200 mm
Package weight 100 g
