Socket Mobile

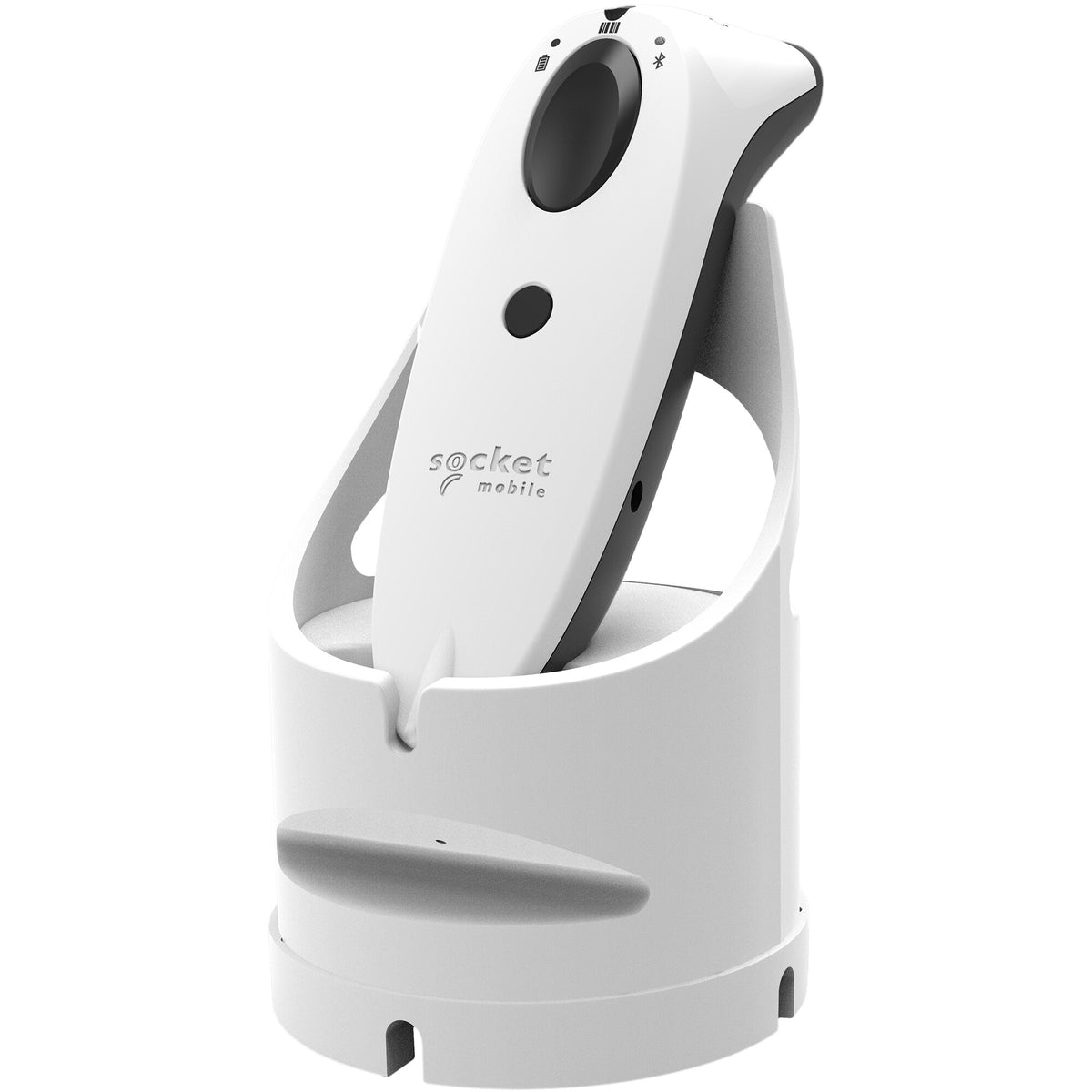

Socket Mobile SocketScan S740 Handheld bar code reader 1D/2D LED White

Socket Mobile SocketScan S740 Handheld bar code reader 1D/2D LED White

Regular price £379.06 GBP
Regular price Sale price £379.06 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CX3487-1982

Low stock: 9 left

  • Handheld bar code reader White
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), U.P.C. Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
  • 640 x 400 pixels
  • Wireless Standard interfaces: Bluetooth
  • Power source type: Battery Nickel-Metal Hydride (NiMH) 2000 mAh
1D/2D, LED, Bluetooth 2.1+EDR, NiMH 2000 mAh, Charging Dock, White

The SocketScan S740 universal barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergo¬nomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.

This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.

Application Integration – Socket Mobile’s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.

Scanning
Wavelength 610 nm
Light levels (direct sunlight) 0 - 100000 lx
Optical sensor resolution (W x H) 640 x 400 pixels
Linear (1D) barcodes supported Codabar, Code 11, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), U.P.C.
Sensor type LED
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type 1D/2D
Type Handheld bar code reader
Ports & interfaces
Bluetooth version 2.1+EDR
Wireless range 10 m
Standard interfaces Bluetooth
Connectivity technology Wireless
Performance
LED indicators Battery replacement, Bluetooth
Product colour White
Power
Charging time 6 h
Battery life 20 h
Number of reads per charge 70000
Battery capacity 2000 mAh
Number of batteries supported 2
Battery type AA
Battery technology Nickel-Metal Hydride (NiMH)
Power source type Battery
Weight & dimensions
Weight 117 g
Height 132.2 mm
Depth 40.1 mm
Width 37.1 mm
Packaging data
Charging base Yes
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Technical details
Compliance certificates RoHS
