Compatible with Apple® iOS devices (iPad®, iPhone®, iPod Touch®) and Android, Windows®, Mac and Linux
Scanning – 2D and 1D barcode scanning
Auto Scan Mode – Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button
Exceptional Ergonomics – Small, light and fits perfectly in hand for comfortable use over extended periods
Long-Lasting, Replaceable, Rechargeable Battery – Power to last over 16 hours on a single charge
User Indicators – Intuitive LEDs for Bluetooth connection, battery level and scanning status
User Feedback – Audible tones and pulsation
LED Aimer – Bright, rectangular illumination field with LED pointer for precise aiming
Decoding Ability – Reads damaged and poorly printed barcodes
Developer Support Available – The Socket Mobile development team is available to help integrate CaptureSDK into your app
Native App Support – Socket Mobile’s CaptureSDK enables easy native app integration in your applications to improve business productivity
Accessories – Wrist strap included. Optional: Holster and Durable Retractable Clip available
Designed and Assembled in the USA

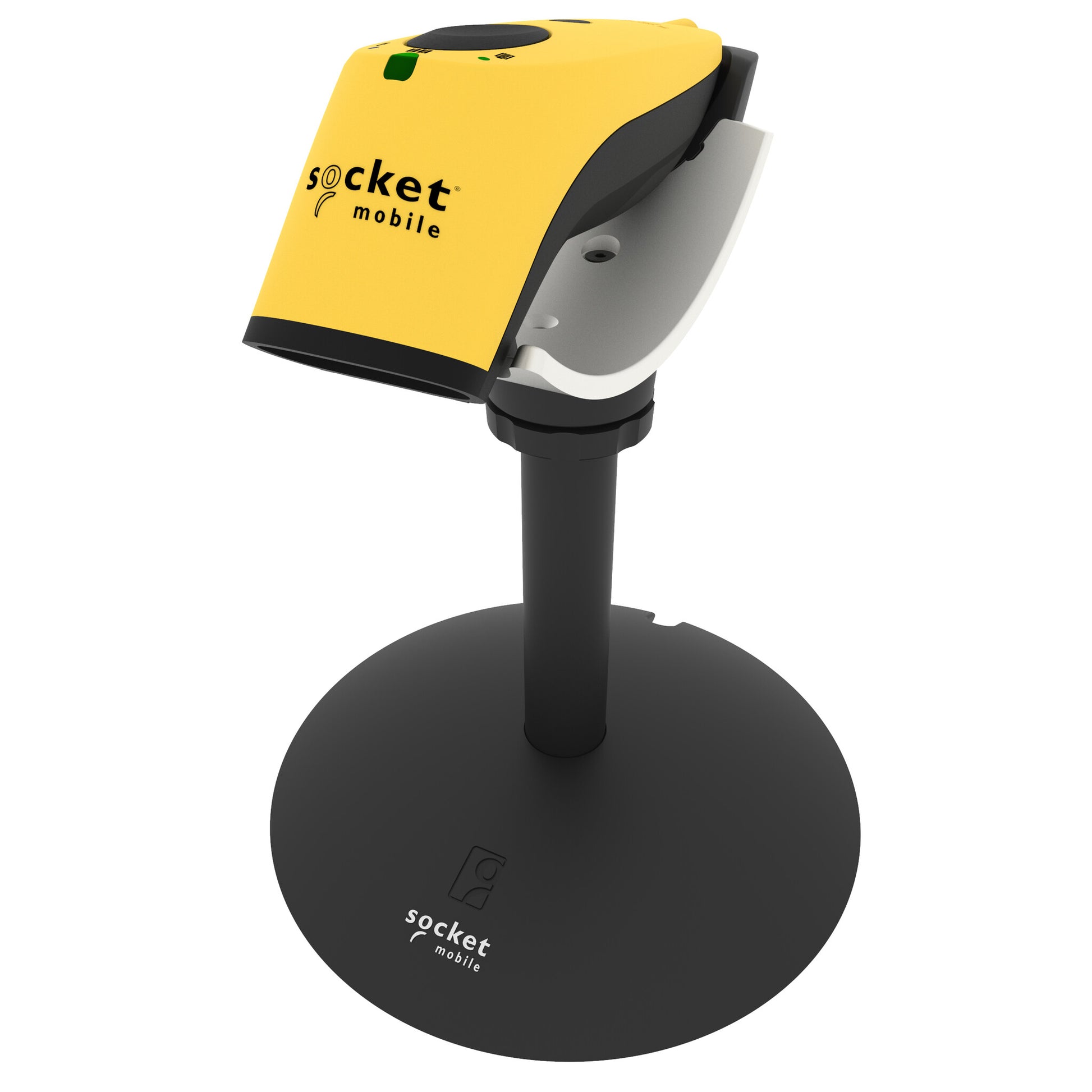

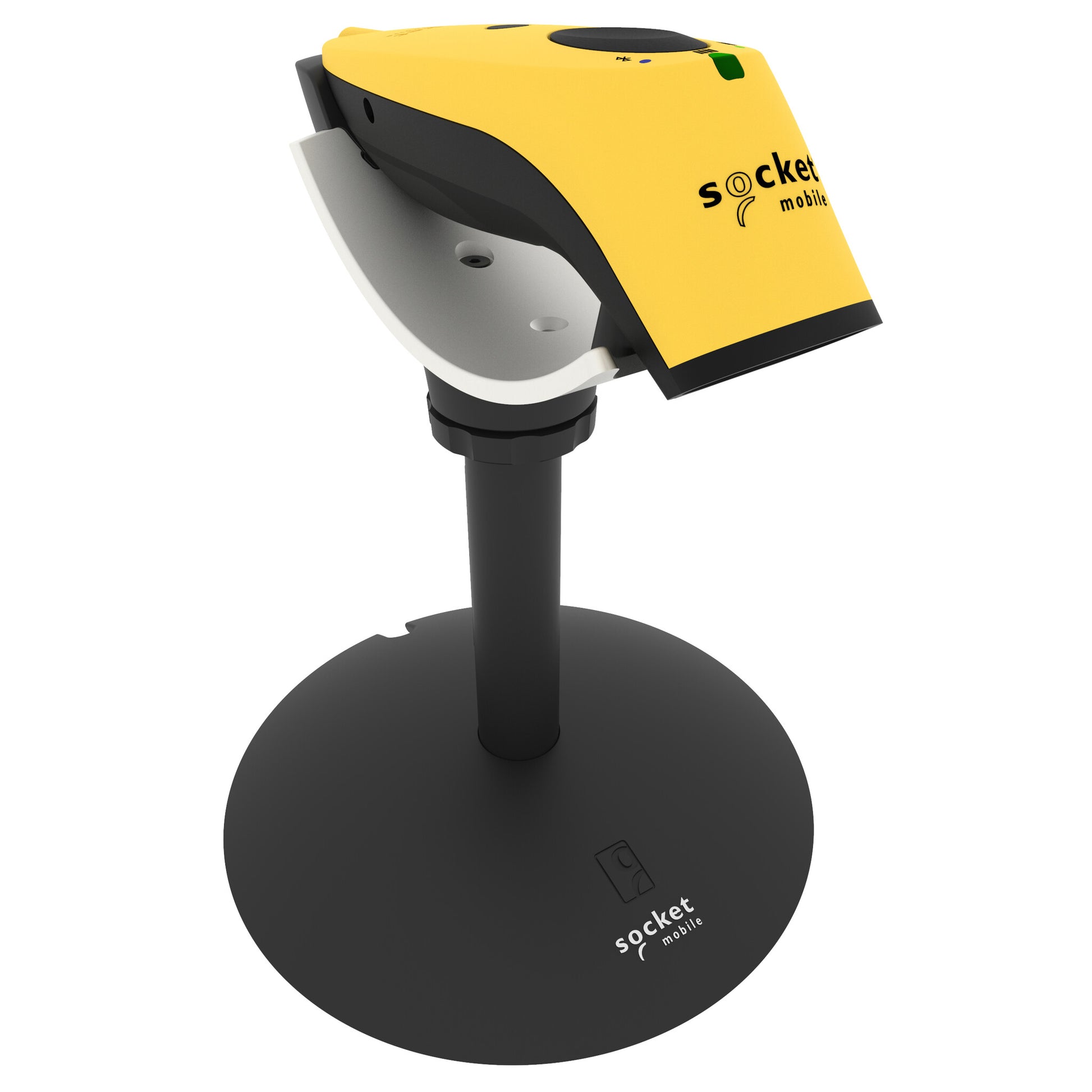

Scanner & Charging Stand Bundle, Yellow, w / Charging Stand
The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
Scanning
Light levels (direct sunlight)
0 - 100000 lx
Working distance
38 cm
Optical sensor resolution (W x H)
1280 x 960 pixels
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type
1D/2D
Type
Handheld bar code reader
Ports & interfaces
Cable length
1.2 m
Bluetooth version
2.1+EDR
Wireless range
10 m
USB 2.0 ports quantity
1
USB version
2.0
Standard interfaces
Bluetooth
Connectivity technology
Wireless
Performance
Certification
EC 60950-1, UL 60950-1, CAN/CSA C22.2RSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC
Vibration function
Yes
Built-in display
No
Buzzer
Yes
LED indicators
Power, Status
Product colour
Yellow
Power
Charging time
6 h
Battery life
16 h
Number of reads per charge
70000
Battery voltage
2.4 V
Battery capacity
2000 mAh
Number of batteries supported
2
Battery type
AA
Battery technology
Nickel-Metal Hydride (NiMH)
Power source type
Battery
Weight & dimensions
Weight
117 g
Height
132.2 mm
Depth
40.1 mm
Width
37.1 mm
Packaging data
Cables included
USB
Charging base
Yes
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Battery
Battery weight
54.5 g
Technical details
Sustainability compliance
Yes
Compliance certificates
C-TICK, CE, Federal Communications Commission (FCC), RoHS
