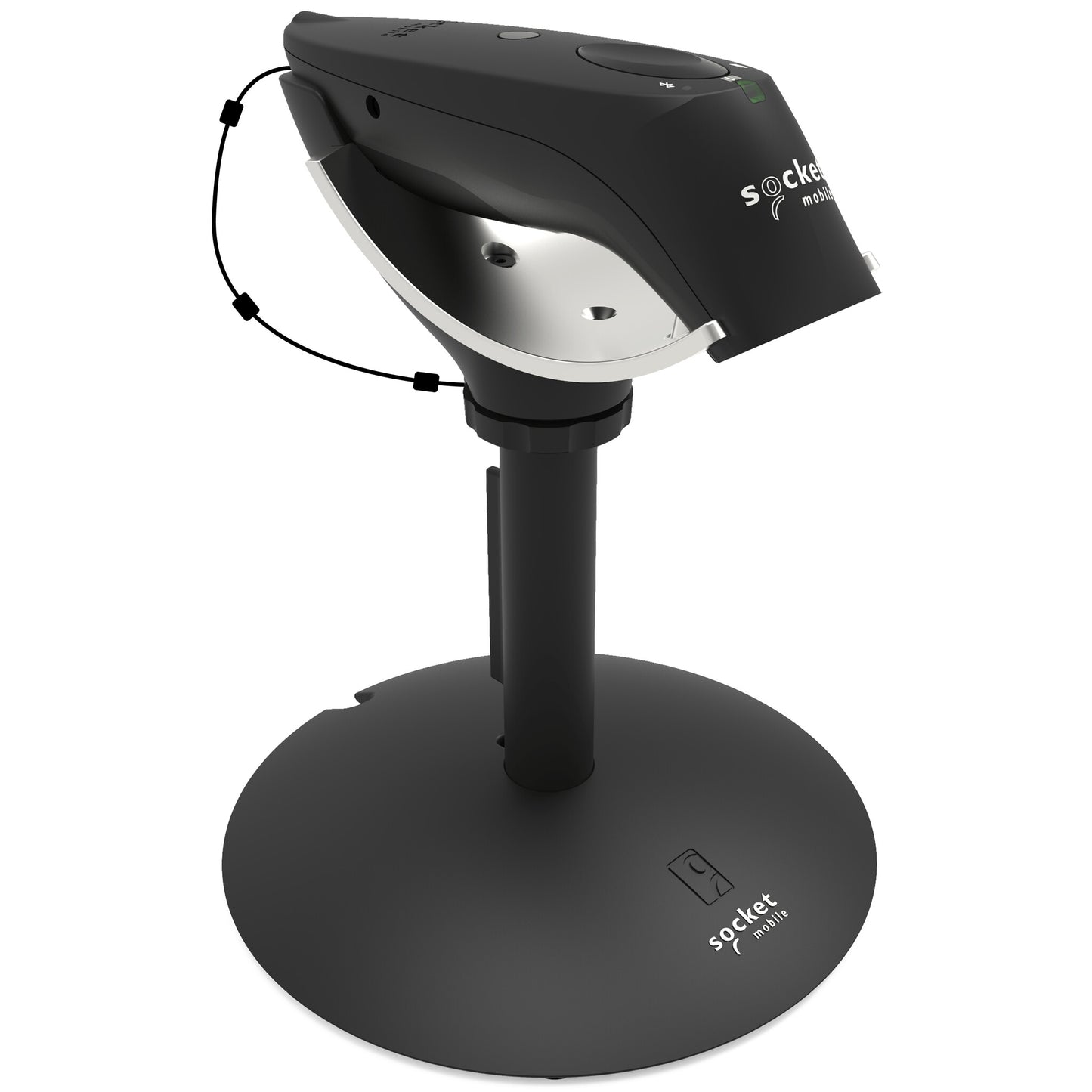

Socket Mobile S740 Handheld bar code reader 1D/2D LED Black
Socket Mobile S740 Handheld bar code reader 1D/2D LED Black
SKU:CX3812-2572
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader Black
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), U.P.C. Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
- 640 x 400 pixels
- Wireless Standard interfaces: Bluetooth
- Power source type: Battery Nickel-Metal Hydride (NiMH) 2000 mAh
The SocketScan S740 universal barcode scanner with Bluetooth wireless technology scans either 1D or 2D barcodes on paper or screen. It has a lightweight, ergo¬nomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.
This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.
Application Integration – Socket Mobile’s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.
| Scanning | |
|---|---|
| Wavelength | 610 nm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 640 x 400 pixels |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), U.P.C. |
| Sensor type | LED |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Scanner type | 1D/2D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
|---|---|
| Bluetooth version | 2.1+EDR |
| Wireless range | 10 m |
| Standard interfaces | Bluetooth |
| Connectivity technology | Wireless |
| Performance | |
|---|---|
| LED indicators | Battery replacement, Bluetooth |
| Product colour | Black |
| Power | |
|---|---|
| Charging time | 6 h |
| Battery life | 20 h |
| Number of reads per charge | 70000 |
| Battery capacity | 2000 mAh |
| Number of batteries supported | 2 |
| Battery type | AA |
| Battery technology | Nickel-Metal Hydride (NiMH) |
| Power source type | Battery |
| Weight & dimensions | |
|---|---|
| Weight | 117 g |
| Height | 132.2 mm |
| Depth | 40.1 mm |
| Width | 37.1 mm |
| Packaging data | |
|---|---|
| Charging base | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
