Socket Mobile

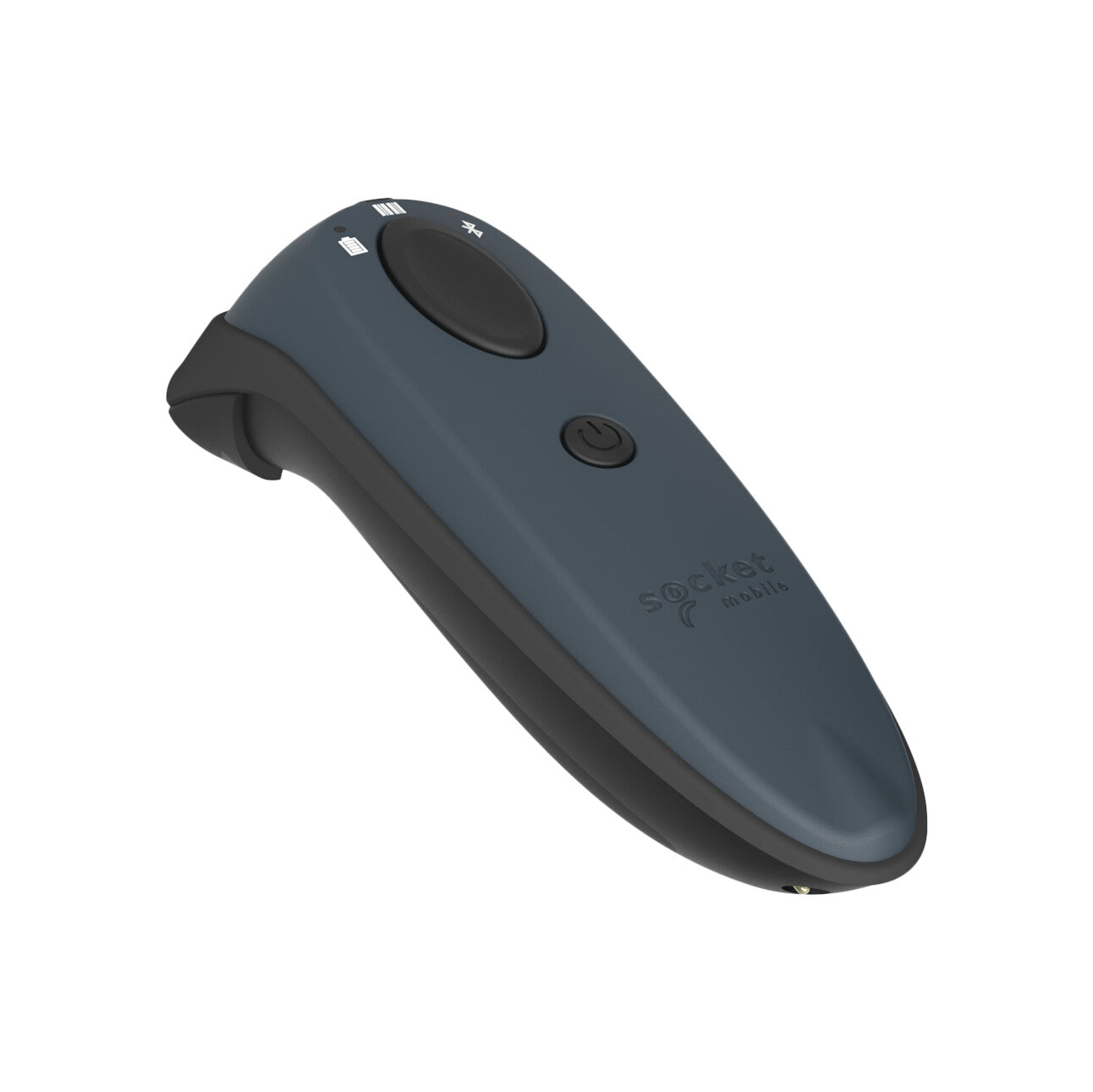

Socket Mobile DuraScan D760 Handheld bar code reader 1D/2D LED Grey
Socket Mobile DuraScan D760 Handheld bar code reader 1D/2D LED Grey
SKU:CX3478-1946
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader Grey
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Telepen, U.P.C. Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
- 640 x 400 pixels
- Wireless Standard interfaces: Bluetooth
- Power source type: Battery Lithium 1400 mAh
The DuraScan D760 is a 2D/1D barcode scanner and passport reader with Bluetooth® wireless technology and a highly durable exterior. Built strong for applications in warehouses, outdoor distribution and industrial manufacturing conditions. Scanning 2D/1D barcodes and MRZ/passports, travel merchants need only one device to scan the purchased items and the passport. The scanner’s IP54-rated outer casing withstands dust and water splashes, ruggedized for drop protection. Its antimicrobial material is easy to clean, helping protect from germs picked up from daily use. The D760 works perfectly in travel industries, including automotive, healthcare, logistics, and more. Its ergonomic design and light weight fit comfortably in the hand for all day use.
Certified by Apple® for iOS devices (iPad®, iPhone®, iTouch®) and compatible with Android, Windows® smartphones and tablets.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Telepen, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 640 x 400 pixels |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength | 660 nm |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Wireless range | 100 m |
| Bluetooth version | 2.1+EDR |
| Performance | |
|---|---|
| Product colour | Grey |
| International Protection (IP) code | IP54 |
| LED indicators | Yes |
| Power | |
|---|---|
| Power source type | Battery |
| Battery technology | Lithium |
| Battery capacity | 1400 mAh |
| Number of reads per charge | 85000 |
| Battery life | 20 h |
| Charging time | 6 h |
| Weight & dimensions | |
|---|---|
| Width | 37.1 mm |
| Depth | 40.1 mm |
| Height | 132.2 mm |
| Weight | 112.5 g |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -5 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
