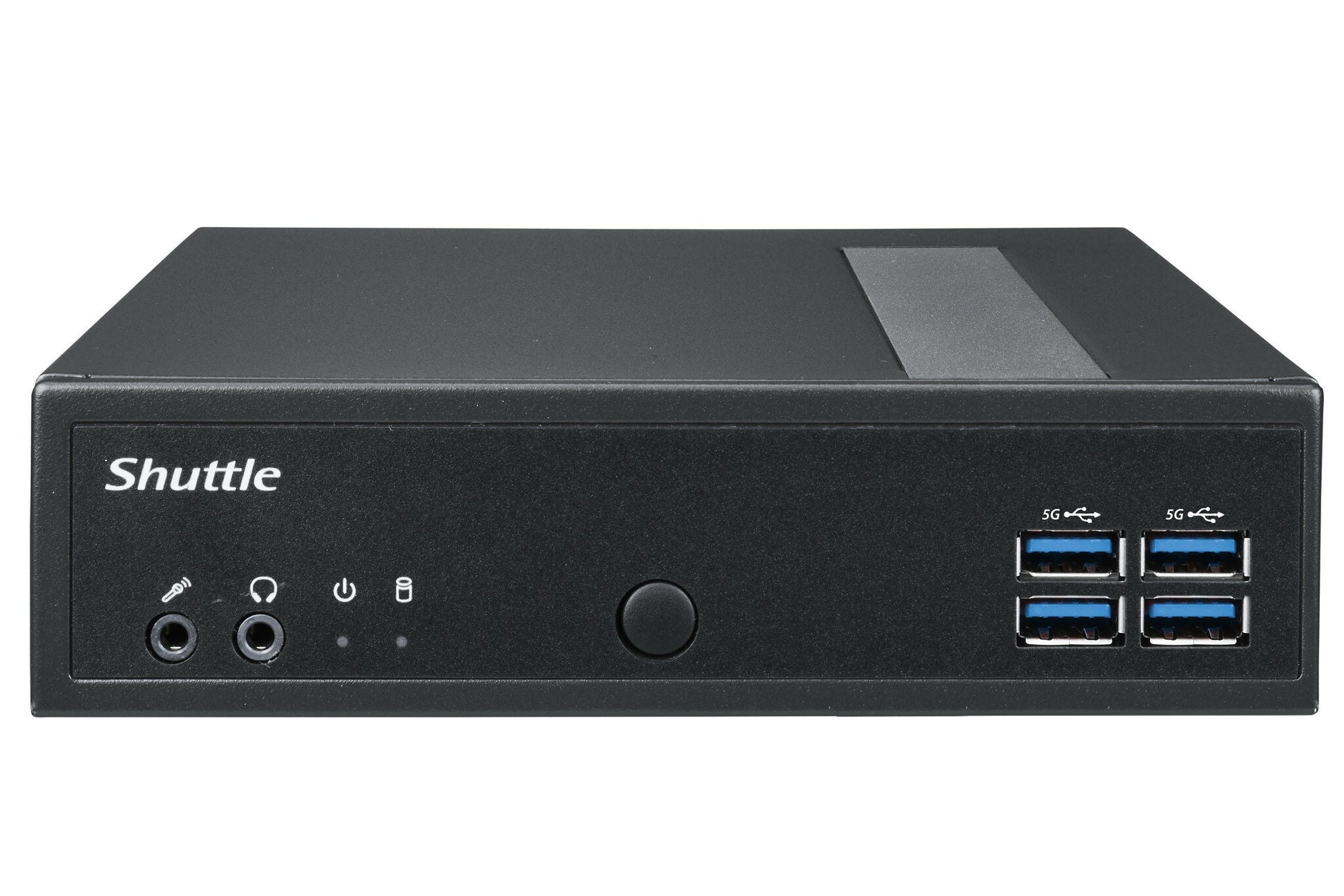

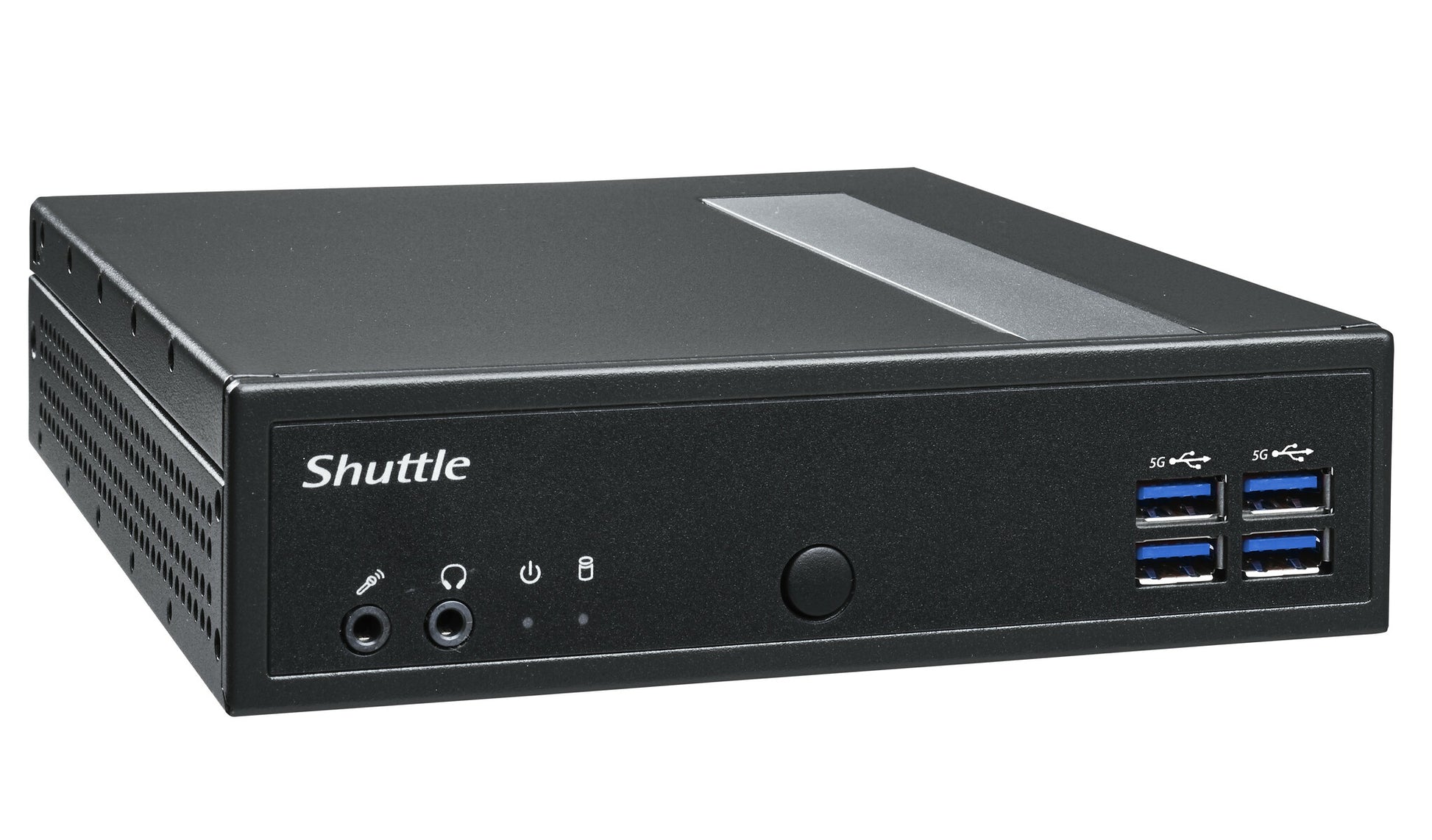

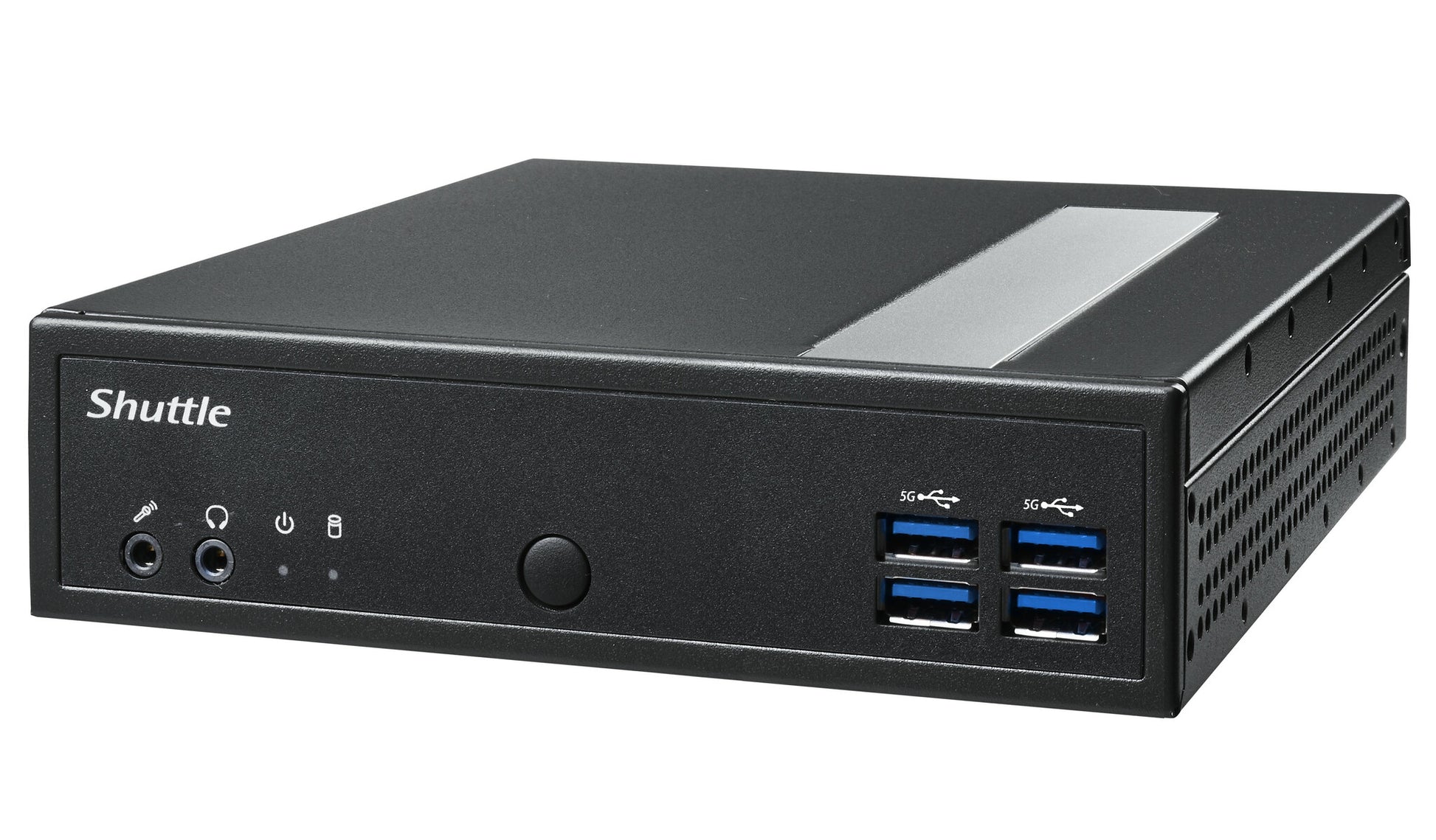

Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
Shuttle XPC slim Barebone DL30N, Intel N100, 1x DDR5, 2x LAN (2x 2.5Gbit), 2xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation
SKU:DL30N
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Fanless 1.3L-PC supports 24/7 operating

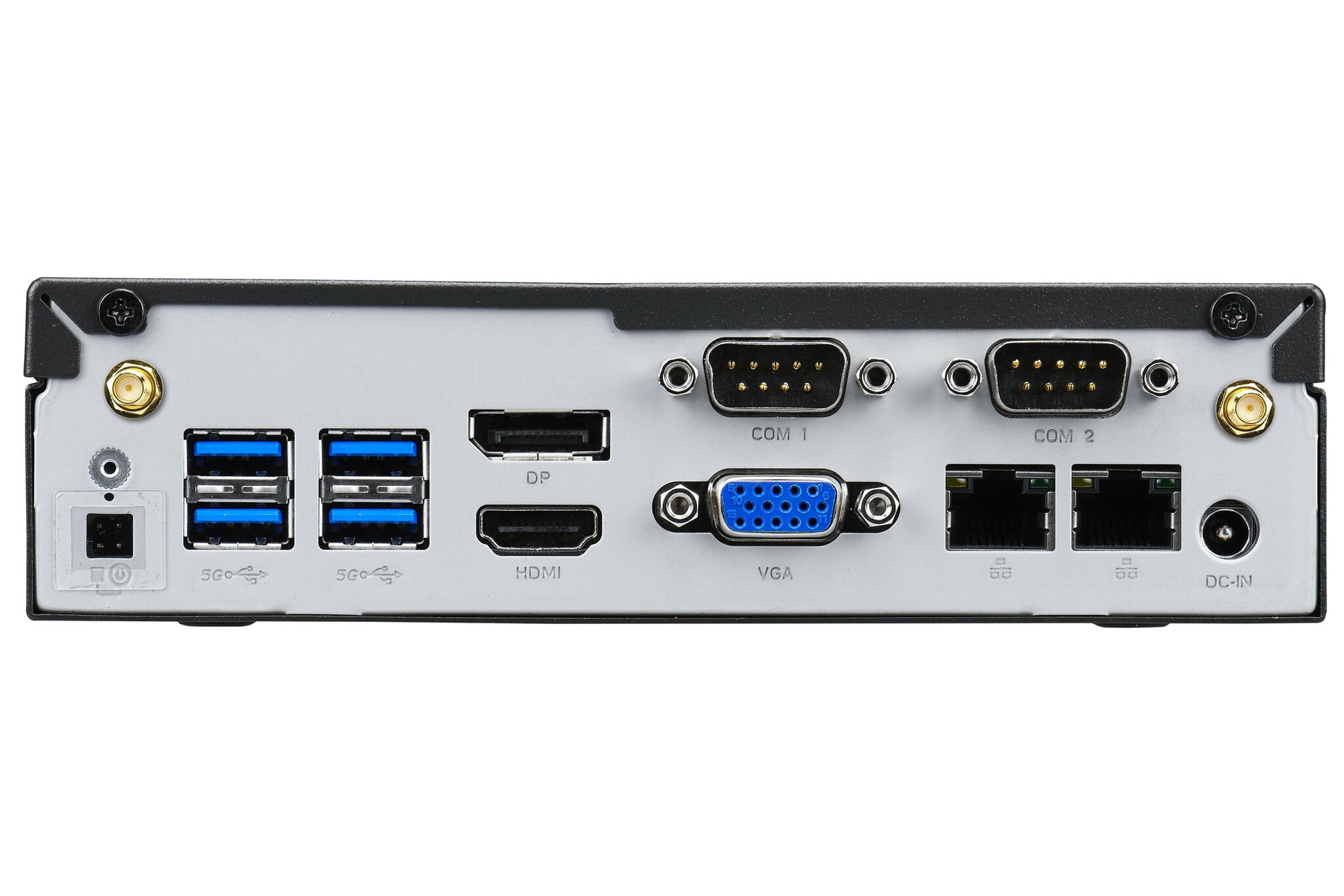

- Dual LAN (2x 2.5Gbit) , 2x COM (RS232) , VESA
- HDMI, Display Port and VGA
The Shuttle XPC slim Barebone DL30N series is the successor to Shuttle's DL20N series. These fanless Slim PC barebones with an energy-efficient Intel 12th-Gen "Alder Lake-N" processor are suitable for building particularly slim PC systems with drives and operating system as well as client/server setups for pure network-based applications. Two Intel 2.5G LAN ports provide excellent network connectivity and the optional Shuttle accessory WWN03 allows for an LTE module to be installed for mobile internet access. The integrated graphics is based on Intel's powerful Intel UHD Graphics that supports hardware acceleration for 4K videos. Combined with an SSD drive, these Slim-PCs works virtually noiseless.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | N100 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 6 W |
| ECC supported by processor | No |
| Memory | |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Memory voltage | 1.1 V |
| Memory channels | Single-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 4800 MHz |
| Maximum internal memory | 16 GB |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| Card reader integrated | No |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I226-LM |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Design | |
|---|---|
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Steel |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 75 mm |
| Product type | Mini PC barebone |
| Performance | |
|---|---|
| Number of processors supported | 1 |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
| Sustainability compliance | Yes |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC adapter output current | 3.42 A |
| Power supply | 65 W |
| AC adapter output voltage | 19 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 800 g |
| Package weight | 2.1 kg |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
