Samsung
Regular price
£2,364.11 GBP
Regular price
Sale price
£2,364.11 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:LH86WEFWLGCXEN
92 in stock
- OS-Free with Plug and Play
- Dedicated annotation button
- Up to 40 simultaneous touchpoints

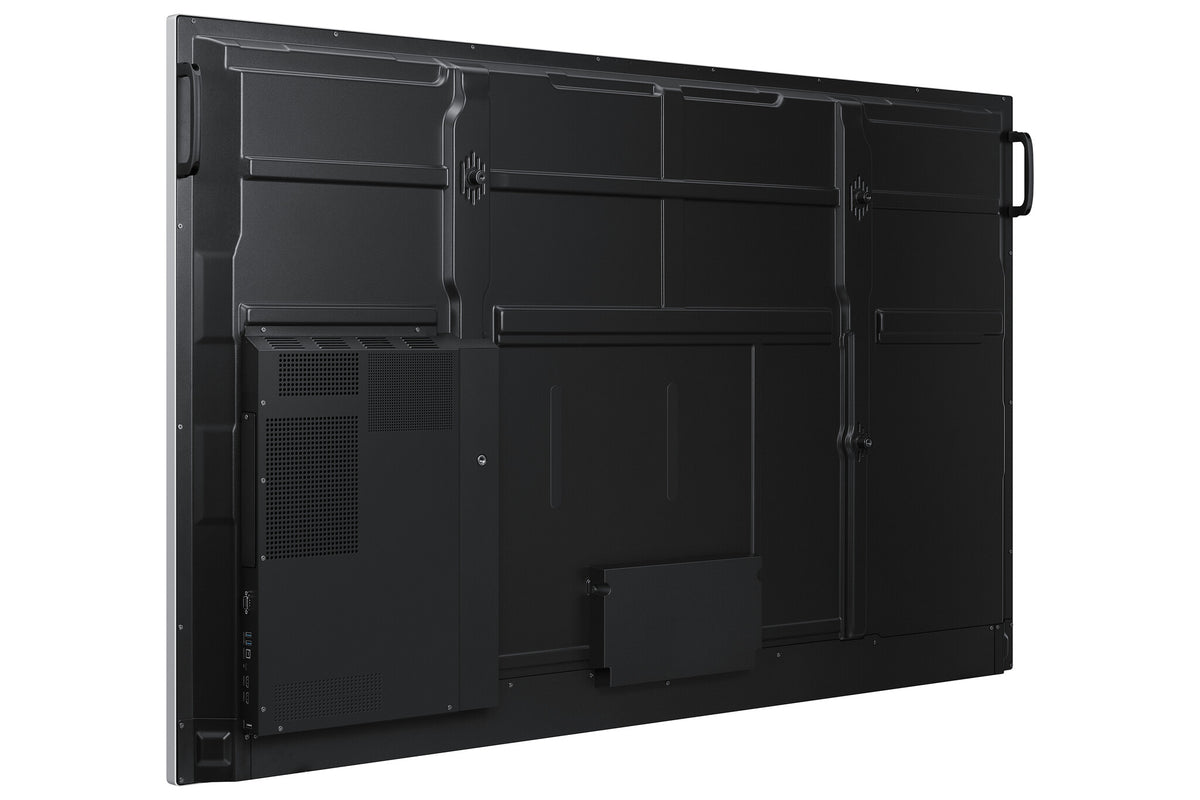

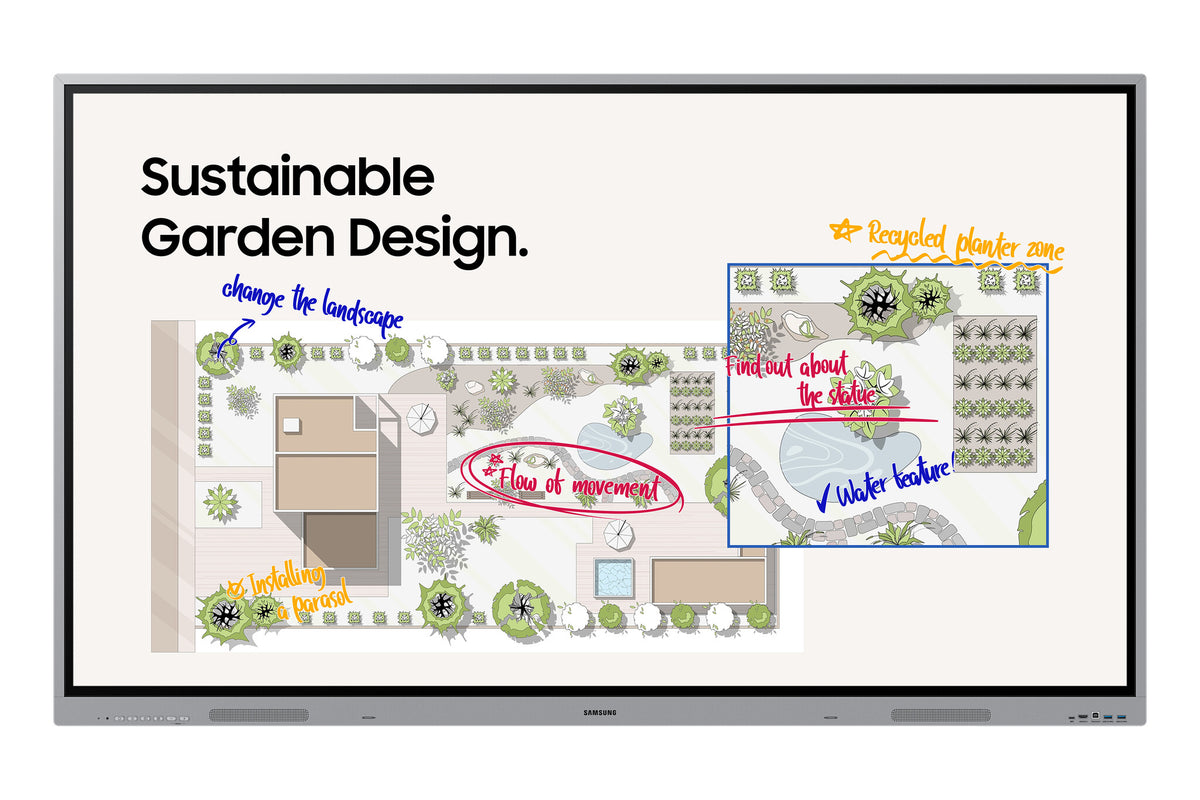

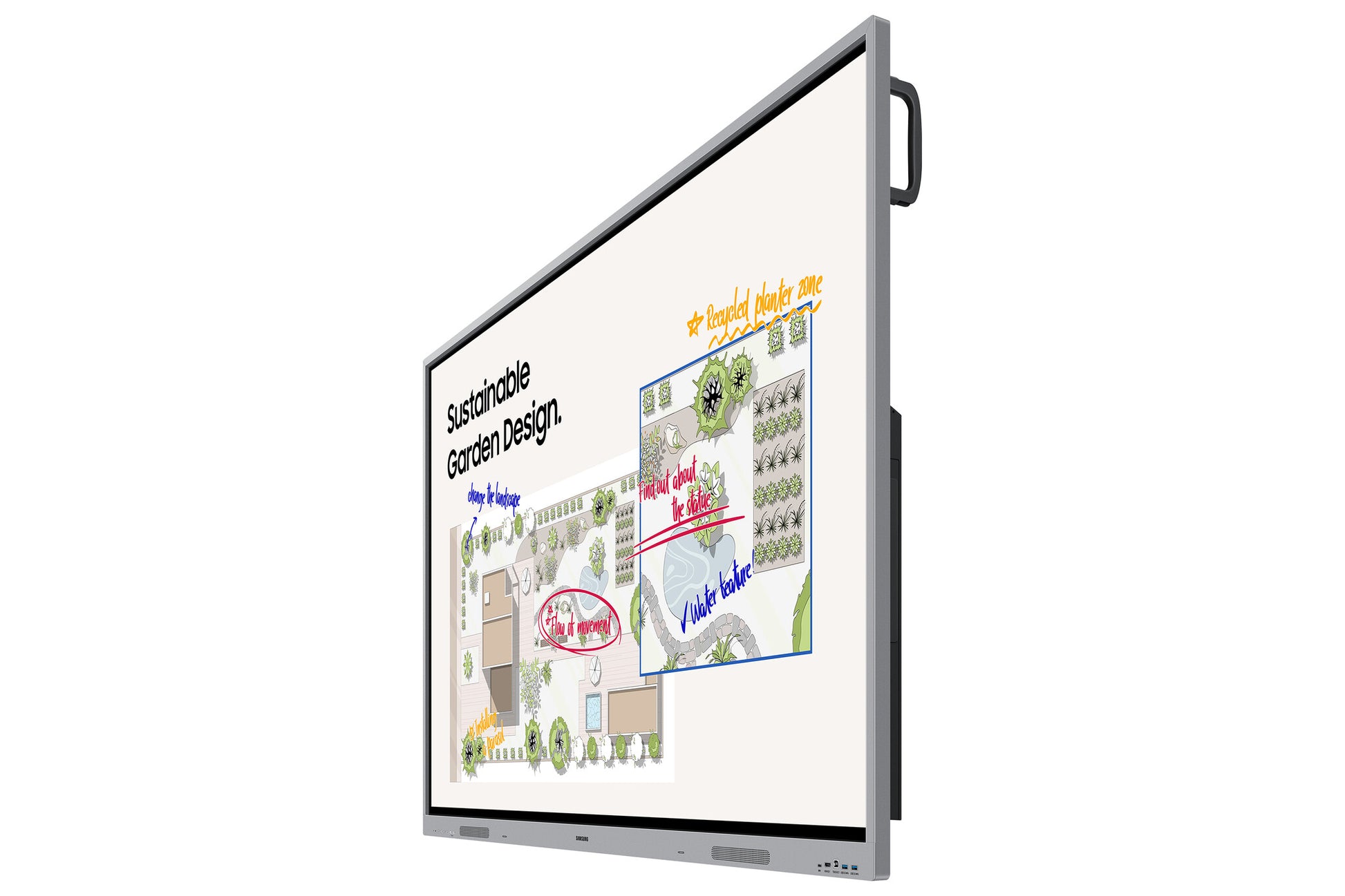

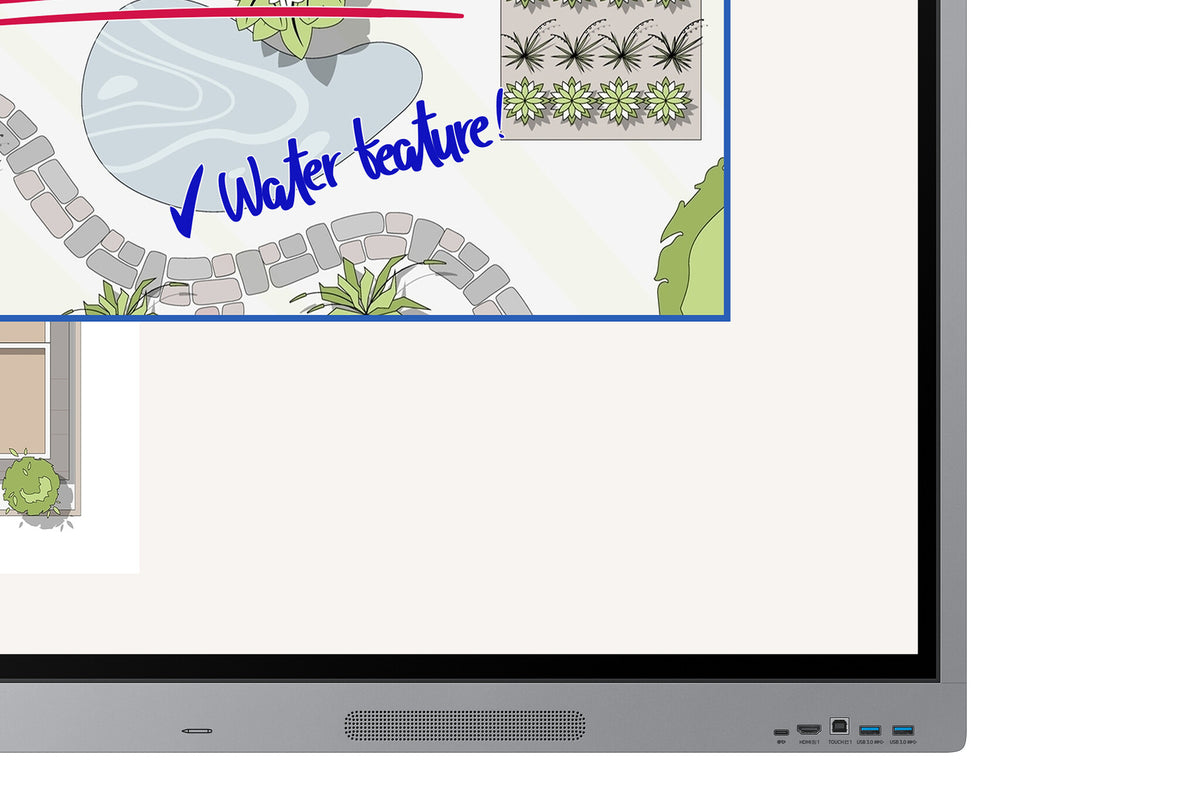

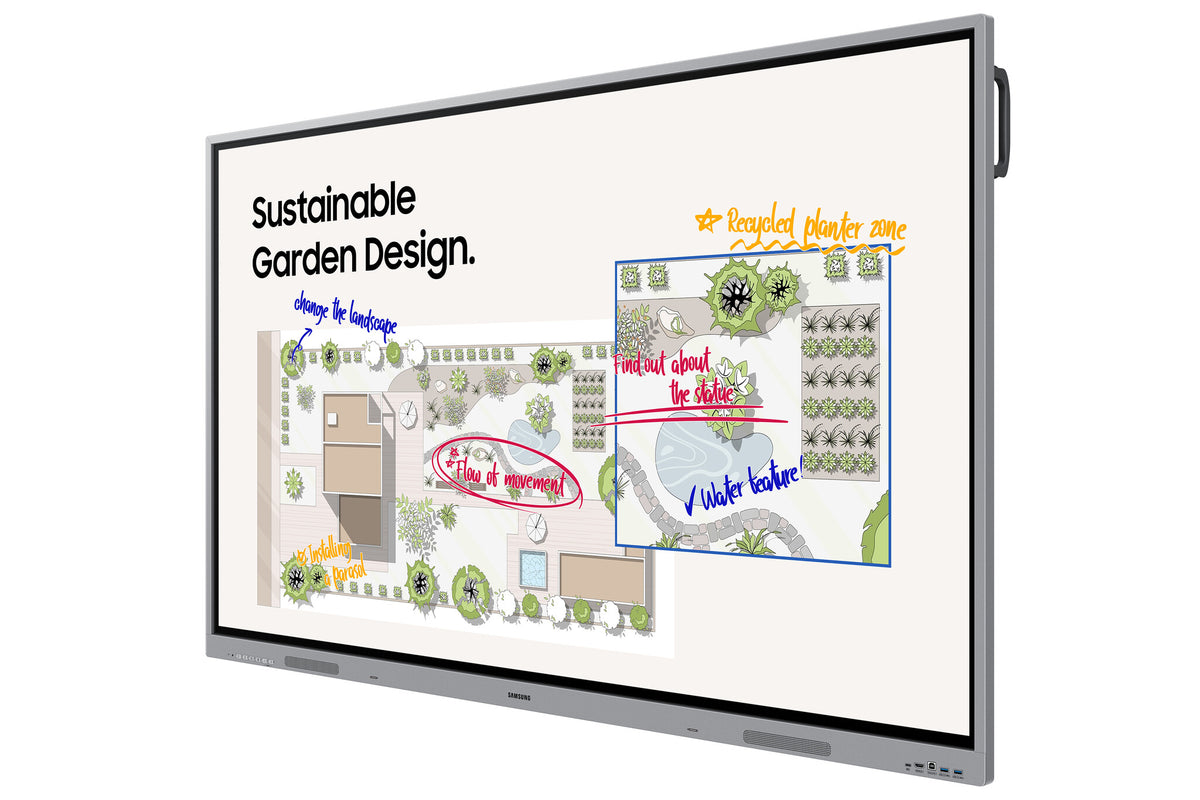

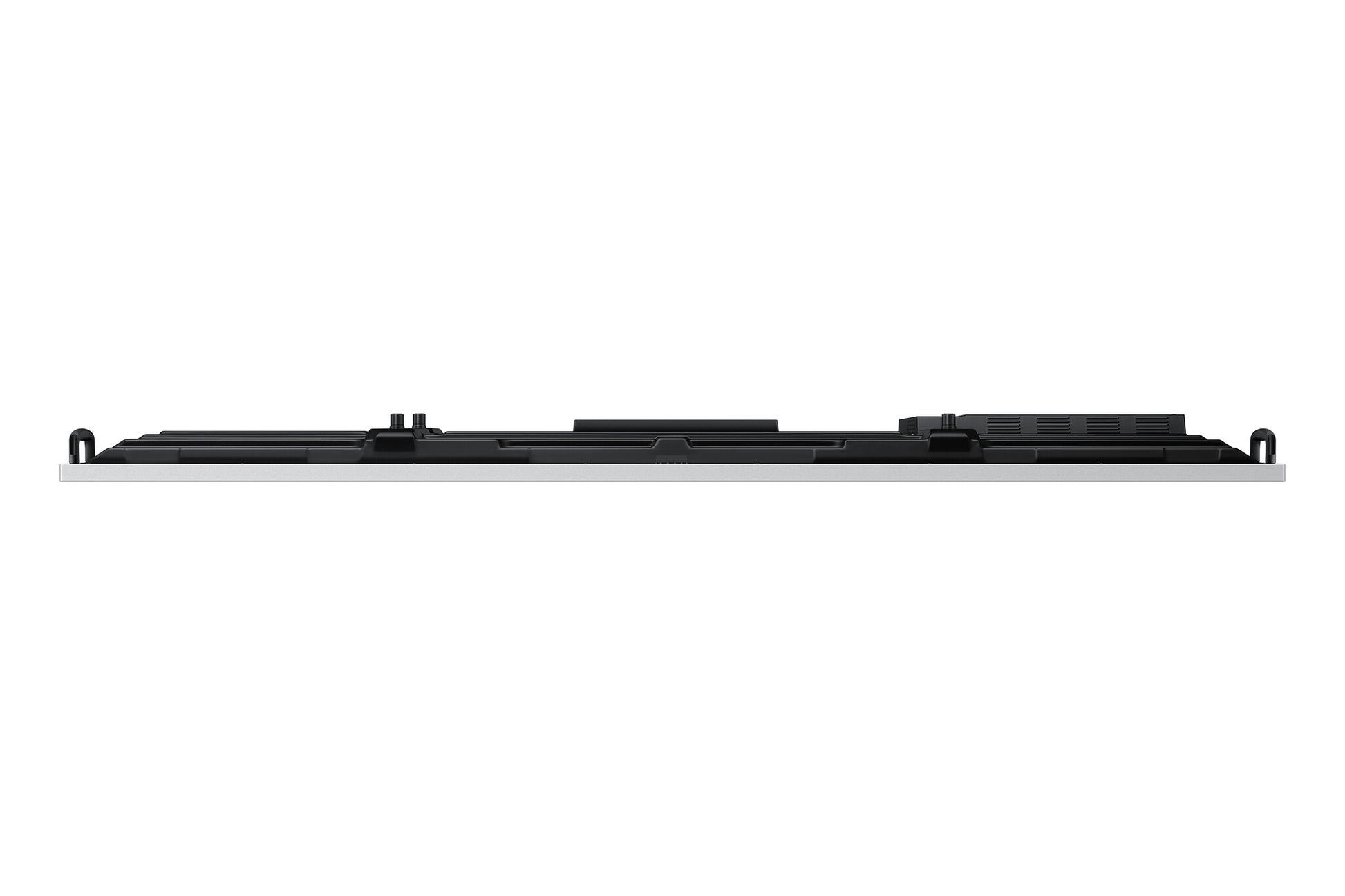

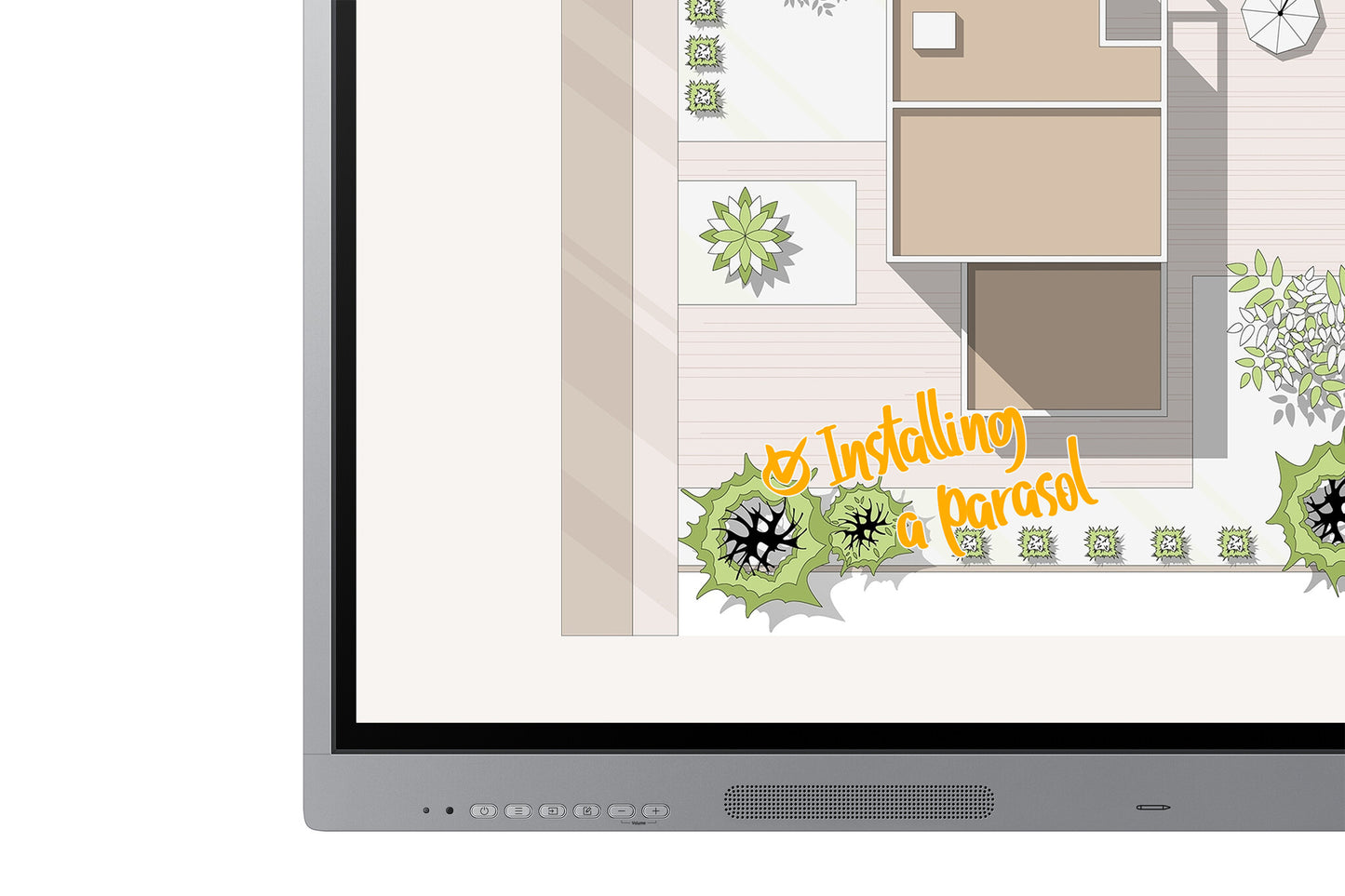

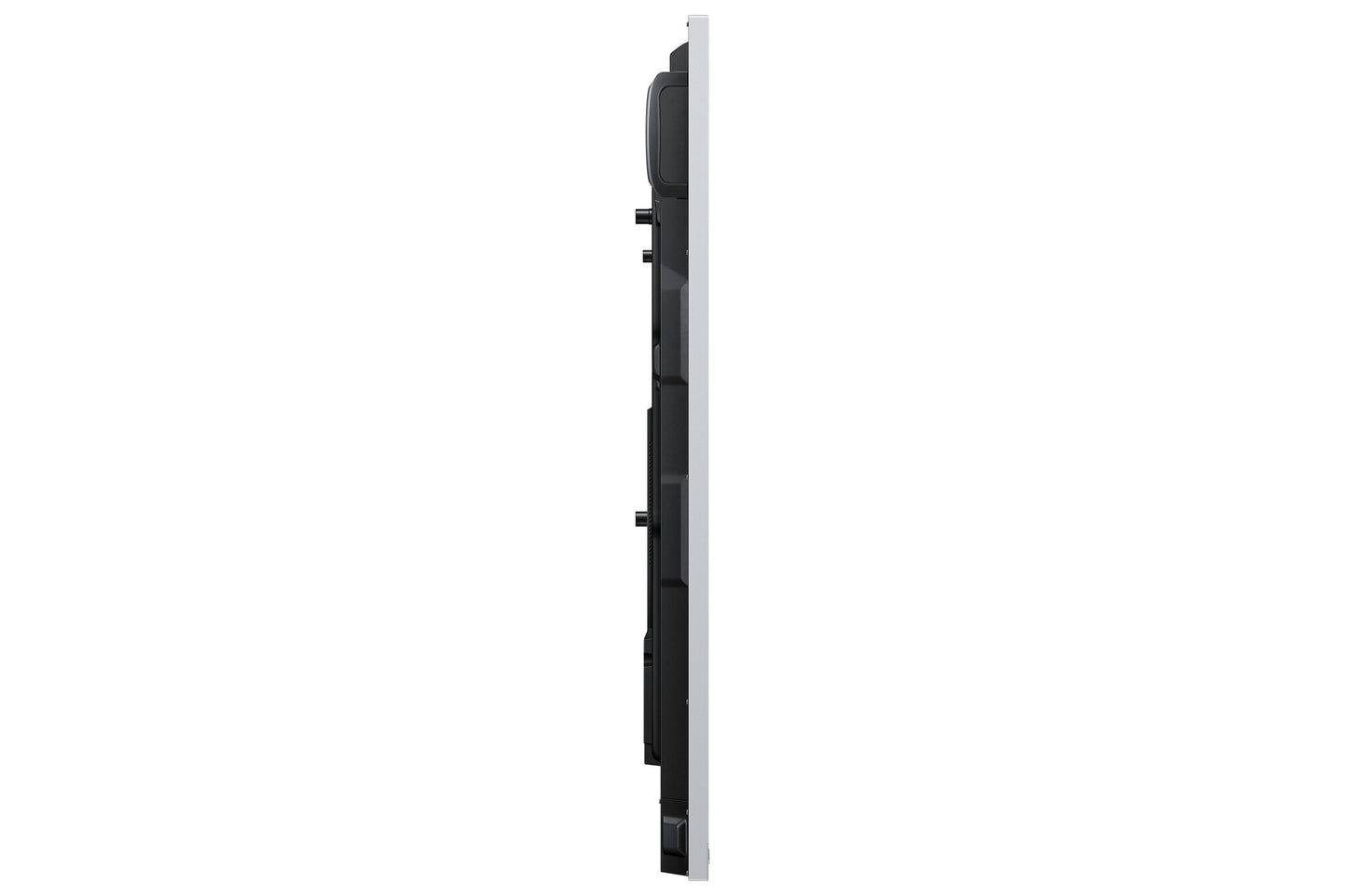

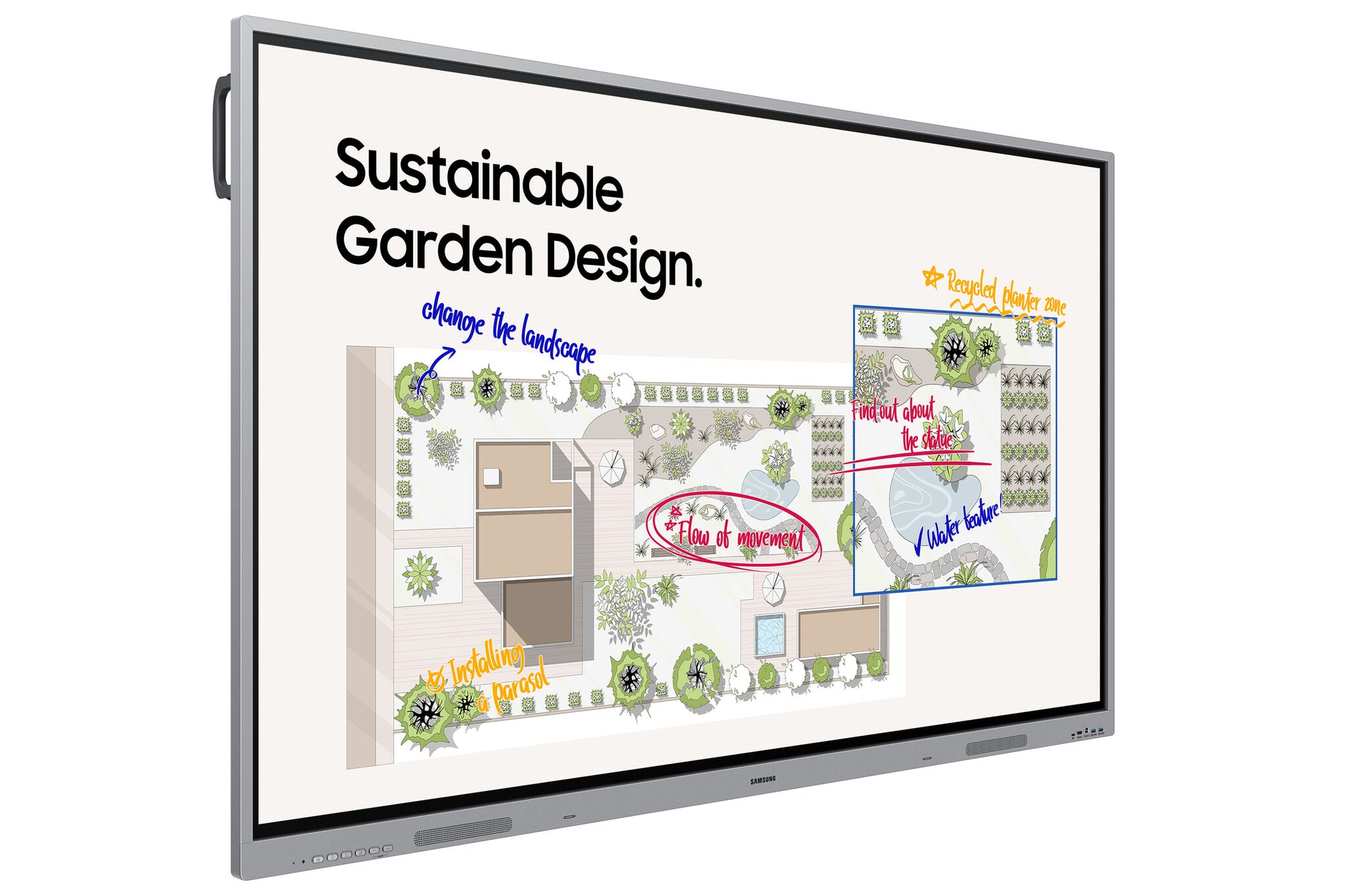

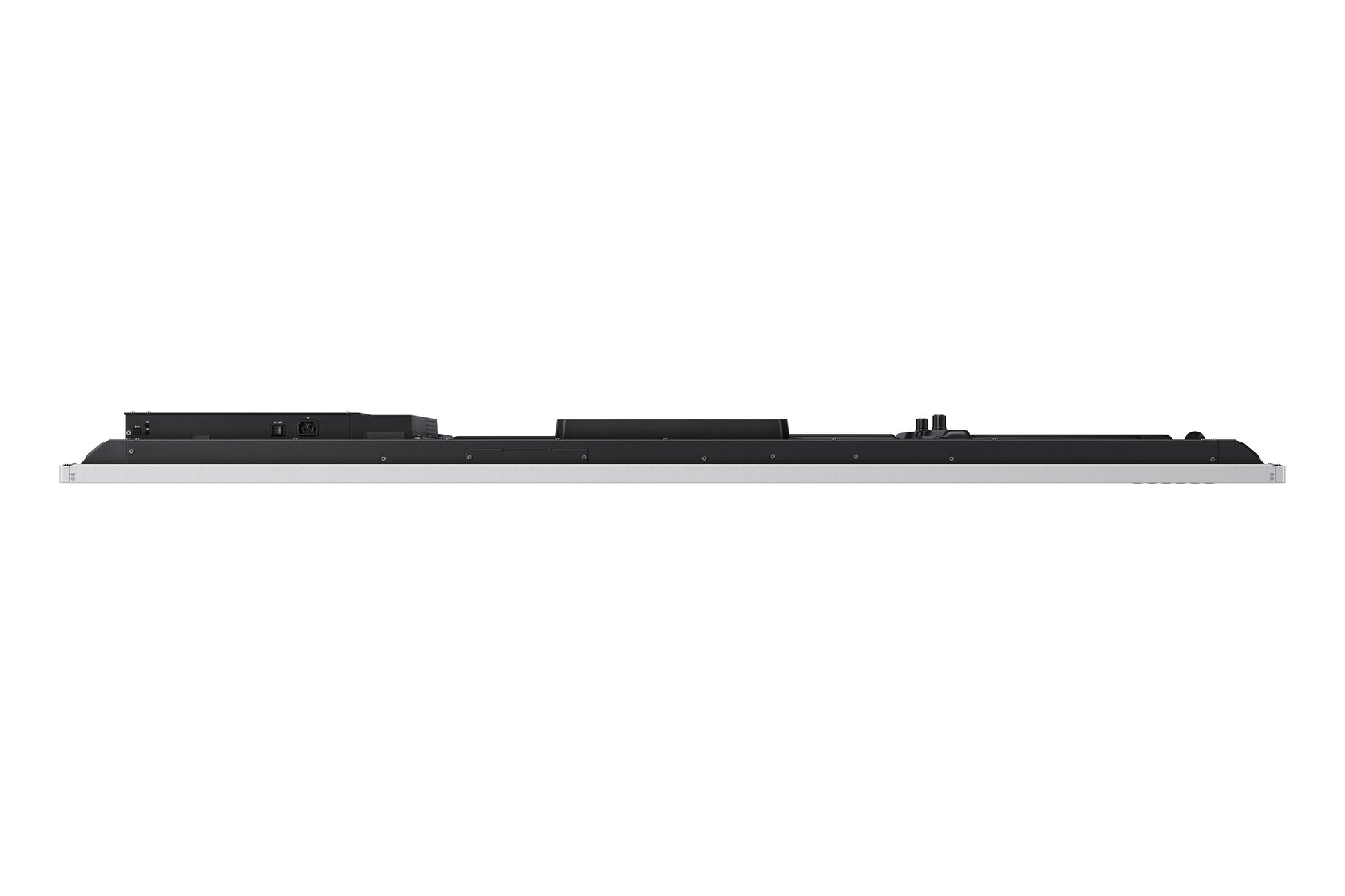

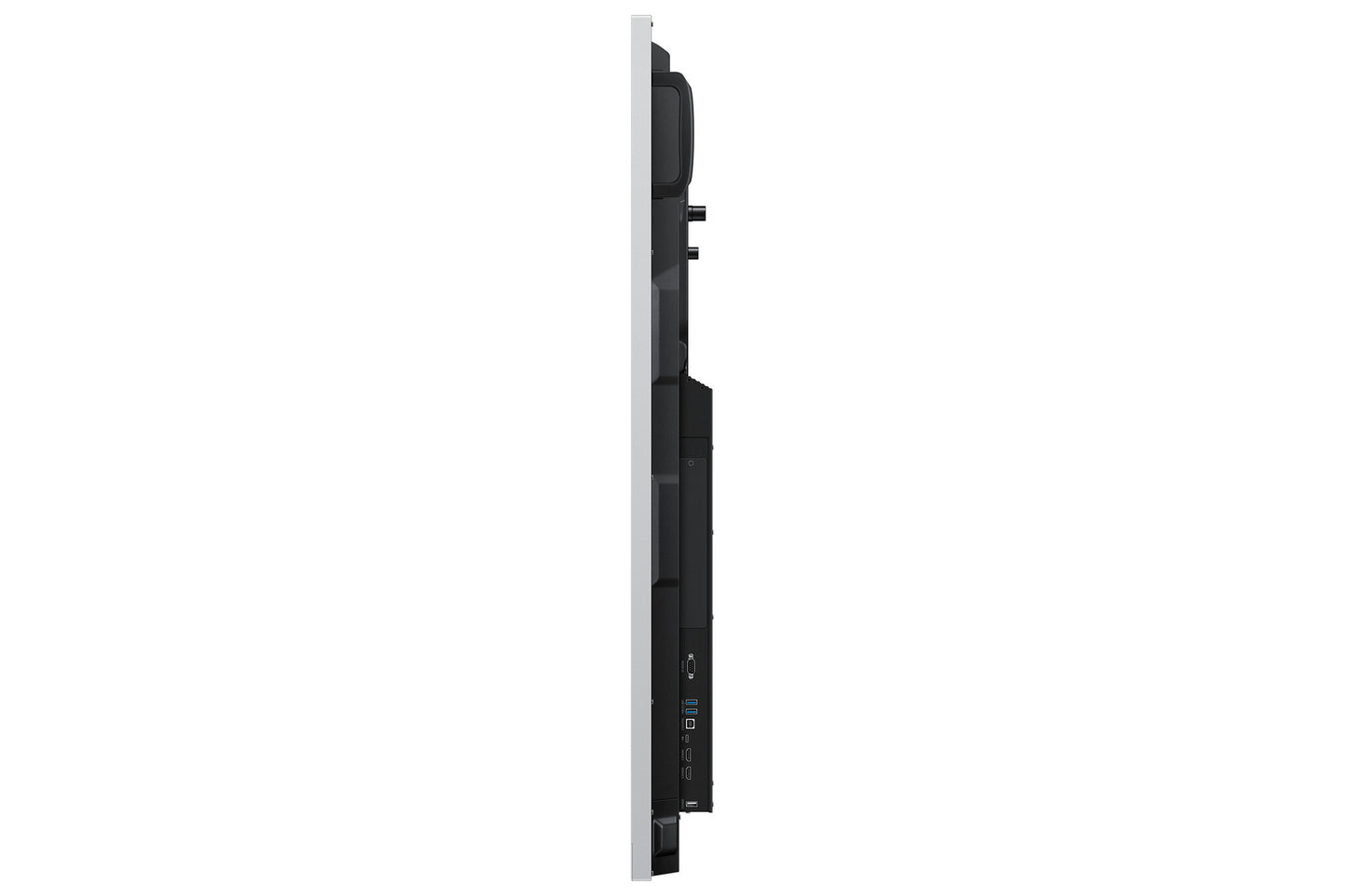

Samsung WEF Eboard WE86F-X 86
| Display |
|---|
| Display diagonal |
2.18 m (86") |
| Display brightness |
350 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Panel type |
ADS |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Maximum refresh rate |
60 Hz |
| Pixel frequency (max) |
77 MHz |
| Touchscreen |
Yes |
| Touch technology |
Multi-touch |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
40 |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Pixel pitch |
0.493 x 0.493 mm |
| Colour gamut |
72% |
| Maximum pixel clock |
78 MHz |
| Haze rate |
25% |
| Technology |
Infrared (IR) |
| Computer system |
|---|
| User memory |
32 GB |

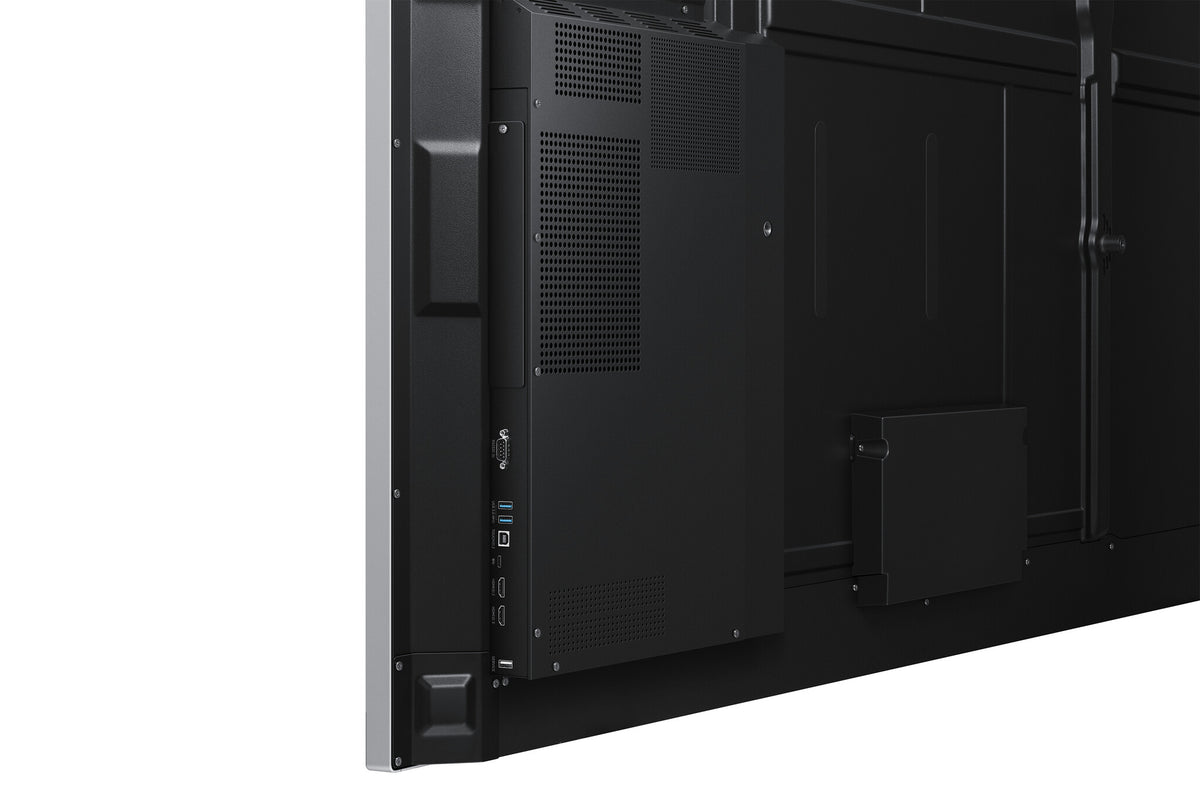

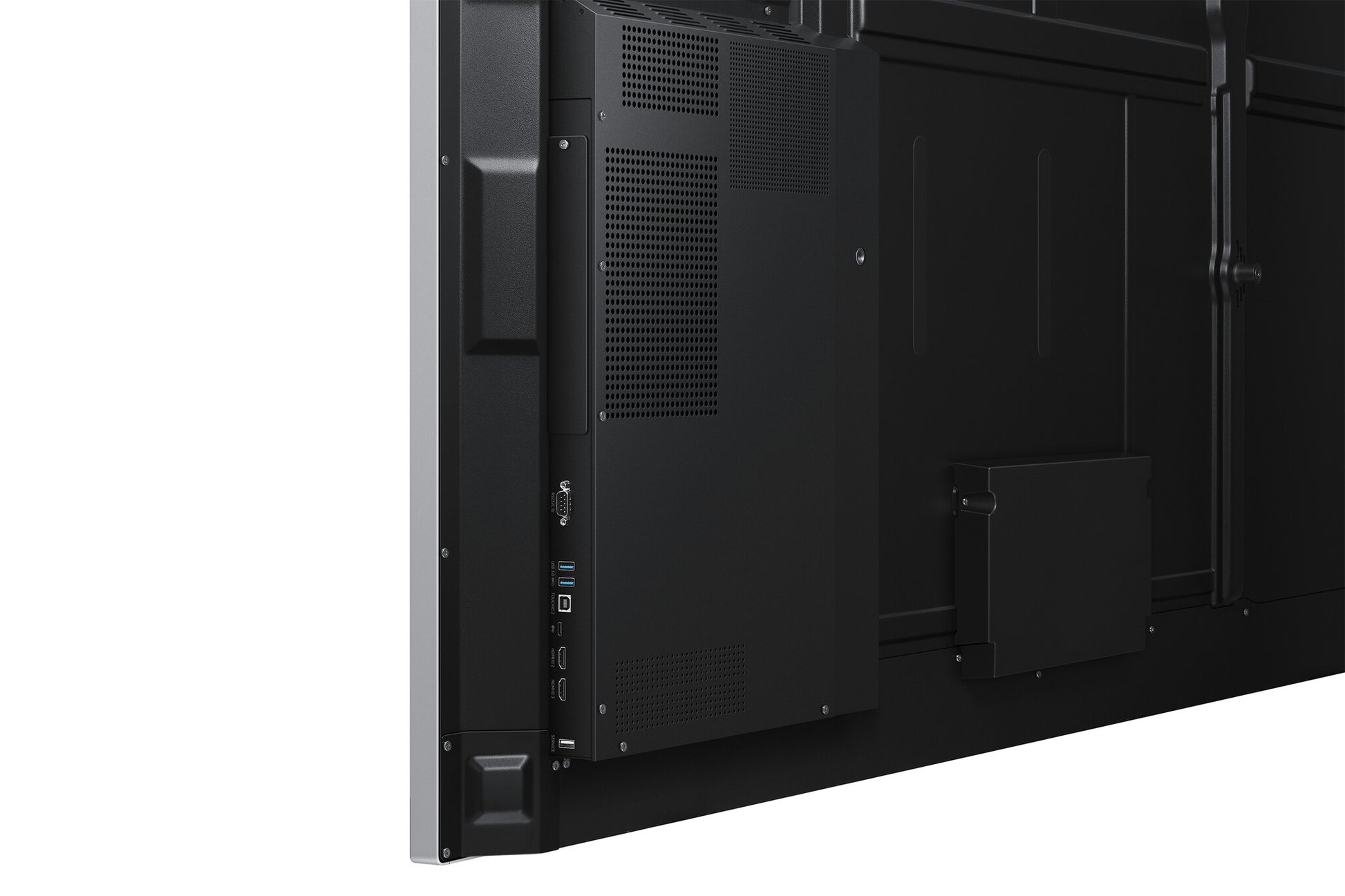

| Ports & interfaces |
|---|
| Interface |
HDMI |
| HDCP |
Yes |
| HDCP version |
2.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB Type-C ports quantity |
2 |
| HDMI ports quantity |
3 |
| HDMI version |
2.0 |
| Line-in |
Yes |
| Line-out |
Yes |
| OPS slot |
1 |
| RS-232 ports |
1 |
| Ergonomics |
|---|
| Product colour |
Grey |

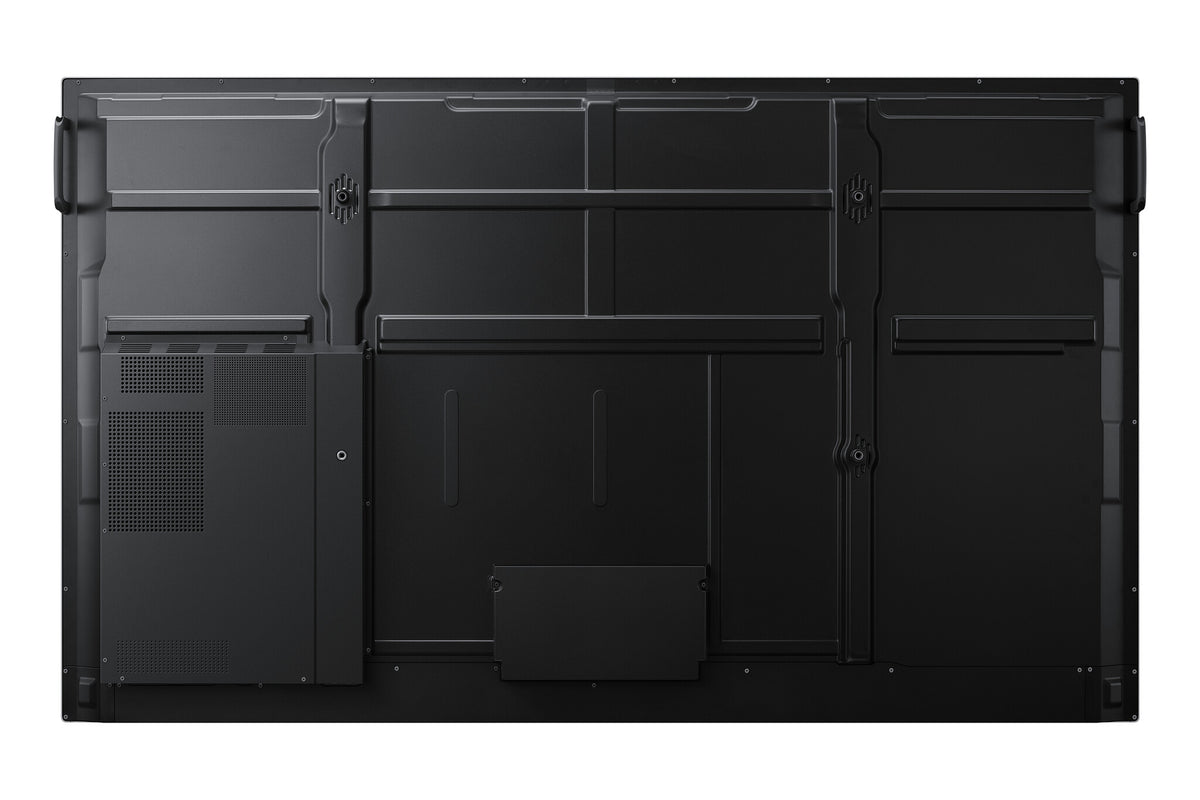

| VESA mounting |
Yes |
| Panel mounting interface |
800 x 600 mm |
| Certification |
IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252 |
| Performance |
|---|
| Operating hours (hours/days) |
12/7 |
| Power |
|---|
| Power consumption (typical) |
400 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (sleep) |
0.5 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100-240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Compliance certificates |
VCCI |
| Weight & dimensions |
|---|
| Width |
1957 mm |
| Depth |
98 mm |
| Height |
1160 mm |
| Weight |
49.5 kg |
| Packaging data |
|---|
| Package width |
2110 mm |
| Package depth |
185 mm |
| Package height |
1291 mm |
| Package weight |
62 kg |
