55", Full HD (1920 x 1080), 0.63 x 0.63, 1000:1, 178/178, AC 100 - 240 V, 50/60 Hz, 250 W, VESA 600 x 400, 1212.2 x 683 x 70.4 mm
Always-on, space-saving solution with extreme-narrow bezels See an immersive and dependable viewing experience, 24/7 with Samsung’s VHB-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

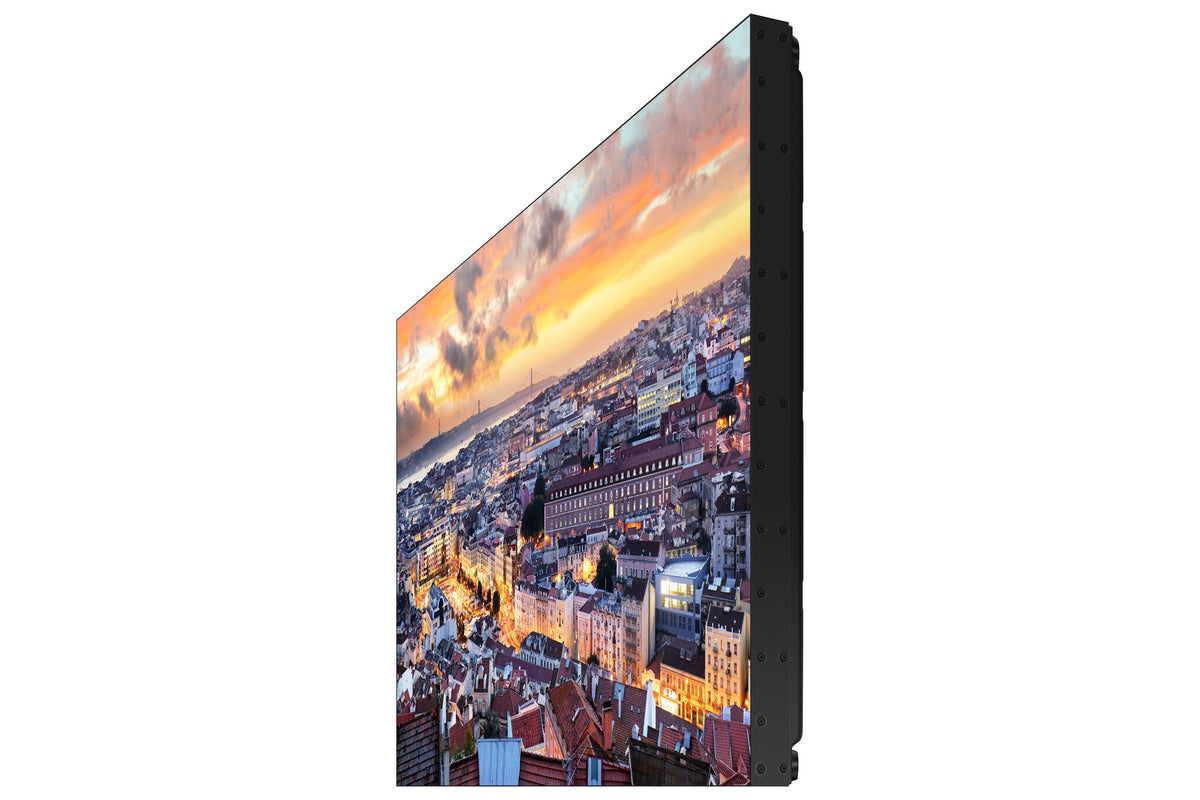

Transform any space with high impact visuals The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.
View content from any angle Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.
Vibrant images in any light Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.
Image enhancement Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.
Comprehensive calibration to fit your needs Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 5x5 using a mobile camera.
Advanced presentation, simplified operation Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.
Industry standard certified The VHB-E series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA-certified test to minimize possible damage during delivery.
Display
Operating hours (hours/days)
24/7
Colour gamut
72%
Haze rate
28%
Vertical scan range
47 - 63 Hz
Horizontal scan range
57.3 - 70 kHz
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Response time
0.008 s
Contrast ratio (typical)
1000:1
Contrast ratio (dynamic)
140000:1
Display brightness
700 cd/m²
Pixel pitch
0.63 x 0.63 mm
Panel type
IPS
HD type
Full HD
Display resolution
1920 x 1080 pixels
Display diagonal
139.7 cm (55")
Display technology
LCD
Design
Panel colour
Black
Product colour
Black
International Protection (IP) code
IP5X
Panel mounting interface
600 x 400 mm
VESA mounting
Yes
Bezel width (side)
0.44 mm
Bezel width (bottom)
1.3 mm
Orientation
Horizontal/Vertical
Placement supported
Indoor

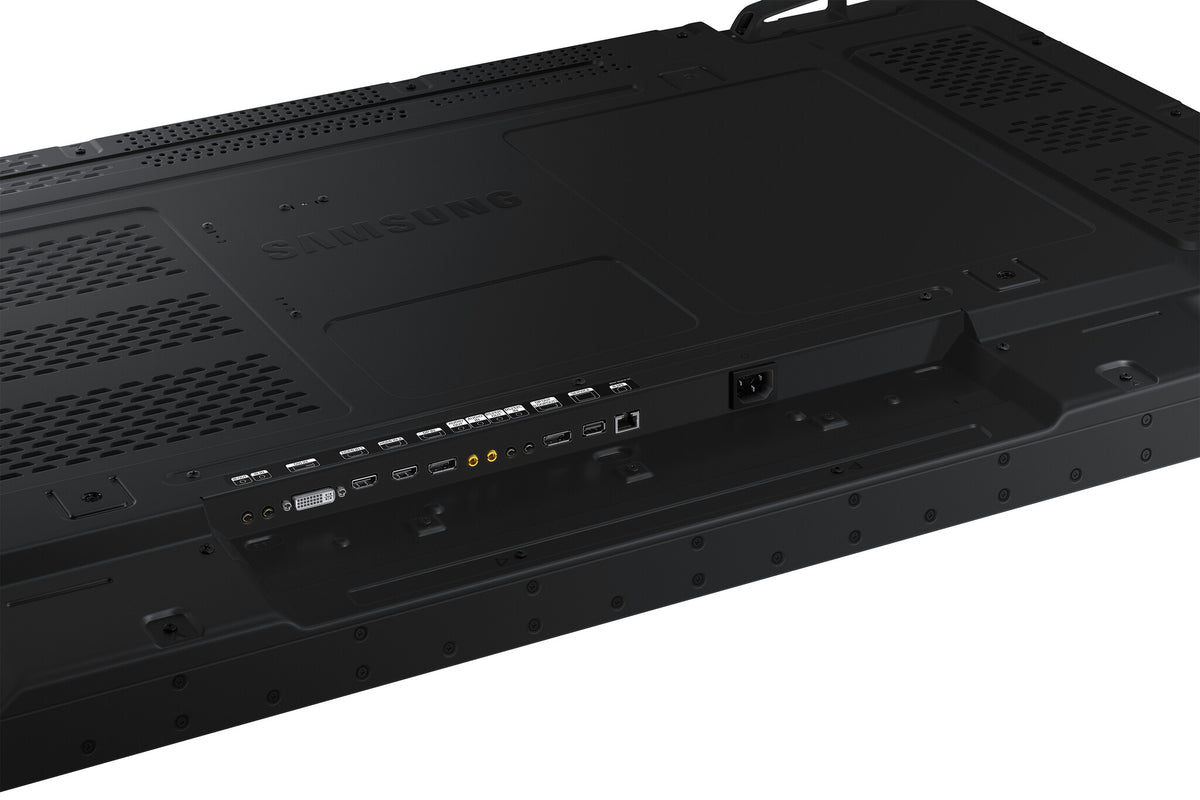

Ports & interfaces
HDCP
Yes
HDCP version
2.2
IR input ports quantity
1
Audio input
Yes
Audio output
Yes
USB version
2.0
USB ports quantity
1
USB port
Yes
RS-232C
Yes
Ethernet LAN (RJ-45) ports
1
RS-232 input ports
1
RS-232 output ports
1
DisplayPort version
1.2
DisplayPorts quantity
1
DVI port
Yes
HDMI version
2.0
HDMI ports quantity
2
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
186 kWh
Energy efficiency class (SDR)
G
Power consumption (typical)
250 W
general_information_attribute_container_name
attribute_product_family_name
VHB-E
Operational conditions
Operating relative humidity (H-H)
10 - 80%
Operating temperature (T-T)
0 - 40 °C
Sustainability
Certification
FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438
