A4 Scanning media types supported: Plain paper, Business Card, Post Card(JPN)
Maximum scan size: 215.9 x 6096 mm Sensor type: Dual CIS
USB port Ethernet LAN
Power supply type: AC 15 W

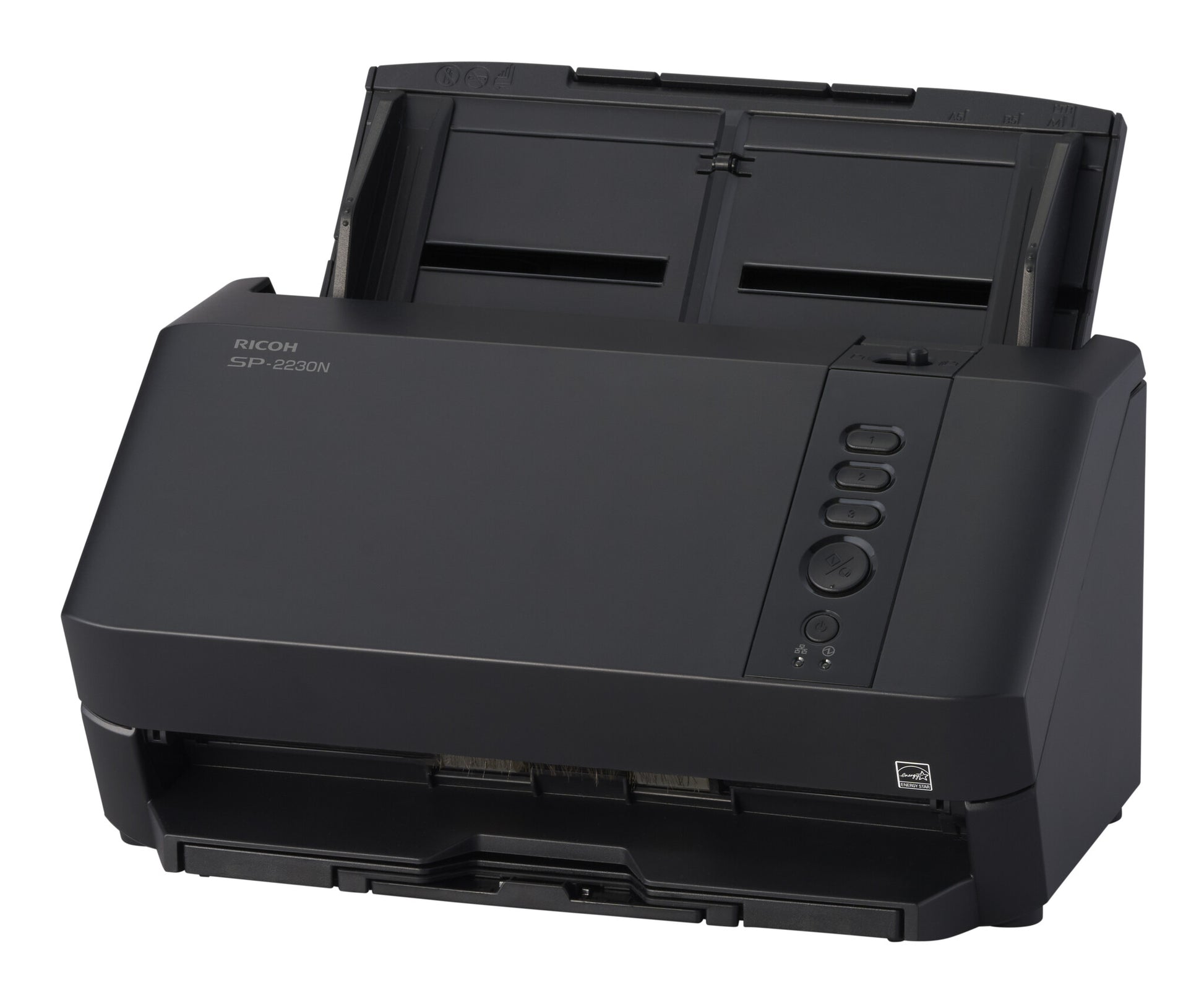

30 ppm/60 ipm A4 Duplex ADF Gigabit Ethernet USB 3.2 LED Workgroup Scanner.

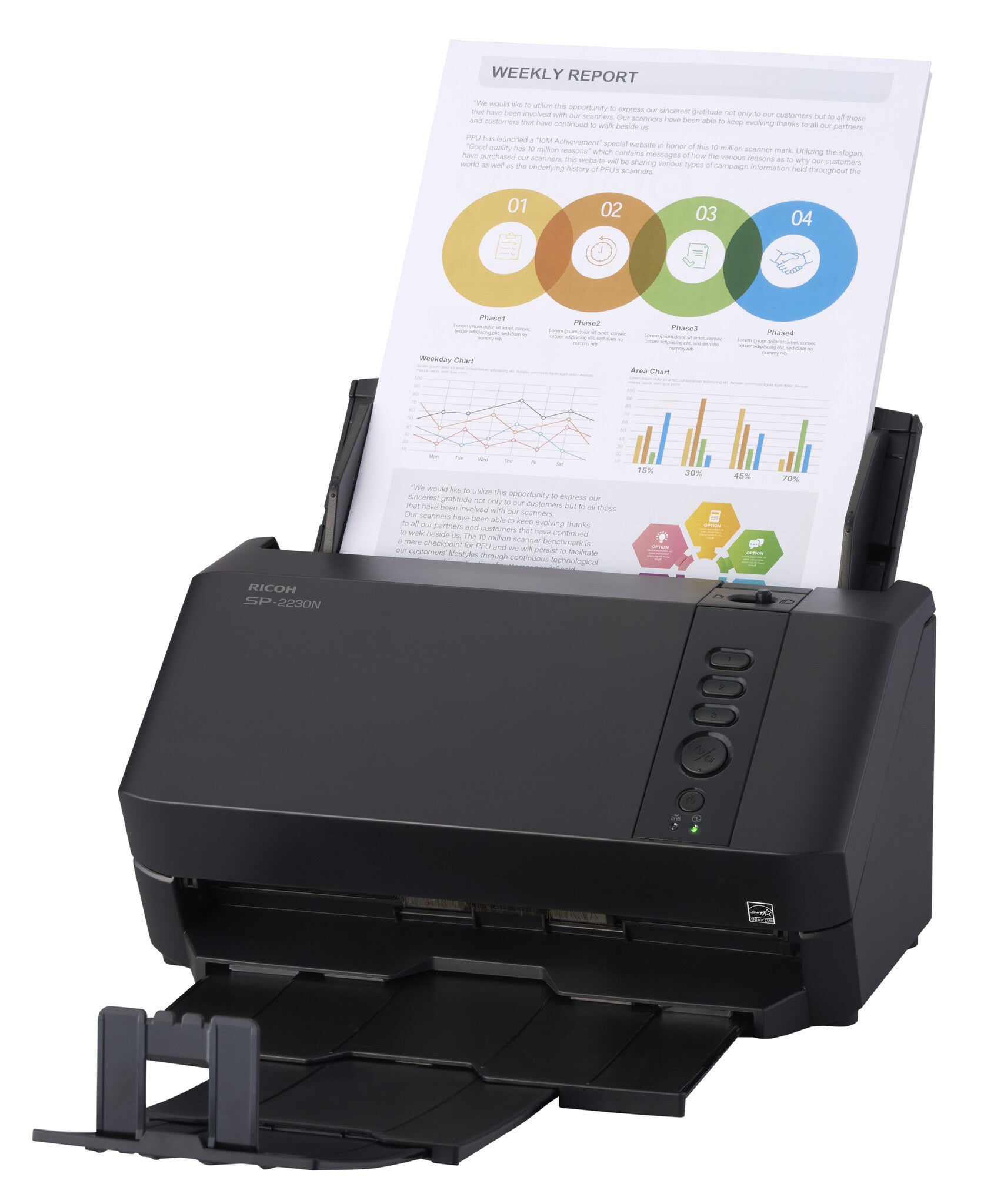

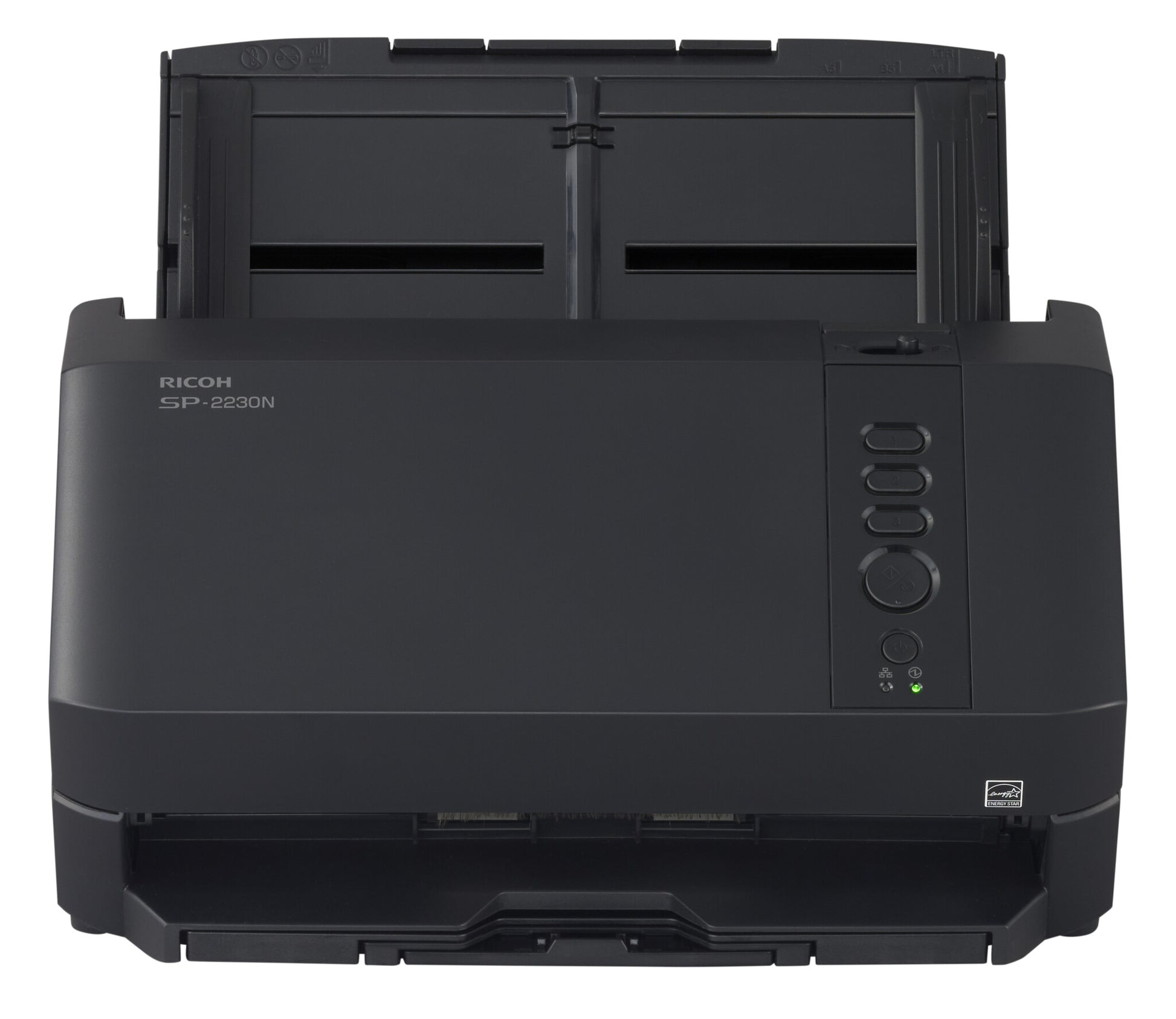

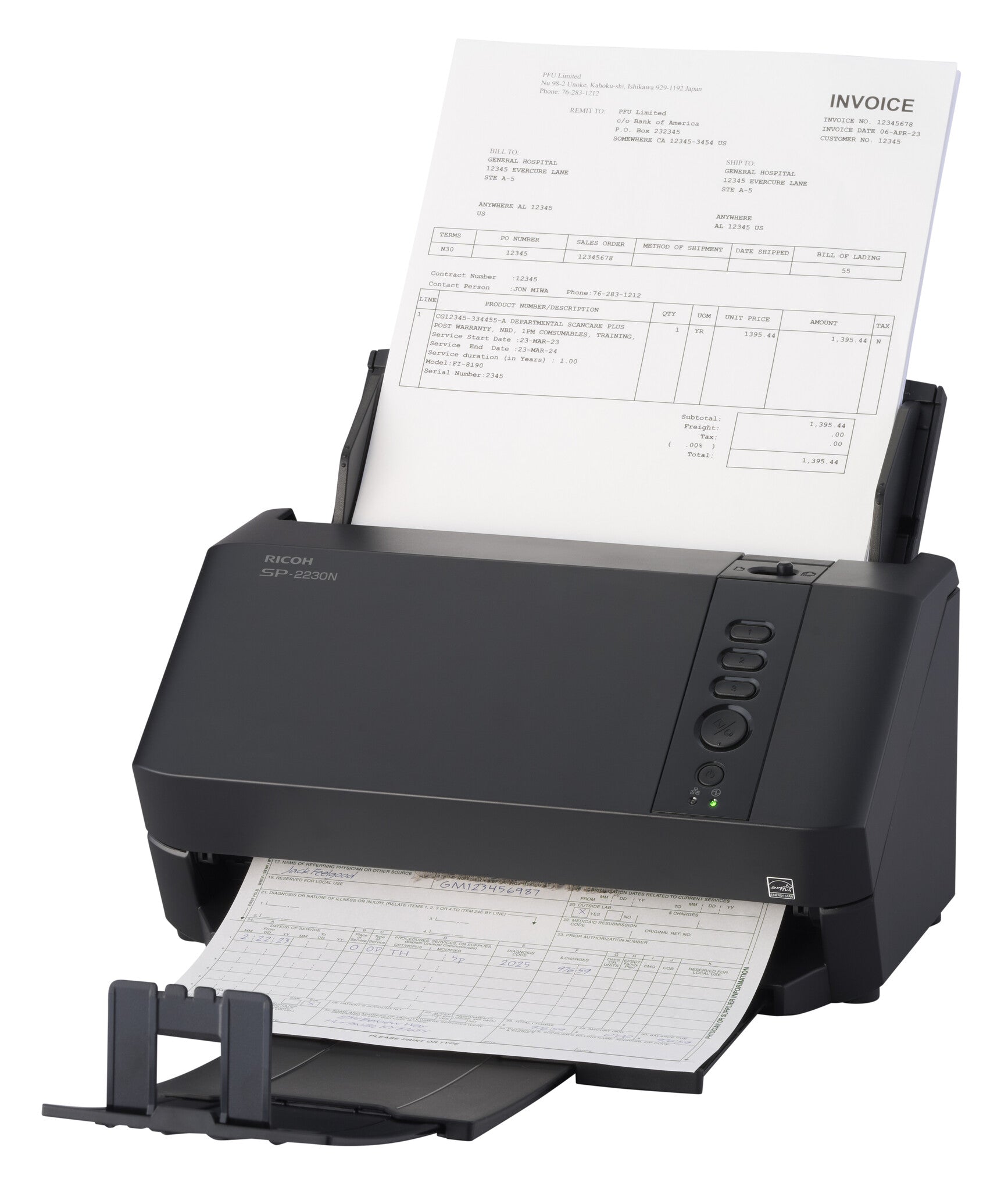

Whether scanning to cloud, network or PC, the RICOH SP-2230N Scanner combines affordability and class-leading performance. State-of-the-art image quality leads to top-rated OCR accuracy. This model also boasts image-monitoring paper protection and the ability to handle a wide range of document types. The RICOH SP-2230N delivers compact, efficient and reliable PC-based or PC-free scanning at 30 ppm.
Scanning
Maximum scan size
215.9 x 6096 mm
Optical scanning resolution
600 x 600 DPI
Colour scanning
Yes
Duplex scanning
Yes
Output colour depth
24 bit
Output greyscale depth
8 bit
Output monochrome depth
1 bit
ADF scan speed (b/w, A4)
30 ppm
Duplex ADF scan speed (b/w, A4)
60 ipm
Background colours
White
Design
Scanner type
ADF scanner
Built-in display
No
Product colour
Black
Performance
Sensor type
Dual CIS
Light source
RGB LED
Ultrasonic sensor
Yes
Input capacity
Auto document feeder (ADF) input capacity
80 sheets
Paper handling
Maximum ISO A-series paper size
A4
Scanning media types supported
Plain paper, Business Card, Post Card(JPN)
Long-paper mode
Yes
ISO B-series sizes (B0...B9)
B5, B6
ISO A-series sizes (A0...A9)
A4, A5, A6
Legal
Yes
Letter
Yes
Card thickness (max)
1.4 mm
Paper tray media weight
27 - 413 g/m²
Maximum scan length
6.1 m
Ports & interfaces
USB port
Yes
USB version
3.2 Gen 1 (3.1 Gen 1)
Power
Power consumption (typical)
15 W
Power supply type
AC
Power consumption (standby)
0.1 W
AC input frequency
50/60 Hz
Input voltage
100 - 240 V
Network
Ethernet LAN
Yes
Packaging data
Quantity per pack
1 pc(s)
Package weight
4.7 kg
System requirements
Server operating systems supported
Windows Server 2022, Windows Server 2016, Windows Server 2019
Windows operating systems supported
Windows 11 x64
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
15 - 80%
Weight & dimensions
Width
292 mm
Depth
163 mm
Height
150 mm
Weight
3.3 kg
Packaging content
Cables included
USB
Bundled software
PaperStream IP, PaperStream Capture, PaperStream ClickScan, PaperStream Central Admin, PaperStream Central Admin Agent, Software Operation Panel, Error Recovery Guide
