Raspberry Pi

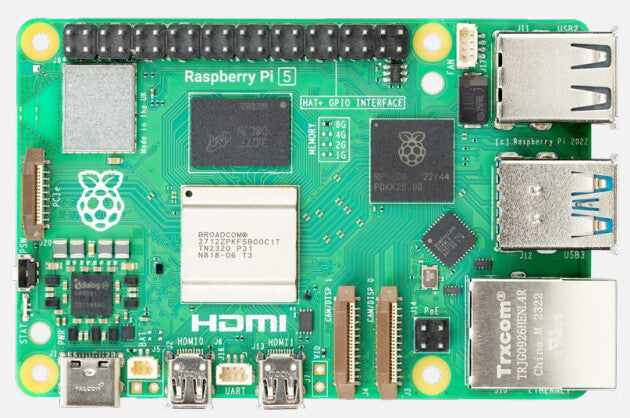

Raspberry Pi 5B development board Arm Cortex-A76 2400 MHz
Raspberry Pi 5B development board Arm Cortex-A76 2400 MHz
SKU:SC1112
58 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Power button
- Dual 4Kp60
- Real-time clock
- UART debug port
RP1
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
More than twice as fast and infinitely smoother
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.
All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
| Processor | |
|---|---|
| Processor frequency | 2400 MHz |
| Processor manufacturer | ARM |
| Processor model | Arm Cortex-A76 |
| Processor cache | 512 KB |
| Processor cores | 4 |
| 64-bit computing | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Power over Ethernet (PoE) | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Integrated LAN | Yes |
| MPI CSI interface | Yes |
| MPI DSI interface | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Expansion slots | |
|---|---|
| PCI version | 2.0 |
| PCI Express interface data lanes | x1 |
| Features | |
|---|---|
| Real-time clock (RTC) | Yes |
| On/off button | Yes |
| Power | |
|---|---|
| DC input voltage | 5 V |
| Input current | 5 A |
| USB powered | Yes |
| Weight & dimensions | |
|---|---|
| Board dimensions | 85 x 49 mm |
| Depth | 49 mm |
| Width | 85 mm |
