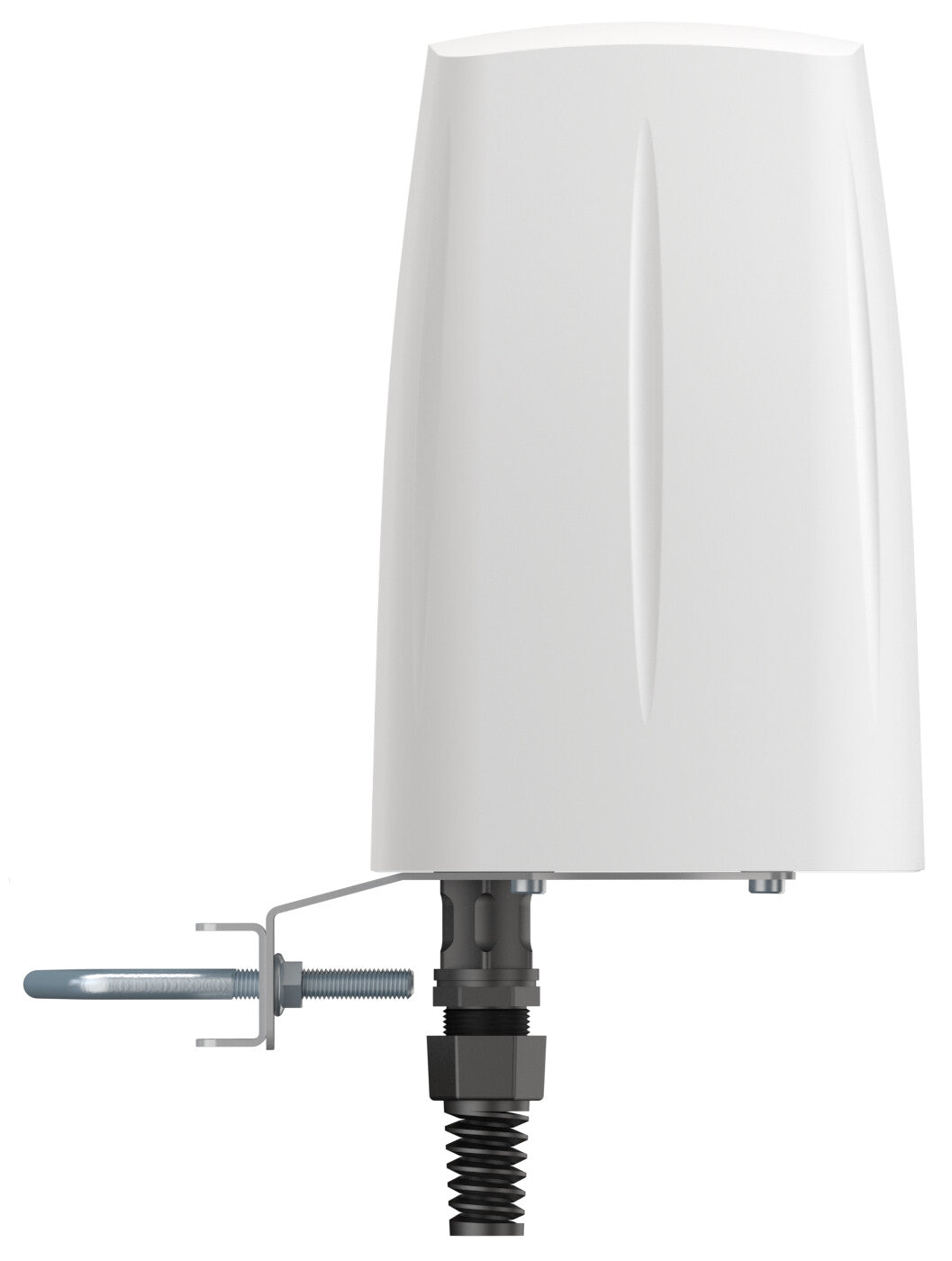

QuWireless QuSpot network antenna Omni-directional antenna PoE/LAN 4 dBi

QuWireless QuSpot network antenna Omni-directional antenna PoE/LAN 4 dBi

£121.44 GBP
£121.44 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

A240S

Low stock: 6 left

  • Omni-directional antenna PoE/LAN White
  • 4 dBi
  • 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz
  • 50 Ω
  • Vertical polarization
  • Wall/Pole
Antenna QuSpot for RUT2xx

Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT241, RUT240 or 230 (All-in-one)
QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Performance
Antenna gain level (max) 4 dBi
Frequency band 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5/4.7-6 GHz
Gain 2 / 4 dBi
Antenna gain (2.4 GHz) 6 dBi
Impedance 50 Ω
Vertical beam width 35°
Horizontal beam width 360°
Vertical beam width (2.4 GHz) 25°
Horizontal beam width (2.4 GHz) 360°
Features
Antenna type Omni-directional antenna
Antenna connector type PoE/LAN
Polarization Vertical polarization
Voltage Standing Wave Ratio (VSWR) 2
International Protection (IP) code IP67
Mounting Wall/Pole
Purpose Indoor & outdoor
Country of origin Poland
Compatible products RUT200, RUT230, RUT240, RUT241, RUT260
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
Product colour White
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Width 160 mm
Depth 160 mm
Height 240 mm
Weight 1.5 kg
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 85177100
