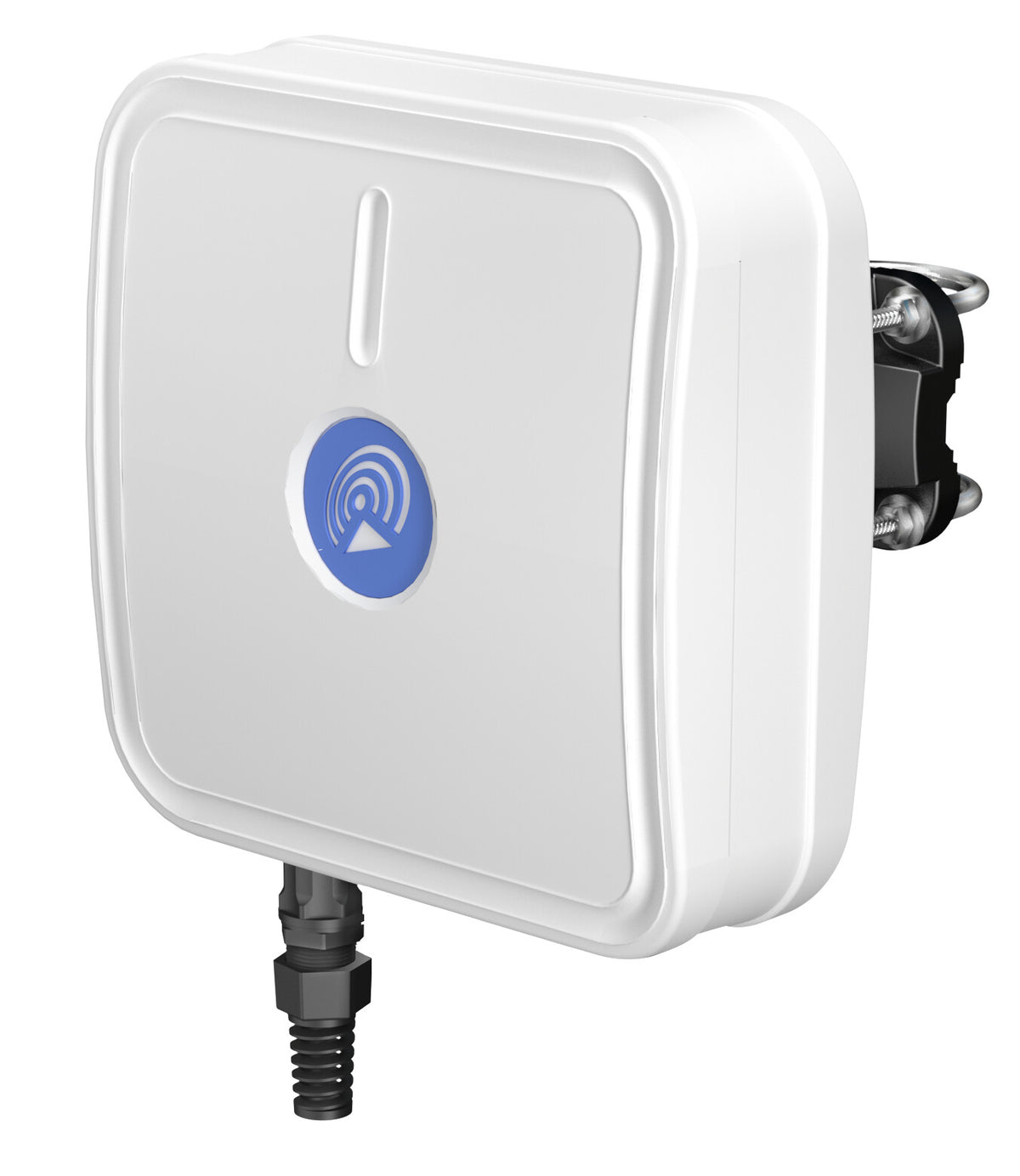

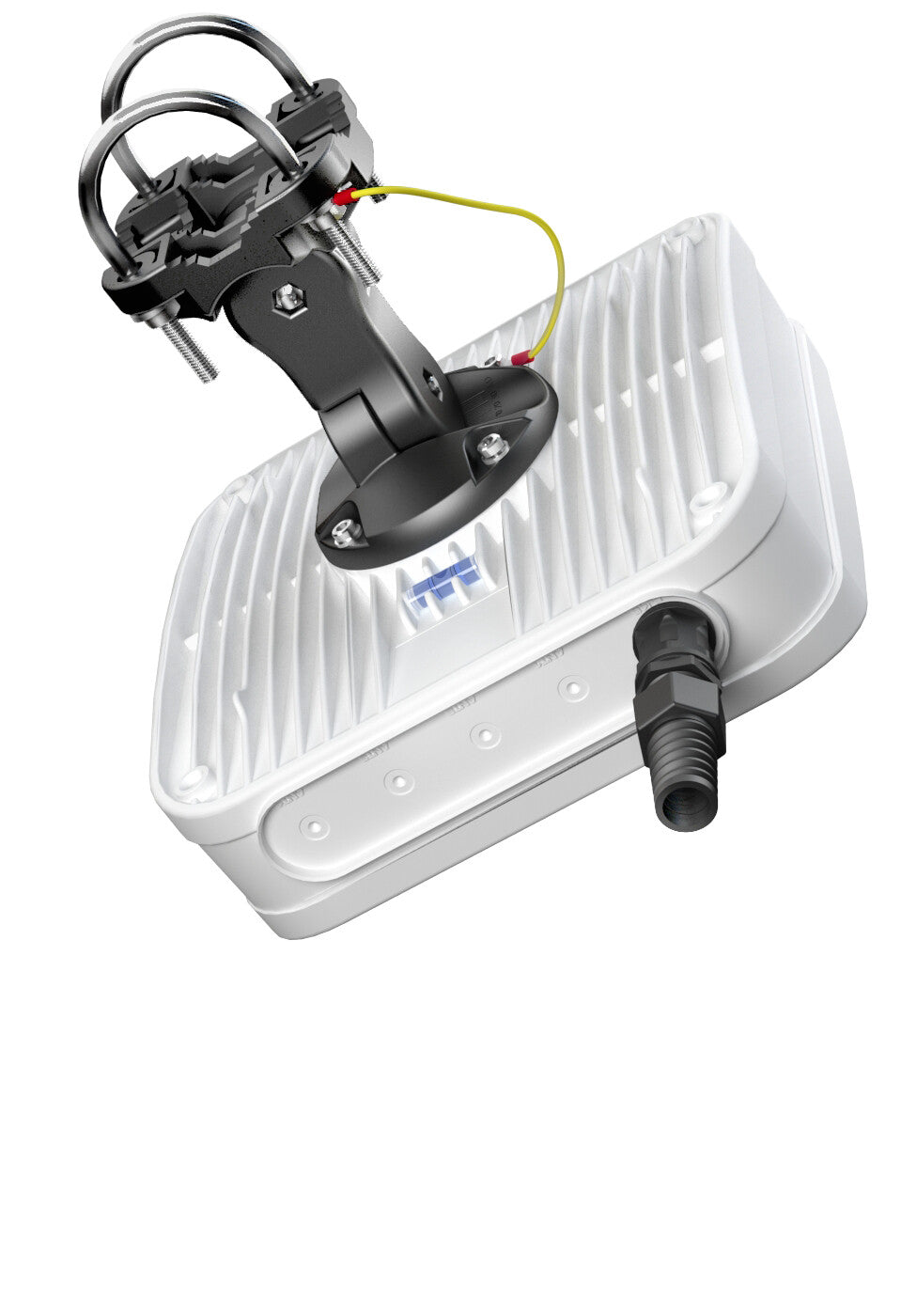

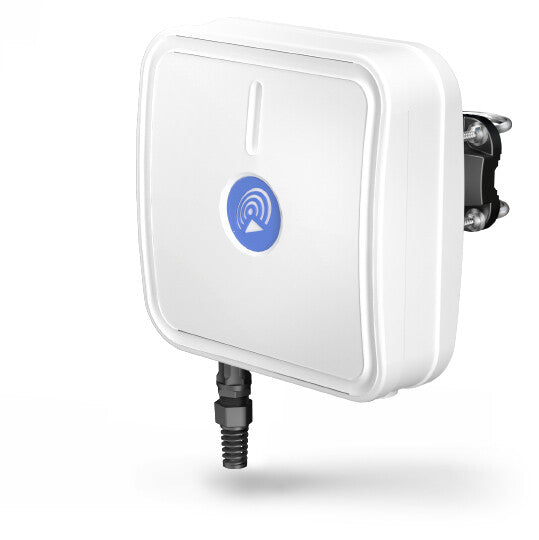

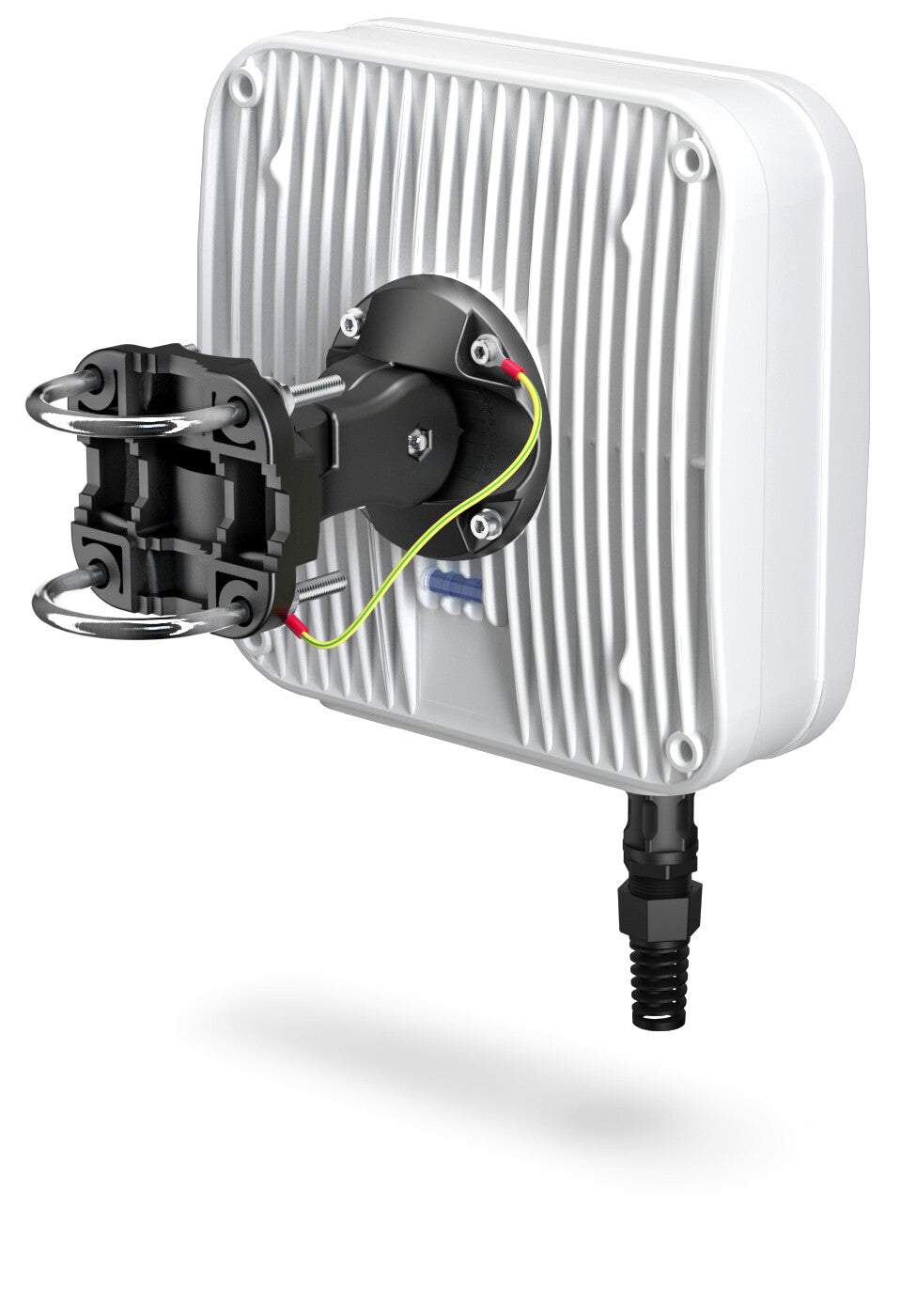

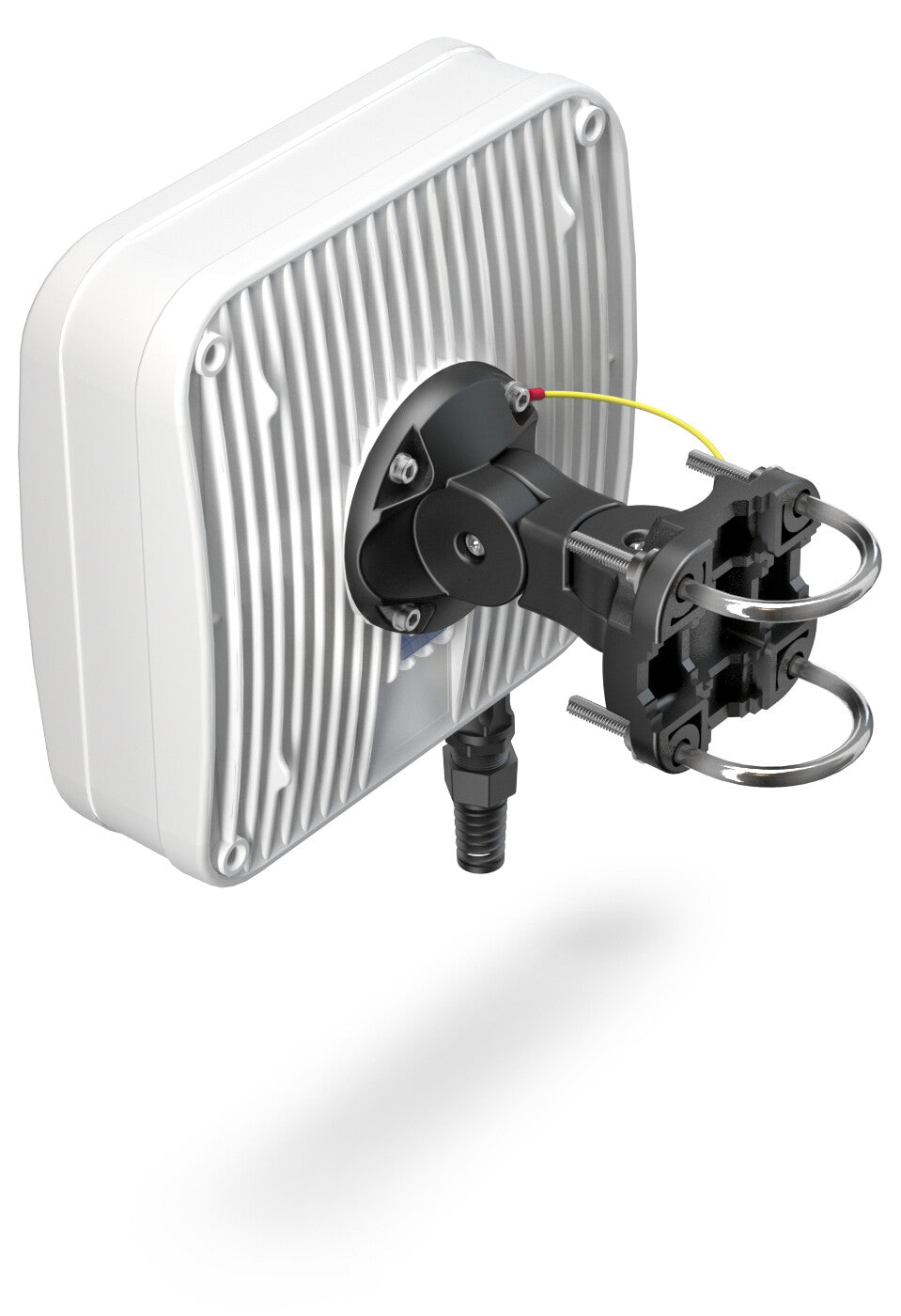

QuWireless QuMax network antenna Directional antenna PoE/LAN 14 dBi
QuWireless QuMax network antenna Directional antenna PoE/LAN 14 dBi
SKU:AX10M
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Directional antenna PoE/LAN White
- 14 dBi
- 2.4-2.5/5.1-5.9 GHz
- 50 Ω
- Dual polarization
- Wall/Pole

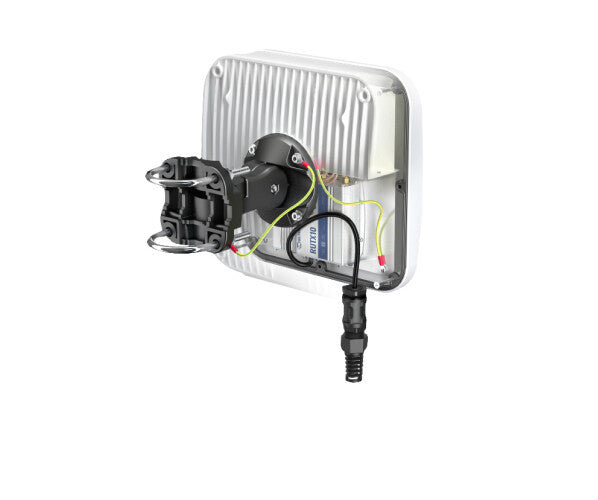

QuMAX offers the most powerful Wi-Fi dual band 2.4 & 5 GHz sector antenna of all QuWireless antennas. It is dedicated to hotspots and fixed networks base stations with big coverage. It is designed to have Teltonika RUTX10 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also Bluetooth sector antenna.
| Performance | |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4-2.5/5.1-5.9 GHz |
| Antenna gain (5 GHz) | 14 dBi |
| Antenna gain (2.4 GHz) | 12 dBi |
| Impedance | 50 Ω |
| Vertical beam width (2.4 GHz) | 30° |
| Horizontal beam width (2.4 GHz) | 90° |
| Vertical beam width (5 GHz) | 16° |
| Horizontal beam width (5 GHz) | 90° |
| Features | |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | PoE/LAN |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| International Protection (IP) code | IP67 |
| Mounting | Wall/Pole |
| Purpose | Indoor & outdoor |
| Country of origin | Poland |
| Compatible products | RUTX10 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Product colour | White |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Weight | 1.8 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Mounting kit | Yes |
