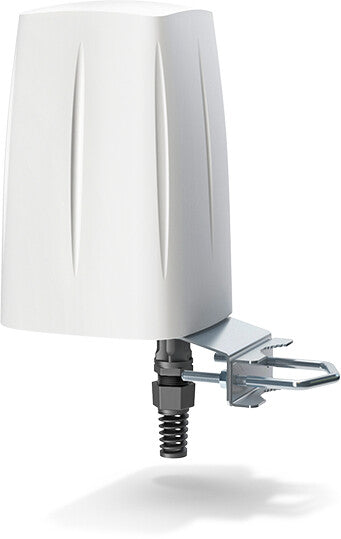

QuWireless AX50S network antenna Omni-directional antenna PoE/LAN 4.5 dBi
QuWireless AX50S network antenna Omni-directional antenna PoE/LAN 4.5 dBi
Regular price
£185.71 GBP
Regular price
Sale price
£185.71 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:AX50S
Low stock: 6 left
- Omni-directional antenna PoE/LAN White
- 4.5 dBi
- 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz
- 50 Ω
- Vertical polarization
- Wall/Pole
Antenna QuSpot for Teltonika RUTX50
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)

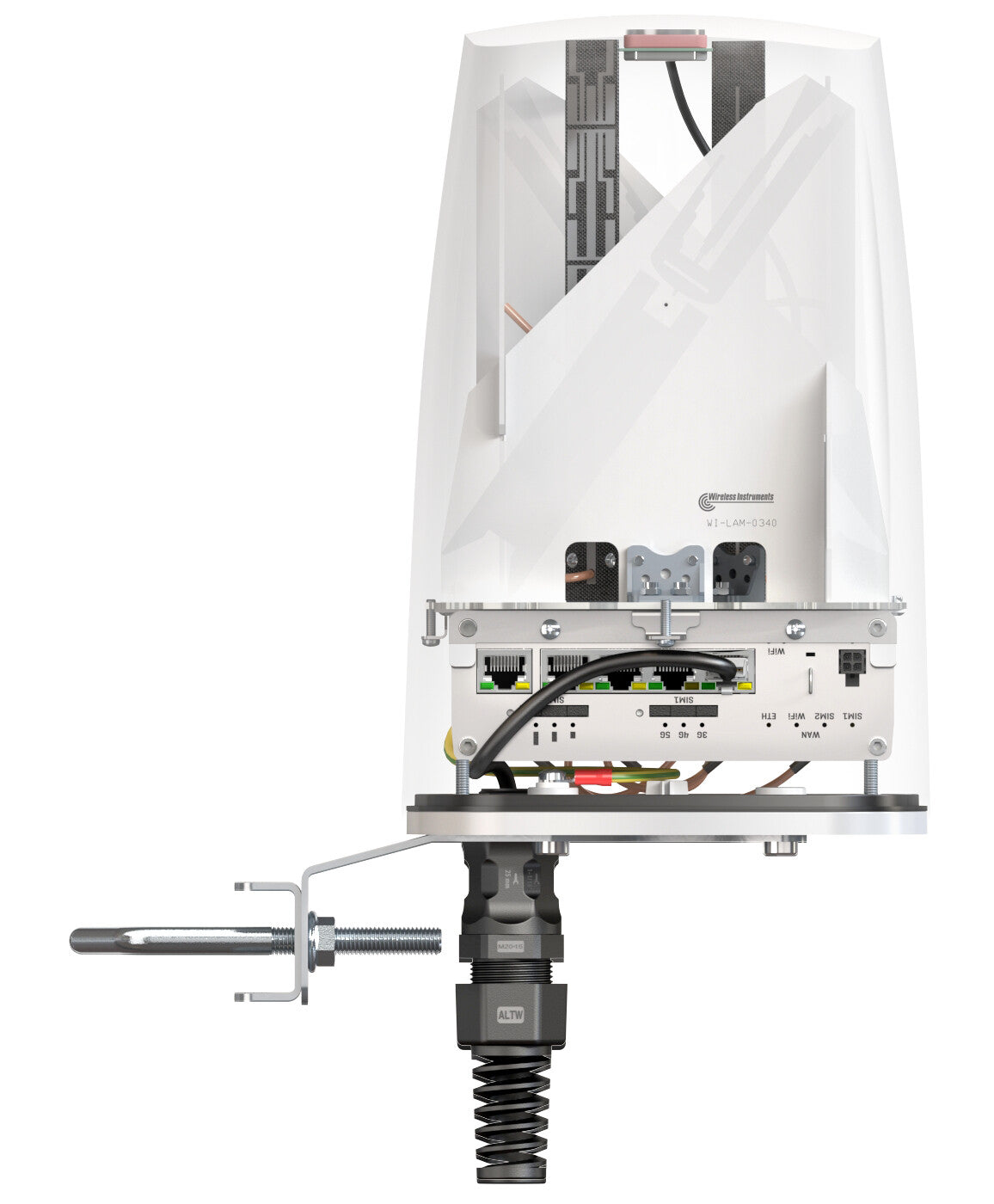

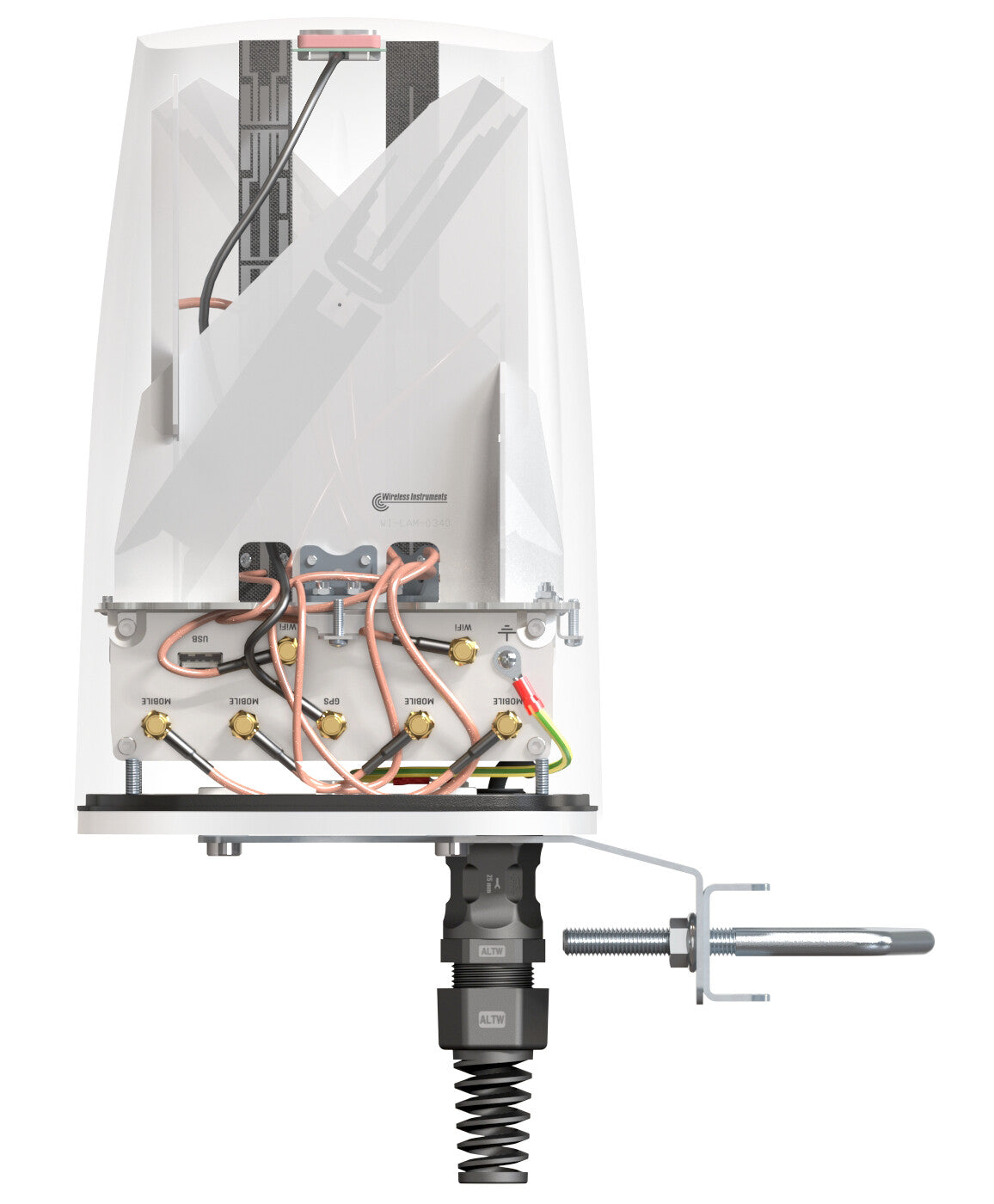

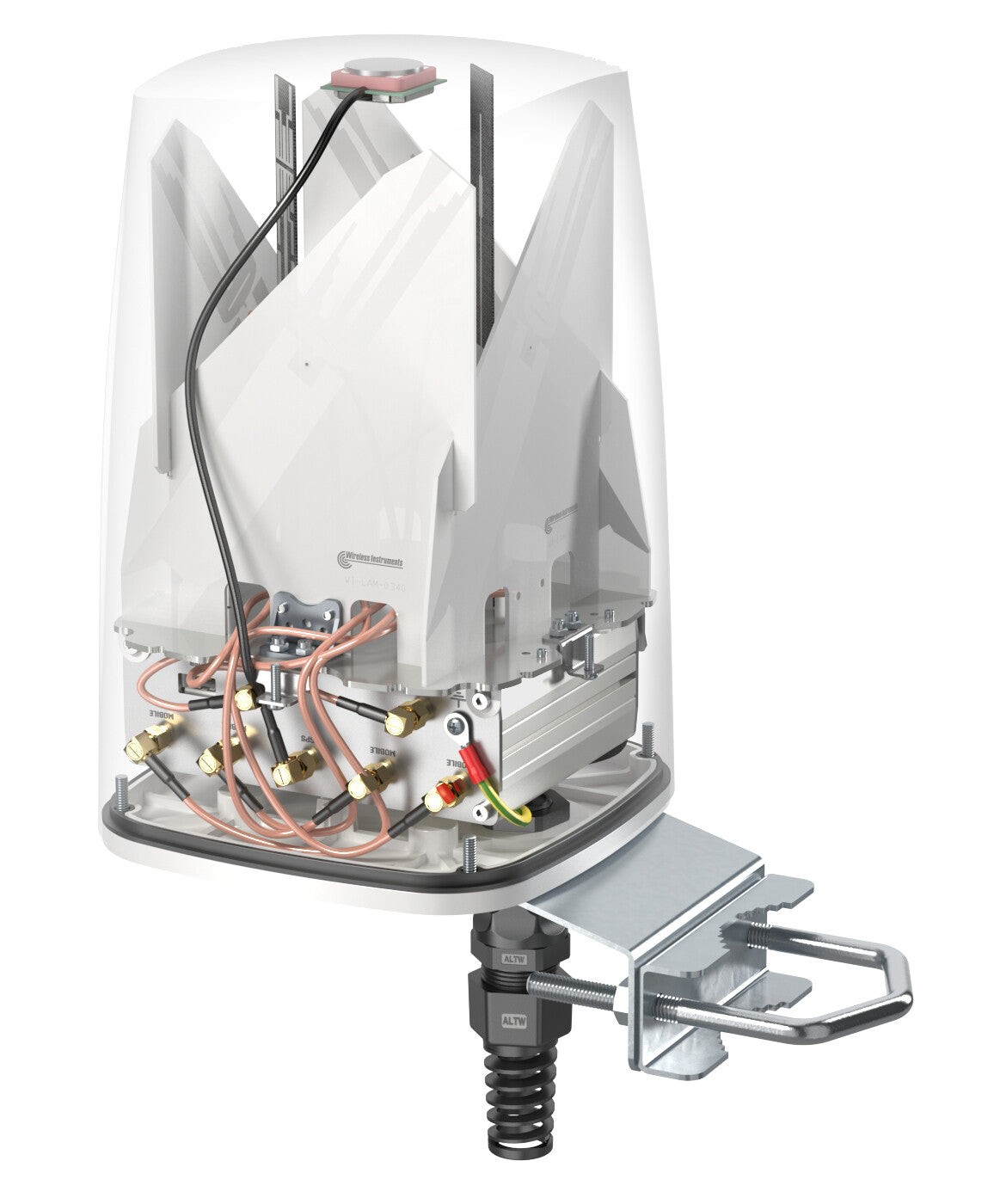

QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTX50 solutions.
QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
| Performance | |
|---|---|
| Antenna gain level (max) | 4.5 dBi |
| Frequency band | 0.617-0.96/1.7-2.7/3.3-4.3; 2.4-2.5/4.7-6 GHz |
| Gain | 2 / 4.5 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Impedance | 50 Ω |
| Vertical beam width | 25° |
| Horizontal beam width | 360° |
| Vertical beam width (2.4 GHz) | 25° |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (5 GHz) | 25° |
| Horizontal beam width (5 GHz) | 360° |
| Features | |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | PoE/LAN |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.00 |
| International Protection (IP) code | IP67 |
| Mounting | Wall/Pole |
| Purpose | Indoor & outdoor |
| Country of origin | Poland |
| Compatible products | RUTX50 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polytetrafluoroethylene (PTFE) |
| Product colour | White |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 240 mm |
| Weight | 1.5 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
