1 5

QuWireless

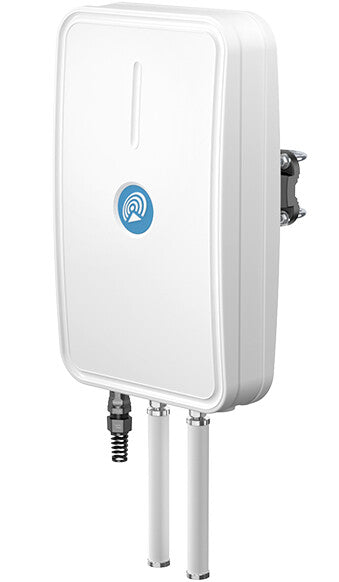

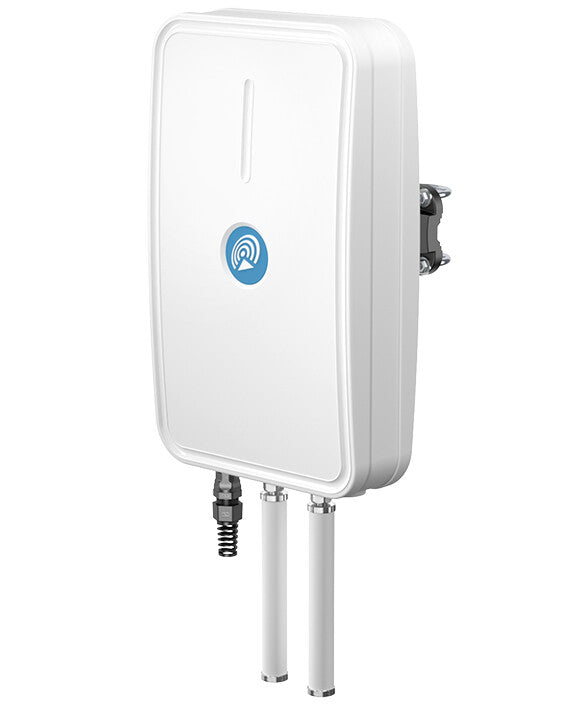

QuWireless AX50MO network antenna Omni-directional antenna PoE/LAN 4 dBi

QuWireless AX50MO network antenna Omni-directional antenna PoE/LAN 4 dBi

AX50MO

£204.60 GBP£170.50 GBP
£0.00 GBP £204.60 GBP£170.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 5 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Omni-directional antenna PoE/LAN White
  • 4 dBi
  • 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8; 2.4-2.5/4.7-6
  • 50 Ω
  • Vertical polarization
  • Wall/Pole
  • Power source type: PoE
Antenna QuMax Omni for Teltonika RUTX50

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + Wi-Fi ANTENNA + GPS + PLACE TO INSTALL TELTONIKA RUTX50 (ALL-IN-ONE)
QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Apart from 5G, also Wi-Fi and GPS antennas are included, which means you get an all-in-one solution for your RUTX50.

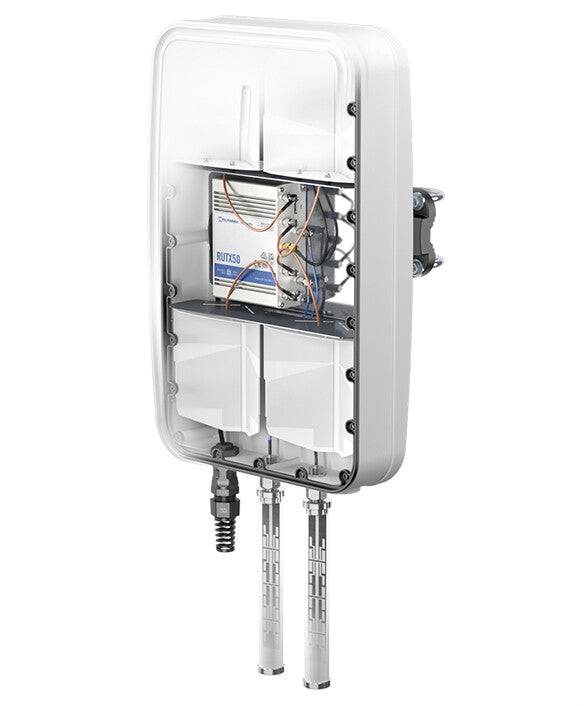

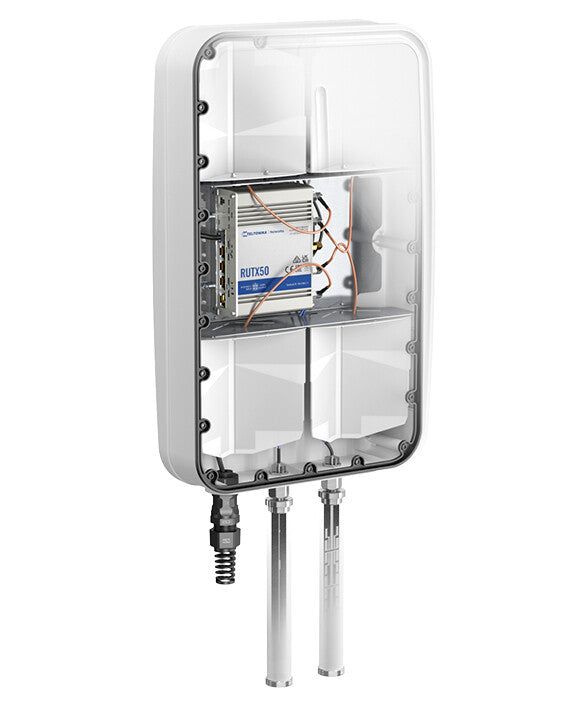

Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas.

NOTE! The antenna doesn’t support B 32 band and n 77 above 3800 MHz band!

Performance
Antenna gain level (max) 4 dBi
Frequency band 0.617-0.96/1.7-2.2/2.2-2.7/3.3–3.8; 2.4-2.5/4.7-6
Gain 3 / 4 dBi
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 6 dBi
Impedance 50 Ω
Vertical beam width 35°
Horizontal beam width 360°
Vertical beam width (2.4 GHz) 25°
Horizontal beam width (2.4 GHz) 360°
Vertical beam width (5 GHz) 25°
Horizontal beam width (5 GHz) 360°
Features
Antenna type Omni-directional antenna
Antenna connector type PoE/LAN
Polarization Vertical polarization
Voltage Standing Wave Ratio (VSWR) 2
International Protection (IP) code IP67
Waterproof Yes

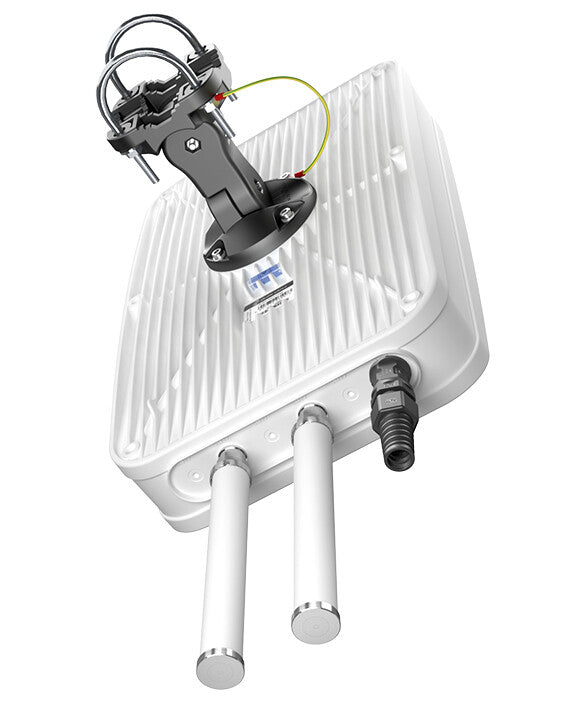

Mounting Wall/Pole
Purpose Indoor & outdoor
Country of origin Poland
Compatible products RUTX50
Housing material Acrylonitrile butadiene styrene (ABS)
Product colour White
Power
Power source type PoE
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 292.2 mm
Depth 105.6 mm
Height 486 mm
Weight 2.5 kg
Packaging content
Quantity per pack 1 pc(s)
Manual Yes
