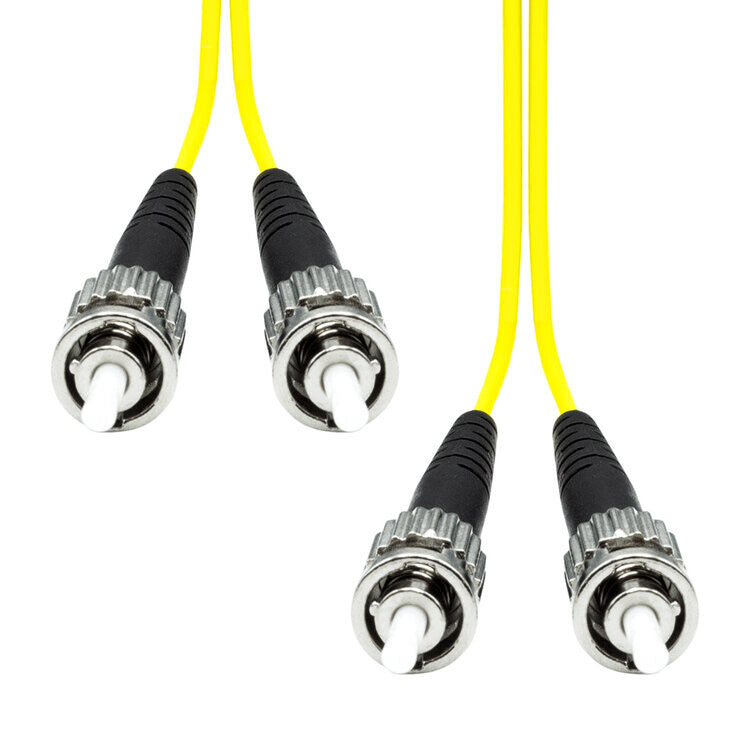

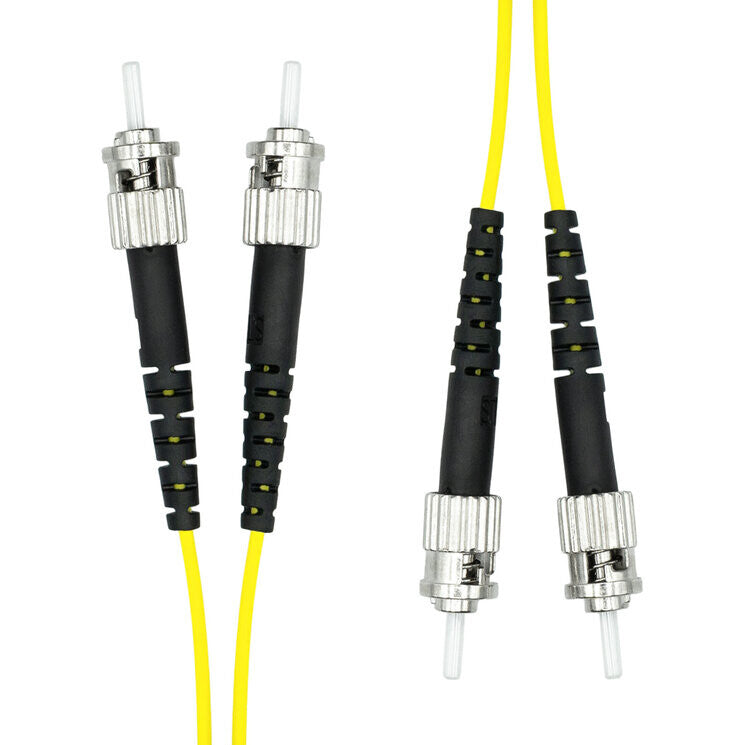

ProXtend ST-ST UPC OS2 Duplex SM Fiber Cable 7M

ProXtend ST-ST UPC OS2 Duplex SM Fiber Cable 7M

FO-STSTOS2D-007

£4.68 GBP£3.90 GBP
£0.00 GBP £4.68 GBP£3.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • OS2
  • 7 m
  • ST
  • ST Male
  • Connector polish type: UPC
  • Jacket material: Low smoke zero halogen (LSZH)
  • 2 Gbit/s
  • Full duplex Single-mode
  • Yellow
ST-ST UPC OS2 Duplex SM Fiber Cable 7M

When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.

The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.

Features
Cable length 7 m
Fibre optic type OS2
Connector 1 ST
Connector 2 ST
Connector gender Male
Connector 2 gender Male
Connector polish type UPC
Product colour Yellow
Full duplex Yes
Core diameter 9 µm
Cladding diameter 125 µm
Fiber mode structure Single-mode
Data transfer rate 2 Gbit/s
Return loss 55 dB
Insertion loss 30 dB
Jacket material Low smoke zero halogen (LSZH)
Plug and Play Yes
Country of origin China
Technical details
Compliance certificates RoHS
Sustainability certificates RoHS
Operational conditions
Operating temperature (T-T) -20 - 70 °C
Weight & dimensions
Cable diameter 2 mm
Weight 54 g
Bending radius 5 cm
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 85447000
