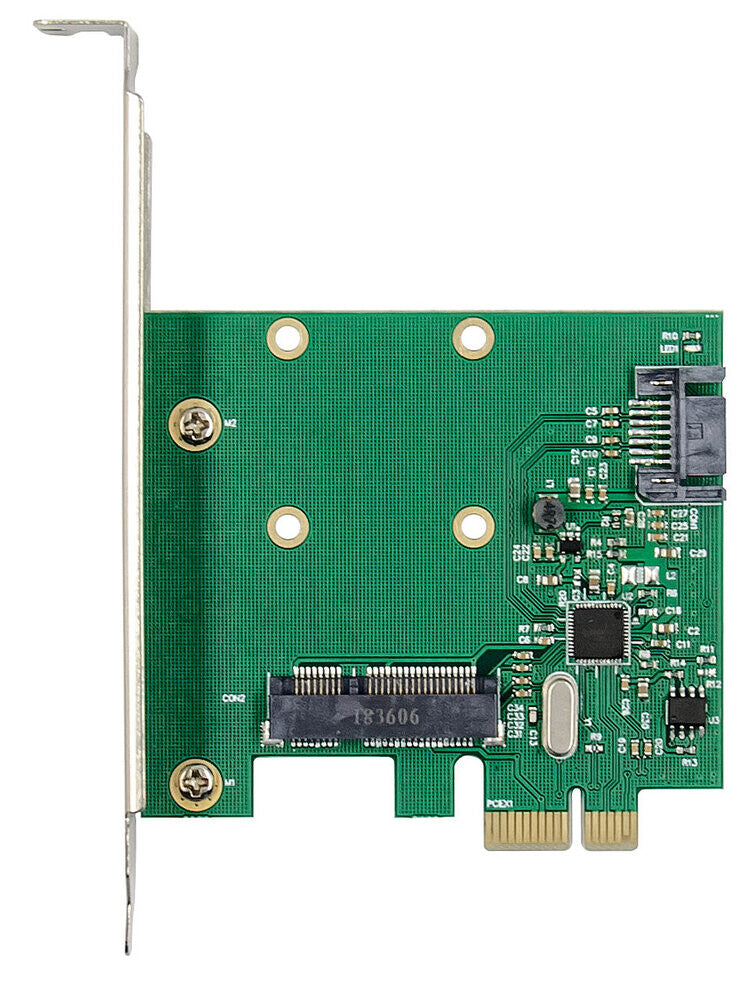

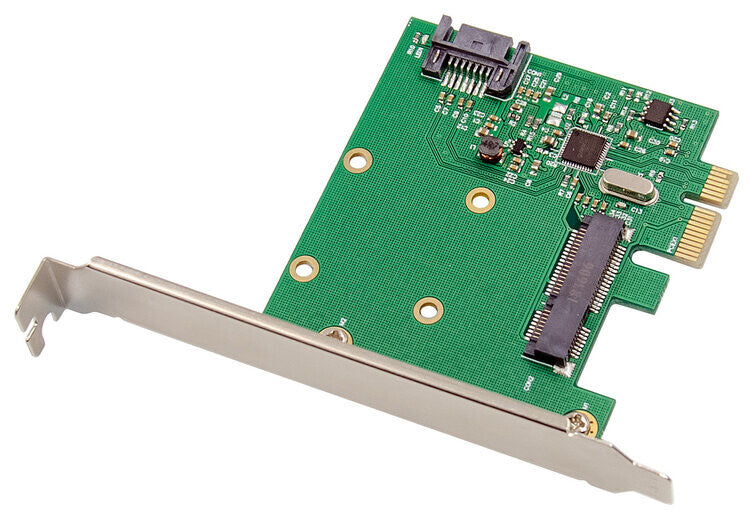

This Proxtend PX-SR-10256 PCIe ASM1061 mSATA & Serial ATA 6Gbps Expansion card is a high speed I/O solution which utilises ASMEDIA’s new generation chip ASM1061. The ASM1061 is a PCI Express Gen2, two-ports Serial ATA controller, which enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 Specification. it is backwards compatible with SATA2.0/SATA1.0, including mSATA and SATA interface, which can connect HDD, SSD, and other types of extended storage.
ProXtend PCIe SSD Adapter Cards offer 100% compatibility with all major vendors, delivering performance and functionality for the most demanding server and desktop applications.
Ports & interfaces
Host interface
PCIe
Output interface
mSATA, SATA
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCIe 2.0
NVMe
No
SATA revision
3.0
Internal SATA ports quantity
1
Internal mSATA ports quantity
1
Design
Internal
Yes
Product colour
Silver, Green
Purpose
PC
Country of origin
China
Certification
CE,ROHS
Features
Plug and Play
Yes
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
System requirements
Windows operating systems supported
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
