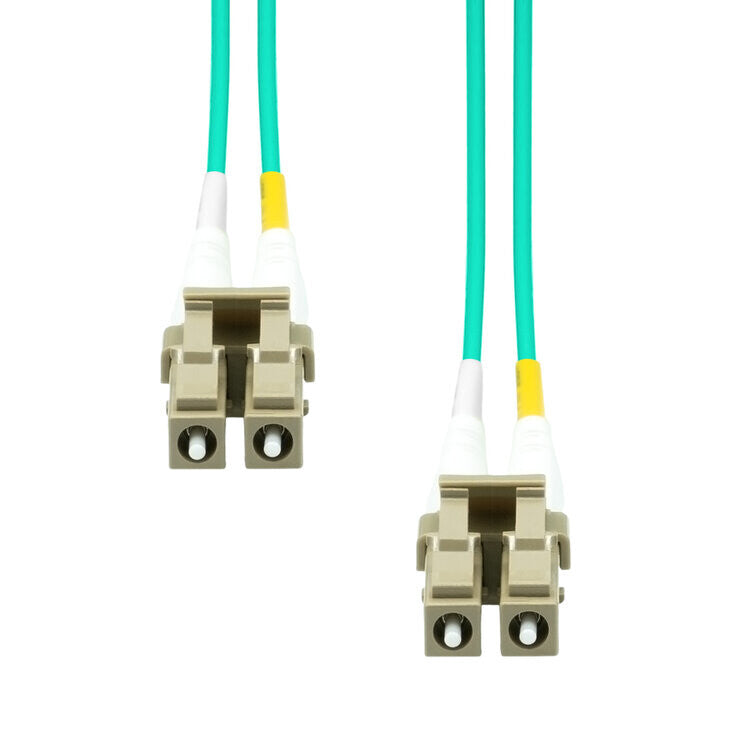

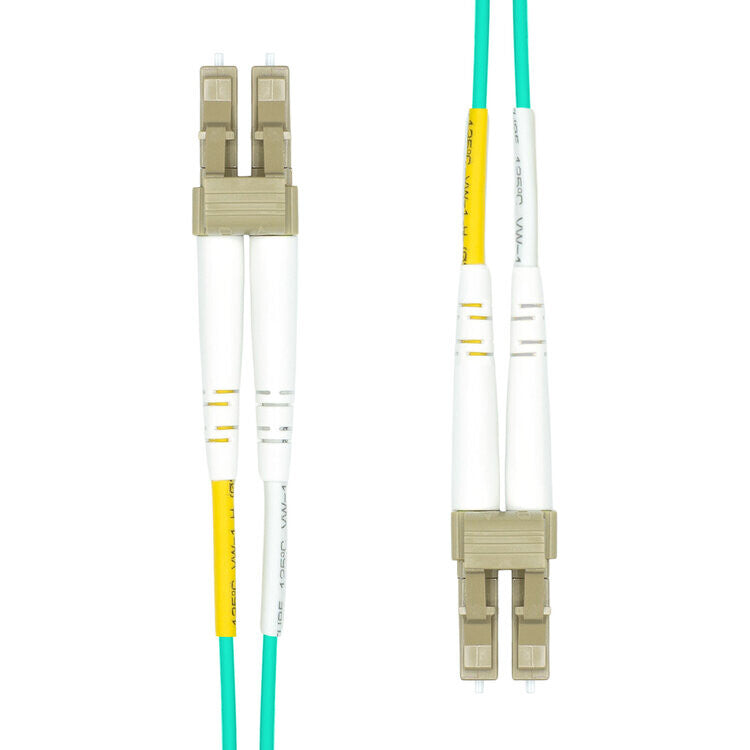

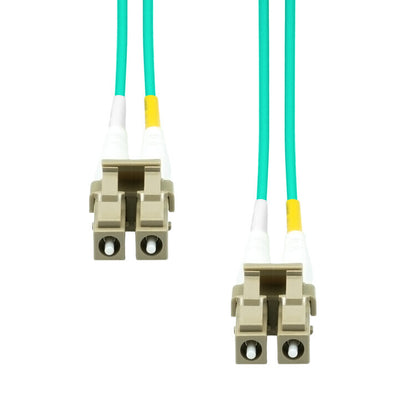

ProXtend LC-LC UPC OM3 Duplex MM Fiber Cable 10M
ProXtend LC-LC UPC OM3 Duplex MM Fiber Cable 10M
SKU:FO-LCLCOM3D-010
76 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- OM3
- 10 m
- LC Male
- LC Male
- Connector polish type: UPC
- Jacket material: Low smoke zero halogen (LSZH)
- 2 Gbit/s
- Full duplex Multi-mode
- Aqua colour
When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
| Features | |
|---|---|
| Cable length | 10 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector gender | Male |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 2 Gbit/s |
| Return loss | 55 dB |
| Insertion loss | 0.3 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Plug and Play | Yes |
| Country of origin | China |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 75 g |
| Bending radius | 5 cm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 1.7 mm |
| Package depth | 1.7 mm |
| Package height | 0.1 mm |
| Package weight | 0.2 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85447000 |
