PowerWalker
PowerWalker 10120528 interface cards/adapter Internal
PowerWalker 10120528 interface cards/adapter Internal
Regular price
£118.68 GBP
Regular price
Sale price
£118.68 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:10120528
Low stock: 1 left

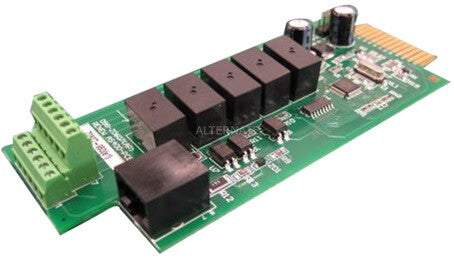

AS/400 Card 3
AS/400 Cards provide clean dry contacts for remote shutdown and monitoring of a UPS.
It is frequently used along with PLCs and signal control panels.
Information delivered are UPS failure, Alarm, Main Fail, Bypass, Battery Low, UPS On.
Using AS/400 it possible to shutdown UPS remotely.
Solution requires external 12V/24VDC source for a high signal.
Pin assignment is available in User's Manual.
AS/400 Card for:
- VFI 1000T/2000T/3000T/6000T/10000T LCD
- VFI 1000RT/1500RT/2000RT/3000RT LCD
- VFI 6000P/RT, 10000P/RT LCD
- VFI 10000TCP 3/1, VFI 10000TP 3/1, VFI 20000TP 3/1
| Design | |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 146 mm |
| Depth | 60 mm |
| Height | 1.6 mm |
| Weight | 70 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
