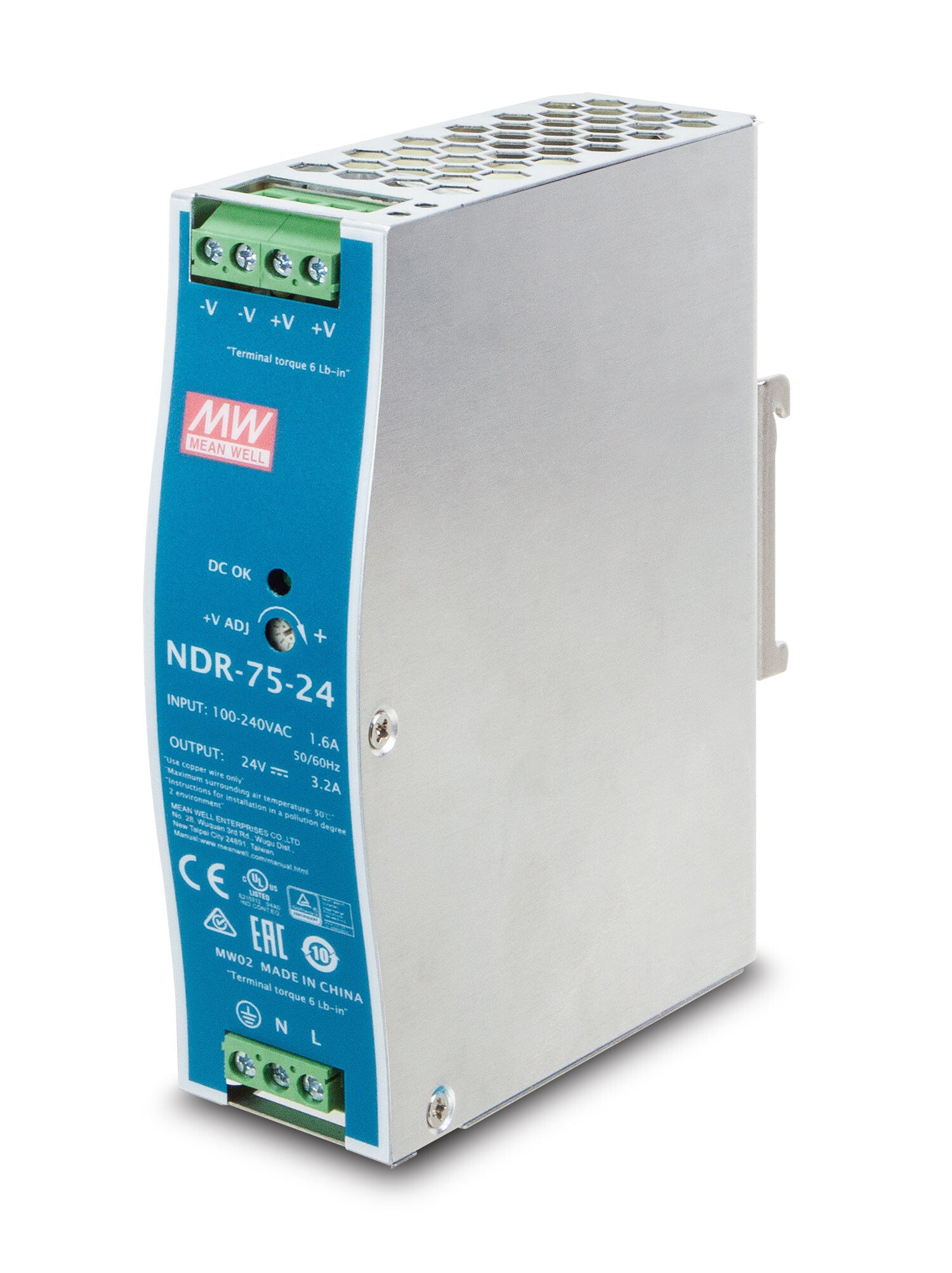

PLANET PWR-75-24 power supply unit 75 W Blue, Grey

PLANET PWR-75-24 power supply unit 75 W Blue, Grey

PWR-75-24

£37.44 GBP£31.20 GBP
£0.00 GBP £37.44 GBP£31.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 9 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Universal AC input / full range
  • Protection: short circuit, overload, over voltage and over temperature
  • Cooling by free air convection
  • For installation on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
DC Single Output Industrial DIN-rail Power Supply Units

Compact Size with more Practicability and Convenience
PLANET has released PWR series for industrial Ethernet devices specially designed for the harsh working environment where sometimes it is hard to find suitable DC voltage power source. The PWR series offered includes DC single output industrial DIN rail power supply units which accept universal 100-240 AC input voltage or DC input and provide 24V / 48V DC power output with various watt values. They are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for industrial equipment under heavy Industrial environments.

Stable Performance under Difficult Environments
The DC Single Output Industrial DIN Rail Power Supply Units provides various models with short circuit/overload/over voltage and over temperature protections for the stable operation of Industrial Ethernet equipment. As they adopt the free air convection cooling system, they are able to operate under the temperature ranging from -20 to 70 degrees C (maximum). Thus, the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.

Power
Total power 75 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 1.45 A
Power protection features Over voltage, Overheating, Overload, Short circuit
Performance
Safety Ul508, TUV EN60950-1
Design
Product colour Blue, Grey
Cooling type Passive
Operational conditions
Operating temperature (T-T) -20 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 20 - 95%
Storage relative humidity (H-H) 10 - 95%
Weight & dimensions
Width 32 mm
Depth 102 mm
Height 125 mm
Weight 500 g
Logistics data
Harmonized System (HS) code 84733020
