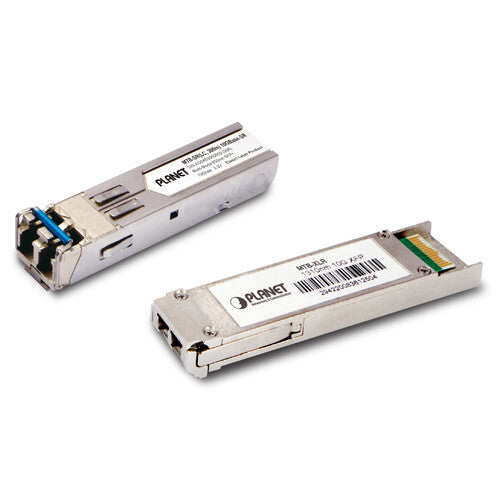

PLANET MTB-TLR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
PLANET MTB-TLR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Couldn't load pickup availability
SKU:MTB-TLR
112 in stock
The PLANET MTB family of 10G SFP+ fiber optic module that is designed to work with PLANET products with 10G SFP+ interface provides a high-performance 10G Ethernet network for enterprises, telecoms and ISPs. The MTB family is also well applicable for data center cloud computing. The deployment distance can be extended from 300 meters (multi-mode, LC), to up to 60 kilometers (single-mode, LC).
To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET has released the MTB-T series 10GBASE-SR/LR/BX transceivers that can operate reliably in an electrically harsh, climatically demanding, and -40 to 75 degrees C operating temperature environment. The MTB-T series 10GBASE-SR/LR/BX transceivers are definitely easier and faster to connect than the 1000BASE-SX/LX/BX counterpart.
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
| Networking standards | IEEE 802.3ae |
| Wavelength | 1310 nm |
| Maximum transfer distance | 100000 m |
| Fiber optic connector | LC |
| Single-mode fiber (SMF) supported | Yes |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Plug and Play | Yes |
| Product colour | Metallic |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
