Planet

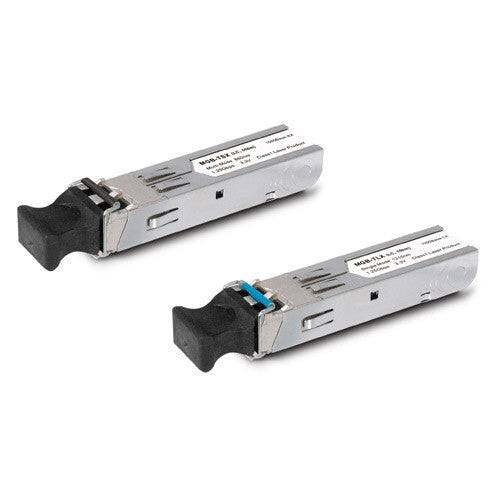

PLANET MGB-SX2 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm

PLANET MGB-SX2 network transceiver module Fiber optic 1000 Mbit/s SFP 1310 nm

£18.72 GBP
£18.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

MGB-SX2

191 in stock

  • Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
  • One 1000Mbps TP/LC fiber port
  • Differential PECL inputs and outputs
  • Single power supply 3.3V
  • TTL signal detection indicator
  • Hot pluggable
  • Class 1 laser product complies with EN 60825-1
  • Plug and Play Installation
SFP-Port 1000BASE-SX mini-GBIC module – 2km

These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported No
Multi-mode fiber (MMF) supported Yes
Fiber optic connector LC
SFP transceiver standard SX
Maximum transfer distance 2000 m
Wavelength 1310 nm
Networking standards IEEE 802.3z
Features
Hot-Plug support Yes
Operational conditions
Operating temperature (T-T) 0 - 60 °C
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
