PLANET IP50 Ind 8-P 10/100TX M12 Unmanaged Power over Ethernet (PoE) Blue, Grey

• 8-port 10/100BASE-TX with dustproof M12 connectors and IEEE 802.3at PoE+ injector function
• Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• 180-watt PoE budget
• Supports PoE power up to 36 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• Supports auto-negotiation and 10/100Mbps half/full duplex mode
• High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure(half-duplex) and IEEE 802.3x pause frame flow control(full-duplex)
• Backplane(switching fabric): 1.6Gbps
• Integrated address look-up engine, supporting 2K absolute MAC addresses
• Automatic address learning and address aging
• CSMA/CD Protocol
• IP50 metal case
• Dustproof and fanless designs
• DIN-rail and wall-mount installation
• Redundant power design
• 12 to 56V DC, redundant power with reverse polarity protection
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV surge protection
• 40 to 75 degrees C operating temperature

Reliable Data and Power over Ethernet

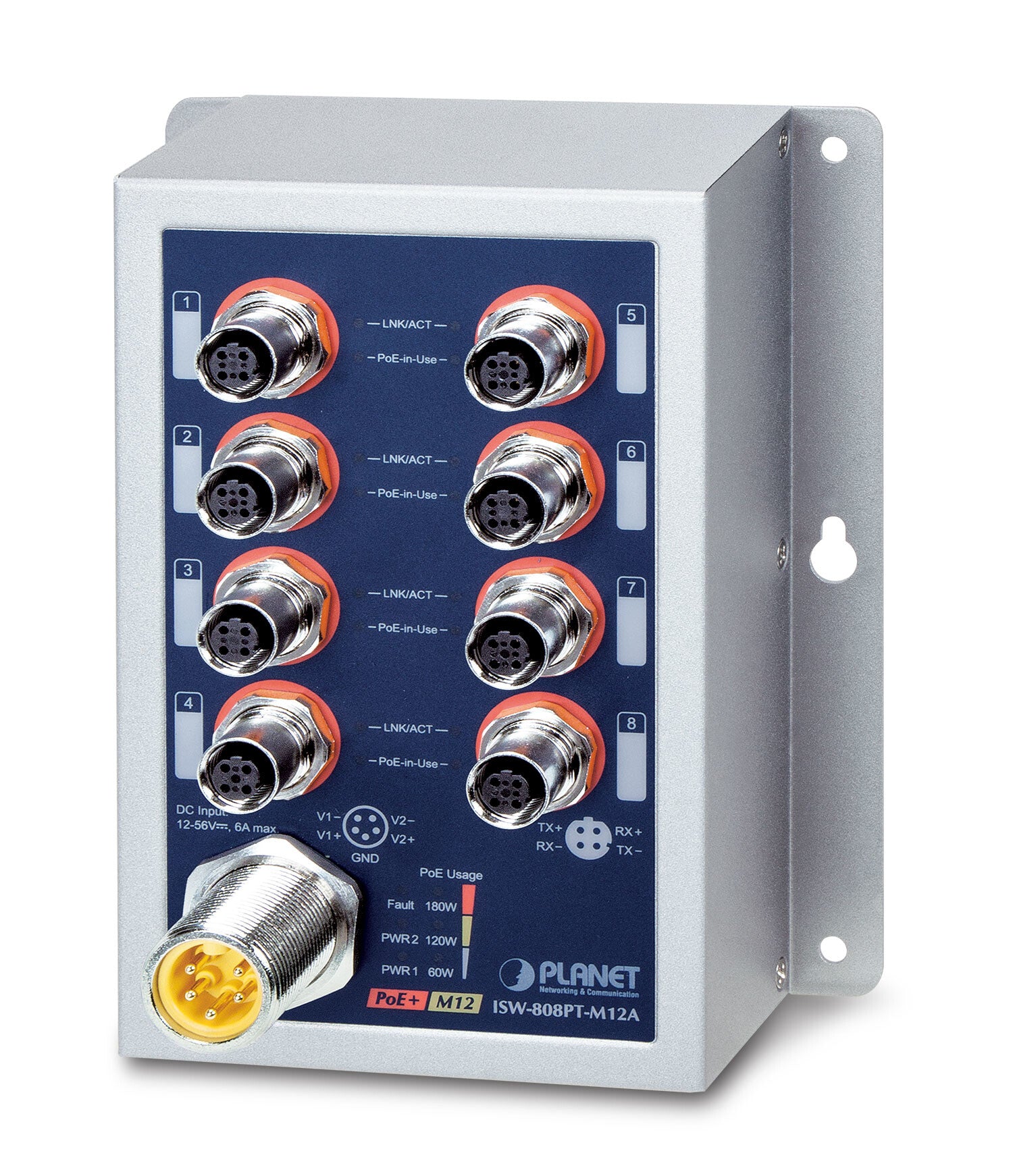

PLANET ISW-808PT-M12A is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP50-rated metal case of the ISW-808PT-M12A allows either DIN-rail or wall mounting for efficient use of cabinet space.
