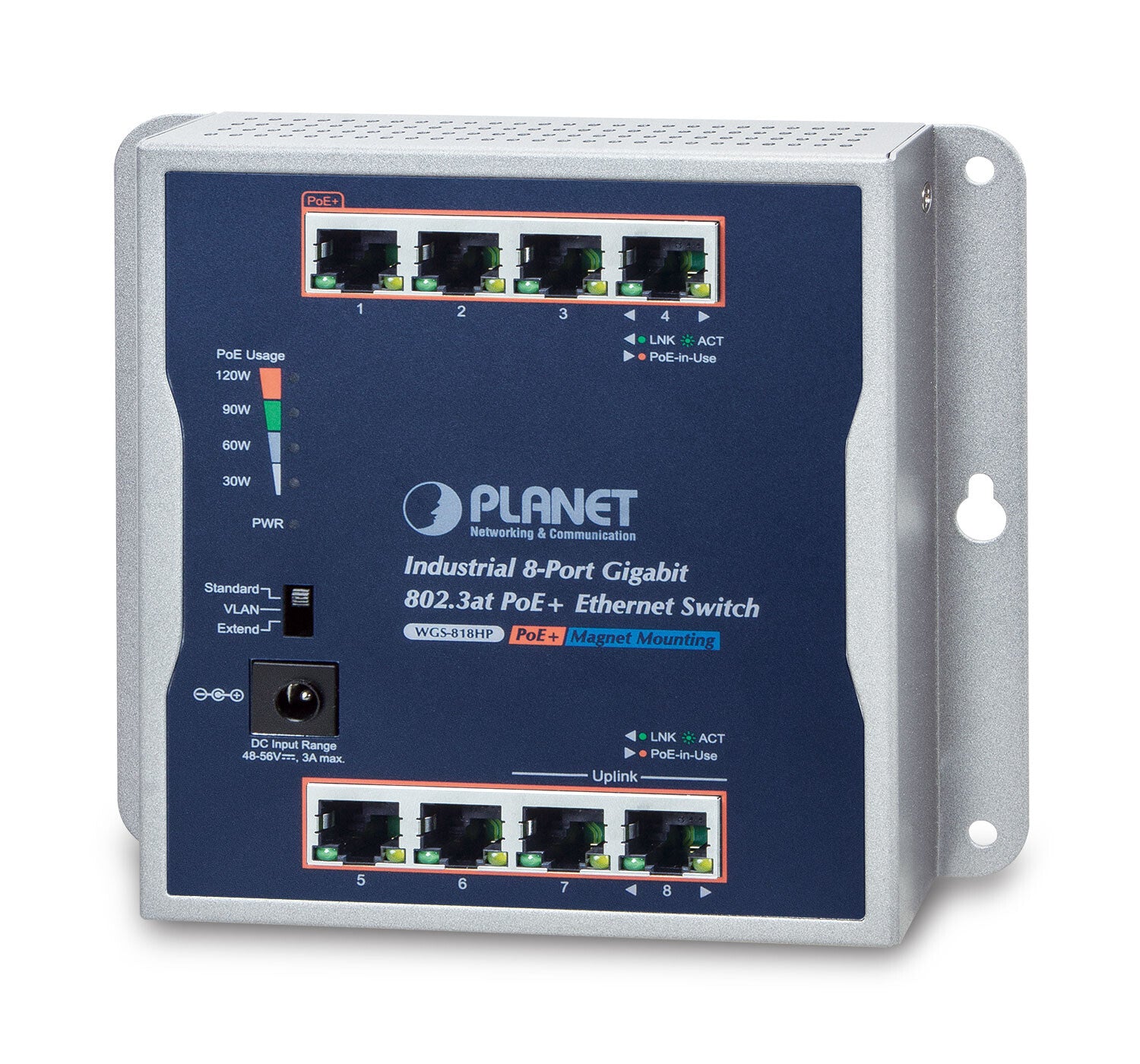

PLANET IP30 Industrial 8-Port Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

• 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
• Up to 8 ports of IEEE 802.3at devices powered
• Supports PoE Power up to 30.8 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250 meters (in extend mode)
• High performance Store and Forward architecture
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9K jumbo frame supports in 1000Mbps duplex mode
• Automatic address learning and address aging
• Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting
• IP30 metal chassis
• Supports -20 to 60 degrees C operating temperature
• LED indicators for real-time PoE usage
• 48V~56V DC input range

Easily-deployed and Expanded PoE Network

Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-818HP is innovative, wall-mounted industrial 8-port Gigabit Ethernet Switches with 8-port 802.3at Power over Ethernet Plus injector. They come in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 60/120 watts, ultra networking speed and operating temperature ranging from -20 to 60 degrees C, the WGS-818HP is ideal solutions to meet the demand for sufficient PoE power for the following network applications.

•Building / Home automation network
•Internet of things (IoT)
•IP surveillance and wireless

The WGS-818HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.
