Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
One fiber-optic, 1310nm wavelength, connector type and distance vary with model
FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm
Data Transfer Rate:
TP: 10/100Mbps
FX: 100Mbps
Duplex mode support:
Full or half-duplex mode by auto-negotiation (TP)
Full or half-duplex mode by DIP switch (FX)
LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
DIP switch: 2 DIP switches
Rear DIP switch: FX duplex mode selection
Side DIP switch: LFP (Link Fault Pass-through) mode selection
IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets

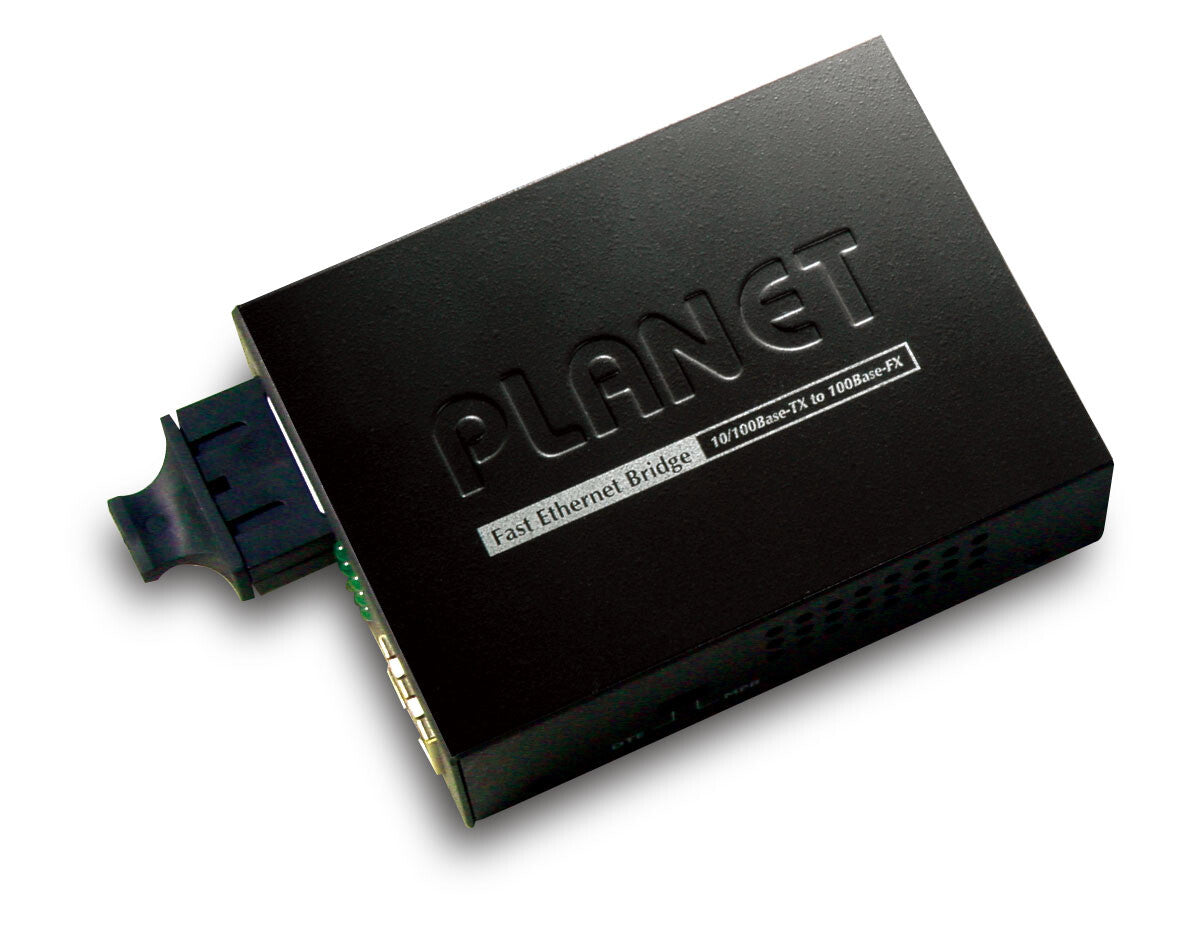

10/100Base-TX to 100Base-FX Bridge Media Converters
PLANET FT-80x is a Fast Ethernet Bridge 100BASE-FX fiber to 10/100BASE-TX shielded twisted pair (STP) converter. It supports both half-duplex and full-duplex operations and a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of the converter operates at 1310 nm and uses ST, SC, MTRJ, VF45 or WDM connectors. Multi-mode models that support distances up to 2km and single-mode models that support distances up to 15/20/35/50/60km are available.media and provide efficient solution to monitoring the net.
The FT-80x series is with LFP (Link Fault Pass-through function) (LLCF/LLR) and the DIP switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function
LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device is connected to the converter and the fiber line loses the link, the converter's fiber will disconnect the transmit link. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.
