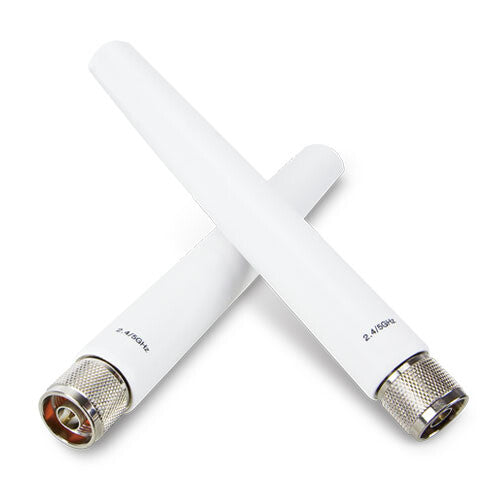

PLANET ANT-OM5D-KIT network antenna Omni-directional antenna N-type 7 dBi

PLANET ANT-OM5D-KIT network antenna Omni-directional antenna N-type 7 dBi

£24.96 GBP
£24.96 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ANT-OM5D-KIT

12 in stock

  • Compatible with 2.4/5GHz 802.11n devices
  • Optimal 4.5dBi high gain in 2.4GHz and 7dBi high gain in 5GHz
  • Flexible N-type plug (male) connector fits all outdoor wireless equipment with an N-type jack (female) antenna connector
  • IP67 case protection
  • Compact-sized housing, lightning design
  • 360 degrees of wireless network coverage, no aiming required
  • No configuration or installation software required
2.4G/5GHz Dual Band Omni-directional Antenna

Full 360° Coverage with Greater Penetration
PLANET ANT-OM5D-KIT is a 2.4/5GHz Dual Band Antenna equipped with N-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.

With its N-type male connector, it can be directly attached to the antenna connectors of the WNAP-6350, WNAP-7350 and WDAP-8350 without any cumbrous cabling, thus reducing the deployment cost and installer’s effort.

Performance
Antenna gain level (max) 7 dBi
Frequency band 2.4/5 GHz
Antenna gain (5 GHz) 7 dBi
Antenna gain (2.4 GHz) 4.5 dBi
Impedance 50 Ω
Horizontal beam width 360°
Vertical beam width (2.4 GHz) 80°
Vertical beam width (5 GHz) 55°
Features
Antenna type Omni-directional antenna
Connector gender Female
Antenna connector type N-type
Polarization Vertical polarization
Voltage Standing Wave Ratio (VSWR) 2
International Protection (IP) code IP67
Product colour White
Operational conditions
Operating temperature (T-T) -5 - 65 °C
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Width 23 mm
Depth 23 mm
Height 180 mm
Weight 65 g
