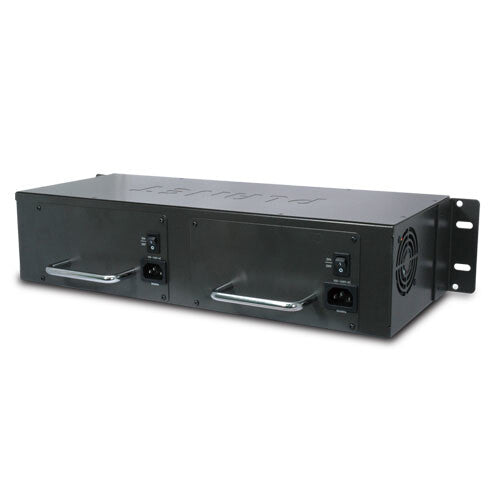

PLANET 15 Slot 19" Converter Chassis with Redundant Power Option

PLANET 15 Slot 19" Converter Chassis with Redundant Power Option

MC1500R

£380.33 GBP£316.94 GBP
£0.00 GBP £380.33 GBP£316.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 8 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Hardware
  • –High quality 19" Rack-mountable chassis installation
  • –Supplies the converters modules to be plugged and played
  • –Supports up to fifteen hot-swappable media converters
  • –Two fans built-in for hardware cooling
  • –Reduces the effort of converter maintenance and management, diagnose the status at one time
  • Power System
  • –Bay power isolation to ensure each bay is electrically isolated from each other
  • –Power protection: protection from over voltage, over current and short circuit
  • Compatibility
  • –Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x
  • –Supports VDSL2 Media Converter: VC-201A / VC-231
  • –Supports Serial over Ethernet Converter: ICS-10x series
15-Slot Media Converter Chassis (AC Power)

High Density Chassis for multiple converter installation
The MC-1500R provides 15 slots for a wide range of PLANET media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19" rack saves more spaces for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion.

Extremely Reliable Design to ensure continuous operation
The MC-1500R series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. Both the MC-1500R and MC-1500R48 are equipped with one 100~240V AC power supply unit and one -48V DC power supply unit, which come in the package, respectively. To enhance the reliability, they each have one spare power supply slot for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available.

Plug and Play / Flexible Installation
The MC-1500R offers flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fiber optic, phone wire and serial to copper lines.

Network
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 1000,100 Mbit/s
Ports & interfaces
Connectivity technology Wired
Design
Internal Yes
Product colour Black
LED indicators Yes
Certification FCC Class A, CE
Power
AC input frequency 50 - 60 Hz
Input current 3.3 A
Output voltage 5 V
Output current 1 A
Power consumption (typical) 80 W
Management features
Plug and Play Yes
Weight & dimensions
Width 438 mm
Depth 200 mm
Height 103 mm
Weight 4.3 kg
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Storage relative humidity (H-H) 5 - 90%
Logistics data
Harmonized System (HS) code 85176990
Other features
Size (imperial) 48.3 cm (19")
