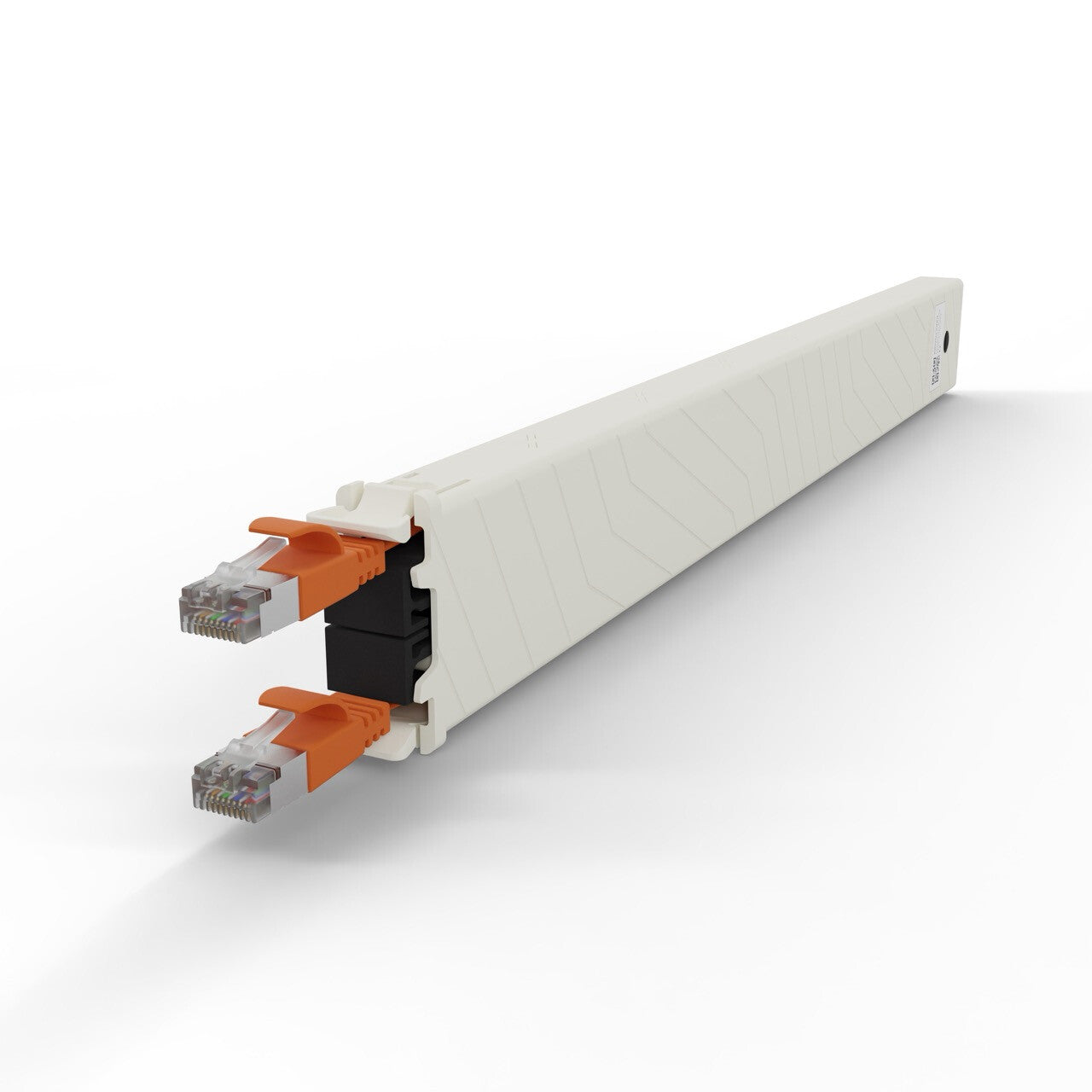

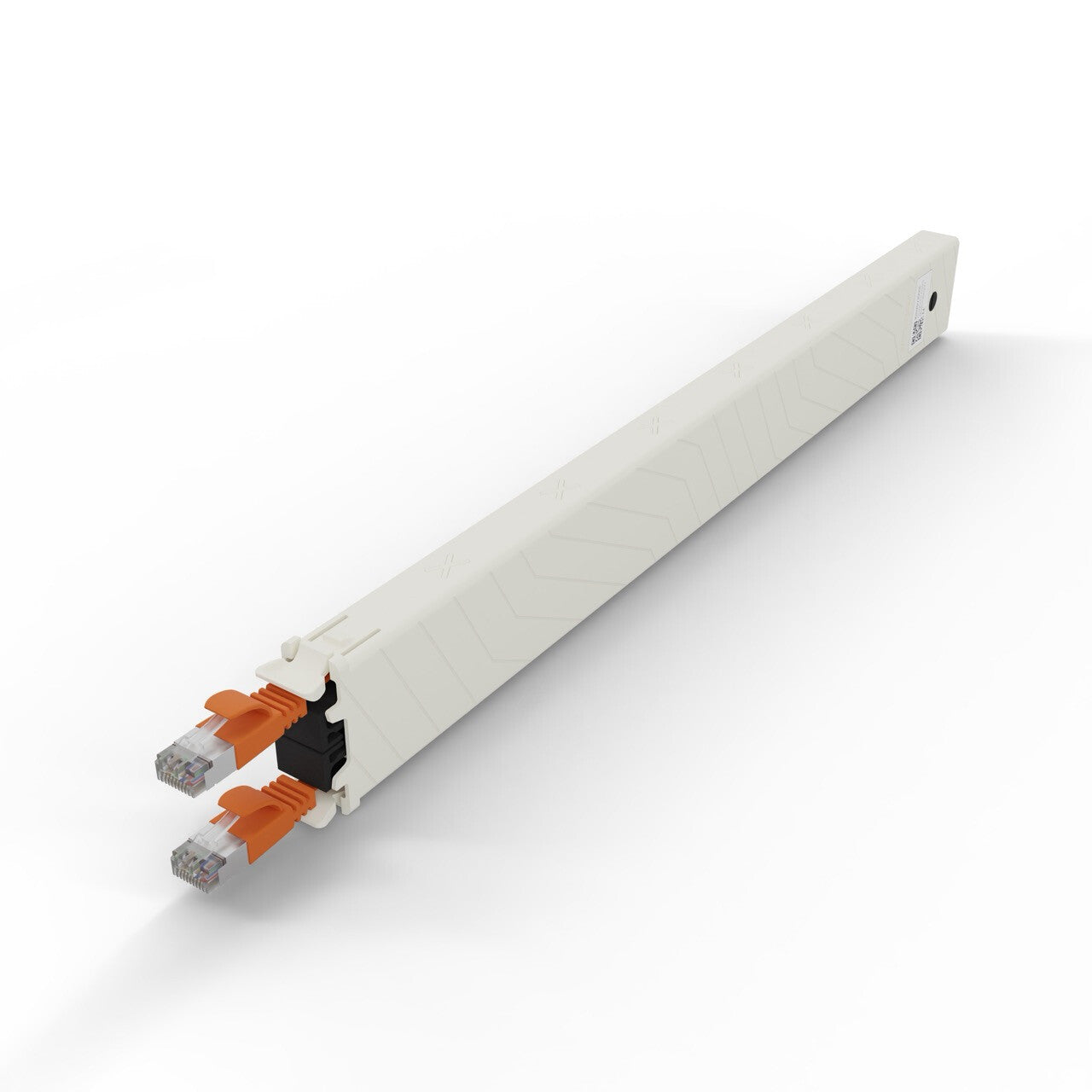

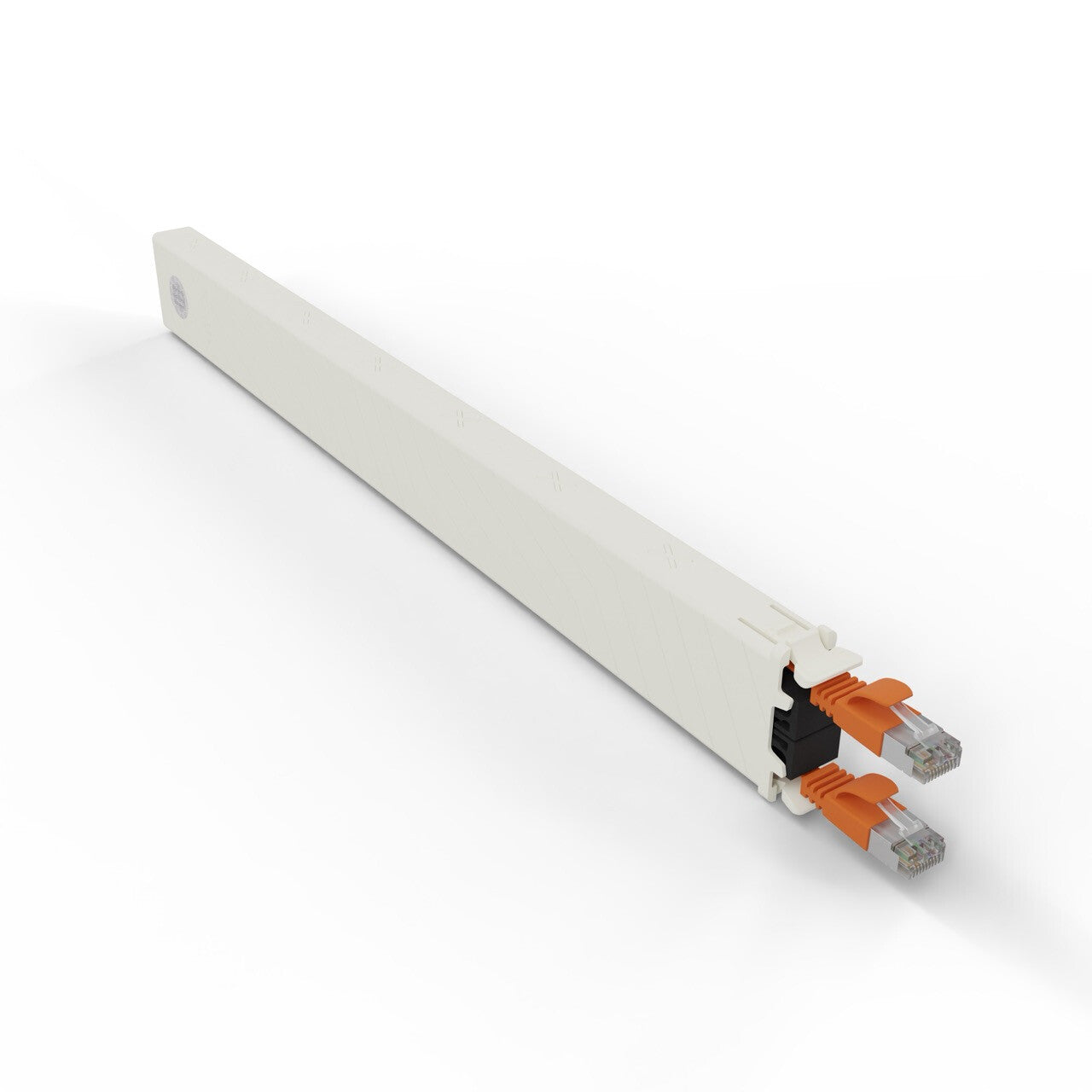

PATCHBOX .one / Cassette / 8RU / STP / Orange
PATCHBOX .one / Cassette / 8RU / STP / Orange
SKU:CONEX8STPOR
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting

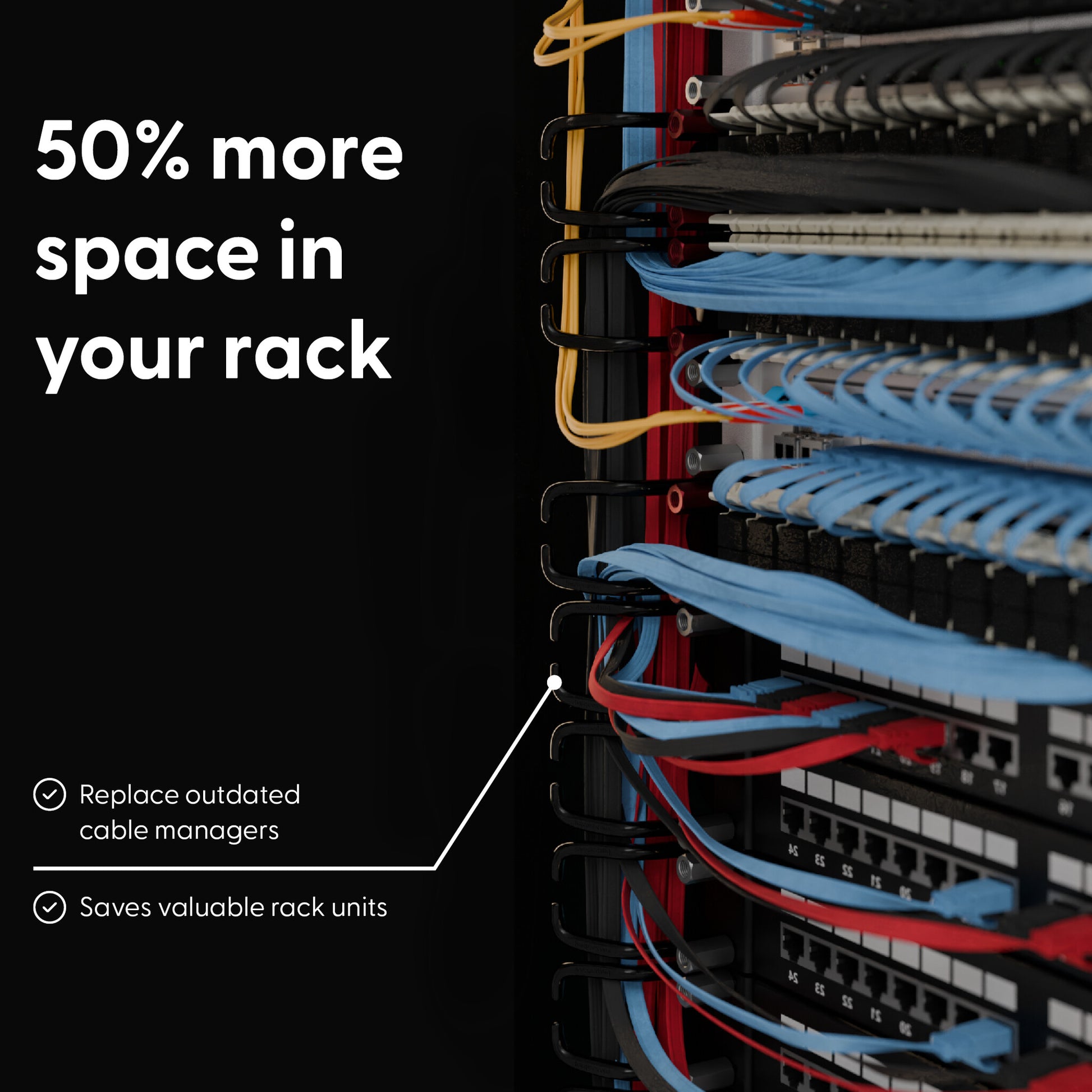

- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables

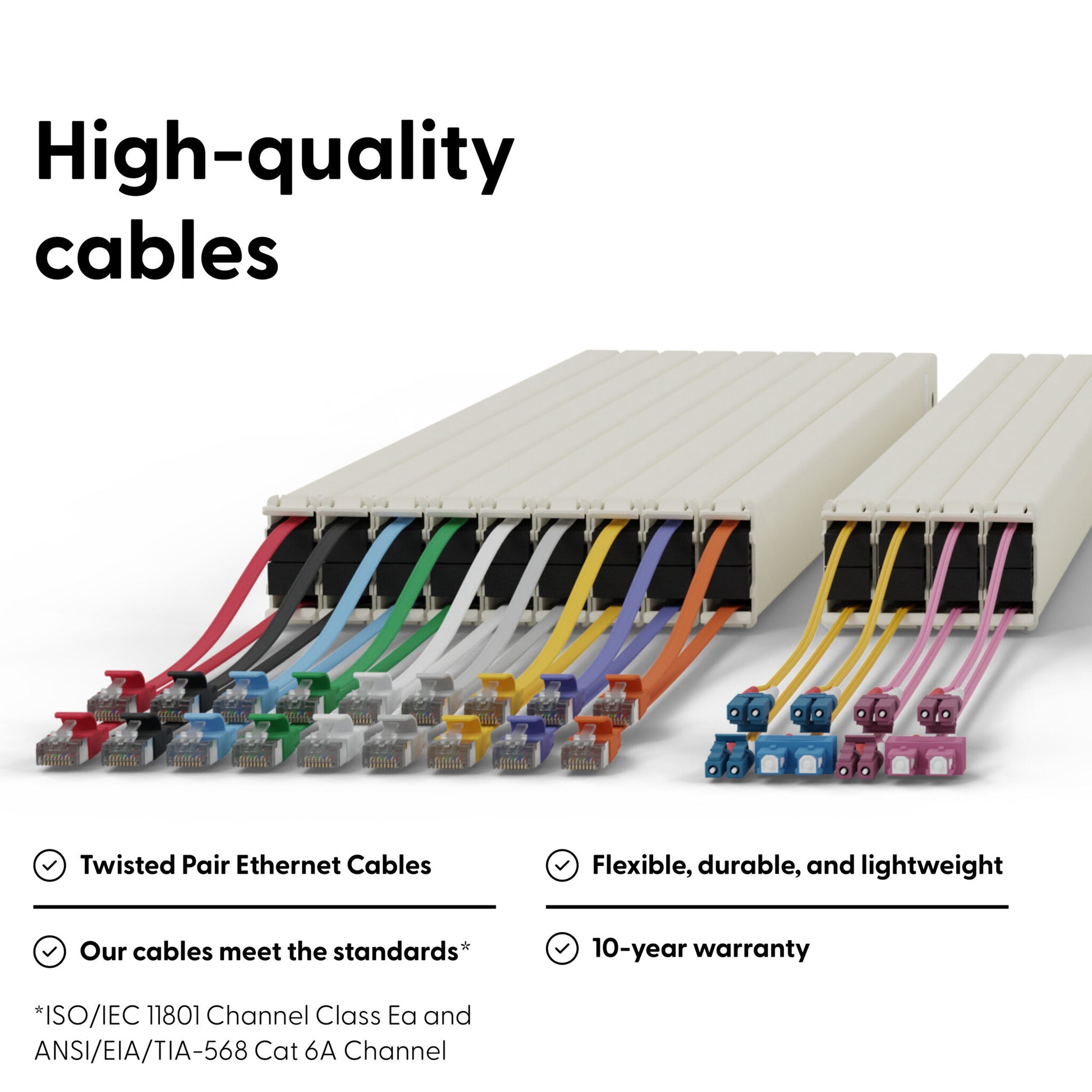

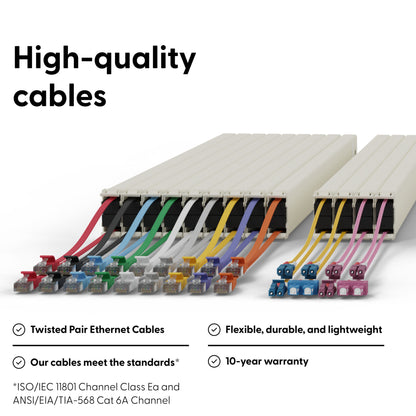

Build your own patchbox.one by filling your Frame with up to 24 Cable Cassettes. Have it your way and choose from various cable types, colours, connector types and cable lengths. With its modular system, you can exchange cassettes within seconds and easily adapt the rack as you need it. The Cat.6a cables inside the Cassette meet the ISO standards, and you can power devices with PoE (STP) and PoE++ (UTP), or choose the most flexible and bend-insensitive Fiber Optic Cables available, made from Corning® ClearCurve® Fiber.
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Features | |
|---|---|
| Cable length | 0.8 m |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Product colour | Orange |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| AWG wire size | 36 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801 Ea Class, ANSI/EIA/TIA-568 Cat 6A Channel, RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|
| Packaging content | 1 x patchbox.one / Cassette / 8RU / STP / Orange |
| Weight & dimensions | |
|---|---|
| Width | 18 mm |
| Depth | 365 mm |
| Height | 40 mm |
| Weight | 150 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 433 mm |
| Package depth | 28 mm |
| Package height | 50 mm |
| Package weight | 200 g |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
