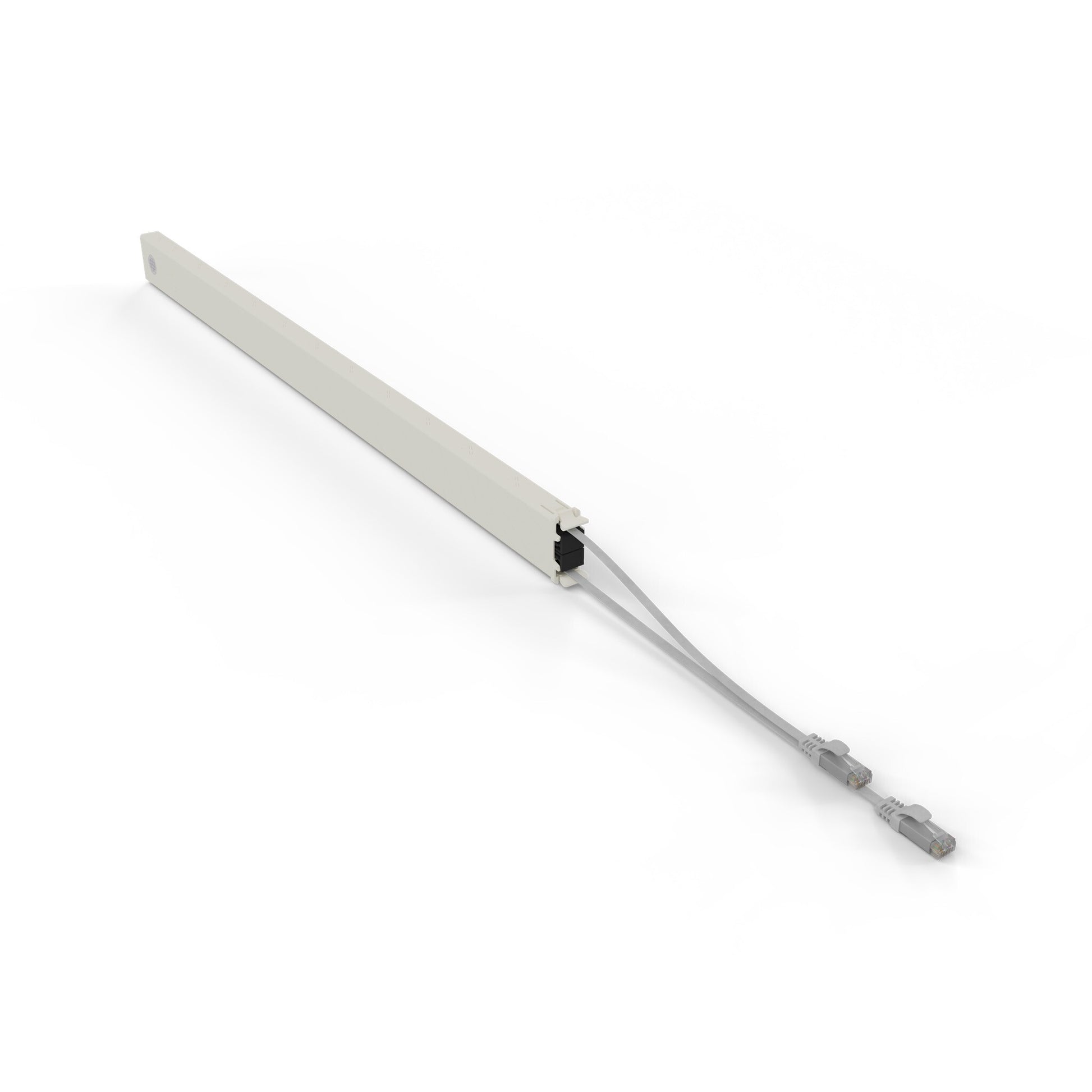

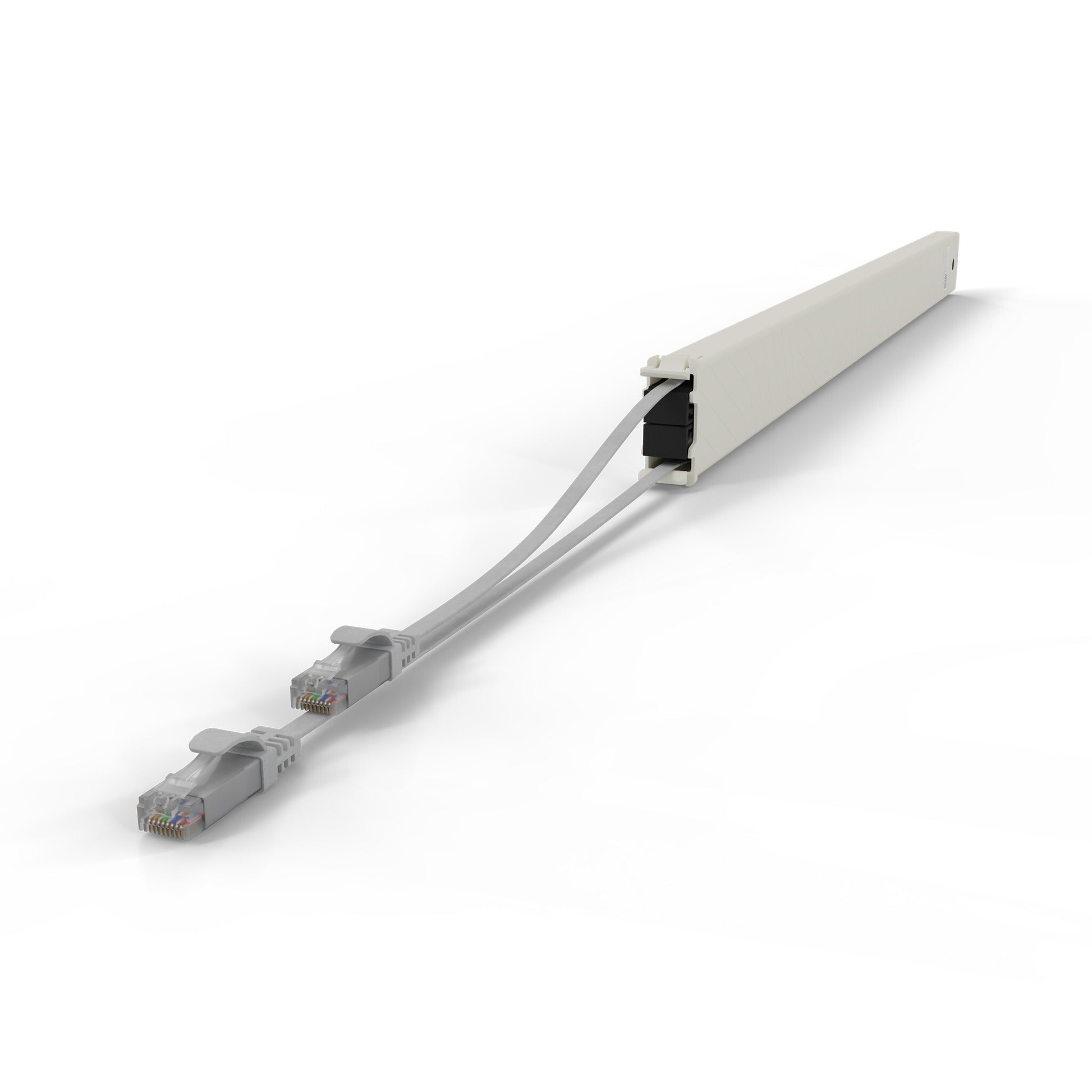

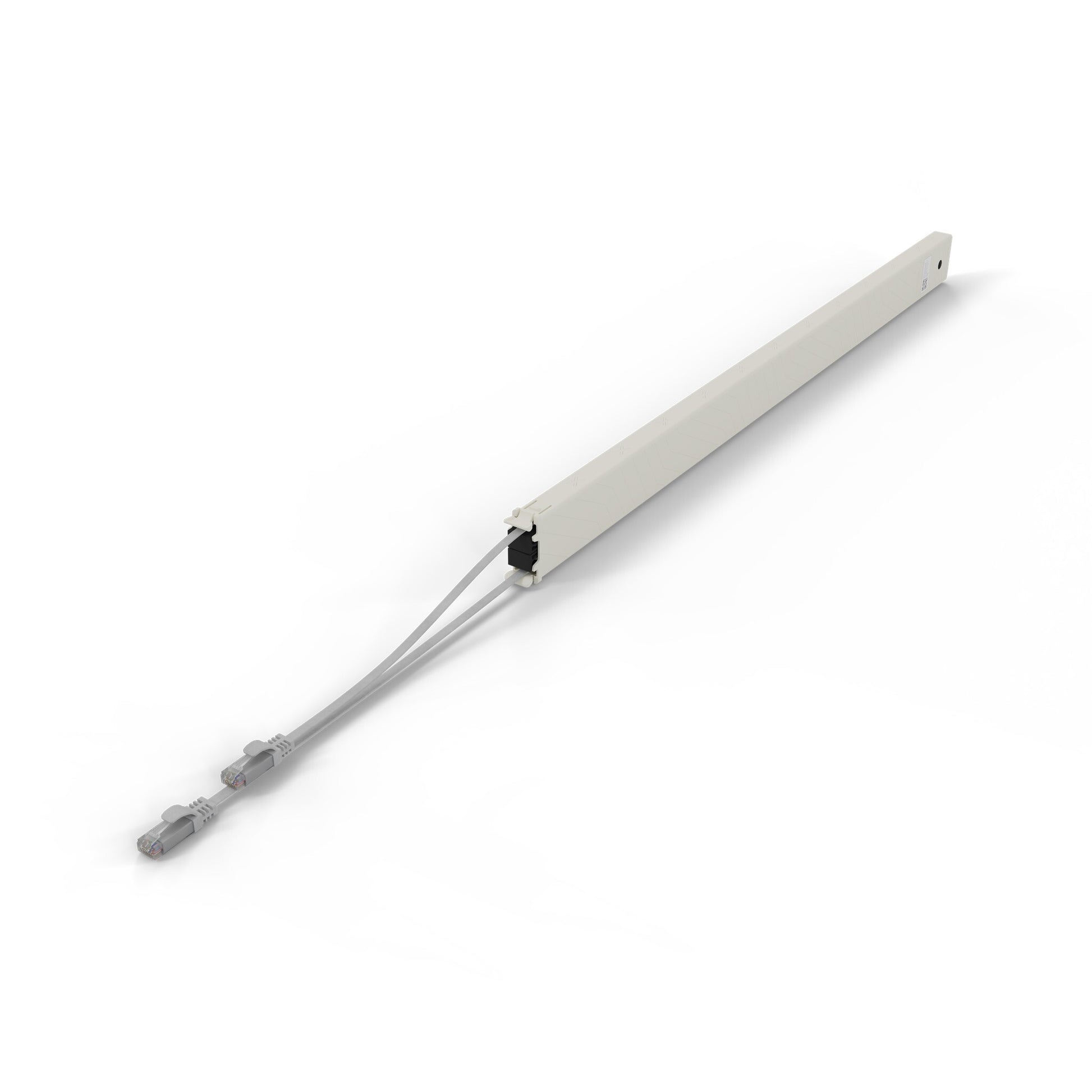

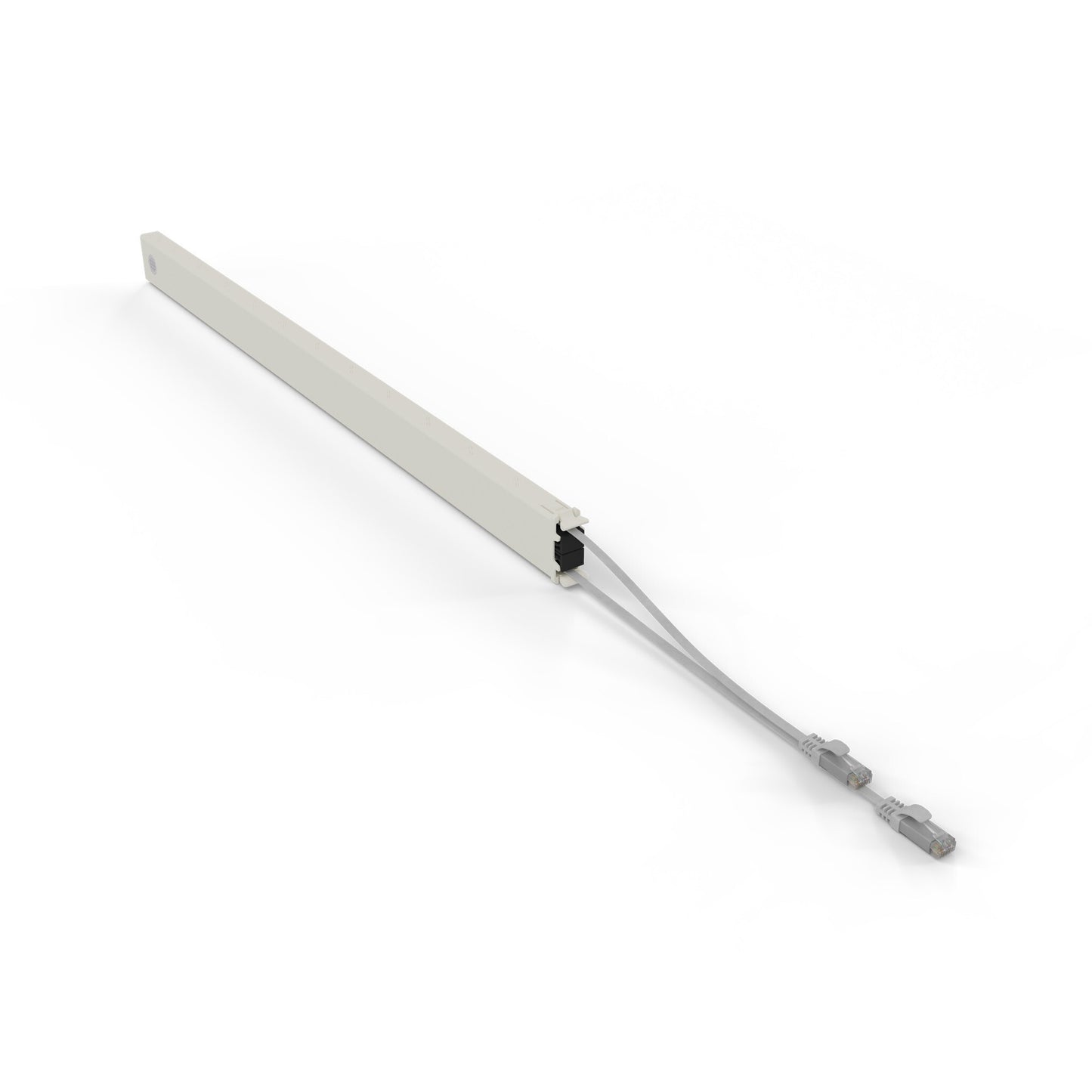

PATCHBOX .one / Cassette / 46RU / UTP / Grey
PATCHBOX .one / Cassette / 46RU / UTP / Grey
Couldn't load pickup availability
SKU:CONE46UTPSL
Low stock: 2 left
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting

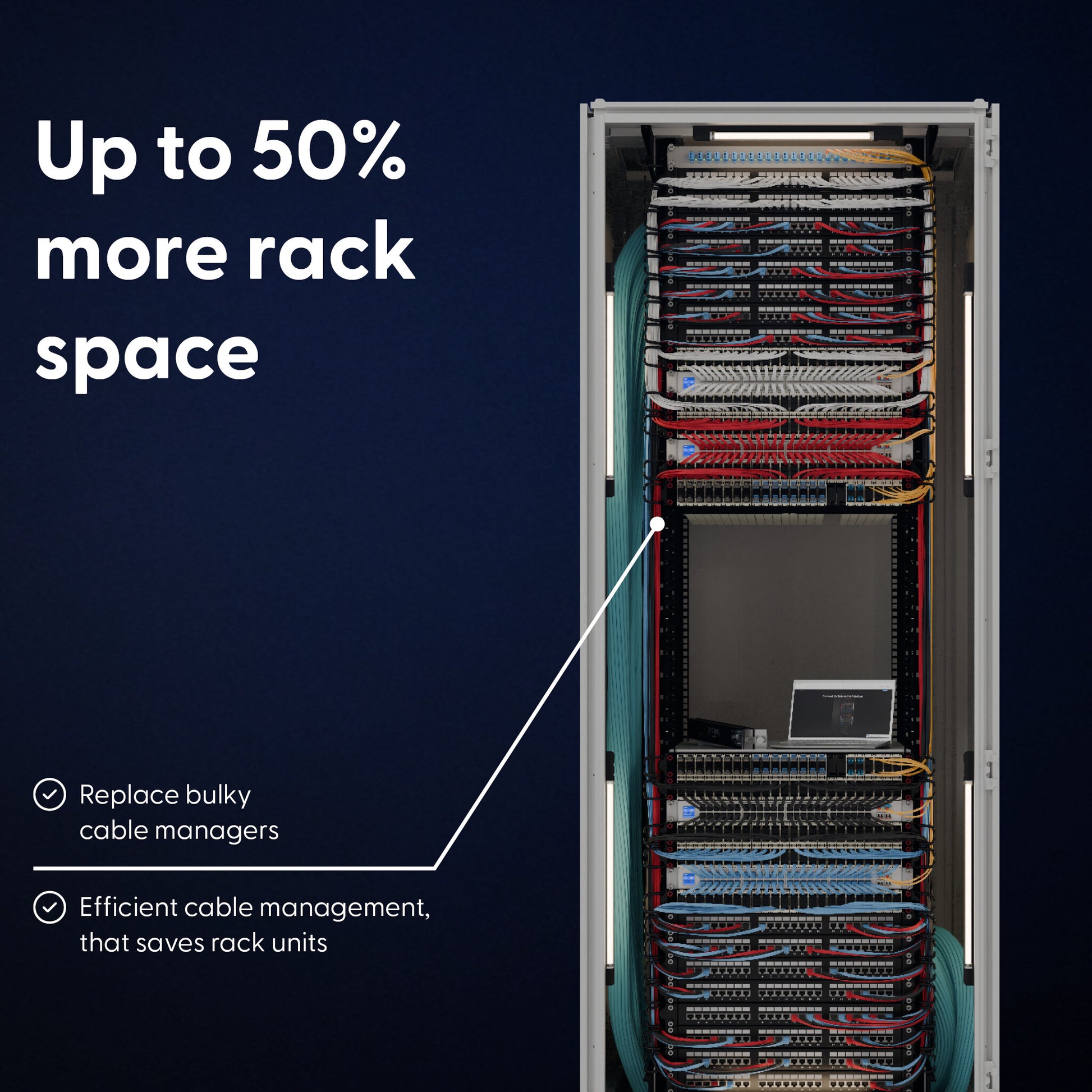

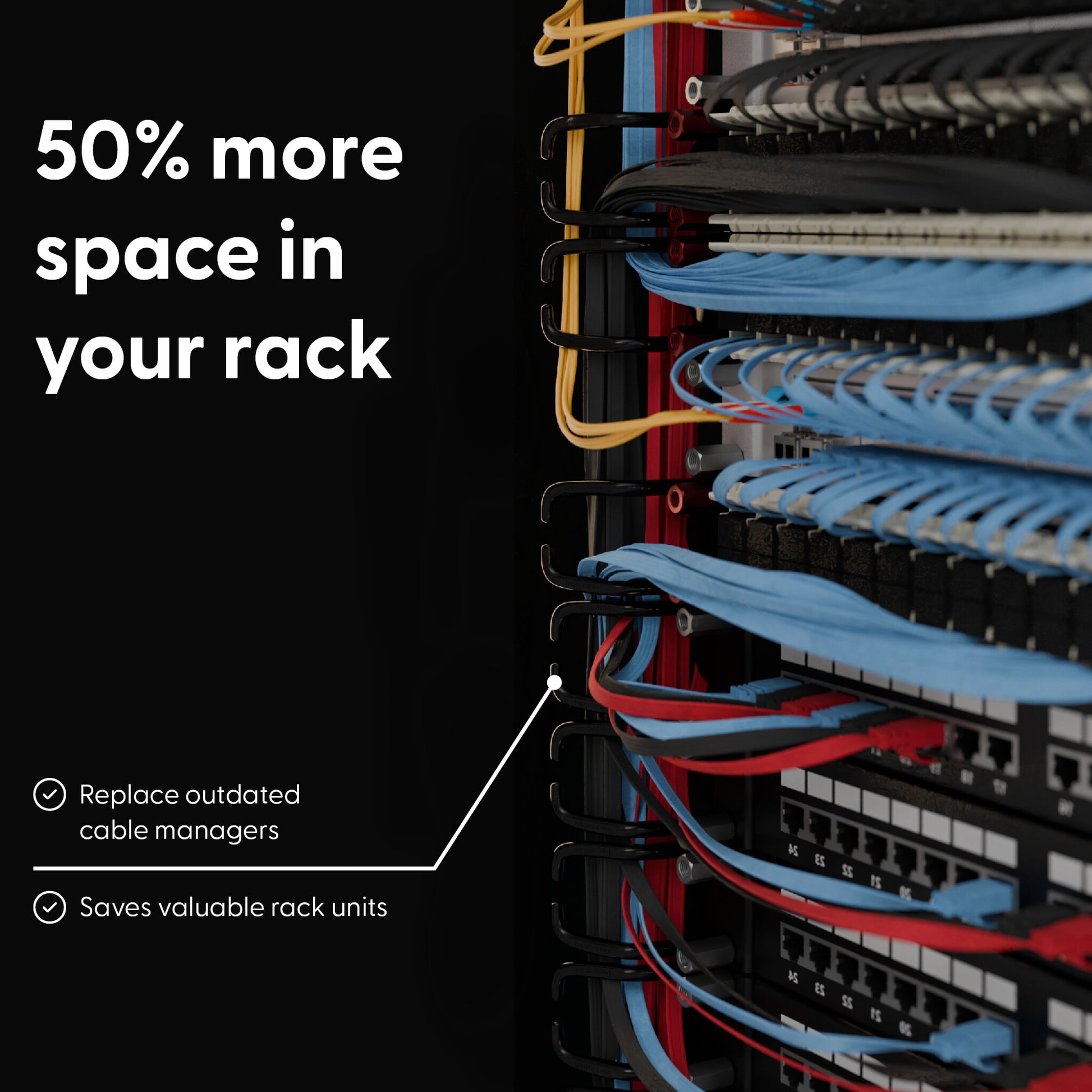

- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables

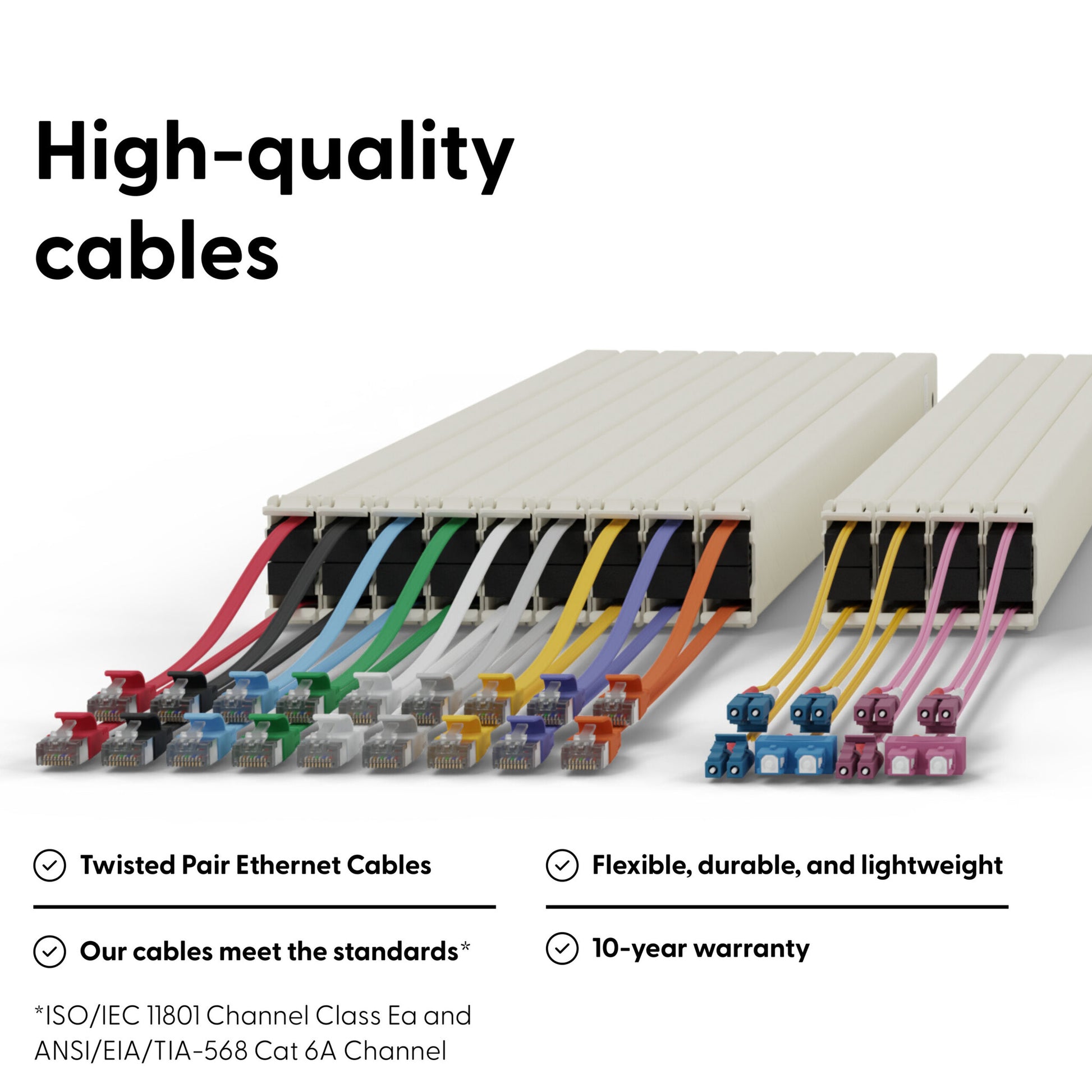

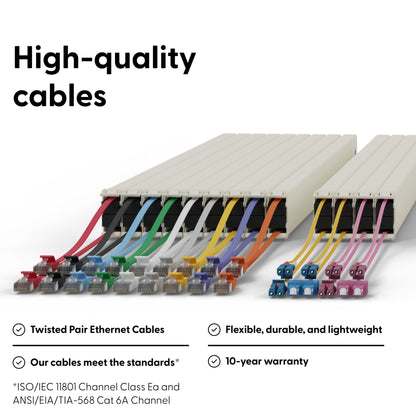

The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
| Features | |
|---|---|
| Cable length | 2.5 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Product colour | Grey |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| Networking standards | IEEE 802.3bt |
| AWG wire size | 30 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|
| Packaging content | 1 x patchbox.one / Cassette / 46RU / UTP / Grey |
| Weight & dimensions | |
|---|---|
| Width | 600 mm |
| Depth | 40 mm |
| Height | 18 mm |
| Weight | 220 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 689 mm |
| Package depth | 47 mm |
| Package height | 50 mm |
| Package weight | 310 g |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
