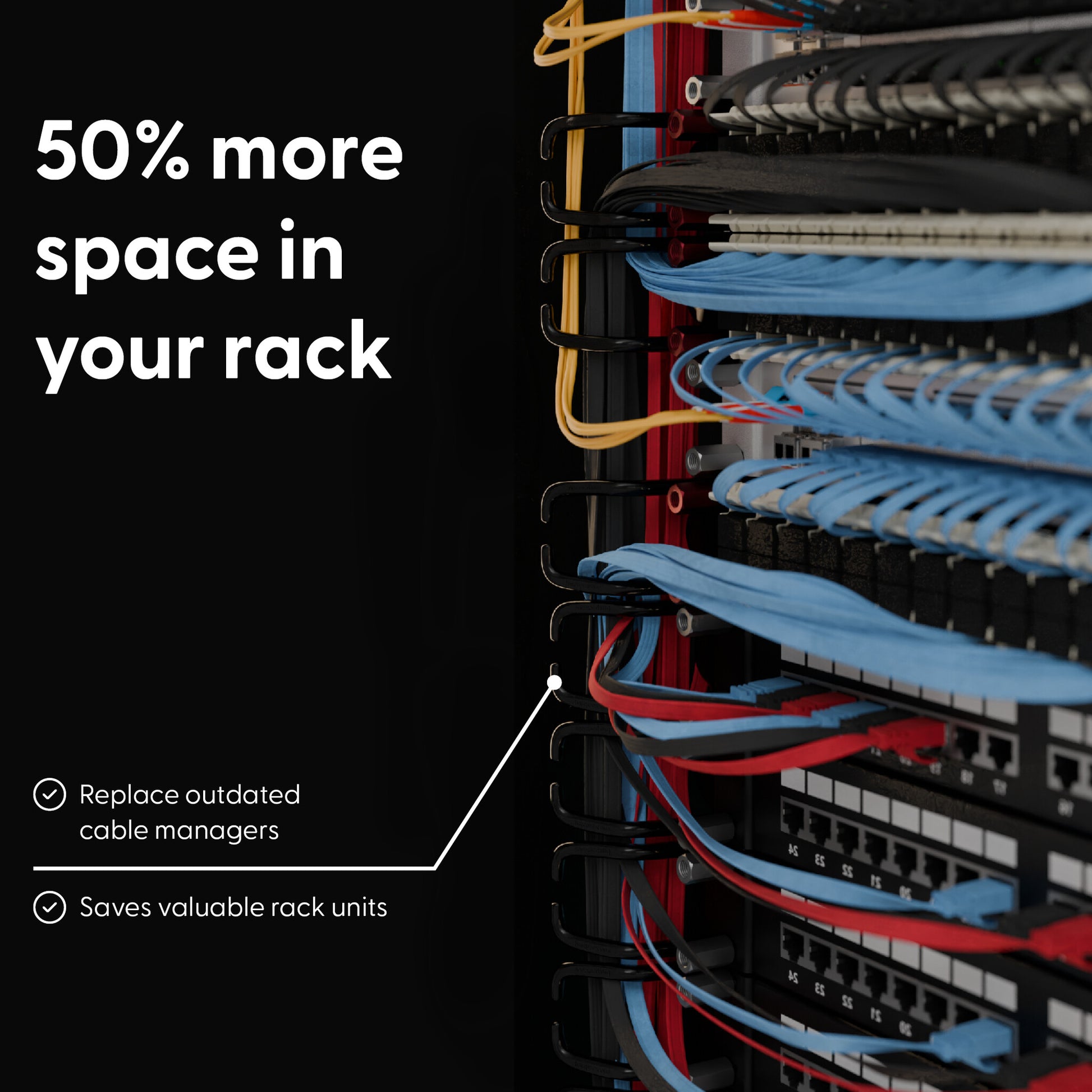

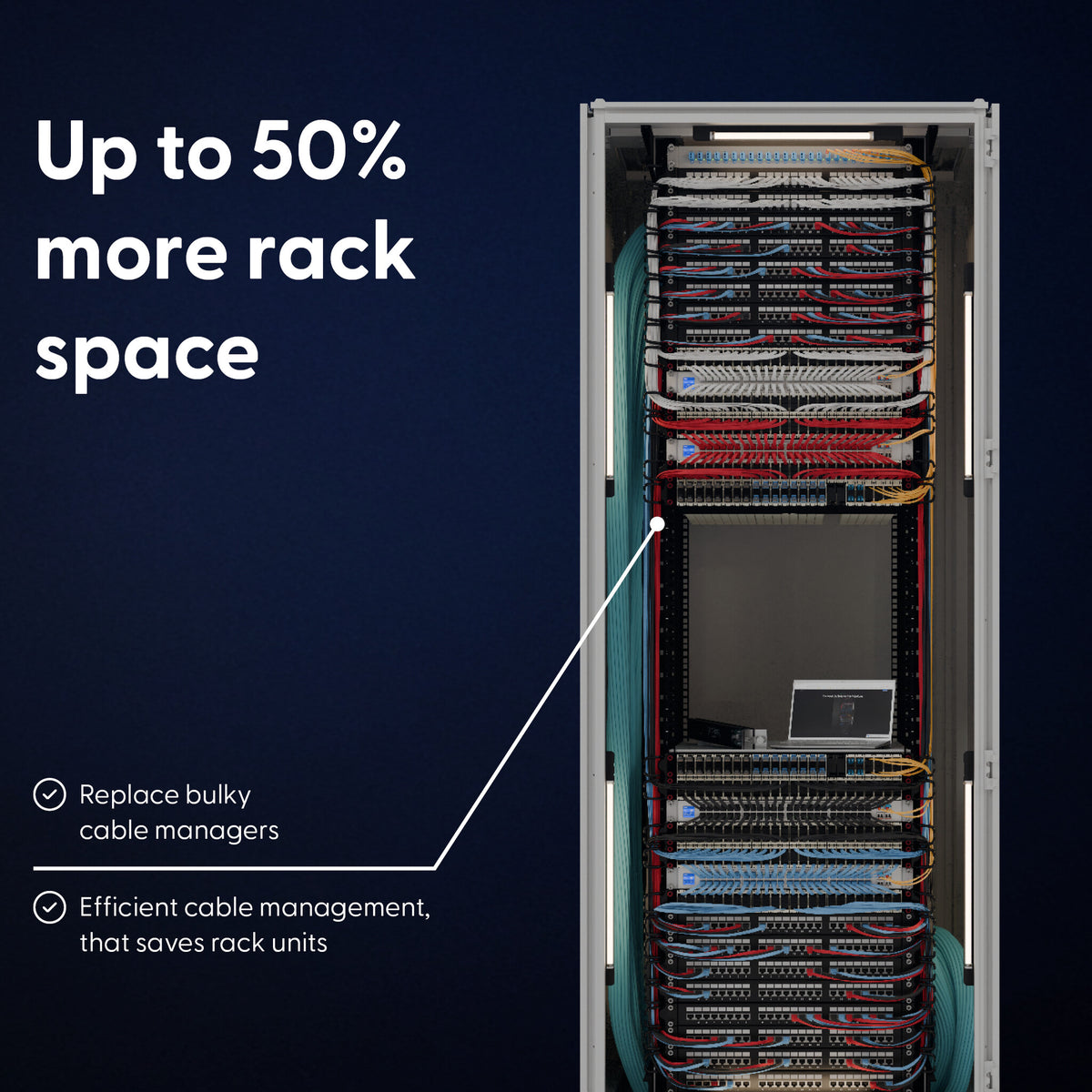

The Ultimate Cable Management Solution The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.

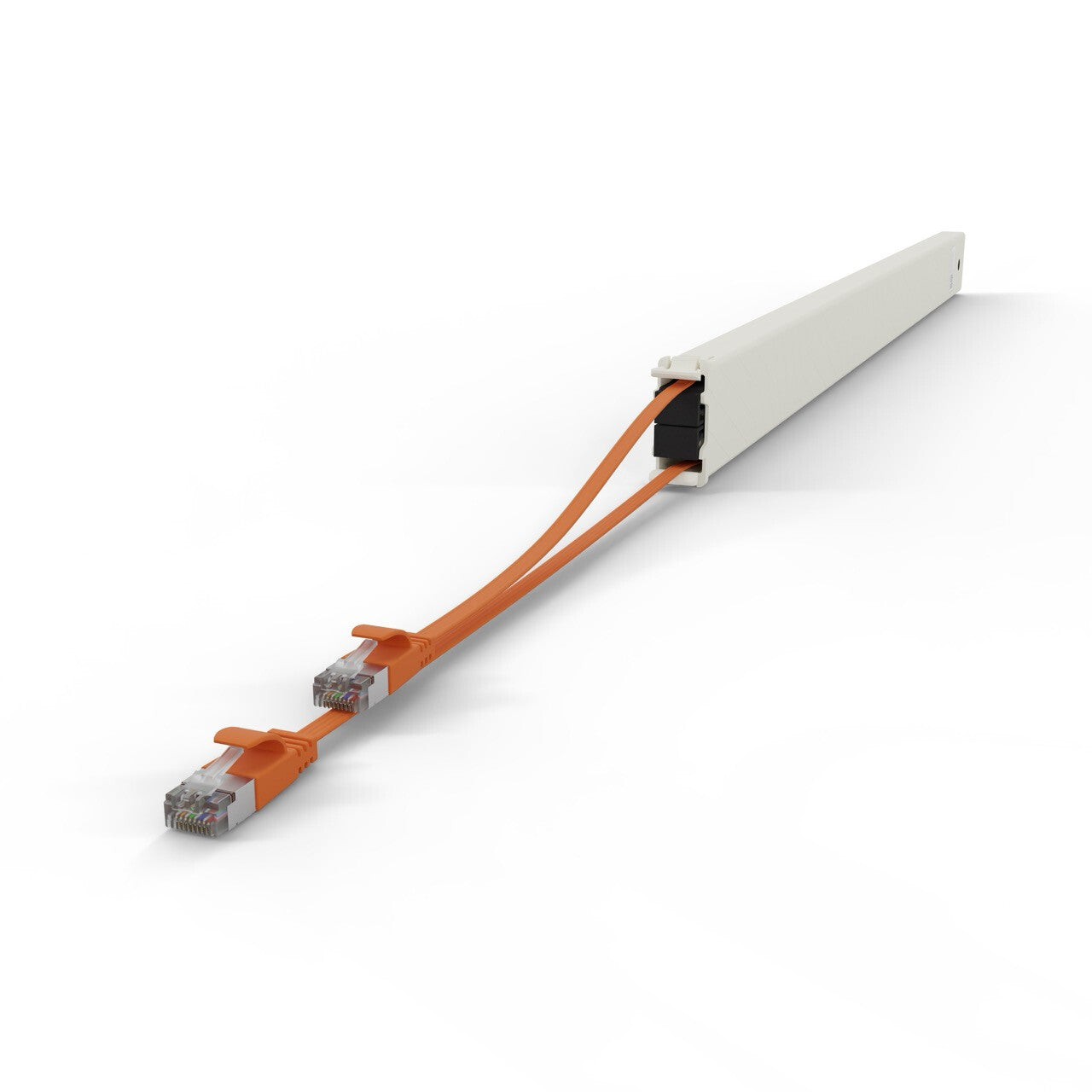

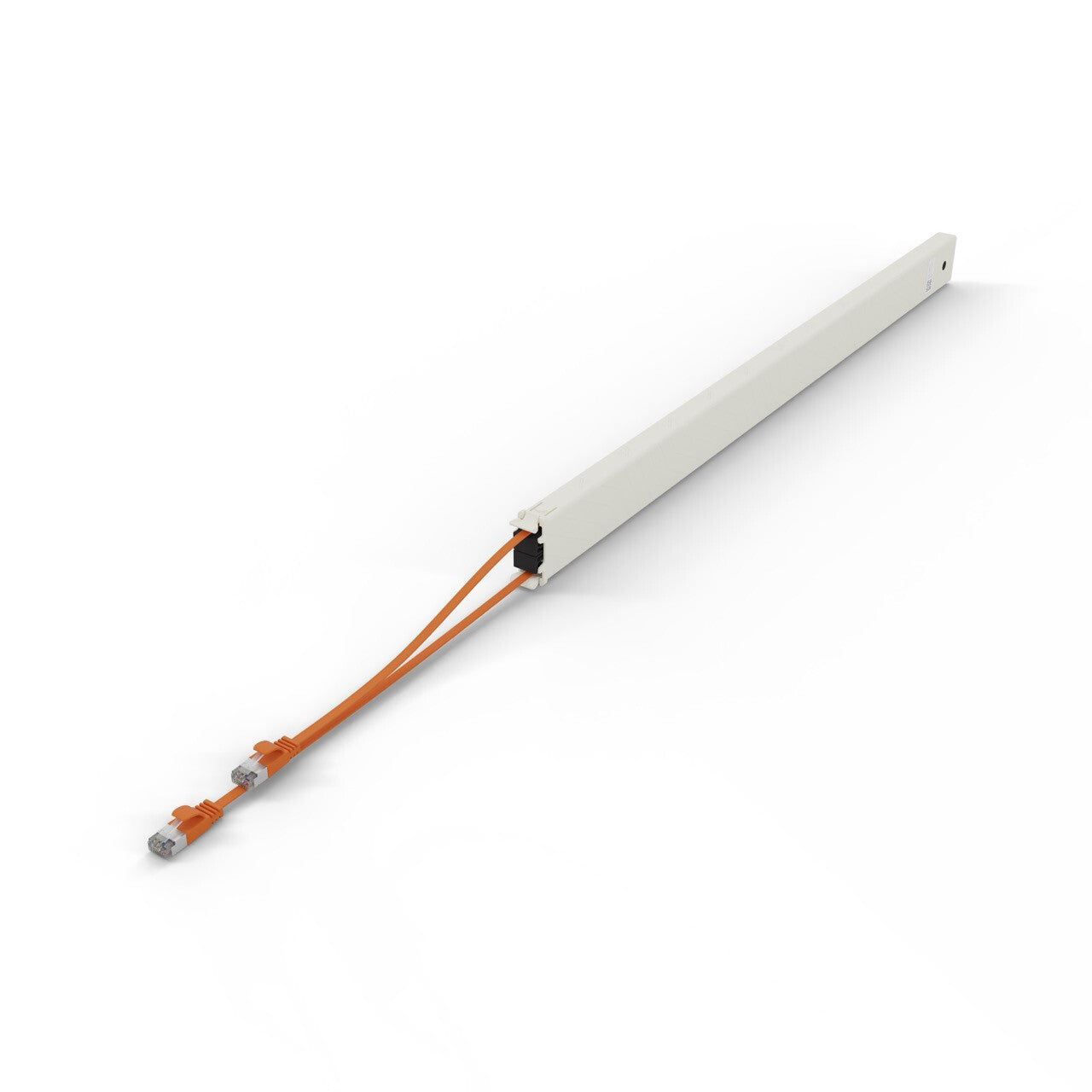

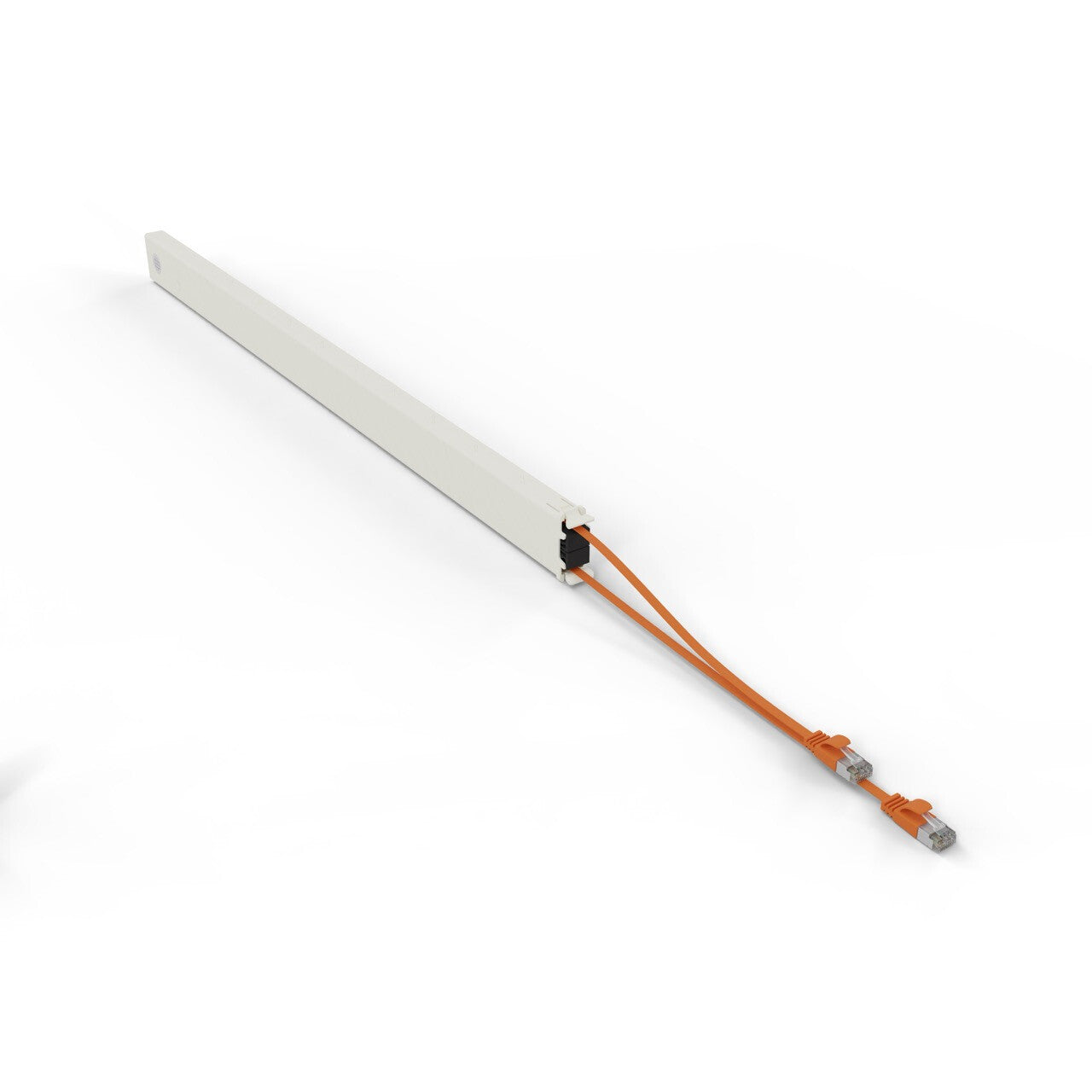

Build Your Ideal Rack Setup Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.

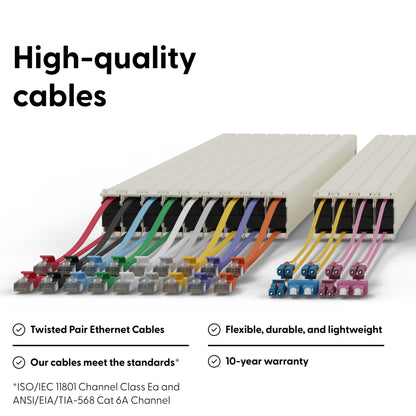

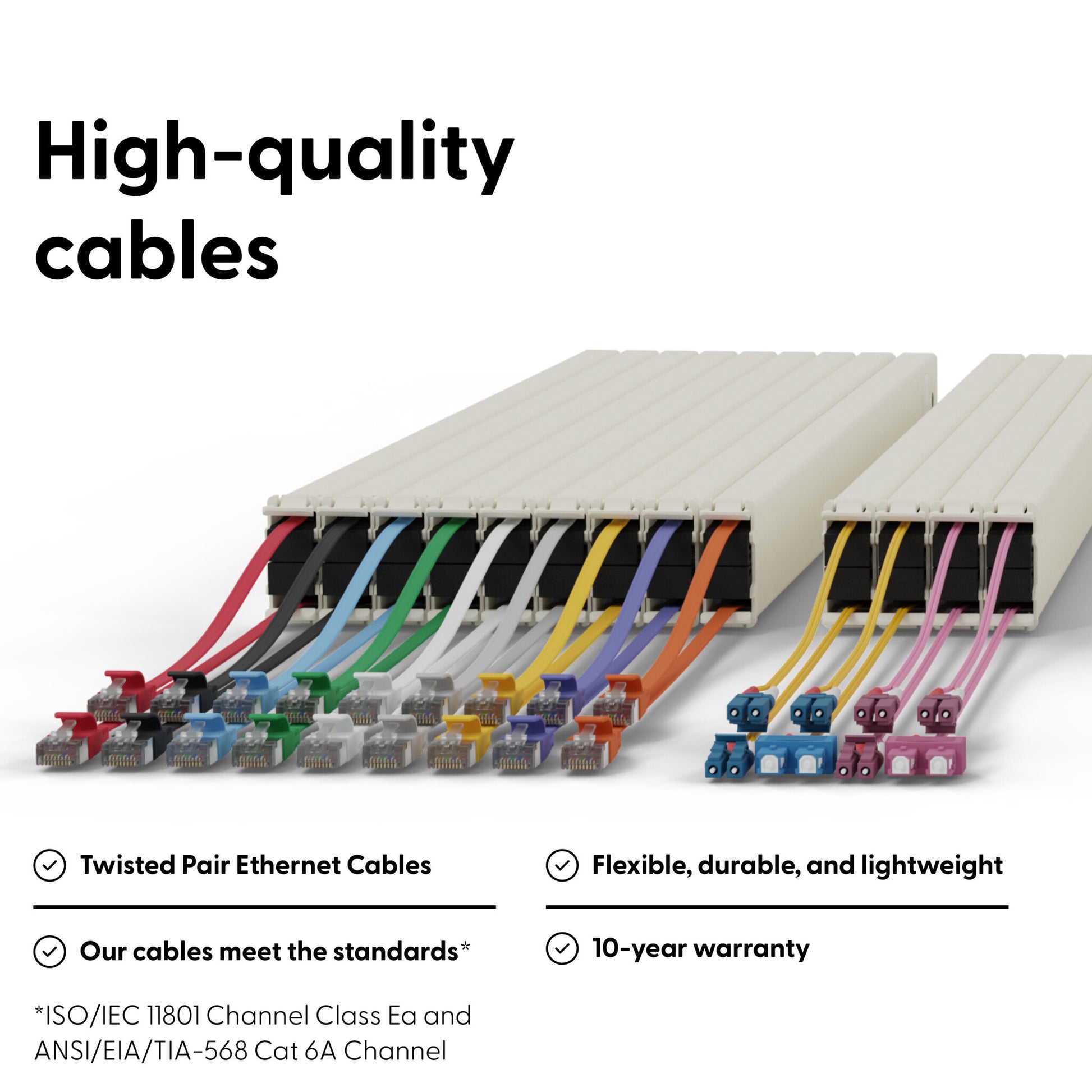

High-Performance Ethernet Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Features
Cable length
2.5 m
Cable standard
Cat6a
Cable shielding
U/FTP (STP)
Product colour
Orange
Connector 1
RJ-45
Connector 2
RJ-45
Connector 2 gender
Male
Connector 1 gender
Male
Connector contacts plating
Gold
Jacket material
Polyvinyl chloride (PVC)
Cable shape
Flat
Conductor material
Copper
AWG wire size
36
Data transfer rate
10000 Mbit/s
Bend radius (min)
1.2 cm
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Active PoE
Country of origin
Hungary
Certification
ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
