PATCHBOX

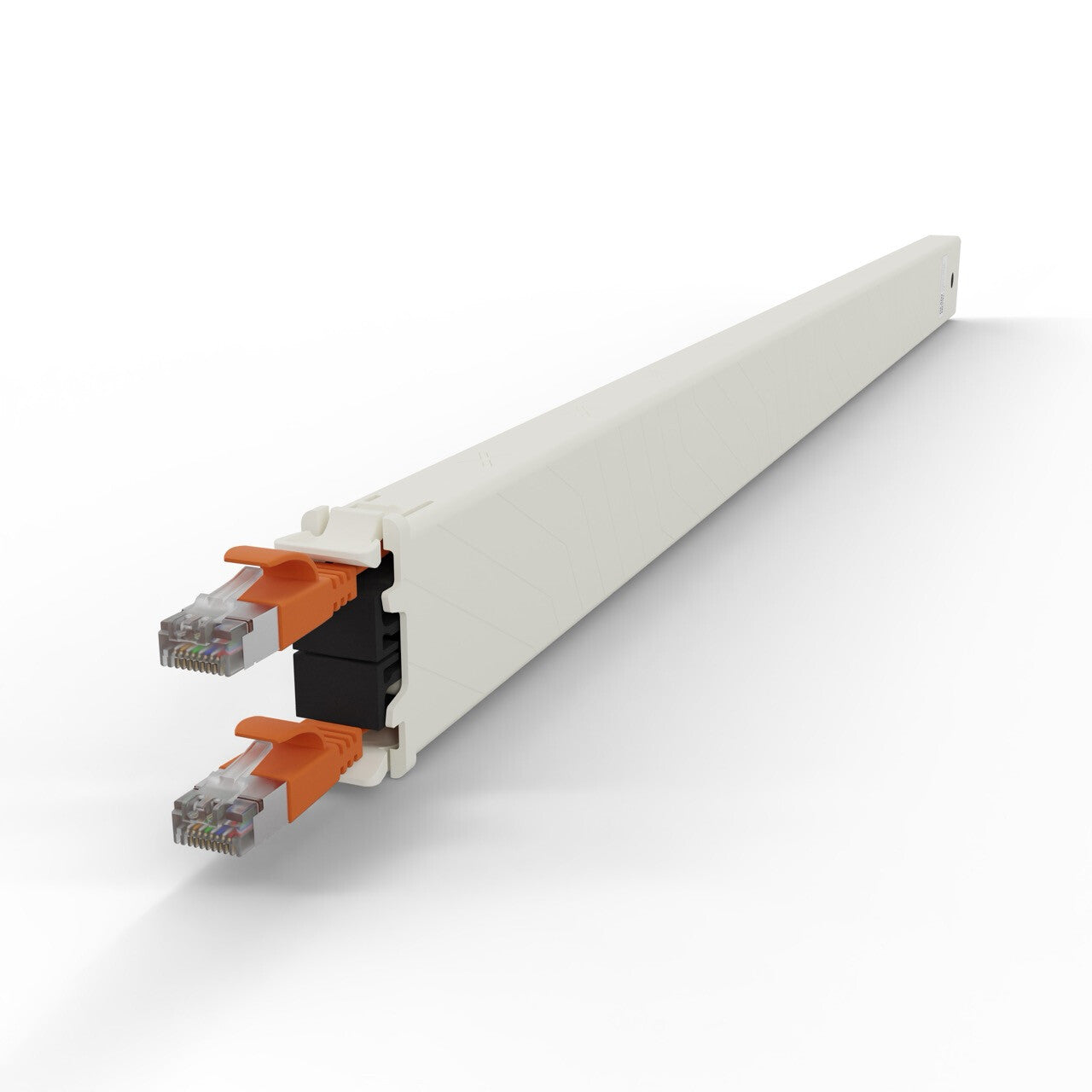

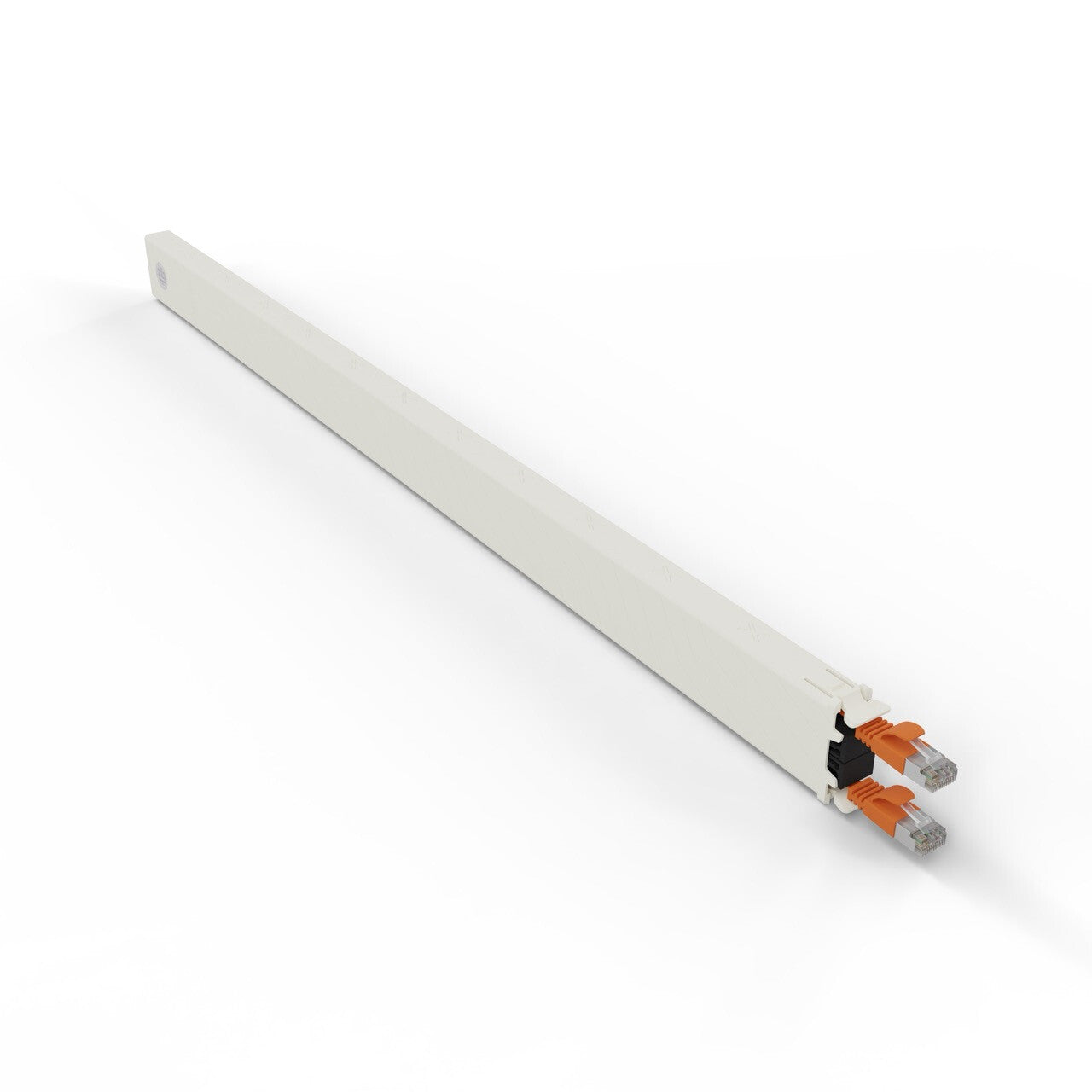

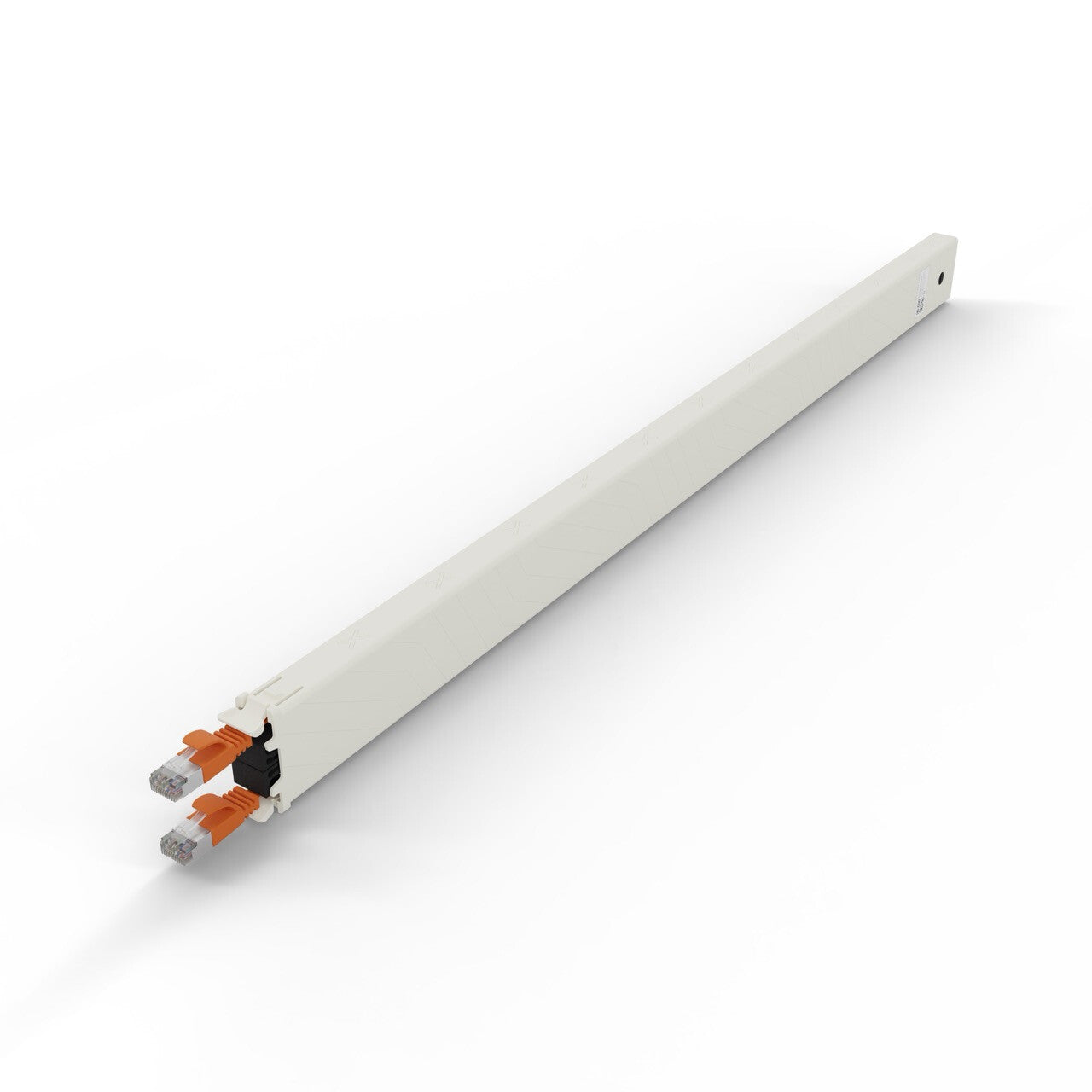

PATCHBOX .one / Cassette / 30RU / STP / Orange
PATCHBOX .one / Cassette / 30RU / STP / Orange
Regular price
£26.52 GBP
Regular price
Sale price
£26.52 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:CONE30STPOR
20 in stock
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
patchbox.one / Cassette / 30RU / STP / Orange
Build your own patchbox.one by filling your Frame with up to 24 Cable Cassettes. Have it your way and choose from various cable types, colours, connector types and cable lengths. With its modular system, you can exchange cassettes within seconds and easily adapt the rack as you need it. The Cat.6a cables inside the Cassette meet the ISO standards, and you can power devices with PoE (STP) and PoE++ (UTP), or choose the most flexible and bend-insensitive Fiber Optic Cables available, made from Corning® ClearCurve® Fiber.
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Features | |
|---|---|
| Cable length | 1.8 m |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Product colour | Orange |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| AWG wire size | 36 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|
| Packaging content | 1 x patchbox.one / Cassette / 30RU / STP / Violet |
| Weight & dimensions | |
|---|---|
| Width | 18 mm |
| Depth | 600 mm |
| Height | 40 mm |
| Weight | 200 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 668 mm |
| Package depth | 28 mm |
| Package height | 50 mm |
| Package weight | 280 g |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
