PATCHBOX

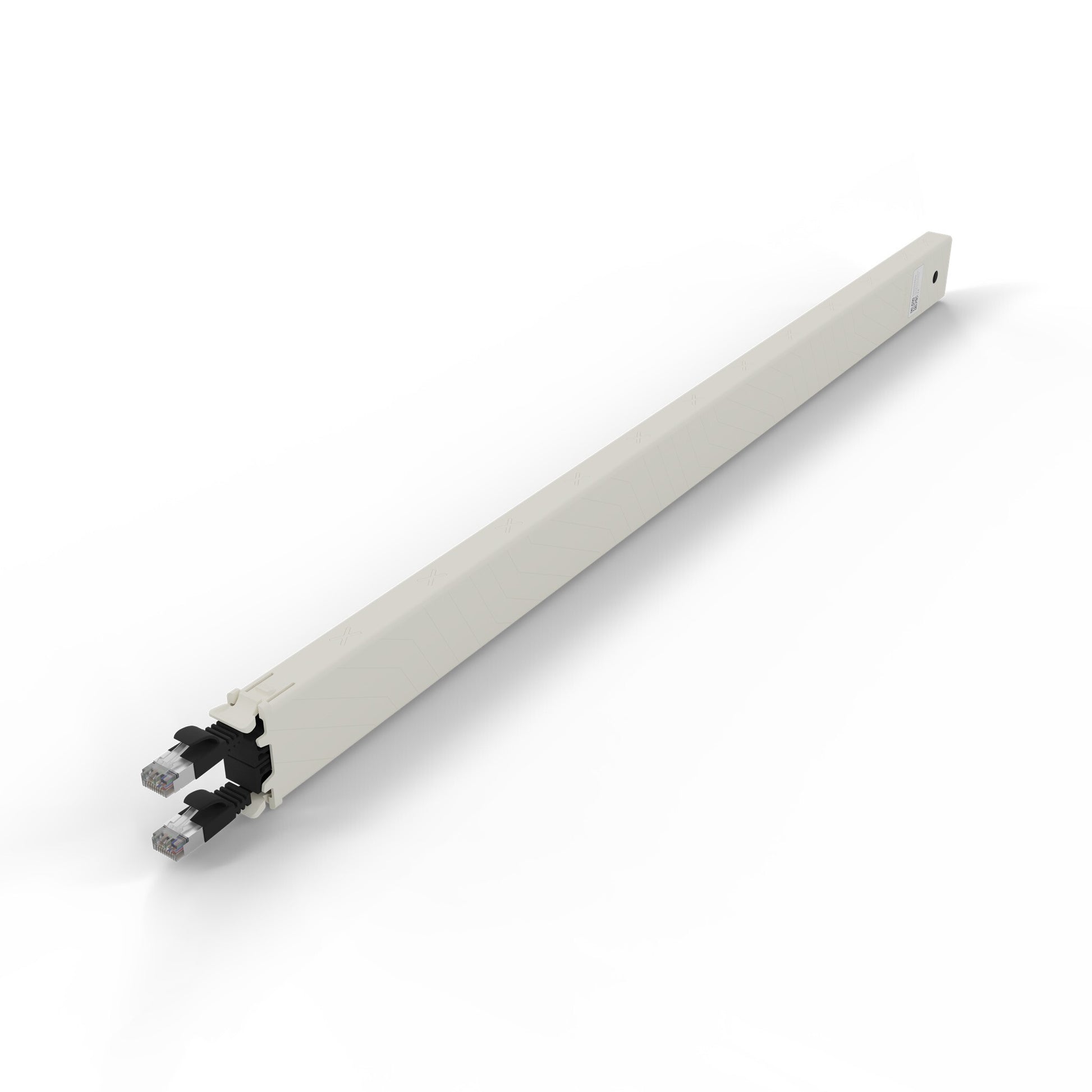

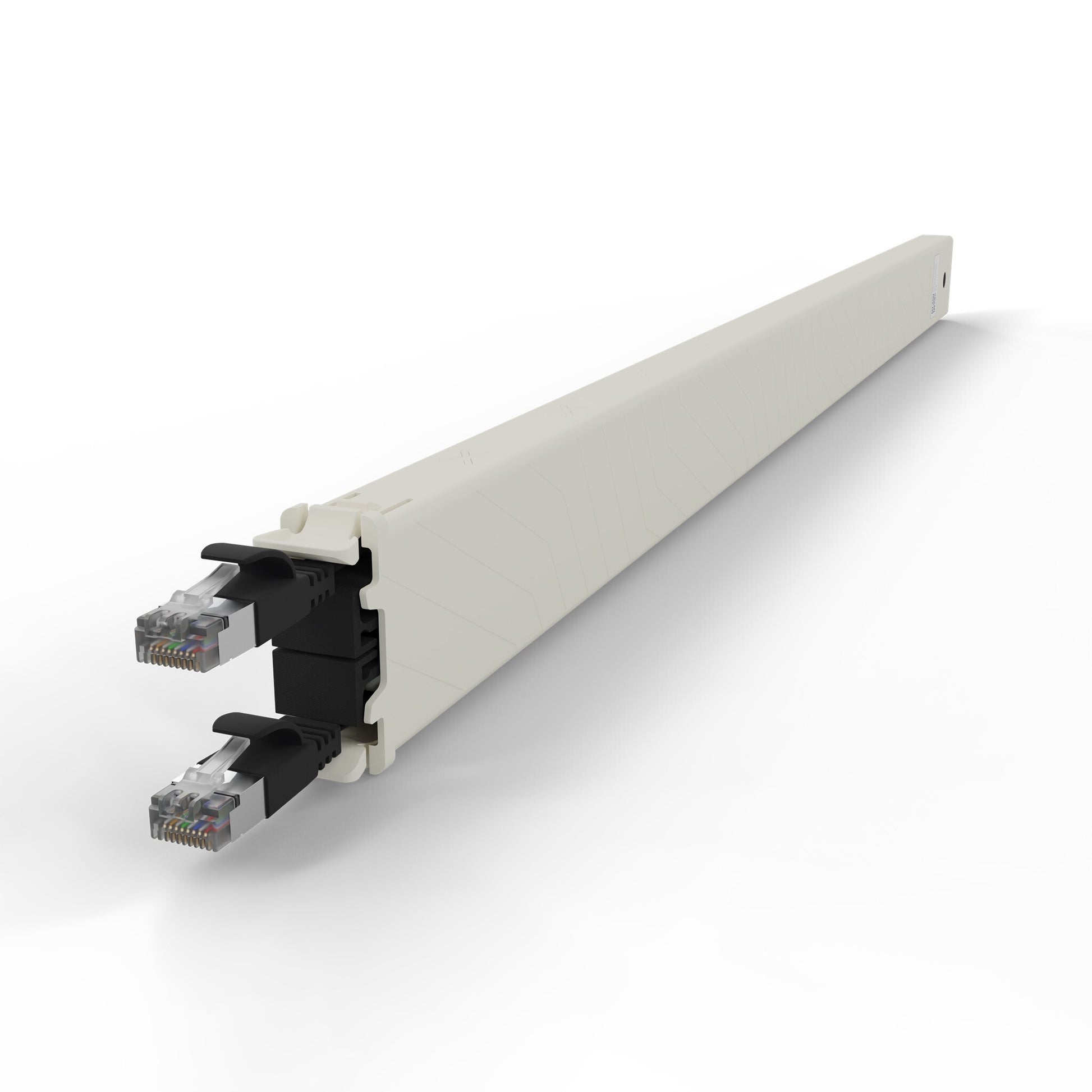

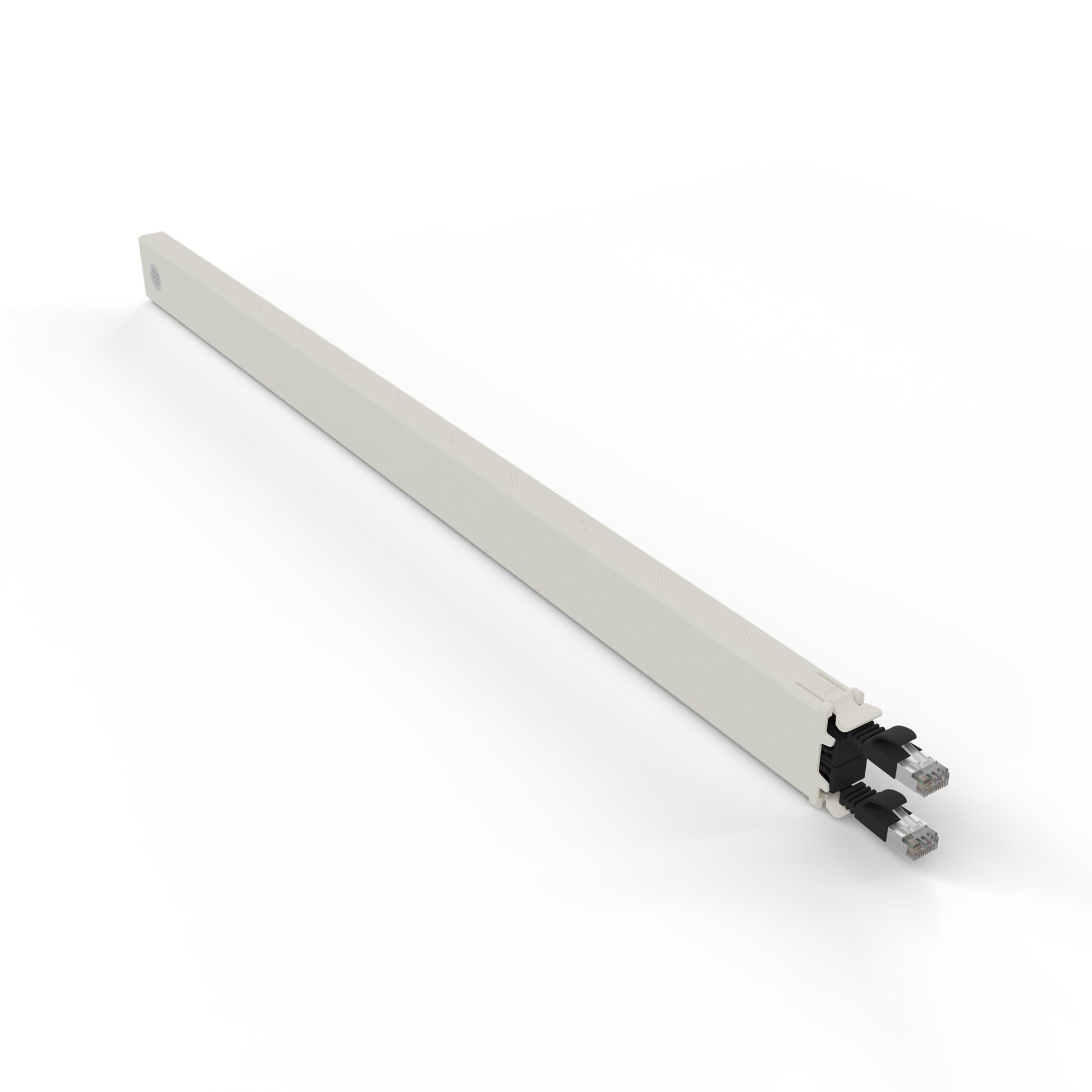

PATCHBOX .one / Cassette / 30RU / STP / Black
PATCHBOX .one / Cassette / 30RU / STP / Black
Couldn't load pickup availability
SKU:CONE30STPBK
Low stock: 8 left
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.
Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.
Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.
High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).
Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.
Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.
| Features | |
|---|---|
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Country of origin | Hungary |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) | Yes |
| Bend radius (min) | 1.2 cm |
| Data transfer rate | 10000 Mbit/s |
| AWG wire size | 36 |
| Conductor material | Copper |
| Cable shape | Flat |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Gold |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 2 | RJ-45 |
| Connector 1 | RJ-45 |
| Product colour | Black |
| Cable shielding | U/FTP (STP) |
| Cable standard | Cat6a |
| Cable length | 1.8 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Packaging content | |
|---|---|
| Packaging content | 1 x patchbox.one / Cassette / 30RU / STP / Black |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Height | 40 mm |
| Depth | 600 mm |
| Width | 18 mm |
| Packaging data | |
|---|---|
| Package weight | 280 g |
| Package height | 50 mm |
| Package depth | 28 mm |
| Package width | 668 mm |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
