PATCHBOX
PATCHBOX .one / 8RU / UTP / Yellow
PATCHBOX .one / 8RU / UTP / Yellow
Couldn't load pickup availability
SKU:PONEX8UTPYL
Low stock: 2 left
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
All-in-One Cable Management Solution
With 24 Cat.6a cassettes, it eliminates clutter and maximizes airflow, improving your IT environment’s health.
Speed That Pays Off
Enjoy up to 10x faster installation and troubleshooting, saving precious hours during deployment and maintenance and reducing the duration of downtimes by up to 90%.
Optimize Rack Space Like Never Before
Reclaim up to 50% more rack space thanks to its retractable cable design—no more excess cable lengths.
Color-Code Your Network Visually
Cables are available in 8 colors, supporting fast identification and structured cabling across different IT zones.
Power Ready and Standards Compliant
Our Twisted Pair Cat.6a cables meet ISO/IEC standards and support PoE (STP) and PoE++ (UTP) technologies.
Engineered for Compact Environments
Perfect for smaller server cabinets, this version can cover up to 8 rack units with 0.8m cables that are fully retractable.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
| Features | |
|---|---|
| Cable length | 0.8 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Product colour | Yellow |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| Networking standards | IEEE 802.3bt |
| AWG wire size | 30 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|

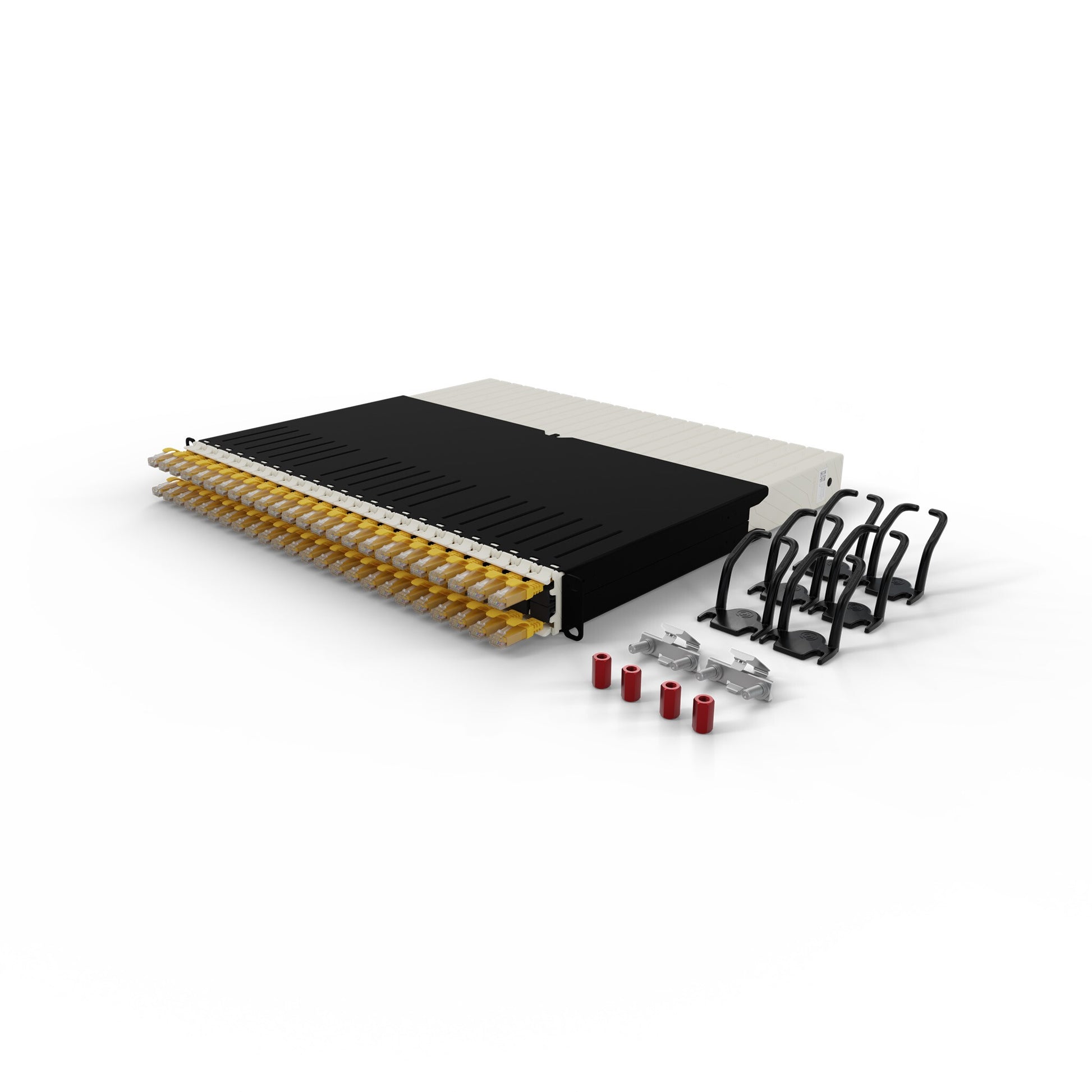

| Packaging content | 24 x patchbox.one / Cassette / 8RU / UTP / Yellow 1 x patchbox.one / Frame 6 x Patchcatch 2 x /dev/mount |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 365 mm |
| Height | 44 mm |
| Weight | 5.76 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 587 mm |
| Package depth | 557 mm |
| Package height | 55 mm |
| Package weight | 6.7 kg |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
