PATCHBOX .one / 30RU / UTP / Violet
PATCHBOX .one / 30RU / UTP / Violet
Couldn't load pickup availability
SKU:PONE30UTPVI
Low stock: 2 left
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
The Ultimate Cable Management Solution

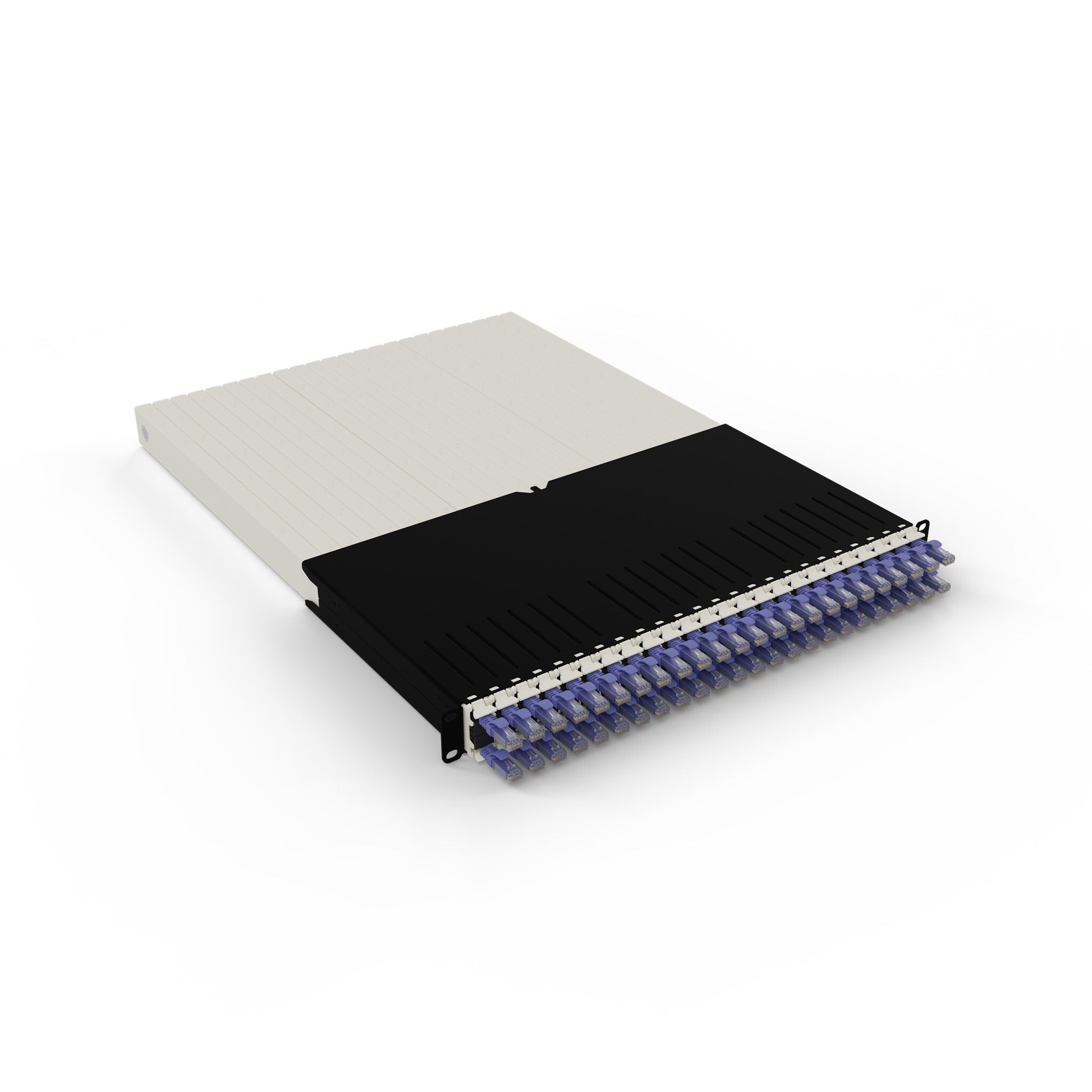

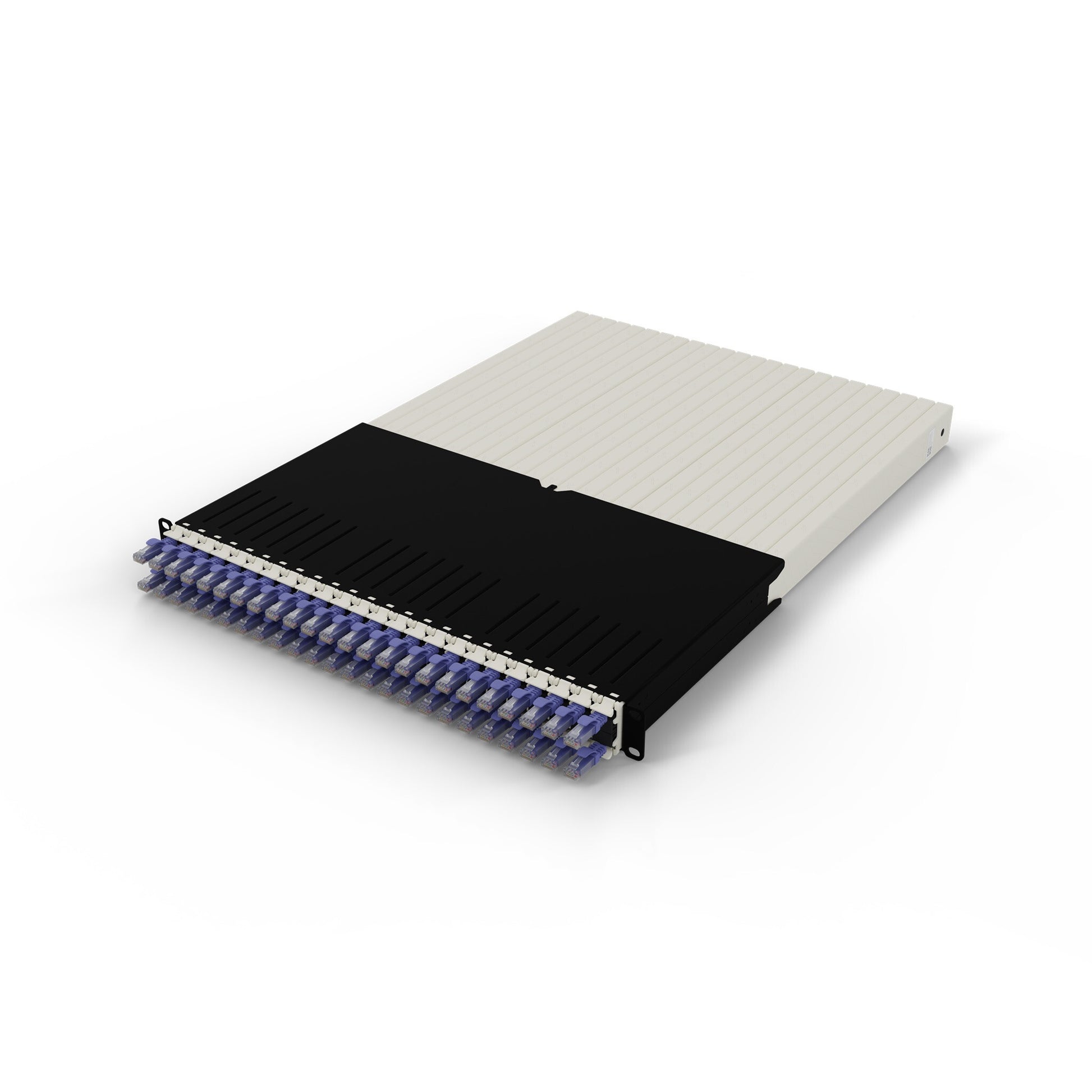

The patchbox.one with its retractable Cat.6a cables is the ultimate solution for keeping your network rack forever organized, efficient, and future-proof. It is equipped with super-flexible twisted pair cables that are retractable, lighter and easier to handle.
Say Goodbye to Cable Chaos
With 24 retractable cables neatly stored inside modular cassettes, your rack stays tidy, reducing clutter and improving airflow.
Up to 50% More Usable Rack Space
By storing excess cable length where it doesn’t bother you and removing conventional cable managers, patchbox.one frees up precious rack space.
10x Faster Installation & Troubleshooting
Every cable retracts to your desired length—no measuring, no zip ties. IT Technicians can work significantly faster and more accurately and downtimes can be reduced by up to 90%.
High-Speed, PoE-Ready Performance
Cat.6a cables meet ISO/IEC 11801 Class Ea standards and support PoE (STP) and PoE++ (UTP), ready to power your devices.
Color-Code for Instant Overview
Choose from 8 different cable colors—ideal for cable-coding your rack setup.
Optimized for Your Rack Size
While our 8RU version includes 0.8m cables for compact racks, the 30RU version comes with 1.8m cables, ideal for full-height network cabinets.
Modular and Customizable
Cassettes can be replaced or rearranged in seconds—adapt to your changing infrastructure without starting over.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
| Features | |
|---|---|
| Cable length | 1.8 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Product colour | Violet |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Flat |
| Conductor material | Copper |
| Networking standards | IEEE 802.3bt |
| AWG wire size | 30 |
| Data transfer rate | 10000 Mbit/s |
| Bend radius (min) | 1.2 cm |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|

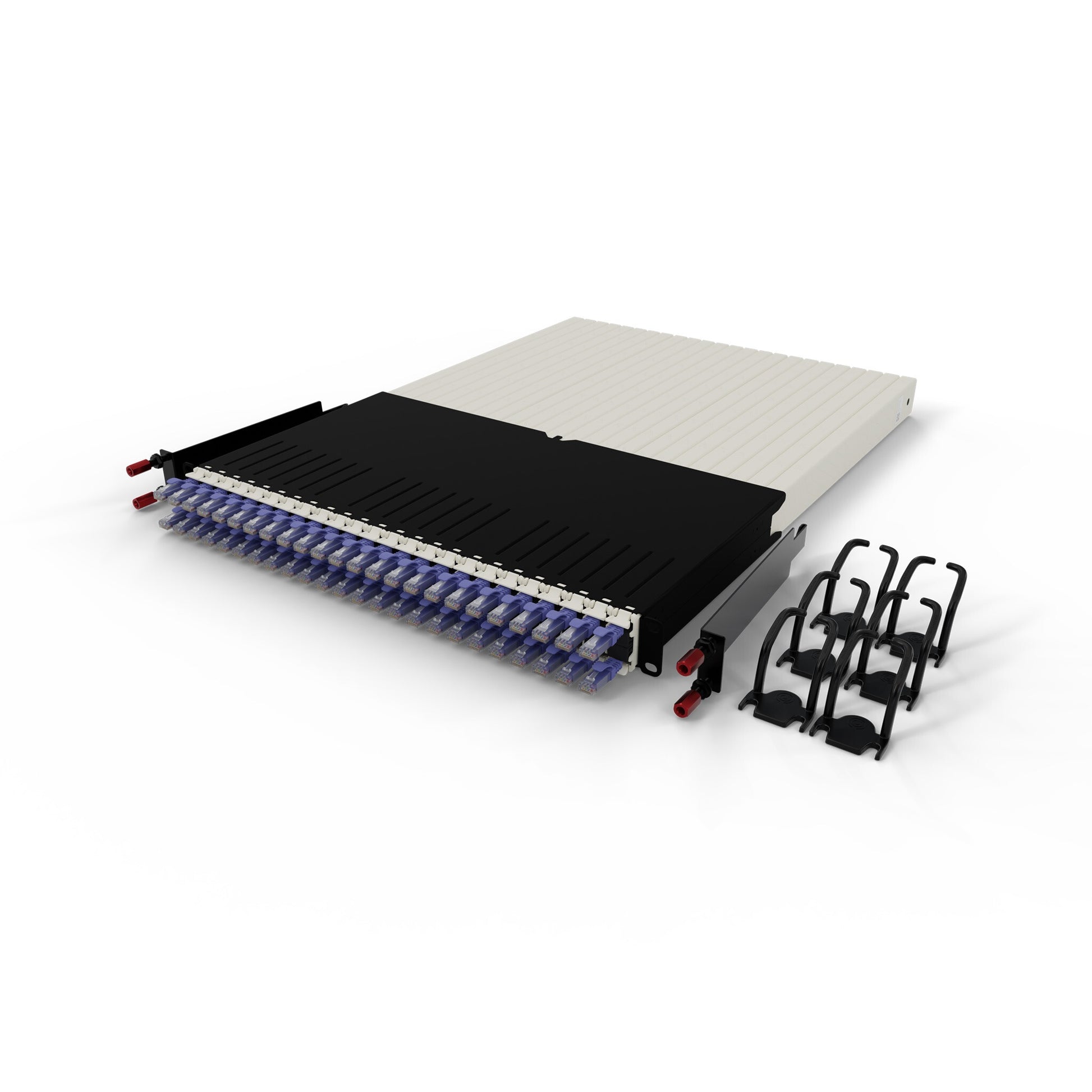

| Packaging content | 24 x patchbox.one / Cassette / 30RU / UTP / Violet 1 x patchbox.one / Frame 4 x Flanges 4 x Hex nuts 6 x Patchcatch 2 x Mounting rails |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 600 mm |
| Height | 44 mm |
| Weight | 7.08 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 799 mm |
| Package depth | 587 mm |
| Package height | 55 mm |
| Package weight | 8.56 kg |
| Other features | |
|---|---|
| Cables included | LAN (RJ-45) |
