PATCHBOX

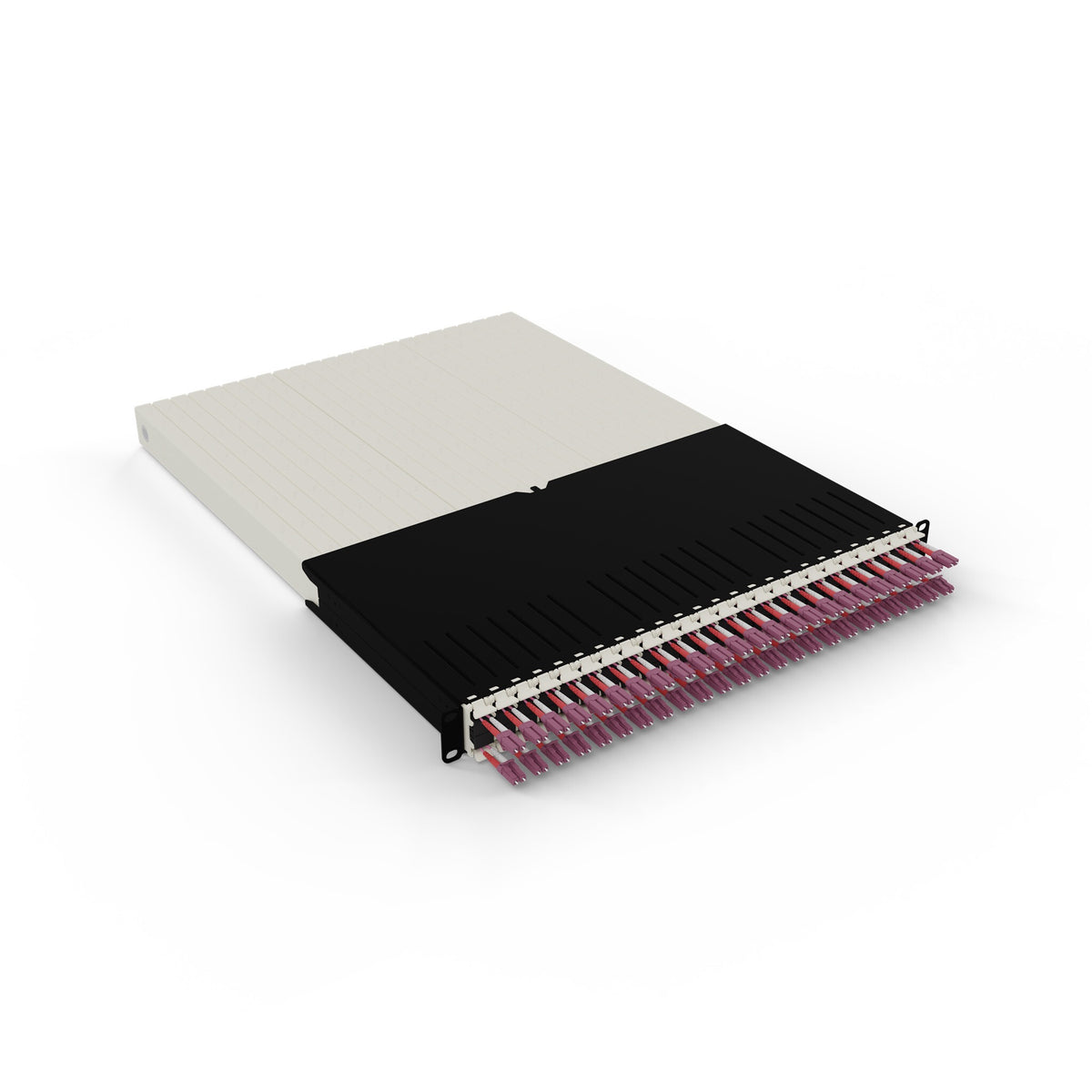

PATCHBOX .one / 30RU / OM4 / LC-LC
PATCHBOX .one / 30RU / OM4 / LC-LC
Couldn't load pickup availability
SKU:PONE30OM411
Low stock: 4 left
- Keep your rack forever organized
- Up to 10x faster installation & troubleshooting
- Up to 50% more space
- ISO/IEC 11801 Channel Class Ea
- 10-Year Warranty on patchbox.one & Cables
The Ultimate Cable Management Solution
The patchbox.one with Fiber Optic cables is the ideal solution for a clean, efficient, and future-ready network rack. Equipped with ultra-flexible, retractable cables made from Corning® ClearCurve® Fiber, it delivers high performance while staying perfectly organized—no excess length, no mess.
High-Speed, High-Flexibility
Equipped with high-performing 1.8m fiber cables the patchbox.one offers seamless performance for enterprise network environments.
Fiber That Goes Further
We use bend-insensitive Corning® ClearCurve® Fiber, making our patching system more flexible and durable than traditional fiber.
Organized and Maintenance-Free
All cables can be retracted to your desired length—so you can deploy faster, troubleshoot easier, and stay more organized.
Supports Multiple Connectors
Compatible with LC-LC and LC-SC ports, it’s ready for a wide range of fiber applications and configurations.
Certified for Reliability
Meets ISO/IEC 11801-1:2017 standards and comes with a 10-Year Warranty for peace of mind.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
| Features | |
|---|---|
| Cable length | 1.8 m |
| Cable type | LC/LC |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Product colour | Pink |
| Core diameter | 50 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Country of origin | Hungary |
| Certification | ISO/IEC 11801-1:2017 |
| Packaging content | |
|---|---|
| Packaging content | 24 x patchbox.one / Cassette / 30RU / OM4 / LC-LC 1 x patchbox.one / Frame 4 x Flanges 4 x Hex nuts 6 x Patchcatch 2 x Mounting rails |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.08 kg |
| Bending radius | 7.5 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 799 mm |
| Package depth | 587 mm |
| Package height | 50 mm |
| Package weight | 8.56 kg |
