Panorama Antennas

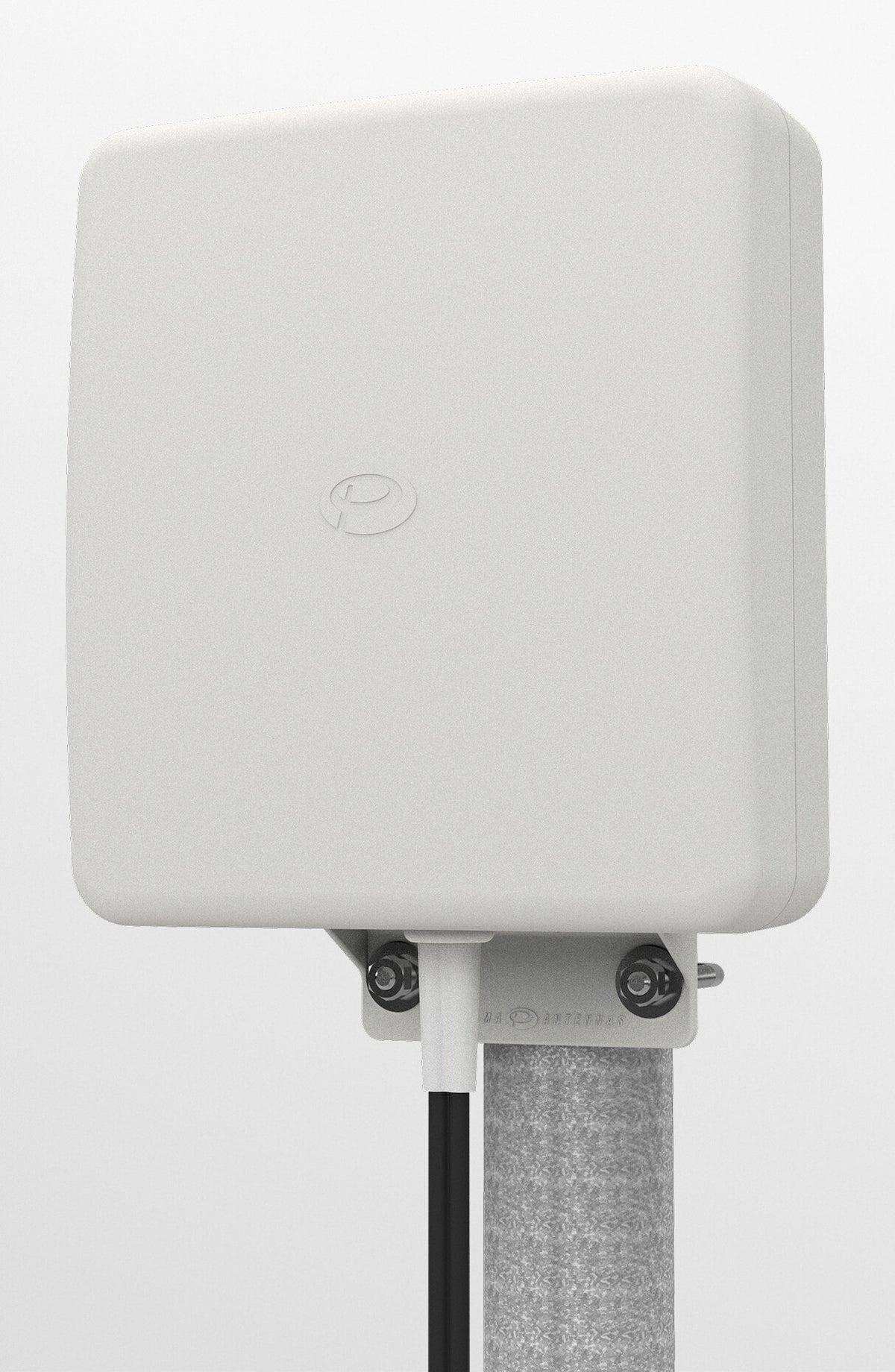

Panorama Antennas WMM8G-7-38-5SP network antenna Directional antenna SMA 9 dBi
Panorama Antennas WMM8G-7-38-5SP network antenna Directional antenna SMA 9 dBi
Regular price
£129.60 GBP
Regular price
Sale price
£129.60 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:WMM8G-7-38-5SP
14 in stock
- Directional antenna SMA White
- 9 dBi
- 0.698-0.96/1.71-3.8 GHz
- 50 Ω
- Vertical polarization Male
- Wall/Pole
- 50 W
2x2 Cellular/LTE (698-960/1710-3800MHz), 9 dBi, Directional, IP65

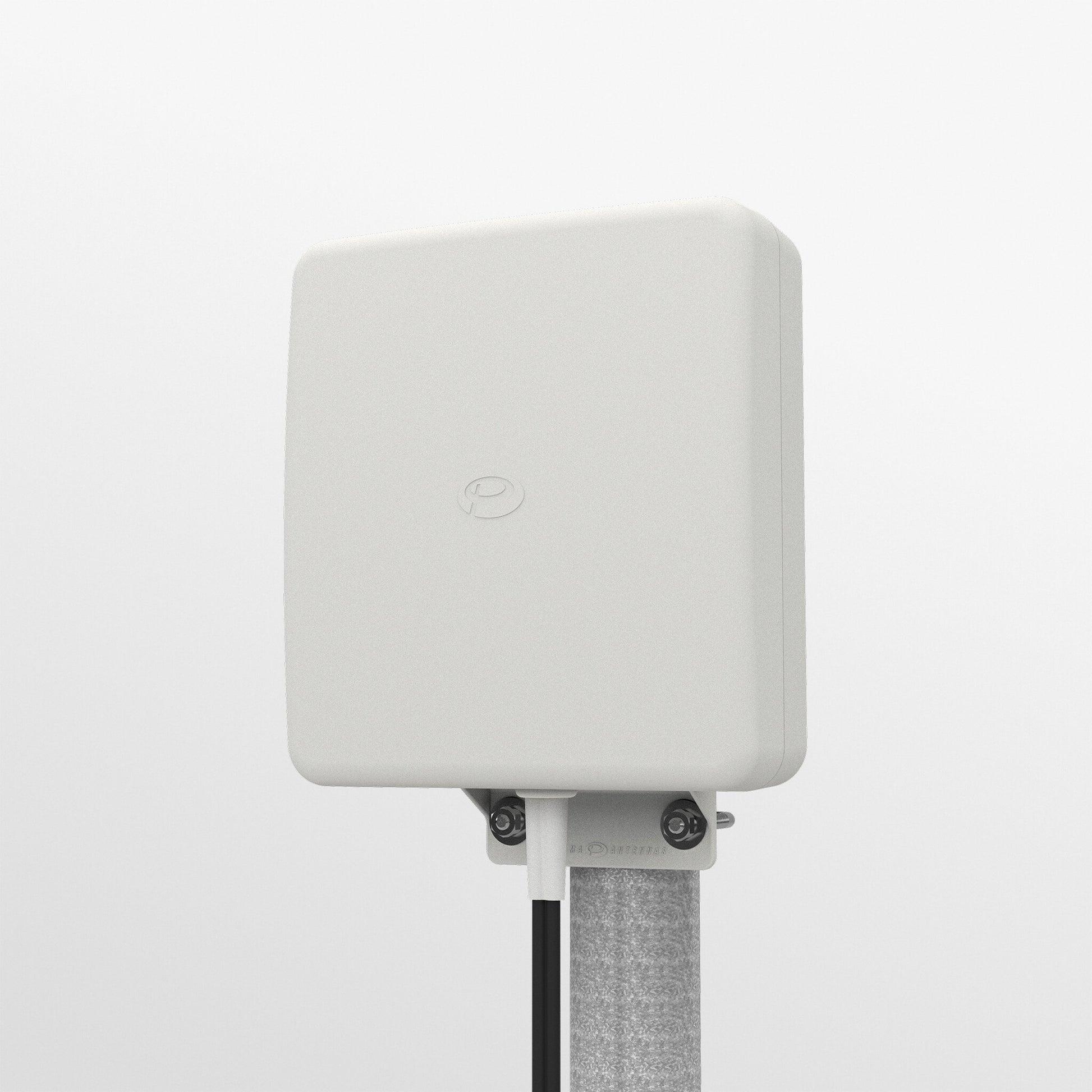

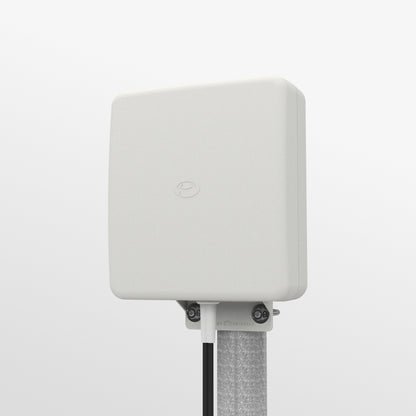

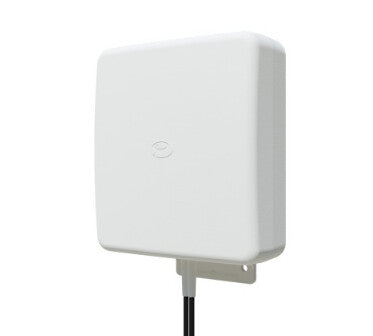

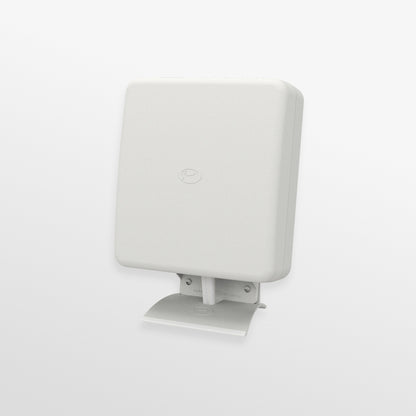

The WMM8G-7-38 antenna is a high gain directional 2x2 MIMO signal boosting antenna for 4G and some 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G is equipped to provide client side MIMO and diversity support for 4G and some 5G networks. The rugged, weatherproof housing is designed for wall mounting.

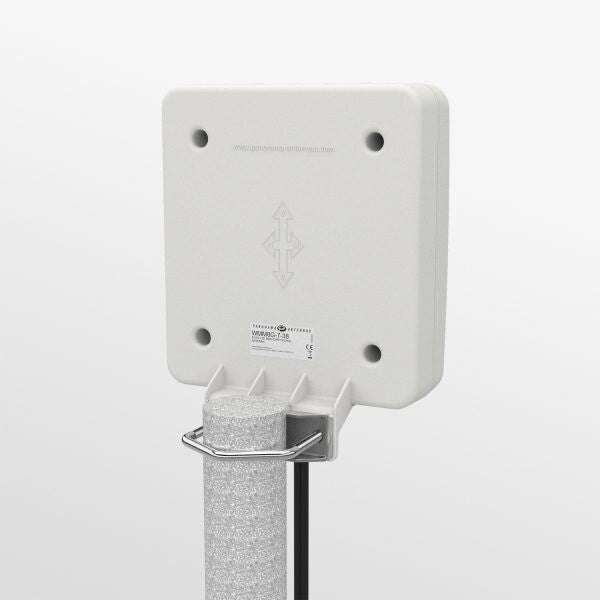

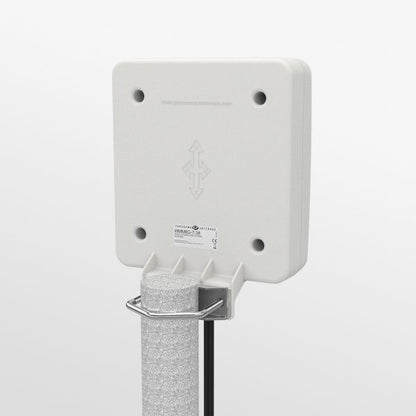

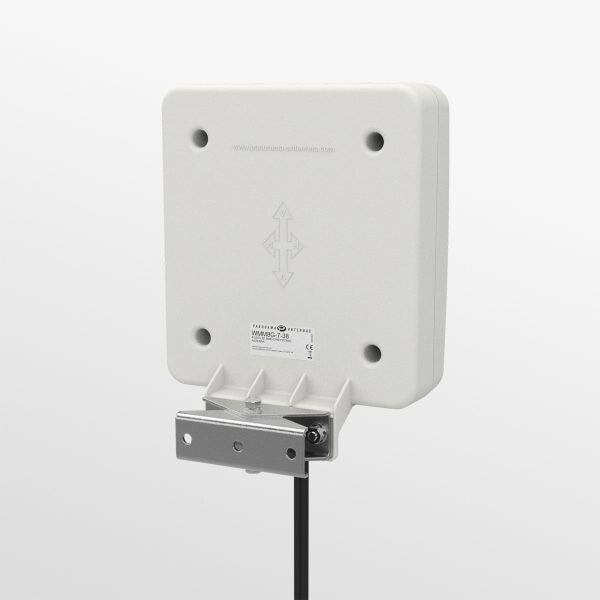

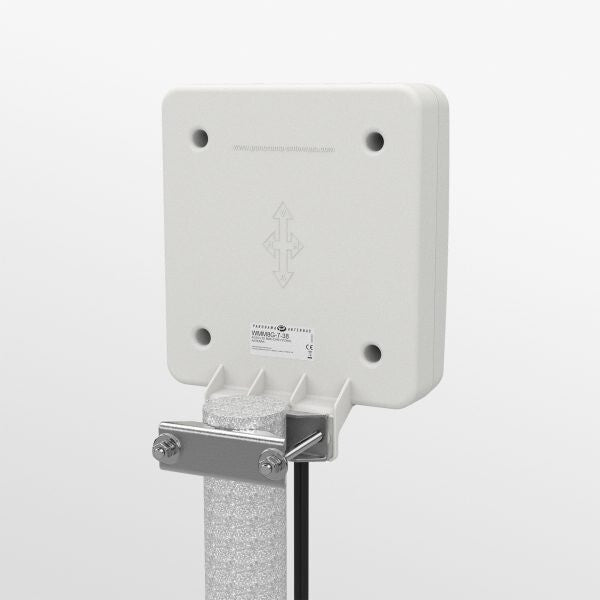

Wall and mast mounting brackets are provided. 5 metres of fitted low loss double shielded twin cable minimizes exposed connector joints and simplifies cable management for easy installation.
| Performance | |
|---|---|
| Impedance | 50 Ω |
| Frequency band | 0.698-0.96/1.71-3.8 GHz |
| Antenna gain level (max) | 9 dBi |
| Features | |
|---|---|
| Product colour | White |
| Mounting | Wall/Pole |
| Cable length | 5 m |
| International Protection (IP) code | IP65 |
| Polarization | Vertical polarization |
| Antenna connector type | SMA |
| Connector gender | Male |
| Antenna type | Directional antenna |
| Power | |
|---|---|
| Power consumption (max) | 50 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 230 mm |
| Depth | 94 mm |
| Width | 180 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
