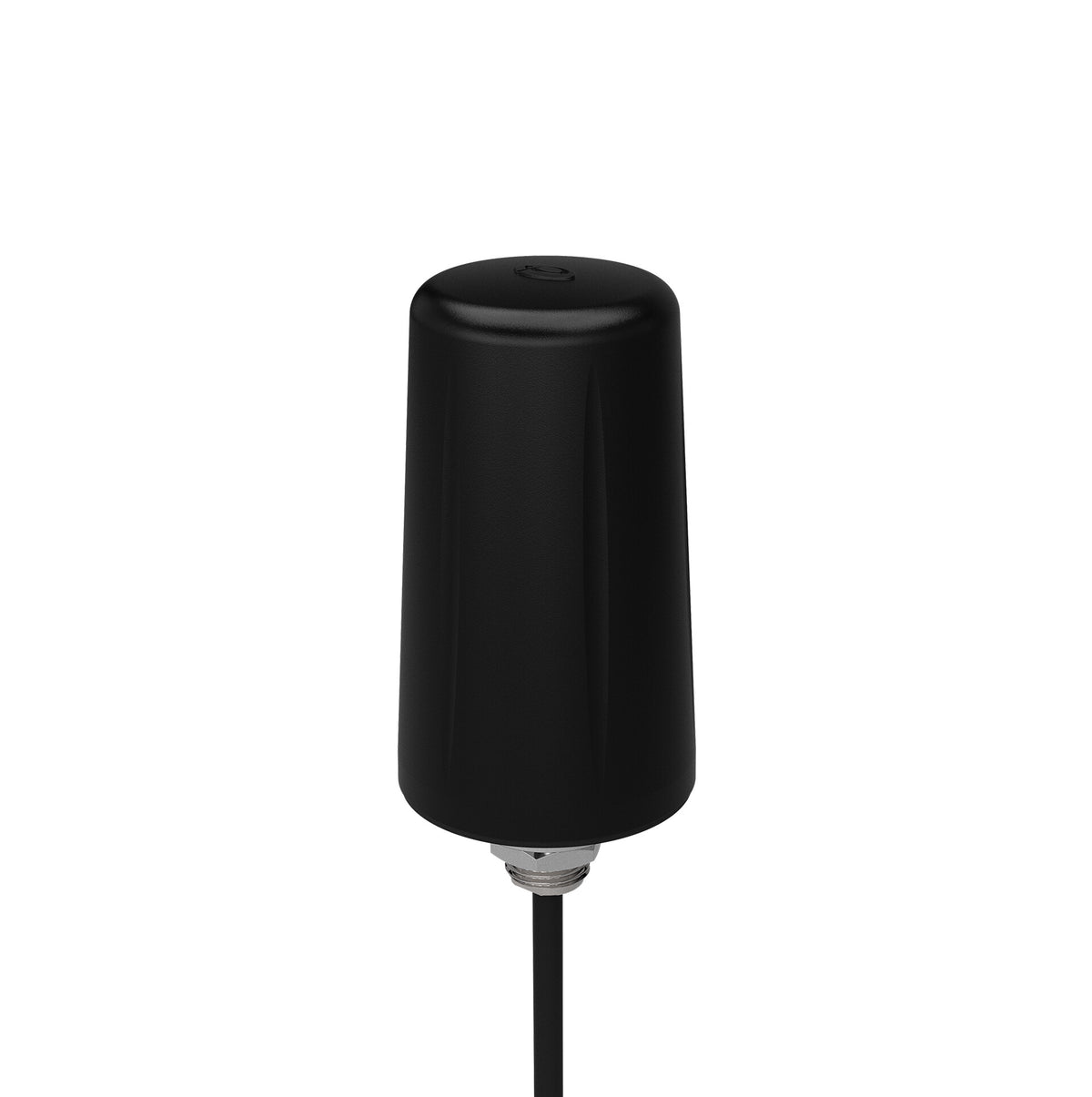

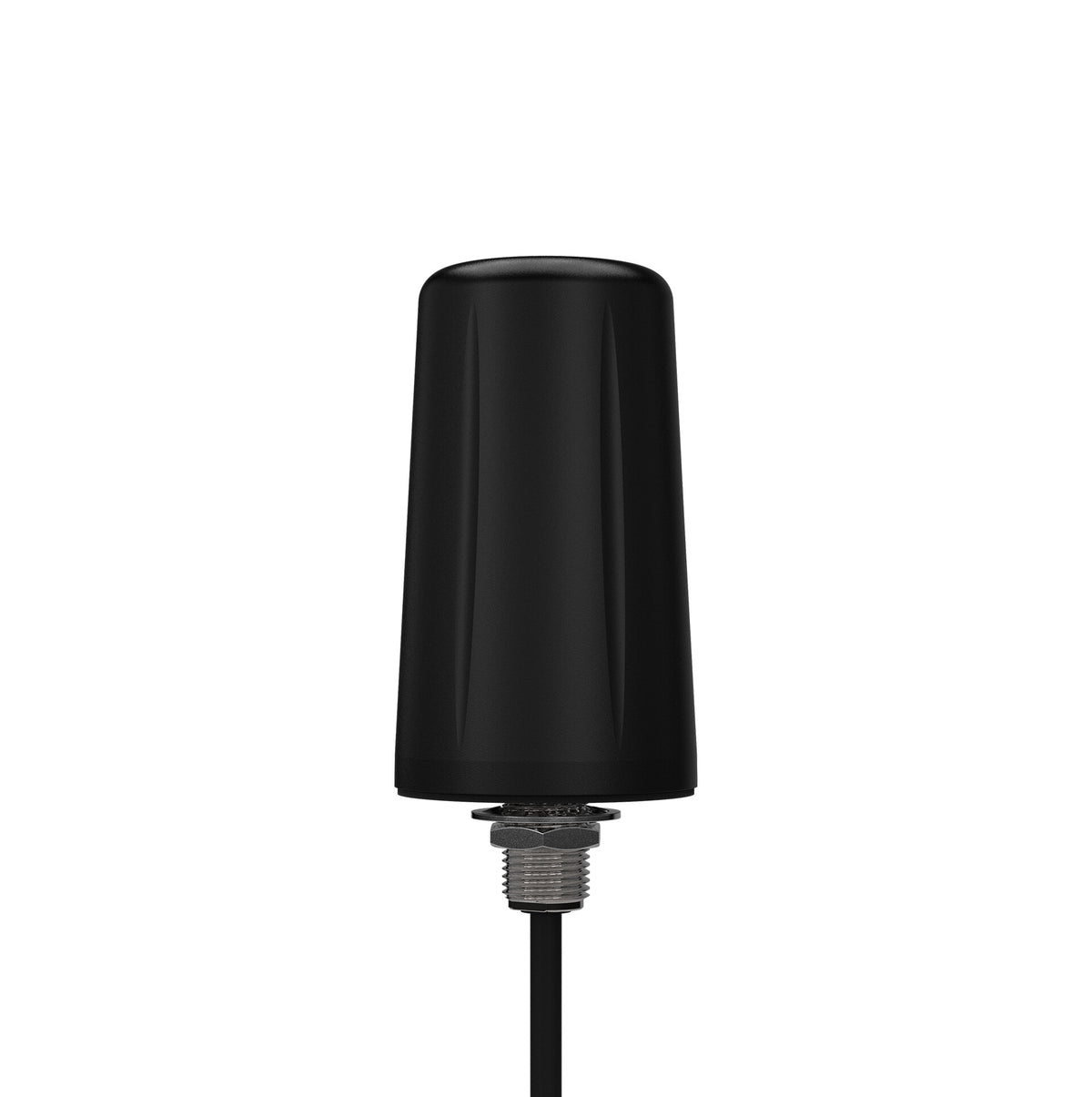

Panorama Antennas LPB-6-60-5SP network antenna Omni-directional antenna SMA 9 dBi

Panorama Antennas LPB-6-60-5SP network antenna Omni-directional antenna SMA 9 dBi

LPB-6-60-5SP

£23.80 GBP£19.83 GBP
£0.00 GBP £23.80 GBP£19.83 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

24 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Omni-directional antenna SMA Black
  • 9 dBi
  • 0.617 - 0.96 / 1.71 - 6 GHz
  • Male
9 dBI, 0.617 - 0.96 / 1.71 - 6GHz, IP66, Black

Description

The LPB-6-60 antenna is a cost effective Omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz. The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted. This Antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. This LPB-6-60 requires a conductive ground plane of >300mm (1′) diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

Performance
Antenna gain level (max) 9 dBi
Frequency band 0.617 - 0.96 / 1.71 - 6 GHz
Gain 9 dBi
Features
Antenna type Omni-directional antenna
Connector gender Male
Antenna connector type SMA
International Protection (IP) code IP66
Cable length 5 m
Product colour Black
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 48 mm
Depth 48 mm
Height 82 mm
